Wheel Steering Spindle Kit For Jonsered ICT 13 15 16 18 ICTH16 LR10 11 12 13

Compatible with Poulan Models:
Lawn Tractor
342054 (2006-03), 342064 (2006-06)
342074, 342074A, 342074B (2006-10)
342084 (2007-01)
3421H74, 3421H74-A, 3421H74-B (2006-10)
418014, 418024, 418034, 418044 (2006-01)
418054 (2006-03), 418064 (2006-06)
418144 (2006-12)
Compatible with Poulan Pro Models:
Lawn Tractor
PB 14538LT (960120124) (2012-09)
PB 145G38 (960120128) (2013-09)
PB 155G42 (960120129)(960120130) (2013-09)
PB 17542LT (960120125) (2012-08)(2014-01)
(960120126) (2012-08)
PB 19542LT (960120122) (2011-08)
11597 (960110306) (2012-01)

Compatible with Husqvarna Models:
132 L String Trimmer (SN: 19904400001 - 19920100000)
281 Chainsaw (SN: 19900100001 - 19911400000)
385 XP Chainsaw (SN: 20064000001 & Above)
326 HD 75 X Hedge Trimmer (SN: 20030100001 - 20062700000)
5524 ST (961910016-01) Snow Blower (2007-10)
C 122 (966727501) (2011)
Lawn Tractor
CT 130 (954170012-A) (1999-03)
(954170017-B) (2000-02)
CT 150 (954170019-A) (2000-01)
(954170019-B) (2000-01)(2000-03)
CT 160 (954170020-B) (2000-03)
CTH 130 (954140100-A) (1999-10)
(954170018-A) (2000-03)
(954170018-B) (2000-03)
CTH 150 (954140101-A) (1999-10)
CTH 160 (954170013-B) (1999-03)
(954170021) (2000-02)(2001-02)
CTH 160 II (954170022-B) (2000-02)
LR 110 (954001232-C) (1995-08)
LR 111 (954001212-A) (1994-07)
Garden Tractor
GT 160 (H1644C) (1991-08)
GTH 2752 TF (960410175-02) (2010-11)
GTVH 200 (954140016-B) (1999-03)
HVGTV 160 AR (1990-01)
GTVH 205 (954140102-A) (1999-10)

Compatible with Jonsered  Models:
Lawn Tractor
ICT 13 (954130027) (1999-03)
(954130029) (1999-03)
(954130039) (2000-02)
ICT 13 A (954130040) (2000-02)(2000-04)
ICT 15 (954130041) (2000-02)(2000-04)
ICT 16 A (954130042-D) (2000-04)
(954130042) (2000-02)
ICT 18 A (954130043-A) (2000-03)
ICTH 16 (954130028)(954130030) (1999-03)
Riding Mower
LR 10 (1995-01)
LR 11 (954130002) (1997-04)
(1998-01)(1998-04)
LR 12 (954003411) (1996-01)(1997-04)
(954130034) (2000-03)(2000-04)
LR 12 C (954820181) (1996-01)
LR 12 (1995-01)(1998-04)
LR 12 U (954820181) (1997-04)
LR 13 (954130013) (1998-01)

Compatible with Electrolux/AYP Models:
Lawn Tractor
LT 125, LTH 145
LT 2113 (960110266) (2012-08)
LT 2113 A (960110310) (2012-09)
LT 2114 (960110293) (2012-08)
LZ 11597 (960110259) Lazer (2010-09)(2011-11)
LZ 12597 AK (960110298) Lazer (2010-09)
LZ 165107 H (960110304) Lazer (2011-12)
P 11597 (960110193) (2010-09)
P 12597 (960110239) (2010-09)(2011-08)
PP 1136J A (1994)
PP 11536K A (1995)
PP 1238 A (1991)
PP 1242 A (1993)
PP 12542J A (1994)
PP 125H38K A (1995)
PP 125H42J A (1994)

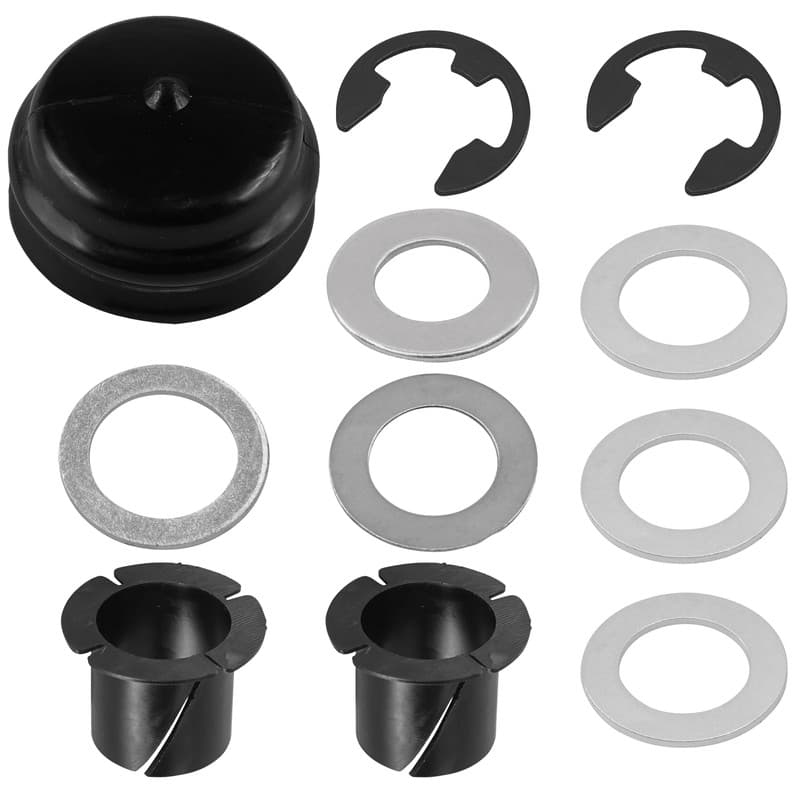

Order Includes:

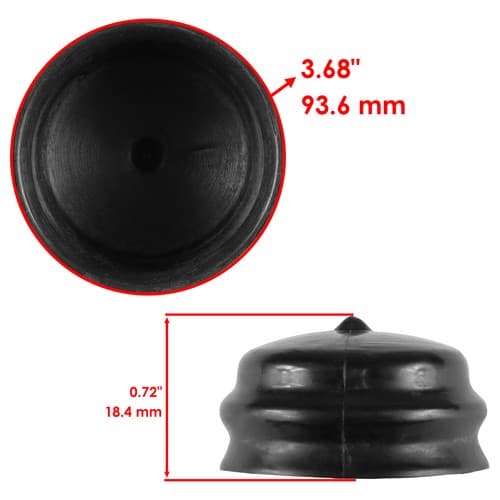

1 x Cap: 532121232

Width: 18.4mm - 0.72 in
Outer Diameter: 93.6mm - 3.68 in
Material: Plastic

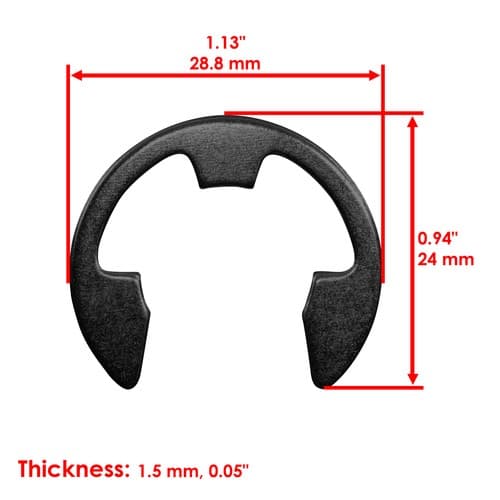

2 x Ring Clip: 812000029, 12000029, 705319

Width: 28.8 mm - 1.13 in
Height: 24mm - 0.94 in
Thickness: 1.5mm - 0.05 in
Material: Metal

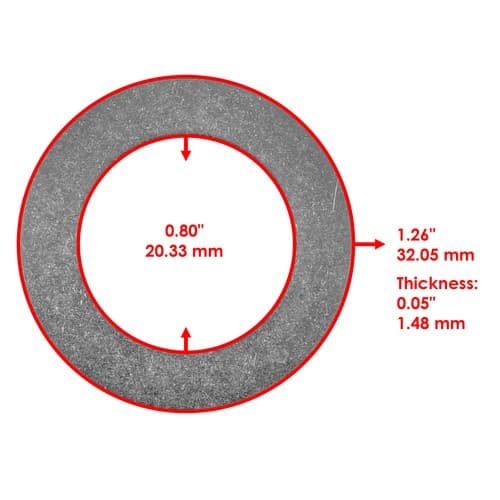

3 x Washer: 532121749

Inner Diameter: 20.33mm - 0.8 in
Outer Diameter: 32.05mm - 1.26 in
Thickness: 1.48mm - 0.05 in
Material: Steel

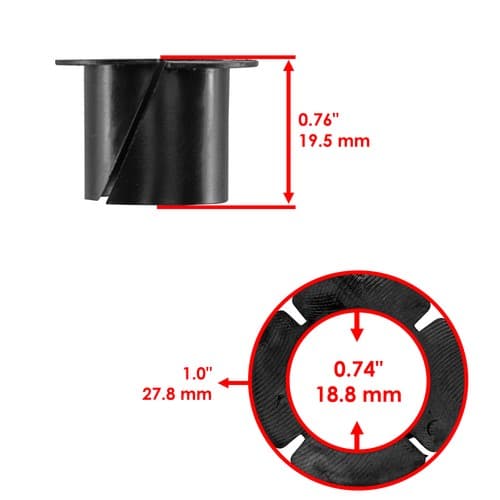

2 x Bushing: 532003366

Width: 19.5 mm - 0.76 in
Inner Diameter: 18.8mm - 0.74 in
Outer Diameter: 27.8mm - 1.06 in
Material: Plastic

1 x Washer: 532006266, 532124931

Inner Diameter: 19mm - 0.74 in
Outer Diameter: 31.95mm - 1.25 in
Thickness: 0.64mm - 0.03 in
Material: Steel

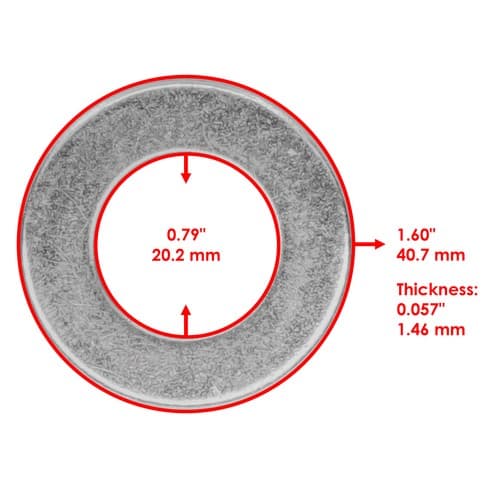

1 x Washer: 532121748

Inner Diameter: 20.2mm - 0.79 in
Outer Diameter: 40.7mm - 1.6 in
Thickness: 1.46mm - 0.057 in
Material: Steel

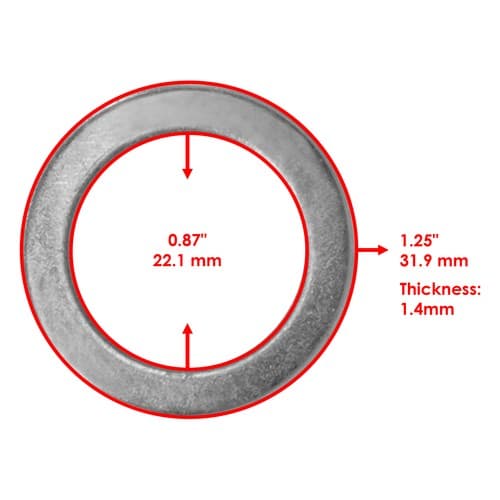

1 x Washer: 819272016, 709253, 532171240

Inner Diameter: 22.1mm - 0.87 in
Outer Diameter: 31.9mm - 1.25 in
Thickness: 1.4mm - 0.04 in

Wheel Spindle Part Numbers
Right: 532137062, 532135227
Left: 532137061, 532135228
