Specifications
- MPN
- 43583, 1-633959, 1633959, E633959, 1-633584, 1-633585, 1633585, 700417, 700418, 254-78, 254-79, 254-92, 230-929, 1-633581, 103-0063, 135-8997, 539105524, 482622, 1633584, 25478, 25479, 25492, 230929, 1633581, 1030063, 1358997, 1-523009, 1-633987, 103-0065, 117-0361, 1523009, 1633987, 1030065, 1170361, 1-642111-01, 103-1474-01, 116-8888, 164211101, 103147401, 1168888
- Mpn
- 43583, 1-633959, 1633959, E633959, 1-633584, 1-633585, 1633585, 700417, 700418, 254-78, 254-79, 254-92, 230-929, 1-633581, 103-0063, 135-8997, 539105524, 482622, 1633584, 25478, 25479, 25492, 230929, 1633581, 1030063, 1358997, 1-523009, 1-633987, 103-0065, 117-0361, 1523009, 1633987, 1030065, 1170361, 1-642111-01, 103-1474-01, 116-8888, 164211101, 103147401, 1168888
- Type
- Axle & Bearing Kit
- Brand
- Caltric
- Color
- Silver
- Model
- For Exmark 1-633959, 1-633585, 1-633584, 1-633580, 1-633581
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Width
- 16.6 mm - 0.65 in
Description
Premium Quality Replacement Part
Front Mower Wheel Axle & Bearing Kit
Compatible with Toro Models:
Z Master Zero-Turn Mower
74211 74212 (Z 252 L)(SN: 200000001 - 200999999) (2000) 52" 62"
74209 (Z 253) (SN:0000001-0000999)(200001000-200999999) (2000) 62"
74225 (Z 253) (SN: 210000001-230999999) (2001-2003) 62"
74226 (Z 255) (SN: 210000001-220999999) (2001-2002) 62"
74228 74227 (Z 255) (SN: 210000001-220999999) (2001-2002) 52" 72"
74203 74205 (Z 255) (SN: 200000001-200999999) (2000) 62"
74218 74219 (Z 256) 62" (SN: 200000001 - 200999999) (2000) 62" 72"
74230 74231 (Z 257) (SN: 230000001 -230999999) (2003) 52"
74216 (Z 283 L) (SN: 210000001 - 210999999) (2001) 62"
74213 74214 (Z287L) (SN: 210000001-230999999) (2001-2003) 62" 72"
Compatible with Exmark Models:
Lazer Z Zero-Turn Mower
LZ18KC523 18hp Koh. (SN: 190000 - 219999) (1999) 52"
LZ20KC524 20hp Koh. (SN: 320000 - 439999) (2002-2003) 52"
LZ22KC523 22hp Koh. (SN: 190000 - 219999) (1999) 52"
LZ22LKA523 22hp Kw. (SN: 190000 - 259999) (1999-2000) 52"
LZ25KC523 23 hp 25hp Koh. (SN: 190000 - 259999) (1999-2000) 52"
LZ25KC524 25hp Koh. (SN: 260000 - 369999) (2001-2002) 52"
LZ22KC604 22hp Koh. (SN: 190000 - 219999) (1999) 60"
LZ22LKA604 22hp Kw. (SN: 190000 - 259999) (1999-2000) 60"
LZ23KA604 23hp Kw. (SN: 260000 - 319999) (2001) 60"
LZ23KC604 23hp Koh. (SN: 220000 - 439999) (2000-2003) 60"
LZ23LKA604 23hp Kw. (SN: 260000 - 319999) (2001) 60"
LZ25KC604 25hp Koh. (SN: 190000 - 369999) (1999-2002) 60"
LZ25KC724 25hp Koh. (SN: 190000 - 219999) (1999) 72"

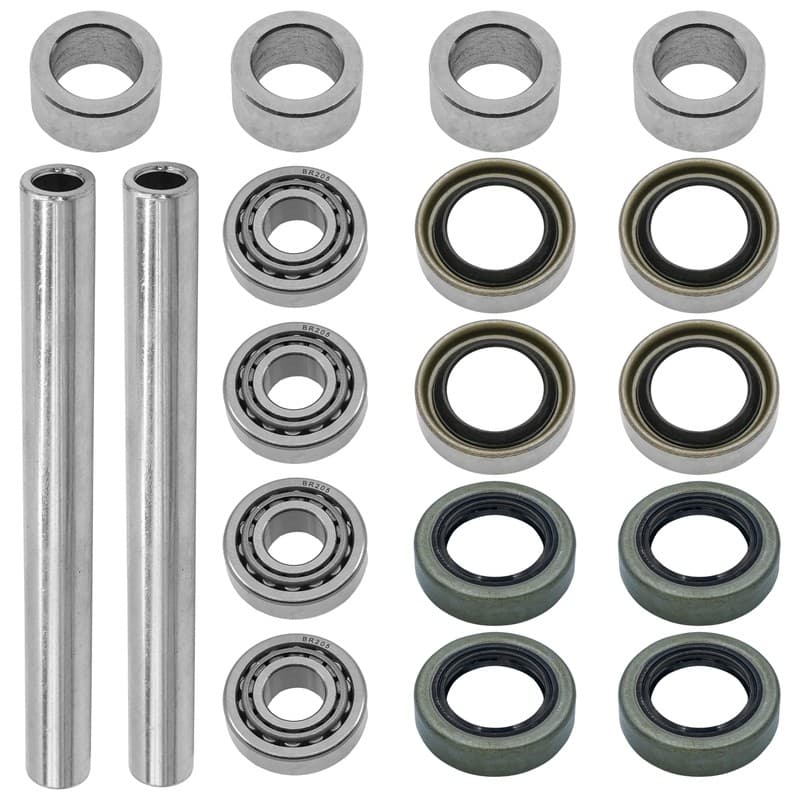

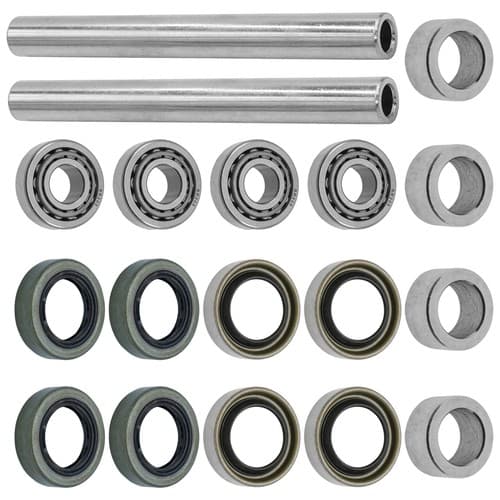

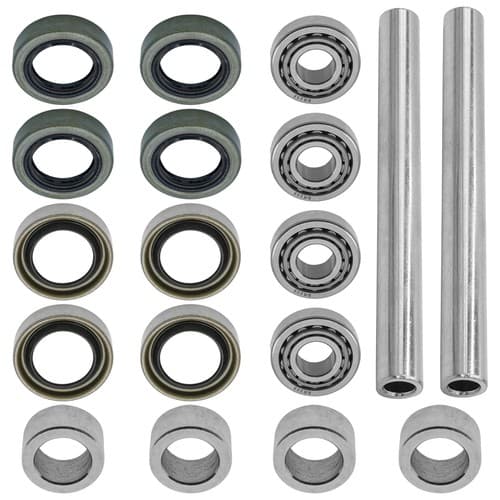

Order Includes:

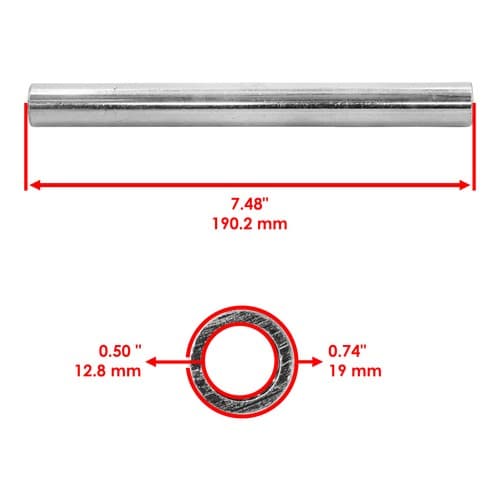

2 x Spacer Bushing : 43583, 1-633959, 1633959, E633959
Length: 190.2mm - 7.48 in
Inner Diameter: 12.8 mm - 0․5 in
Outer Diameter: 19 mm - 0․74 in

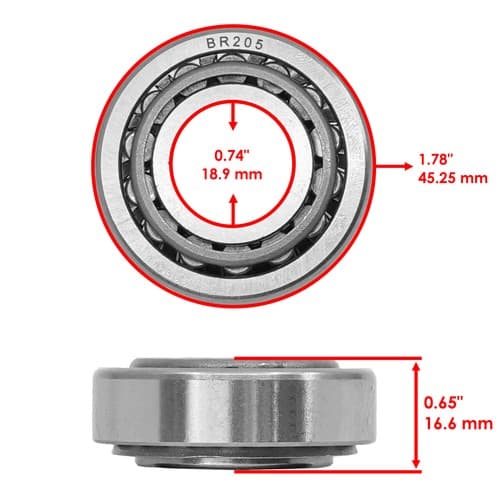

4 x Cone Bearing with Cup: 1-633584, 1-633585, 1633585, 700417, 700418, 254-78, 254-79, 254-92, 230-929
Width: 16.6 mm - 0.65 in
Inner Diameter: 18.9 mm - 0.74 in
Outer Diameter: 45.25 mm - 1.78 in
Material: Metal

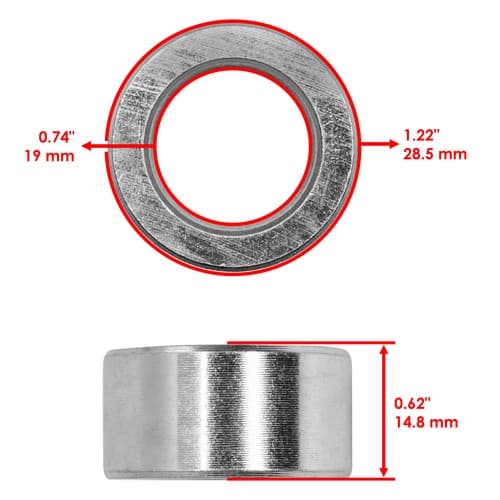

4 x Bushing: 1-633581
Width: 14.8mm - 0.62 in
Inner Diameter: 19mm - 0.74 in
Outer Diameter: 28.5mm - 1.22 in
Material: Metal

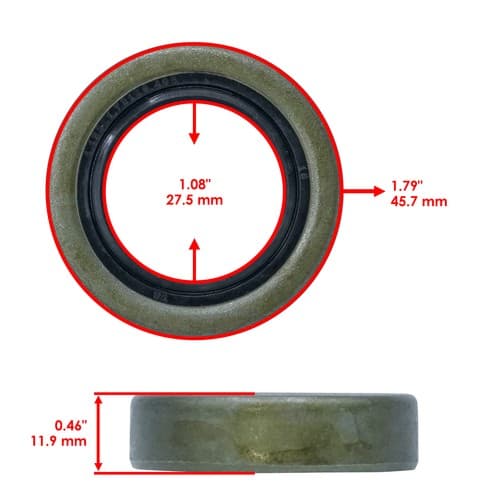

4 x Wheel Bearing Seal: 103-0063, 135-8997
Width: 11.9 mm - 0.46 in
Inner Diameter: 27.5 mm - 1.08 in
Outer Diameter: 45.7 mm - 1.79 in

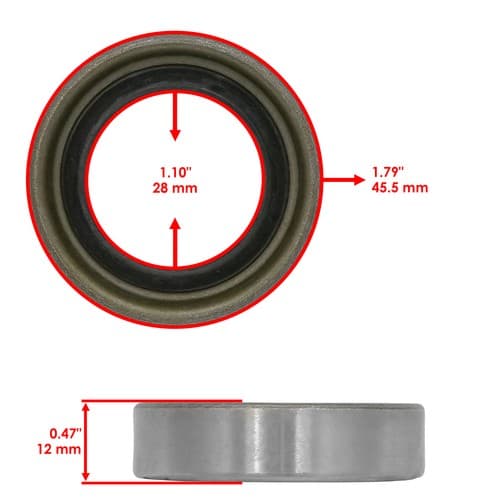

4 x Wheel Bearing Seal: 539105524, 482622
Width: 12 mm - 0.47 in
Inner Diameter: 28 mm - 1.1 in
Outer Diameter: 45.5 mm - 1․79 in
Wheel Part Number: 1-523009, 1-633987, 103-0065, 117-0361
Fork Caster Part Number: 1-642111-01, 103-1474-01, 116-8888
