Water Pump Cover Gasket w/ Impeller & Seals for Polaris SwitchBack 800 2008-2017

Premium Quality Replacement Part

Water Pump Cover Gasket w/ Impeller & Seals for Polaris SwitchBack 800 2008-2017

For Polaris Models:
SwitchBack 800 2008-2017

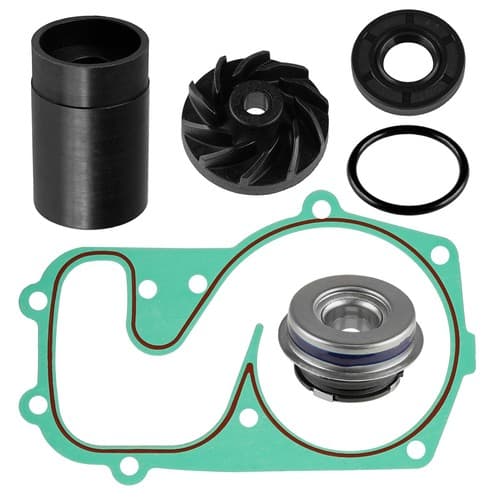

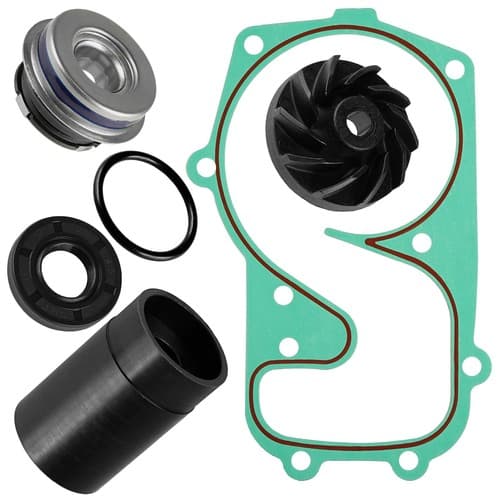

Order Includes:
1 x Seal  |  3610067
1 x Type S Seal  |  5411197
1 x Water Pump Impeller  |  5436648
1 x Removal Tool
1 x Gasket Cover  | 5811601
1 x O-Ring Seal  |  5412942

Dimensions & Measurements :

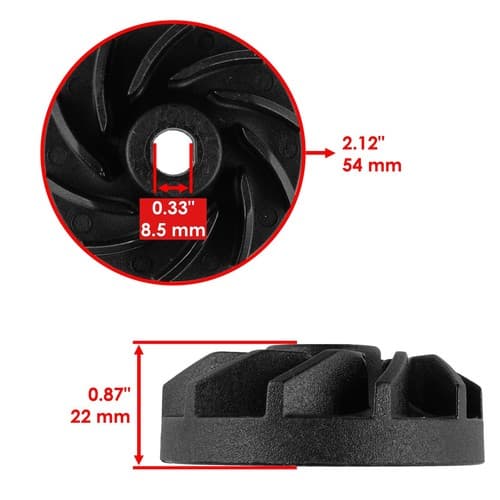

Water Pump Impeller
Inner Diameter : 8.5mm  |  0.33"
Outer Diameter : 54mm  |  2.12"
Width : 22mm  |  0.87"

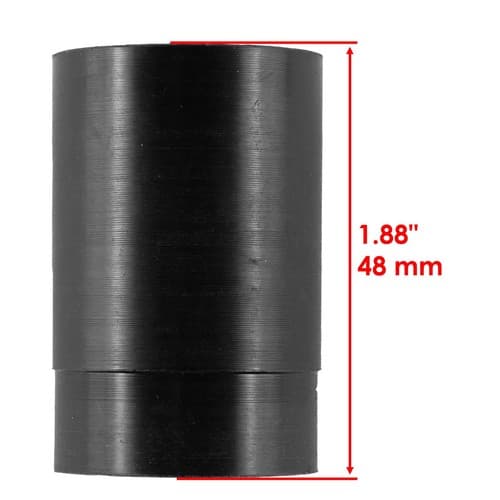

Removal Tool
Height : 48mm  |  1.88"

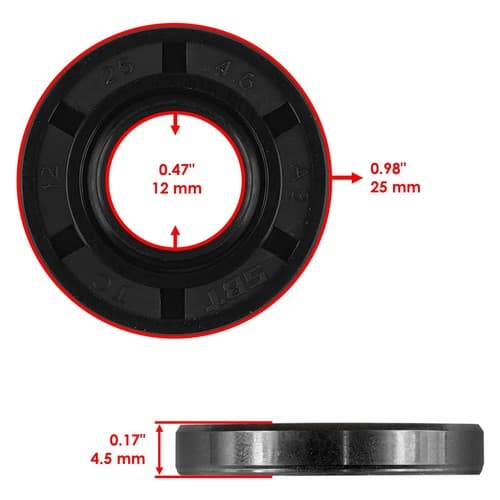

Type S Seal
Inner Diamater : 12mm  |  0.47"
Outer Diameter : 25mm  |  0.98"
Width : 4.5mm  |  0.17"

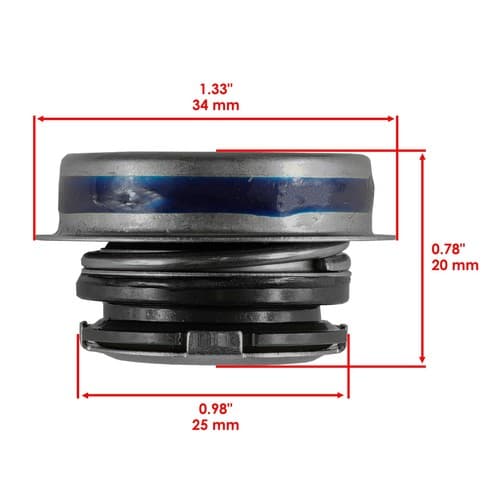

Seal
Height : 20mm  |  0.78"
Lower Length : 25mm  |  0.98"
Upper Length : 34mm  |  1.33"

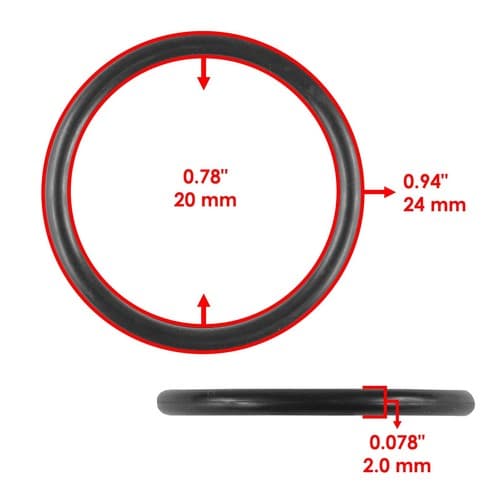

O-Ring Seal
Inner Diameter : 20mm  |  0.78"
Outer Diameter : 24mm  |  0.94"
Width : 2.0mm  |  0.078"

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**

**SHIPS FROM USA**
