Swing Arm Rebuild Kit w/ Sprockets For Honda Sportrax 400 TRX400EX 2X4 1999-2008

Premium Quality Replacement Part

Swing Arm Rebuild Kit w/ Sprockets For Honda Sportrax 400 TRX400EX 2X4 1999-2008

Fits the Following Honda Models
Sportrax 400 TRX400EX 2X4 1999 - 2008

Replaces Honda Part Numbers

Dust Seal | 91253-KA4-701
Collar Swing Arm | 52141-HN1-000
Collar B Swing Arm | 52142-HN1-000

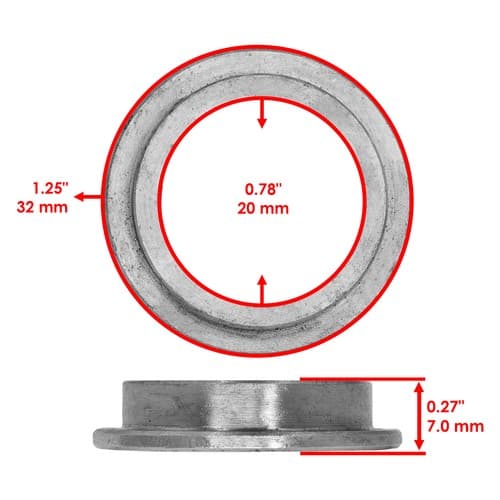

Bush Pivot | 52109-KA4-701
Bearing Swing Arm | 91071-MA0-003
Chain Slider | 52170-HN1-000
Rear Sprocket | 41201-HC0-000
Front Sprocket | 23801-HN1-000
Cap Dust Seal | 52144-KA3-731 52144-KA4-700 52144-KA4-701

Dimensions & Measurments

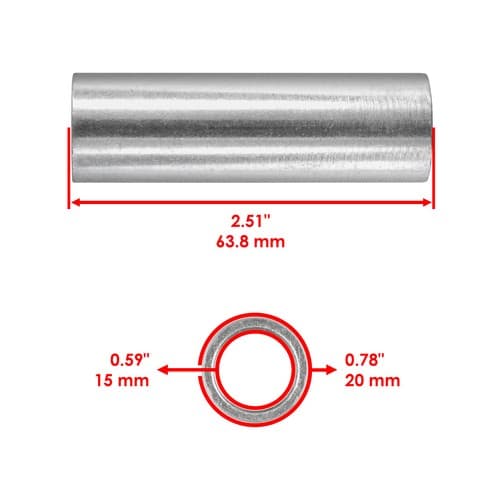

Swing Arm Pivot Collar Lentgh | 2.51" | 63.8mm
Swing Arm Pivot Collar Outer Diameter | 0.78" | 19.9mm
Swing Arm Pivot Collar Inner Diameter | 0.59" | 15mm
Swing Arm Collar Lentgh | 3.56" | 90.55mm
Swing Arm Collar Inner Diameter | 0.59" | 15mm
Swing Arm Collar Outer Diameter | 0.78" | 20mm

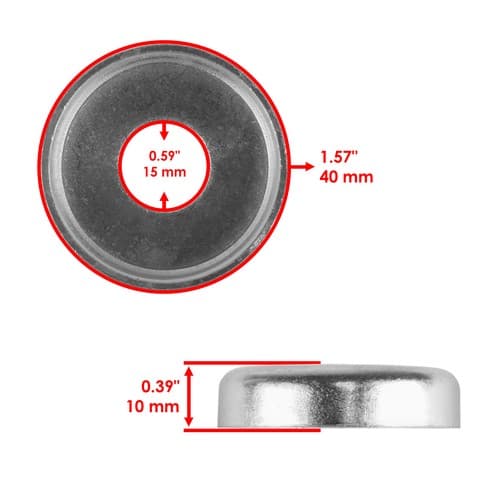

Dust Cap Inner Diameter | 0.59" | 15mm
Dust Cap Outer Diameter | 1.57" | 40mm
Dust Cap Height | 0.39" | 10mm
Seal Inner Diameter | 1.26" | 32mm
Seal Outer Diameter | 1.47" | 37.5mm
Seal Height | 0.31" | 8.0mm
Small Sprocket Tooth | 15
Big Sprocket Tooth | 38
Sprocket Pitch  | 520

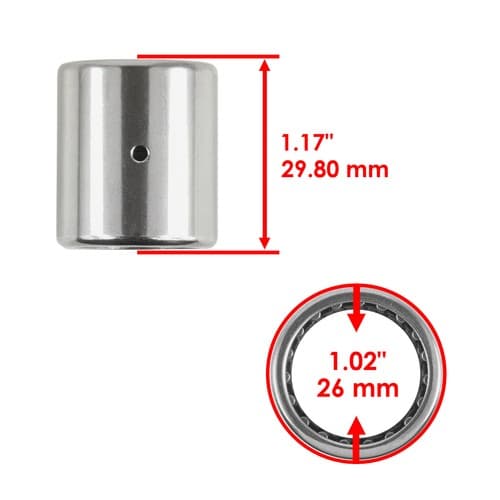

Needle Bearing Height | 1.17" | 29.80mm
Needle Bearing Outer Diameter | 1.02" | 26mm
Chain Slider Length | 5.75" | 146mm
Chain Slider Width | 1.31" | 33mm

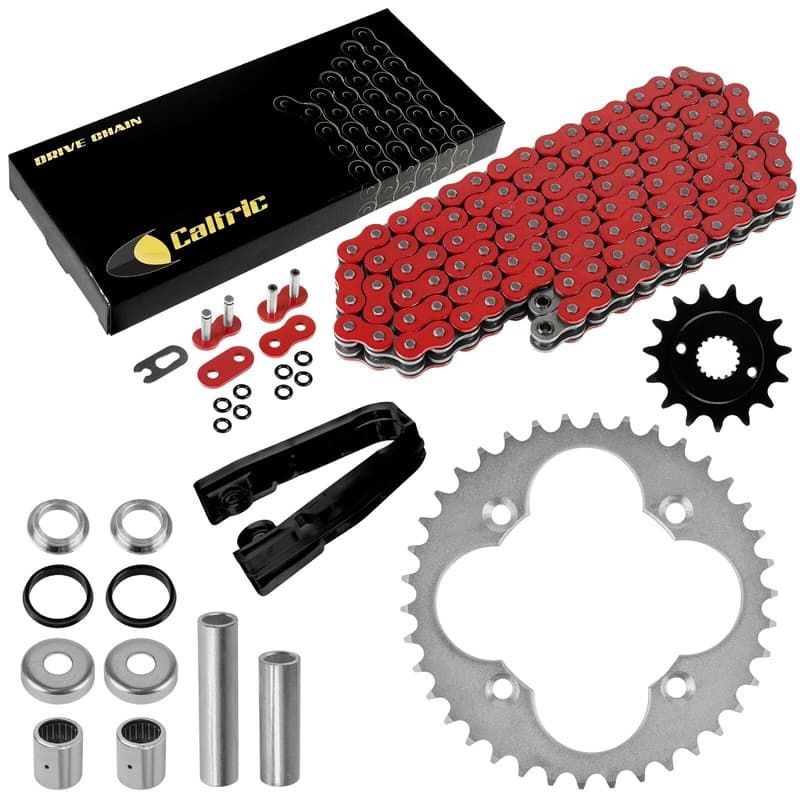

Order Includes

2xDust Seal
1xCollar Swing Arm
1xCollar B Swing Arm
2xBush Pivot
2xBearing Swing Arm
1xChain Slider
1xRear Sprocket
1xFront Sprocket
1xChain
2xCap Dust Seal

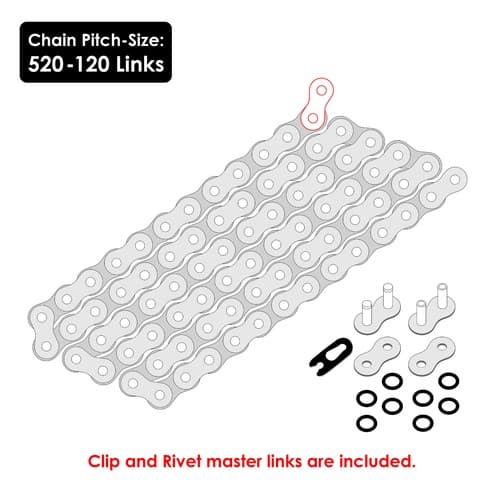

Note : The chain comes in standard 120 Links
1. O-Ring Drive Chain with Master Link (Tensile Strength of 8200 pounds)
O-Ring Style means it will last longer with less maintenance than conventional chain.

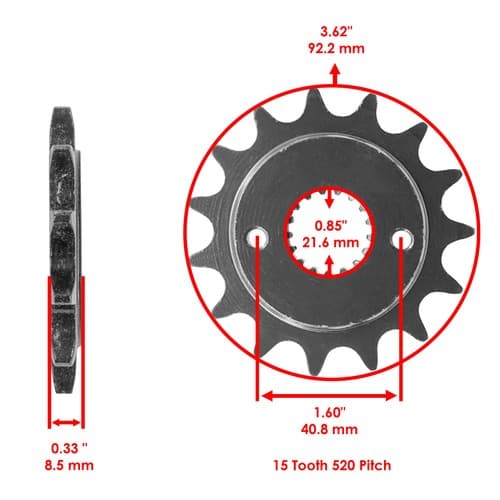

2. Front Sprocket 15 Teeth / Material: Steel

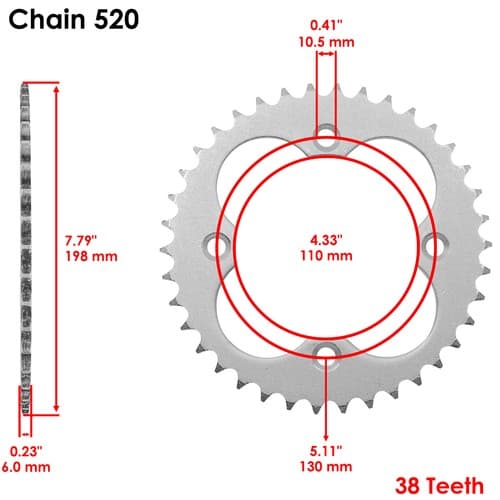

3. Rear Sprocket 38 Teeth / Material: C49 High Carbon Steel

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**

**SHIPS FROM USA**
