Swing Arm Collar Bearing Kit Honda Sportrax 400 TRX400EX 2X4 1999 - 2008

Premium Quality Replacement Part

Swing Arm Collar Cap Seal Bolt Kit

For Honda Models:
Sportrax 400 TRX400EX 2X4 1999-2008

Swing Arm Part Number:
Sportrax 400 1999 - 2004 52200-HN1-020 52200-HN1-010
Sportrax 400 2005-2007  52200-HN1-A40
Sportrax 400 2008 52200-HN1-A70
TRX400X 2009 2010 2011 2012 - 2014  52200-HN1-A70

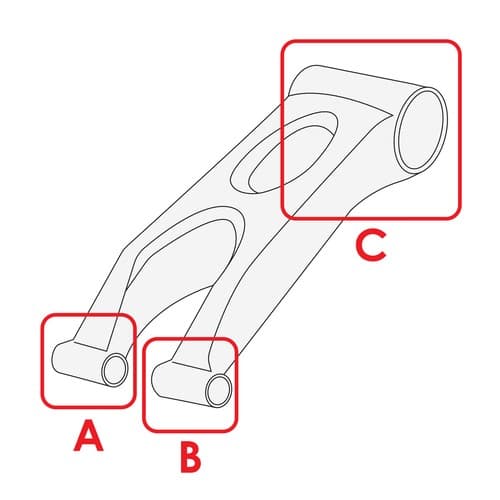

Note : Installs On Location (A) & ( B ) In Second Picture

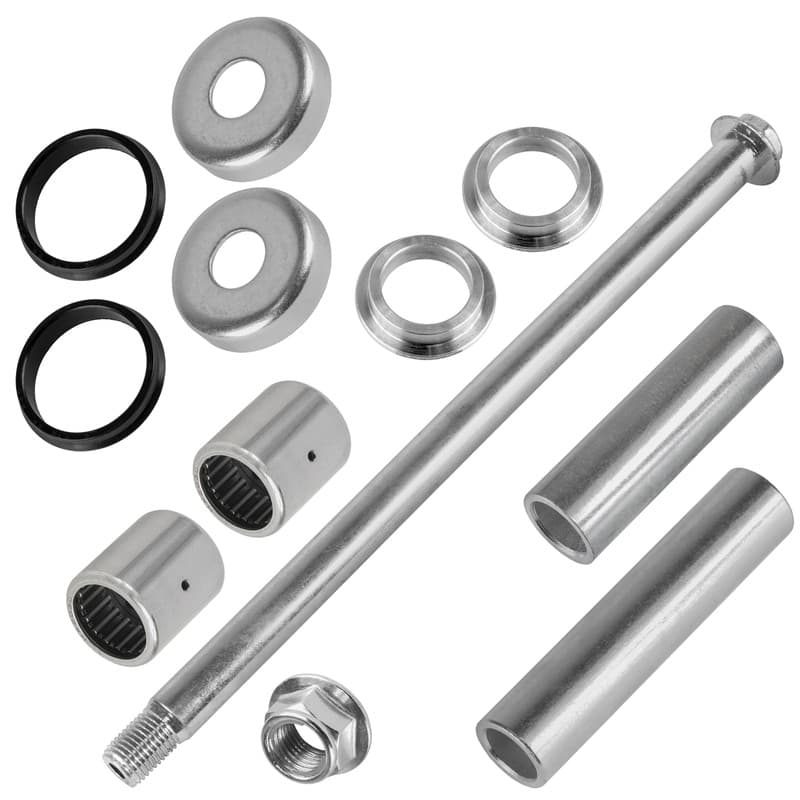

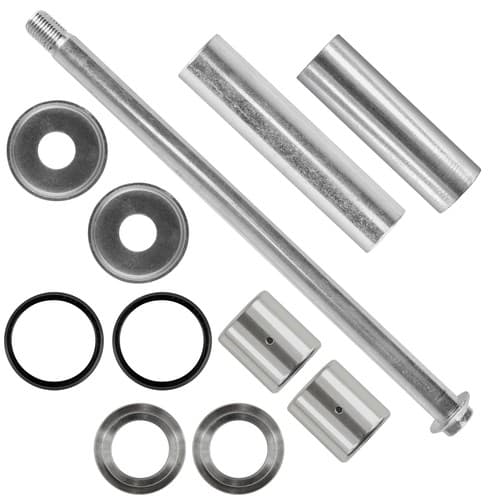

Order Includes:

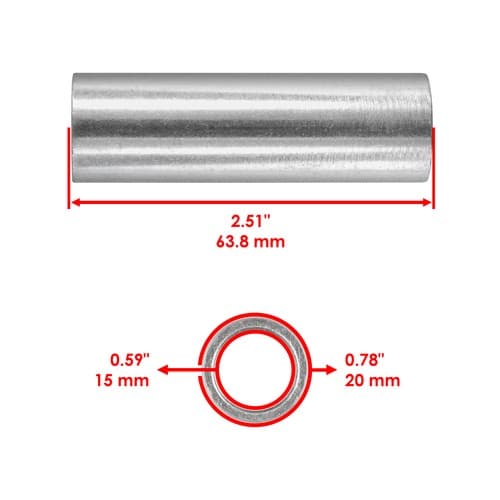

1 x Collar Swing Arm: 52141-HN1-000
Length: 2.51" | 63.8 mm
Inner Diameter: 0.59" | 15.0 mm
Outer Diameter: 0.78" | 20.0 mm

1 x Collar B Swing Arm: 52142-HN1-000
Length: 3.56" | 90.5 mm
Inner Diameter: 0.59" | 15.0 mm
Outer Diameter: 0.78" | 20.0 mm

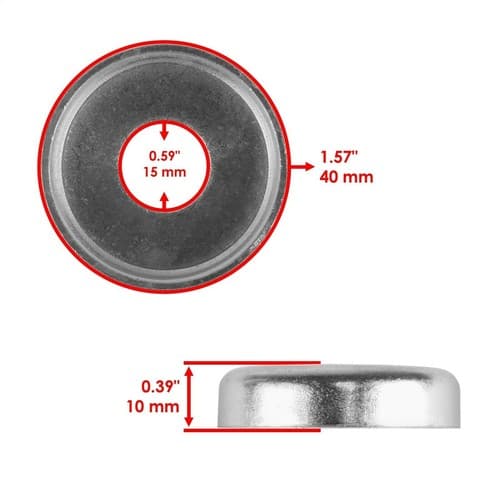

2 x Cap Dust Seal: 52144-KA3-731 52144-KA4-700 52144-KA4-701
Width: 0.39" | 10.0 mm
Inner Diameter: 0.59" | 15.0 mm
Outer Diameter: 1.57" | 40.0 mm

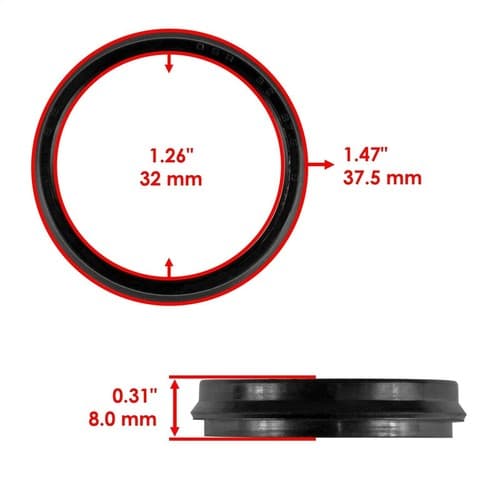

2 x Dust Seal: 91253-KA4-701
Width: 0.31" | 8.0 mm
Inner Diameter: 1.26" | 32.0 mm
Outer Diameter: 1.47" | 37.5 mm

2 x Bush Pivot : 52109-KA4-701
Diameter: 32.0 x 26 x 20 mm  (1.26" x 1.02" x 0.78")

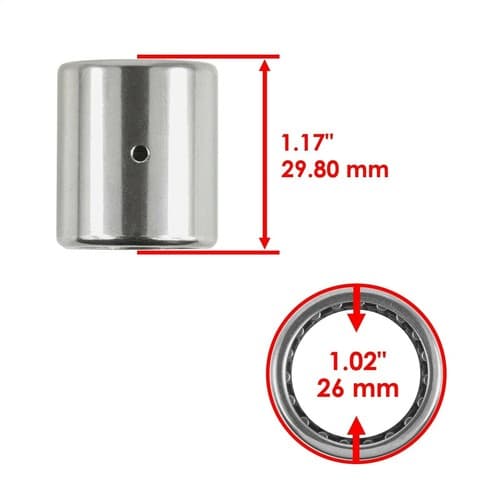

2 x Bearing Swing Arm : 91071-MA0-003
Length: 1.17" | 29.80 mm
Outer Diameter: 1.02" | 26.0 mm

1x Bolt : 90121-HN1-000
Length:11.14" | 283.0 mm
Thread Size: M14x1.5
