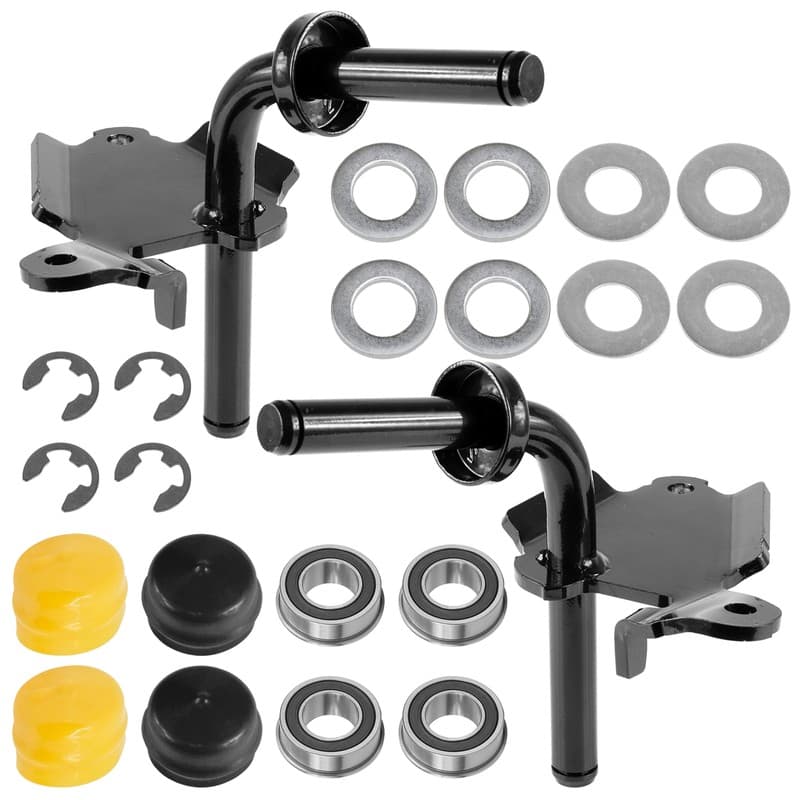

Steering Spindle Kit For John Deere S110 S120 S130 S160 S170 S180 S220 S240

 Left & Right Steering Spindle Kit

Compatible with John Deere Models:

100 Series Tractor:
D105, S110, S120, S130, S160, S170, S180, S220
S240 Sport Lawn Tractor
X107, X117R, X127, X147R, X167, X167R

Order Includes:

1x Steering Wheel Left Spindle: AUC10011

Length: 128.5mm -  5 1/16 in
Height: 190.5mm - 7 1/2 in

1x Steering Wheel Right Spindle: AUC10012

Length: 139.7mm -  5.5 in
Height: 190.5mm - 7.5 in

4x Ball Bearing: AM127304

Outer Diameter: 38 mm - 1.5 in
Inner Diameter: 19 mm - 0.74 in
Width: 13 mm - 0.51 in

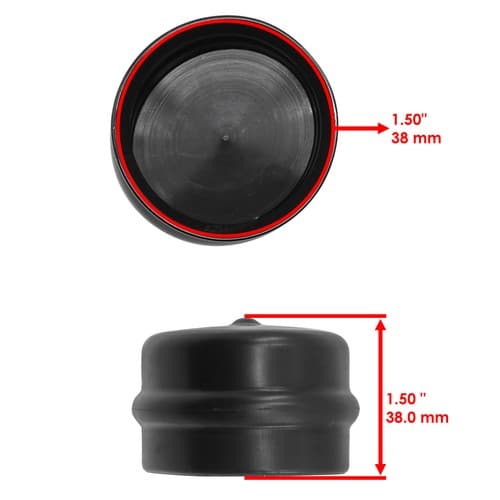

 2x Pivot Bar Caps: M128102

Inner Diameter: 38mm -1.50 in
Width: 38mm -1.50 in

2x Cap: M143338

Inner Diameter: 35mm -1.37 in
Width: 32 mm - 1.25 in

4x Retainer: R27434

Outer Diameter: 30 mm - 1.18 in
Thickness: 1.4 mm - 0.05 in

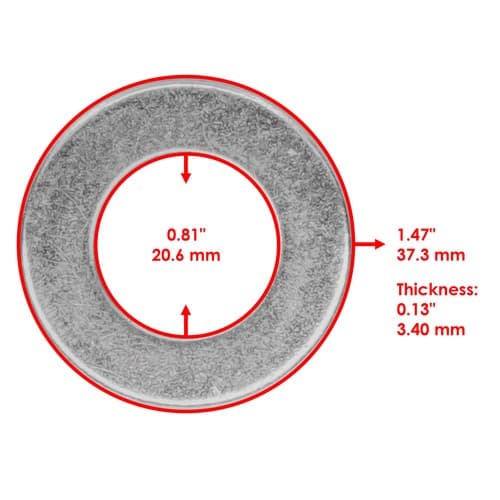

4x Thrust Washer: Z9972H
Outer Diameter: 37.3 mm - 1.47 in
Inner Diameter: 20.6 mm - 0.81 in
Thickness: 3.40 mm - 0.13 in

4x Washer: M123254
Inner Diameter: 21.36 mm - 0.84 in
Outer Diameter: 41.8 mm - 1.64 in
Thickness: 1.41mm - 0.055 in
