Starter for Kohler Command Pro Twin Cv17 Cv19 Cv20 Cv25 Cv26 Cv430 New

Premium Quality Replacement Part

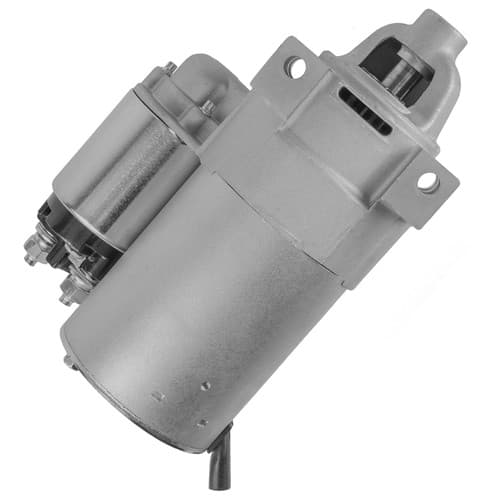

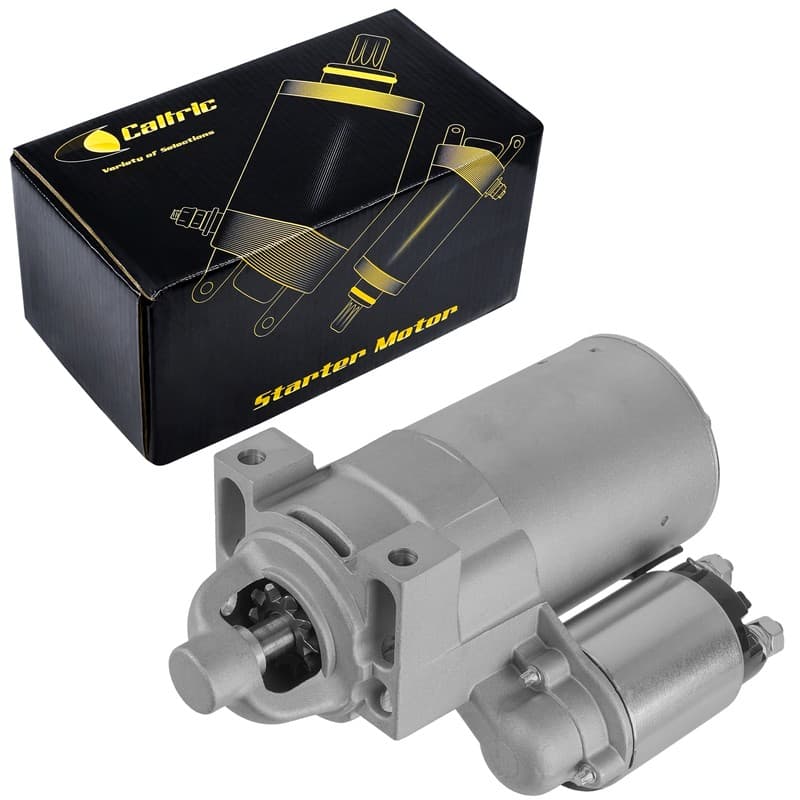

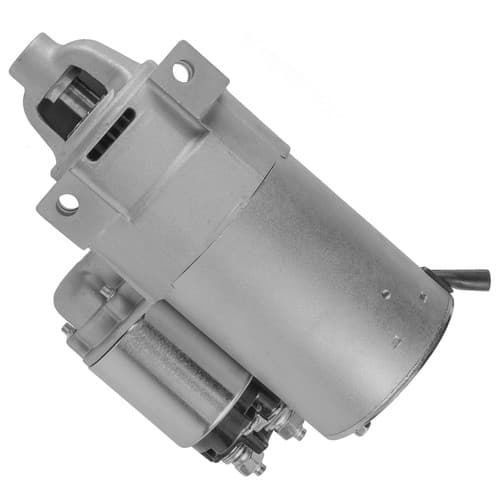

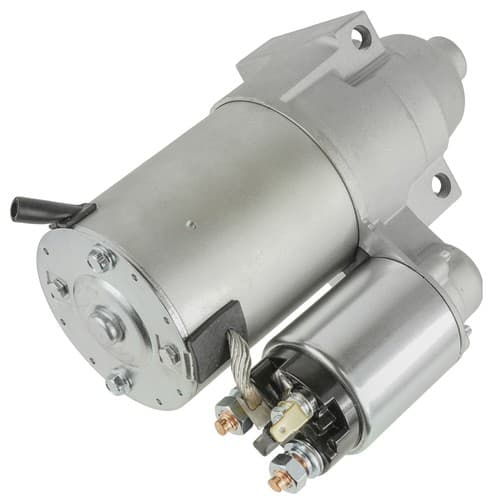

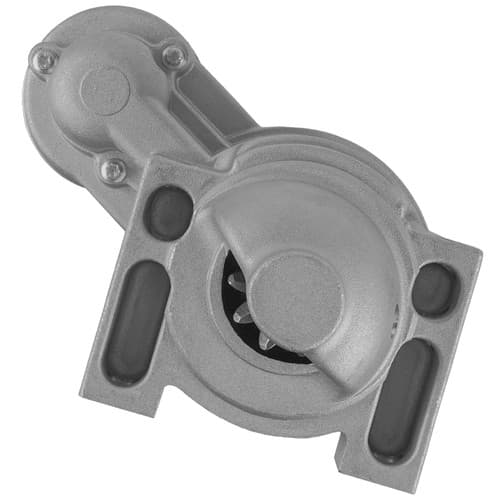

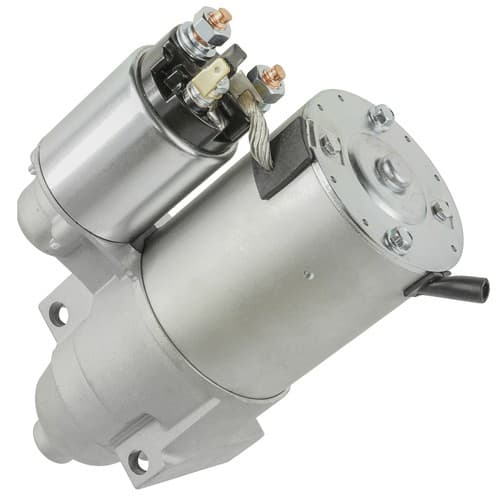

Starter

12 Volt CCW 10 Tooth Drive

Compatible with New Holland Models:

Gt18 Koh. 18hp Engine 1997-2000

Gt20 Koh. 20hp Engine 2003-Up

Gt20a Koh. 20hp Engine 2004-Up

Gt22 Koh. 22hp Engine 1997-2000

Gt22a Koh. 22hp Engine 2004-Up

L120 Koh. 18hp Gas Engine 2006-Up

Ls120 Koh. 18hp Gas Gas Engine 2000-Up

Ls35 Ls45 Ls55 Command

Compatible with Kohler Models:

15hp, 16hp, 17hp, 18hp, 19.9hp, 20hp

21hp, 23hp, 25hp, 27hp, 28hp, 30hp, 31hp

A12, A18, C18

CH1000, CH16, CH18, CH20, CH22, CH23, CH25, CH26

CH620, CH640, CH670, CH680, CH682, CH730, CH732, CH735

CH740, CH742, CH745, CH750, CH752, CH940, CH960, CH980

CV17, CV18, CV19, CV20, CV23S, CV25, CV26

CV430, CV620, CV624, CV640, CV670, CV675, CV680, CV682

CV724, CV725, CV730, CV732, CV740, CV742, CV745, CV752

ECH650, ECH749, ECH940, ECH980

ECV630, ECV650, ECV680, ECV730, ECV740, ECV749

ECV850, ECV860, ECV870, ECV880, ECV940, ECV980

EZT715, EZT725, EZT740, EZT750

FCH749, FCV740, FCV749

Compatible with John Deere Models:

Aercore 800 Aerator Koh. 18hp Engine All

Aercore 800 Aerator Koh. 25hp Engine All

Aercore 800 Greens Aerator

F620, F680 Koh. 20hp Engine All

F687 Koh. 23hp Engine All

G100, G110 Koh. 25hp Engine All

L130 Koh. 23hp Engine All

Lx173, Lx255 Koh. Engine All

Lx266 Koh. 16hp Engine All

M653 Koh. 23hp Engine All

M655, M665 Koh. 25hp Engine All

Sabre 1948gv, 1948hv Koh. 19.9hp Engine All

Sabre 2148hv Koh. 21hp Engine All

Sabre 2354hv Koh. 23hp Engine All

Sabre 2554hv Koh. 25hp Engine All

Z510a Koh. 22hp Engine All

Z520a Koh. 25hp Engine All

Compatible with Kubota Models:

25g, 25gt Kohl. 25hp Gas Engine All Thomas Equipment Skid Steer

415 Kohl. 23hp Engine All Steiner Tractors

Gr2000 Kaw. Gh630 20hp Gas Engine 2005-Bk

T1570, T1670 Kohl. Cv15 15hp Gas Engine 2005-Bk

Zg20f Gh630 20hp Gas Engine 2005-Bk

Zg23f Gh680 23hp Gas Engine 2005-Bk

Compatible with Toro Models:

Dingo 220 Koh. 20hp Gas Engine 2001-2009

Dingo 322 Koh. 22hp Gas Engine 2001-2002

Dingo Tx-420 Koh. 20hp Gas Engine 2005-2009

Dingo Tx-425 Koh. 25hp Gas Engine 2002-2009

Dingo Tx-427 Koh. 27hp Gas Engine 2009

Groundsmaster 120 Koh. 20hp Gas Engine 2003-2004

Hydroject 3010 Koh. Engine 2005-2009

Procore 648 Aerator Koh. Engine 2004-2009

Workman 3000 Koh. Engine

Workman 3100 Koh. 23hp Gas Engine 2002-2009

Workman 3120 Koh. Engine

Z148 Z Master Koh. 18hp Gas Engine 2003-2004

Z150 Z Master Koh. 20hp Gas Engine 2002-2004

Z153 Z Master Koh. 23hp Gas Engine 2002-2004

Z200 Z Master Koh. 20hp Gas Engine 2002-2003

Z253 Z Master Koh. 23hp Gas Engine 2001-2003

Z255 Z Master Koh. 25hp Gas Engine 2002-2003

Z257 Z Master Koh. 27hp Gas Engine 2003

Z286e Z Master Koh. 26hp Gas Engine 2002

Z288e Z Master Koh. 28hp Gas Engine 2003

Z350 Z Master Koh. 20hp Gas Engine 2001-2002

Z355 Z Master Koh. 25hp Gas Engine 2001-2004

Z400 Z Master Koh. 18hp Gas Engine 2005-2006

Z450 Z Master Koh. 20hp Gas Engine 2005-2006

Z500 Z Master Koh. 20hp Gas Engine 2004

Z500 Z Master Koh. 23hp Gas Engine 2005

Z500 Z Master Koh. 27hp Gas Engine 2008-2009

Z500 Z Master Koh. 30hp Gas Engine 2006

Z550 Z Master Koh. 27hp Gas Engine 2008-2009

Compatible with Cub Cadet Models:

2130 (136-212f100) Garden Tractor (Sn: 326006 & Above)

2130 (13a-212f100) Garden Tractor (Sn: 326006 & Above)

2130 (13b-212f100) Garden Tractor (Sn: 326006 & Above)

2135 (136-214f100) Garden Tractor (Sn: 326006 & Above)

2135 (13a-214f100) Garden Tractor (Sn: 326006 & Above)

2135 (13b-214f100) Garden Tractor (Sn: 326006 & Above)

2150 (136-242g100) Garden Tractor (Sn: 326006 & Above)

2150 (13a-242g100) Garden Tractor (Sn: 326006 & Above)

2150 (13b-242g100) Garden Tractor (Sn: 326006 & Above)

2155 (136-244g100) Garden Tractor (Sn: 326006 & Above)

2155 (13a-244g100) Garden Tractor (Sn: 326006 & Above)

2155 (13b-244g100) Garden Tractor (Sn: 326006 & Above)

2155 (13c-244g100) Garden Tractor (Sn: 326006 & Above)

2166 Koh. 16hp Gas Engine 2000-2002

2176 Koh. 17hp Gas Engine 2000-2002

2185 Koh. 18hp Gas Engine 1994-2001

2186 Koh. 18hp Gas Engine 2000-2002

2206 (13a-298m100) Garden Tractor

2206 Koh. 20hp Gas Engine 2000-2002

225 Koh. 25hp Engine All Grasshop. Tractors Lawn

2284 (145-734-100) Super Garden Tractor (Sn: 864501 - 899000)

2284 (146-734-100) Super Garden Tractor (Sn: 864501 - 899000)

2284 (14a-734-100) Super Garden Tractor (Sn: 864501 - 899000)

2518 Koh. 18hp Gas Engine 2002-2003

2518-44 (13a-208l100) Garden Tractor

3040 Koh. 22hp Gas Engine 2001

3184 Koh. 18hp Gas Engine 2000

3184 Koh. 20hp Gas Engine 2001

3186 (14a-668-100) Garden Tractor

3204 Koh. 20hp Gas Engine 2002-2003

3206 Koh. 20hp Gas Engine 2000

3206 Koh. 22hp Gas Engine 2001-2002

3235 Koh. 23hp Gas Engine 2000-2003

5252, 5252e Koh. 25hp Gas Engine 2004-2006

720k Koh. 20hp Engine All Grasshop.-Tractors Lawn

725k Koh. 25hp Engine All Grasshop.-Tractors Lawn

Big Country 4x2 Koh. 18hp Engine Utility Vehicle 2005-2006

Big Country 4x4 Koh. 20hp Engine Utility Vehicle 2006

Big Country 6x4 Fire & Rescue Koh. 20hp Engine Utility Vehicle 2005-2006

Big Country 6x4 Koh. 20hp Engine Utility Vehicle 2005-2006

Cv18s-61573 - Koh. Command Pro Engine, Made For Cb Cad. 18hp, 13.4kw

Cv20s-65610 - Koh. Command Pro Engine, Made For Cb Cad. 20hp, 14.9kw

Cv23s-75592 - Koh. Command Pro Engine, Made For Cb Cad. 23hp, 17.2kw

Cv740s-0015 - Koh. Command Pro Engine, Made For Cb Cad. 25hp, 725cc

Enforcer 44 (53ah3agf050) 44" Zero-Turn Mower, 20hp Koh. Command Cv20s-65610 Starting System

Enforcer 48 (53ah3agn050) 48" Zero-Turn Mower, 22hp Koh. Command Cv670-0013 Starting System

Enforcer 54 (53ah3agt050) 54" Zero-Turn Mower, 23hp Koh. Command Cv23-75592 Starting System

Gt 2000 (14w-3dm-010) Garden Tractor (2011-2013) Koh. Ch640-3051 Starting System

Gt 2000 (14w-3dm-210) Garden Tractor (2011-2013) Koh. Ch640-3051 Starting System

Gt 2042 (14a-3dms010) 42" Garden Tractor (2014) Koh. Ch640-3123 Starting System

Gt 2042 (14w-3dms010) 42" Garden Tractor (2014) Koh. Ch640-3123 Starting System

Gt 2050 (14a-3jmp010) 50" Garden Tractor (2014) Koh. Ch680-3106 Starting System

Gt 2100 (14w-3ae-010) Garden Tractor (2011) Koh. Ch680-3060 Starting System

Gt 2148 (14a-3jeb010) 48" Garden Tractor (2014) Koh. Ch680-3106 Starting System

Gt 2542 (14a-2d2g010) 42" Garden Tractor (2009 & After)

Gt 2544 (14a-2e7l010) 44" Garden Tractor (2009 & After)

Gt 2550 (14a-2e7p010) 50" Garden Tractor (2009 & After)

Gt 2554 (14a-2a7k010) 54" Garden Tractor (2009 & After)

Gt 3200 (14a-692-010) (14b-692-710) Garden Tractor

Gt1554 Koh. 27hp Courage Gas Engine 2005-2006

Gt2186 Koh. 18hp V-Twin Gas Engine 2004

Gt2523 Koh. 23hp Ohv V-Twin Gas Engine 2004

Gt2542 Koh. 20hp Command V-Twin Gas Engine 2005-2006

Gt2544 Koh. 21hp Command V-Twin Gas Engine 2005-2006

Gt2550 Koh. 22hp Command V-Twin Gas Engine 2005-2006

Gt2554 Koh. 23hp Command V-Twin Gas Engine 2005-2006

Gt3100 Koh. 23hp Ohv V-Twin Gas Engine 2005-2006

Gt3200 Koh. 25hp Ohv V-Twin Gas Engine 2005-2006

Gt3204 Koh. 23hp Ohv V-Twin Gas Engine 2004

Gt3235 Koh. 25hp Ohv V-Twin Gas Engine 2004

Gtx 2000 (14w-3fm-010) Garden Tractor (2012-2013) Koh. Ch640-3052 Starting System

Gtx 2000 (14w-3fm-210) Garden Tractor (2012-2013) Koh. Ch640-3052 Starting System

Lt1050 Koh. 23hp Courage Twin Gas Engine 2005-2006

Lt2042 Koh. 18hp Command V-Twin Gas Engine 2005

Lt2138 Koh. 16hp Gas Engine 2003-2004

Lt2542 Koh. 20hp Command Twin Gas Engine 2006

M48-Khs Koh. 18hp Gas 2004

M50-Khs Koh. 23hp Gas 2005-2006

M54-Kh Koh. 25hp Gas 2004

M60-Kh Efi Tank Koh. 28hp Gas 2004-2005

M60-Kh Tank Koh. 25hp Gas 2002-2006

M60-Kh Tank Koh. 27hp Gas 2002-2006

Volunteer 4x2 Koh. 18hp Engine Utility Vehicle 2008-2011

Volunteer 4x4 Efi Koh. 31hp Engine Utility Vehicle 2008-2011

Volunteer 4x4 Koh. 20hp Engine Utility Vehicle 2008-2011

Z-Force 44 - Koh. 20hp Command Ohv Twin Gas Engine 2004-2006

Z-Force 48 - Koh. 20hp Command Ohv Twin Gas Engine 2004-2006

Z-Force 50 Koh. 23hp Command Ohv Twin Gas Engine 2005-2006

Z-Wing 48 Koh. 23hp Gas 2005-2006

Order Includes:

1x Starter: Cub Cadet: KH-25-098-09-S, KH-25-098-21-S, KH-25-098-11-S, KH-25-098-24-S

John Deere: AM132702, SE501849, MIA13172, MIA11473, UC16212

Kubota: E7194-63010, E7194-63012

Kohler: 2509821S, 2409801S, 2509808S, 2509808, 1209803S, 2509820S, 25-098-20, 2509811S, 2509809S, 2509809, 2509821S, 2509814S, 2509814, 2509824S

Length: 202.3 mm - 8 in

Width: 134.7 mm - 5.3 in

Height: 78.9 mm - 3.1 in

Mounting Hole Distance: 68 mm - 2.6 in
