Specifications
- UPC
- Does not apply
- Brand
- Caltric
- Warranty
- 3 Months
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Number in Pack
- 1
- Country of Origin
- China
- Manufacturer Part Number
- 6744AA1017 - RMA
- California Prop 65 Warning
- Proposition 65 Warning for California Consumers.
Description
Premium Quality Replacement Part

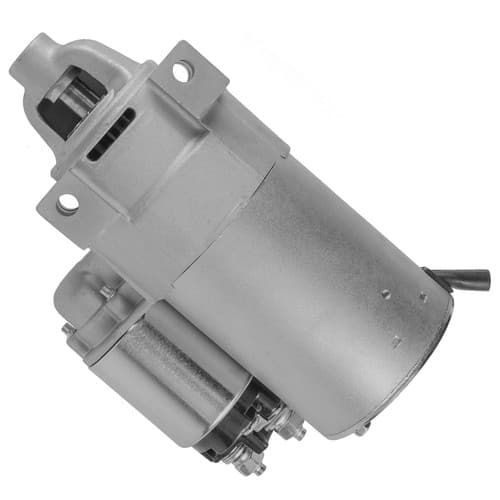

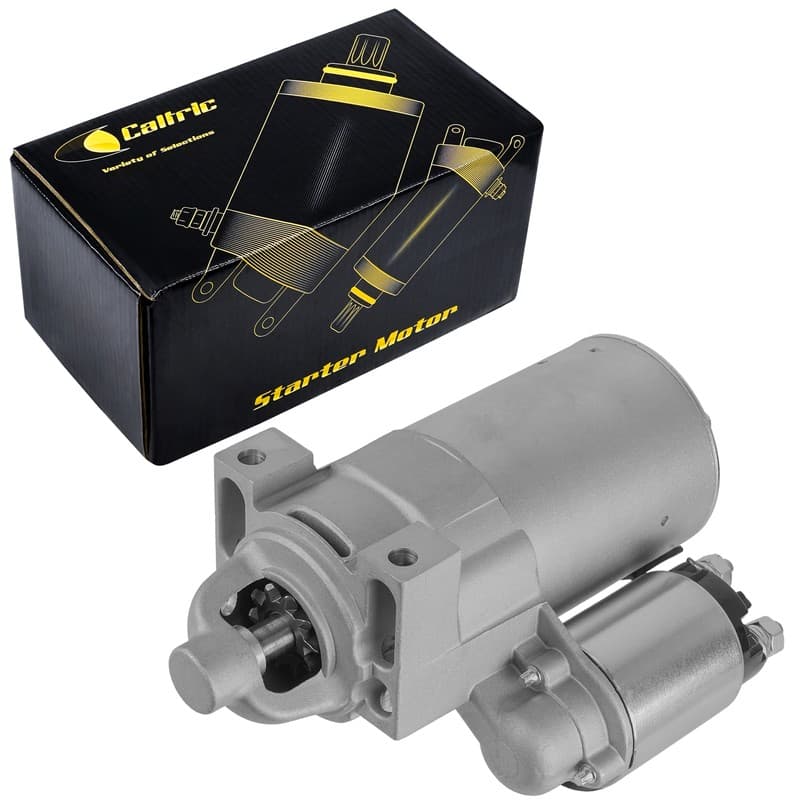

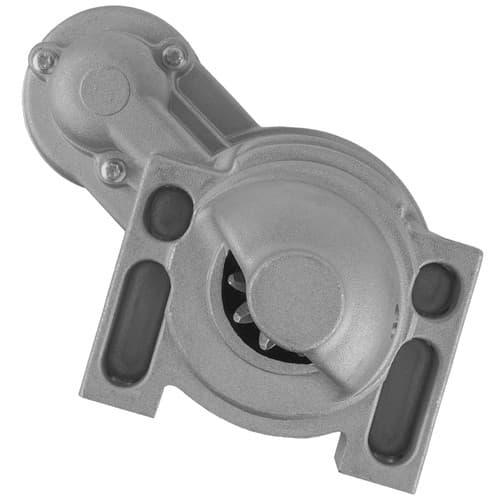

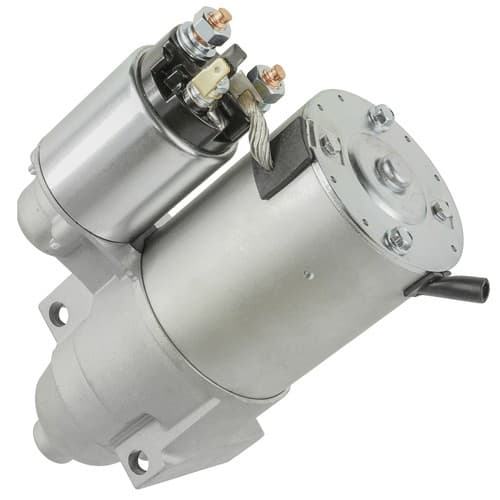

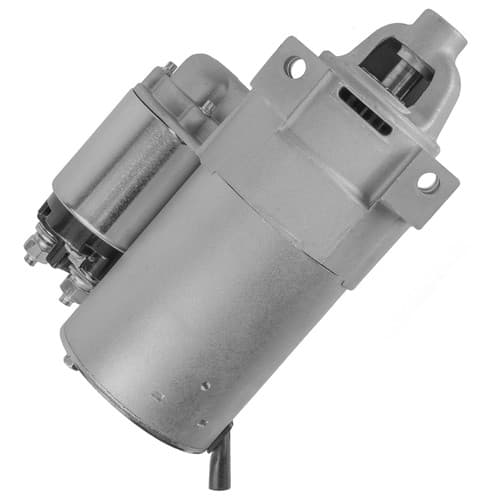

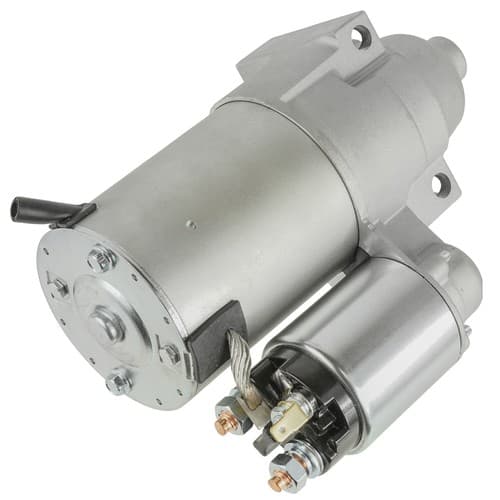

Starter
12 Volt CCW 10 Tooth Drive
Compatible with New Holland Models:
Gt18 Koh. 18hp Engine 1997-2000
Gt20 Koh. 20hp Engine 2003-Up
Gt20a Koh. 20hp Engine 2004-Up
Gt22 Koh. 22hp Engine 1997-2000
Gt22a Koh. 22hp Engine 2004-Up
L120 Koh. 18hp Gas Engine 2006-Up
Ls120 Koh. 18hp Gas Gas Engine 2000-Up
Ls35 Ls45 Ls55 Command
Compatible with Kohler Models:
15hp, 16hp, 17hp, 18hp, 19.9hp, 20hp
21hp, 23hp, 25hp, 27hp, 28hp, 30hp, 31hp
A12, A18, C18
CH1000, CH16, CH18, CH20, CH22, CH23, CH25, CH26
CH620, CH640, CH670, CH680, CH682, CH730, CH732, CH735
CH740, CH742, CH745, CH750, CH752, CH940, CH960, CH980
CV17, CV18, CV19, CV20, CV23S, CV25, CV26
CV430, CV620, CV624, CV640, CV670, CV675, CV680, CV682
CV724, CV725, CV730, CV732, CV740, CV742, CV745, CV752
ECH650, ECH749, ECH940, ECH980
ECV630, ECV650, ECV680, ECV730, ECV740, ECV749
ECV850, ECV860, ECV870, ECV880, ECV940, ECV980
EZT715, EZT725, EZT740, EZT750
FCH749, FCV740, FCV749
Compatible with John Deere Models:
Aercore 800 Aerator Koh. 18hp Engine All
Aercore 800 Aerator Koh. 25hp Engine All
Aercore 800 Greens Aerator
F620, F680 Koh. 20hp Engine All
F687 Koh. 23hp Engine All
G100, G110 Koh. 25hp Engine All
L130 Koh. 23hp Engine All
Lx173, Lx255 Koh. Engine All
Lx266 Koh. 16hp Engine All
M653 Koh. 23hp Engine All
M655, M665 Koh. 25hp Engine All
Sabre 1948gv, 1948hv Koh. 19.9hp Engine All
Sabre 2148hv Koh. 21hp Engine All
Sabre 2354hv Koh. 23hp Engine All
Sabre 2554hv Koh. 25hp Engine All
Z510a Koh. 22hp Engine All
Z520a Koh. 25hp Engine All
Compatible with Kubota Models:
25g, 25gt Kohl. 25hp Gas Engine All Thomas Equipment Skid Steer
415 Kohl. 23hp Engine All Steiner Tractors
Gr2000 Kaw. Gh630 20hp Gas Engine 2005-Bk
T1570, T1670 Kohl. Cv15 15hp Gas Engine 2005-Bk
Zg20f Gh630 20hp Gas Engine 2005-Bk
Zg23f Gh680 23hp Gas Engine 2005-Bk
Compatible with Toro Models:
Dingo 220 Koh. 20hp Gas Engine 2001-2009
Dingo 322 Koh. 22hp Gas Engine 2001-2002
Dingo Tx-420 Koh. 20hp Gas Engine 2005-2009
Dingo Tx-425 Koh. 25hp Gas Engine 2002-2009
Dingo Tx-427 Koh. 27hp Gas Engine 2009
Groundsmaster 120 Koh. 20hp Gas Engine 2003-2004
Hydroject 3010 Koh. Engine 2005-2009
Procore 648 Aerator Koh. Engine 2004-2009
Workman 3000 Koh. Engine
Workman 3100 Koh. 23hp Gas Engine 2002-2009
Workman 3120 Koh. Engine
Z148 Z Master Koh. 18hp Gas Engine 2003-2004
Z150 Z Master Koh. 20hp Gas Engine 2002-2004
Z153 Z Master Koh. 23hp Gas Engine 2002-2004
Z200 Z Master Koh. 20hp Gas Engine 2002-2003
Z253 Z Master Koh. 23hp Gas Engine 2001-2003
Z255 Z Master Koh. 25hp Gas Engine 2002-2003
Z257 Z Master Koh. 27hp Gas Engine 2003
Z286e Z Master Koh. 26hp Gas Engine 2002
Z288e Z Master Koh. 28hp Gas Engine 2003
Z350 Z Master Koh. 20hp Gas Engine 2001-2002
Z355 Z Master Koh. 25hp Gas Engine 2001-2004
Z400 Z Master Koh. 18hp Gas Engine 2005-2006
Z450 Z Master Koh. 20hp Gas Engine 2005-2006
Z500 Z Master Koh. 20hp Gas Engine 2004
Z500 Z Master Koh. 23hp Gas Engine 2005
Z500 Z Master Koh. 27hp Gas Engine 2008-2009
Z500 Z Master Koh. 30hp Gas Engine 2006
Z550 Z Master Koh. 27hp Gas Engine 2008-2009
Compatible with Cub Cadet Models:
2130 (136-212f100) Garden Tractor (Sn: 326006 & Above)
2130 (13a-212f100) Garden Tractor (Sn: 326006 & Above)
2130 (13b-212f100) Garden Tractor (Sn: 326006 & Above)
2135 (136-214f100) Garden Tractor (Sn: 326006 & Above)
2135 (13a-214f100) Garden Tractor (Sn: 326006 & Above)
2135 (13b-214f100) Garden Tractor (Sn: 326006 & Above)
2150 (136-242g100) Garden Tractor (Sn: 326006 & Above)
2150 (13a-242g100) Garden Tractor (Sn: 326006 & Above)
2150 (13b-242g100) Garden Tractor (Sn: 326006 & Above)
2155 (136-244g100) Garden Tractor (Sn: 326006 & Above)
2155 (13a-244g100) Garden Tractor (Sn: 326006 & Above)
2155 (13b-244g100) Garden Tractor (Sn: 326006 & Above)
2155 (13c-244g100) Garden Tractor (Sn: 326006 & Above)
2166 Koh. 16hp Gas Engine 2000-2002
2176 Koh. 17hp Gas Engine 2000-2002
2185 Koh. 18hp Gas Engine 1994-2001
2186 Koh. 18hp Gas Engine 2000-2002
2206 (13a-298m100) Garden Tractor
2206 Koh. 20hp Gas Engine 2000-2002
225 Koh. 25hp Engine All Grasshop. Tractors Lawn
2284 (145-734-100) Super Garden Tractor (Sn: 864501 - 899000)
2284 (146-734-100) Super Garden Tractor (Sn: 864501 - 899000)
2284 (14a-734-100) Super Garden Tractor (Sn: 864501 - 899000)
2518 Koh. 18hp Gas Engine 2002-2003
2518-44 (13a-208l100) Garden Tractor
3040 Koh. 22hp Gas Engine 2001
3184 Koh. 18hp Gas Engine 2000
3184 Koh. 20hp Gas Engine 2001
3186 (14a-668-100) Garden Tractor
3204 Koh. 20hp Gas Engine 2002-2003
3206 Koh. 20hp Gas Engine 2000
3206 Koh. 22hp Gas Engine 2001-2002
3235 Koh. 23hp Gas Engine 2000-2003
5252, 5252e Koh. 25hp Gas Engine 2004-2006
720k Koh. 20hp Engine All Grasshop.-Tractors Lawn
725k Koh. 25hp Engine All Grasshop.-Tractors Lawn
Big Country 4x2 Koh. 18hp Engine Utility Vehicle 2005-2006
Big Country 4x4 Koh. 20hp Engine Utility Vehicle 2006
Big Country 6x4 Fire & Rescue Koh. 20hp Engine Utility Vehicle 2005-2006
Big Country 6x4 Koh. 20hp Engine Utility Vehicle 2005-2006
Cv18s-61573 - Koh. Command Pro Engine, Made For Cb Cad. 18hp, 13.4kw
Cv20s-65610 - Koh. Command Pro Engine, Made For Cb Cad. 20hp, 14.9kw
Cv23s-75592 - Koh. Command Pro Engine, Made For Cb Cad. 23hp, 17.2kw
Cv740s-0015 - Koh. Command Pro Engine, Made For Cb Cad. 25hp, 725cc
Enforcer 44 (53ah3agf050) 44" Zero-Turn Mower, 20hp Koh. Command Cv20s-65610 Starting System
Enforcer 48 (53ah3agn050) 48" Zero-Turn Mower, 22hp Koh. Command Cv670-0013 Starting System
Enforcer 54 (53ah3agt050) 54" Zero-Turn Mower, 23hp Koh. Command Cv23-75592 Starting System
Gt 2000 (14w-3dm-010) Garden Tractor (2011-2013) Koh. Ch640-3051 Starting System
Gt 2000 (14w-3dm-210) Garden Tractor (2011-2013) Koh. Ch640-3051 Starting System
Gt 2042 (14a-3dms010) 42" Garden Tractor (2014) Koh. Ch640-3123 Starting System
Gt 2042 (14w-3dms010) 42" Garden Tractor (2014) Koh. Ch640-3123 Starting System
Gt 2050 (14a-3jmp010) 50" Garden Tractor (2014) Koh. Ch680-3106 Starting System
Gt 2100 (14w-3ae-010) Garden Tractor (2011) Koh. Ch680-3060 Starting System
Gt 2148 (14a-3jeb010) 48" Garden Tractor (2014) Koh. Ch680-3106 Starting System
Gt 2542 (14a-2d2g010) 42" Garden Tractor (2009 & After)
Gt 2544 (14a-2e7l010) 44" Garden Tractor (2009 & After)
Gt 2550 (14a-2e7p010) 50" Garden Tractor (2009 & After)
Gt 2554 (14a-2a7k010) 54" Garden Tractor (2009 & After)
Gt 3200 (14a-692-010) (14b-692-710) Garden Tractor
Gt1554 Koh. 27hp Courage Gas Engine 2005-2006
Gt2186 Koh. 18hp V-Twin Gas Engine 2004
Gt2523 Koh. 23hp Ohv V-Twin Gas Engine 2004
Gt2542 Koh. 20hp Command V-Twin Gas Engine 2005-2006
Gt2544 Koh. 21hp Command V-Twin Gas Engine 2005-2006
Gt2550 Koh. 22hp Command V-Twin Gas Engine 2005-2006
Gt2554 Koh. 23hp Command V-Twin Gas Engine 2005-2006
Gt3100 Koh. 23hp Ohv V-Twin Gas Engine 2005-2006
Gt3200 Koh. 25hp Ohv V-Twin Gas Engine 2005-2006
Gt3204 Koh. 23hp Ohv V-Twin Gas Engine 2004
Gt3235 Koh. 25hp Ohv V-Twin Gas Engine 2004
Gtx 2000 (14w-3fm-010) Garden Tractor (2012-2013) Koh. Ch640-3052 Starting System
Gtx 2000 (14w-3fm-210) Garden Tractor (2012-2013) Koh. Ch640-3052 Starting System
Lt1050 Koh. 23hp Courage Twin Gas Engine 2005-2006
Lt2042 Koh. 18hp Command V-Twin Gas Engine 2005
Lt2138 Koh. 16hp Gas Engine 2003-2004
Lt2542 Koh. 20hp Command Twin Gas Engine 2006
M48-Khs Koh. 18hp Gas 2004
M50-Khs Koh. 23hp Gas 2005-2006
M54-Kh Koh. 25hp Gas 2004
M60-Kh Efi Tank Koh. 28hp Gas 2004-2005
M60-Kh Tank Koh. 25hp Gas 2002-2006
M60-Kh Tank Koh. 27hp Gas 2002-2006
Volunteer 4x2 Koh. 18hp Engine Utility Vehicle 2008-2011
Volunteer 4x4 Efi Koh. 31hp Engine Utility Vehicle 2008-2011
Volunteer 4x4 Koh. 20hp Engine Utility Vehicle 2008-2011
Z-Force 44 - Koh. 20hp Command Ohv Twin Gas Engine 2004-2006
Z-Force 48 - Koh. 20hp Command Ohv Twin Gas Engine 2004-2006
Z-Force 50 Koh. 23hp Command Ohv Twin Gas Engine 2005-2006
Z-Wing 48 Koh. 23hp Gas 2005-2006
Order Includes:
1x Starter: Cub Cadet: KH-25-098-09-S, KH-25-098-21-S, KH-25-098-11-S, KH-25-098-24-S
John Deere: AM132702, SE501849, MIA13172, MIA11473, UC16212
Kubota: E7194-63010, E7194-63012
Kohler: 2509821S, 2409801S, 2509808S, 2509808, 1209803S, 2509820S, 25-098-20, 2509811S, 2509809S, 2509809, 2509821S, 2509814S, 2509814, 2509824S

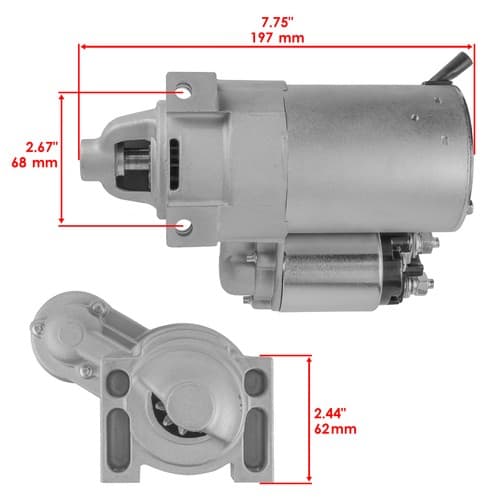

Length: 202.3 mm - 8 in
Width: 134.7 mm - 5.3 in
Height: 78.9 mm - 3.1 in
Mounting Hole Distance: 68 mm - 2.6 in
