Name: Spindle with Pulley Blade & Belt For Troy-Bilt 17ADCACT066 46" Zero-Turn Mower
Brand: Caltric
SKU: APH-276150408258
Price: 220.15 USD
Availability: InStock

Specifications

MPN

918-05078A 618-05078 918-05078 918-0507A 618-05078A 285-167, 91805078A 61805078 91805078 9180507A 61805078A 285167, 490-110-C131 742-04244 742-04244A 742-04290 742-04290A 754-04244, 942-04244A 942-04290 942-04290A OCC-742-04244 335-757, 490110C131 7420424474204244A 74204290 74204290A 75404244, 94204244 94204244A 94204290 94204290A OCC74204244 335757, 954-04325 754-04325 95404325 75404325, 753-08068A 753-08171 756-04129 756-04129B 756-04129C 956-04129, 956-04129C 75308068A 75308171 75604129 75604129B 75604129C, 95604129 95604129C, 712-0417A, 753-05549, 712-0417, 75604511B, 75604511A, 75604511

Mpn

UPC

Does not apply

Type

Spindle

Brand

Caltric

Gtin13

Does not apply

Material

Aluminum

Condition

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab

Description

Premium Quality Replacement Part

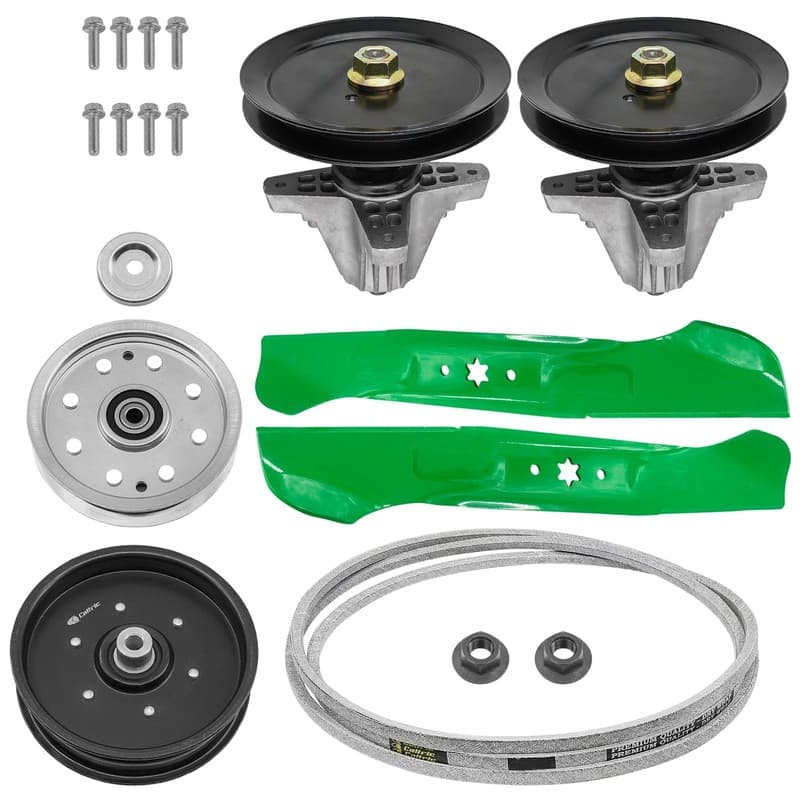

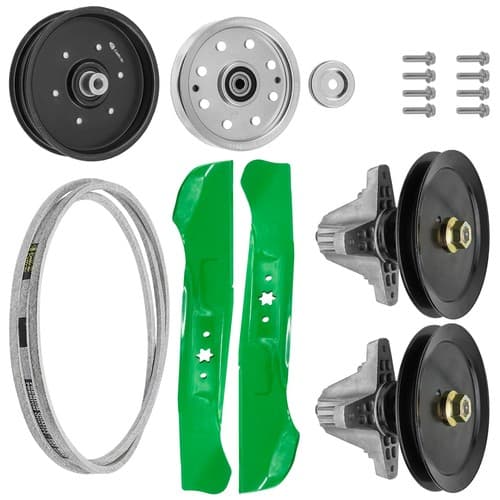

Spindle Assembly with Blade Pulley & Belt

For Troy-Bilt Models:
17ADCACT066 - Troy-Bilt Mustang XP 46" Zero-Turn Mower (2013)

Order Includes:

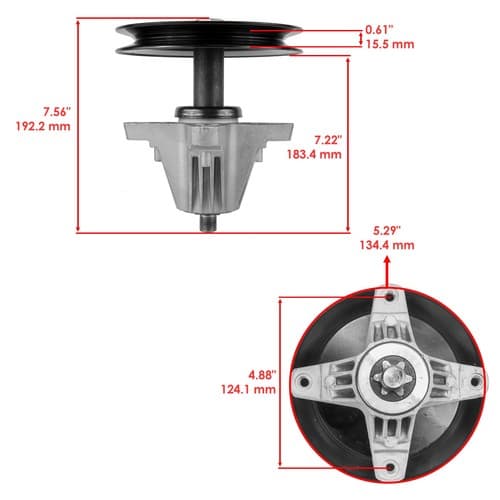

2 x Spindle Assembly | 918-05078A 618-05078 918-05078 918-0507A 618-05078A 285-167 91805078A 61805078 91805078 9180507A 61805078A 285167
Height: 192․2 mm | 7.56"
Mounting Hole Distance: 124․1 mm | 4․88"
Outer Diameter: 134․4 mm | 5․29"
Material: Aluminium
Weight: 5 lbs 4 oz

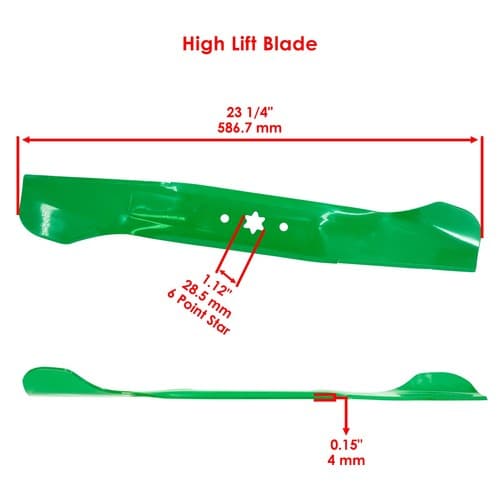

2 x Blade | 490-110-C131 742-04244 742-04244A 742-04290 742-04290A 754-04244 942-04244 942-04244A 942-04290 942-04290A OCC-742-04244 335-757 490110C131 74204244 74204244A 74204290 74204290A 75404244 94204244 94204244A 94204290 94204290A OCC74204244 335757
Width: 76․2 mm | 3"
Length: 590․5 mm | 13 1/4"
Thikness: 4․16 mm | 0.164"
Mounting Hole Distance: 76․2 mm | 3"
Inner Diameter: 28․5 mm | 1․12"
Point Star 6

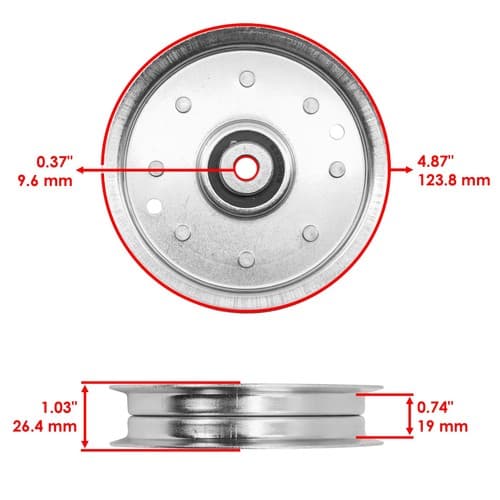

1 x Idler Pulley |753-08068A 753-08171 756-04129 756-04129B 756-04129C 956-04129 956-04129C 75308068A 75308171 75604129 75604129B 75604129C 95604129 95604129C

Width: 26․4 mm | 1.03"

Inner Diameter: 9.6mm | 0.37"

Outer Diameter: 123․8mm | 4.87"

Weight: 15․2 oz

1 x Deck V Belt | 954-04325 754-04325 95404325 75404325

Length: 3162.3 mm - 124.5 in

Width: 12.7 mm - 0.5 in

Thickness: 8 mm - 0.3 in

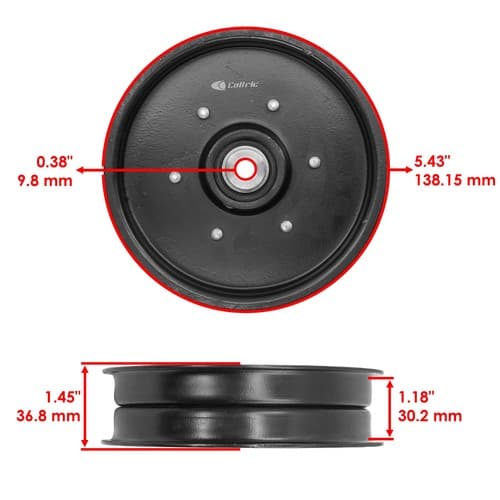

1x Idler Pulley : 75604511B, 75604511A, 75604511

Inner Diameter : 9.8mm | 0.38 "

Outer Diameter : 138.15mm | 5.43 "

Width : 36.8mm | 1.45 "
