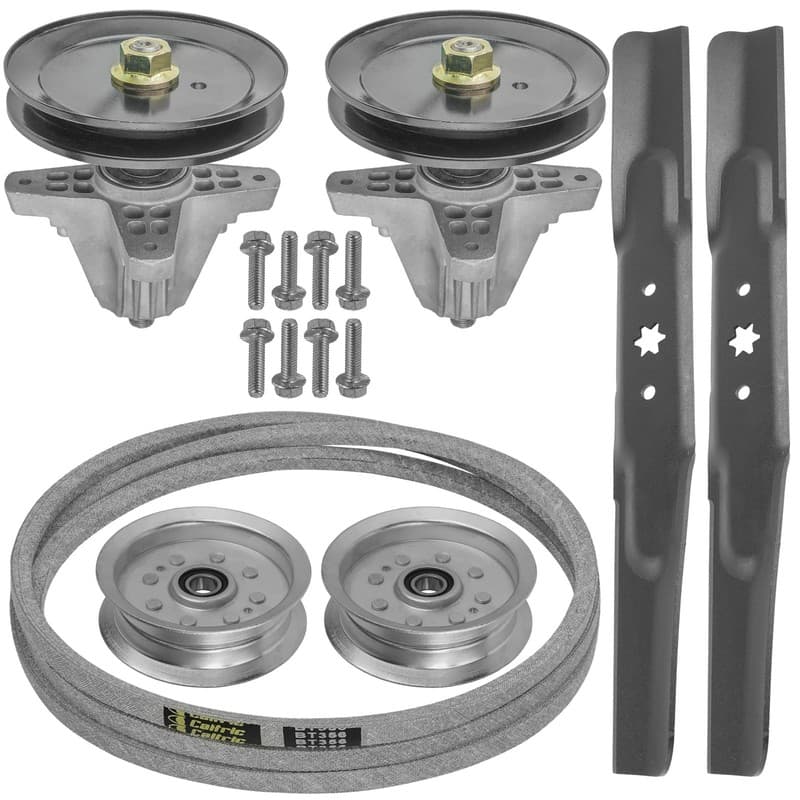

Spindle w/Blade Pulley Belt For Troy-Bilt 13AM77BS066 13AM77BS223 Pony 42"

Compatible with MTD Models:

13A2775S000 - Yard Machines Lawn Tractor (2014)

13A2775S000 - Yard Machines Lawn Tractor (2015)

13A2775S029 - Yard Machines Lawn Tractor (2018)

13AB775S000 - Yard Machines Lawn Tractor (2019)

13AB775S000 - Yard Machines Lawn Tractor (2020)

13AD775S059 - MasterCut Lawn Tractor (2015)

13AD775S059 - MasterCut Lawn Tractor (2016)

13AD775S059 - MasterCut Lawn Tractor (2017)

13AL795S004 - Gold Lawn Tractor (2014)

13AL795S004 - Gold Lawn Tractor (2015)

13AL795S004 - Gold Lawn Tractor (2016)

13AM775S000 - Yard Machines Lawn Tractor (2015)

13AM775S000 - Yard Machines Lawn Tractor (2016)

13AM775S000 - Yard Machines Lawn Tractor (2017)

13AM775S000 - Yard Machines Lawn Tractor (2018)

13AM775S200 - Yard Machines Lawn Tractor (2015)

13AN772S055 - Yard-Man Lawn Tractor (2014)

13AN77BS309 (42 B) - Tr.-Bil. Pony 42" Lawn Tractor (2022)

13AN77SS000 - Yard Machines Lawn Tractor (2021)

13AN77SS000 - Yard Machines Lawn Tractor (2022)

13AX795S004 - Gold Lawn Tractor (2014)

13AX795S004 - Gold Lawn Tractor (2015)

13AX795S004 - Gold Lawn Tractor (2016)

13AX795S004 - Gold Lawn Tractor (2017)

13B2775S000 - Yard Machines Lawn Tractor (2016)

Compatible with Troy-Bilt Models:

13A277BS066 (42 T) - Pony 42" Lawn Tractor (2018)

13A277BS066 (42 T) - Pony 42" Lawn Tractor (2019)

13A877BS066 (42 X) - Pony 42" Lawn Tractor (2018)

13A877BS066 (42 X) - Pony 42" Lawn Tractor (2019)

13A877BS066 (42 X) - Pony 42" Lawn Tractor (2020)

13A877BS266 (42 X) - Pony 42" Lawn Tractor (2020)

13A878BS066 (42 X) - Bronco 42" Lawn Tractor, Auto (2020)

13A879BS066 - Horse 42" Lawn Tractor, Hydro Drive (2018)

13A879BS066 - Horse 42" Lawn Tractor, Hydro Drive (2019)

13AB77BS023 - Pony 42" Lawn Tractor (2020)

13AB77BS223 - Pony 42" Lawn Tractor (2020)

13AK78BS011 - Bronco 42" Lawn Tractor, Auto (2018)

13AK78BS211 - Bronco 42" Lawn Tractor, Auto (2018)

13AL78BS023 - Bronco 42" Lawn Tractor, Auto (2019)

13AL78BS023 - Bronco 42" Lawn Tractor, Auto (2020)

13AL78BS023 - Bronco 42" Lawn Tractor, Auto (2021)

13AL78BS023 - Bronco 42" Lawn Tractor, Auto (2022)

13AL78BS223 - Bronco 42" Lawn Tractor, Auto (2019)

13AL78BS223 - Bronco 42" Lawn Tractor, Auto (2020)

13AL78BS223 - Bronco 42" Lawn Tractor, Auto (2021)

13AM77BS023 - Pony 42" Lawn Tractor (2021)

13AM77BS023 - Pony 42" Lawn Tractor (2022)

13AM77BS066 (42 B) - Pony 42" Lawn Tractor (2021)

13AM77BS223 - Pony 42" Lawn Tractor (2021)

13AM77BS223 - Pony 42" Lawn Tractor (2022)

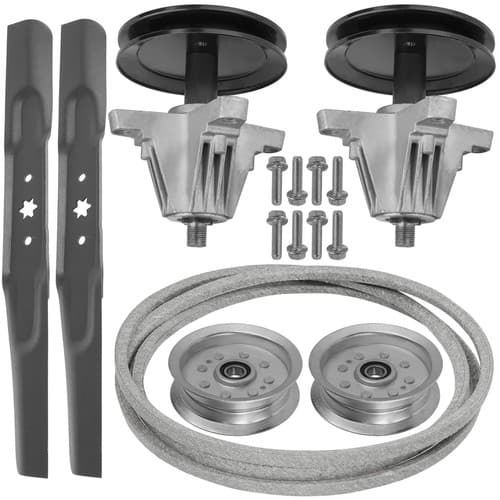

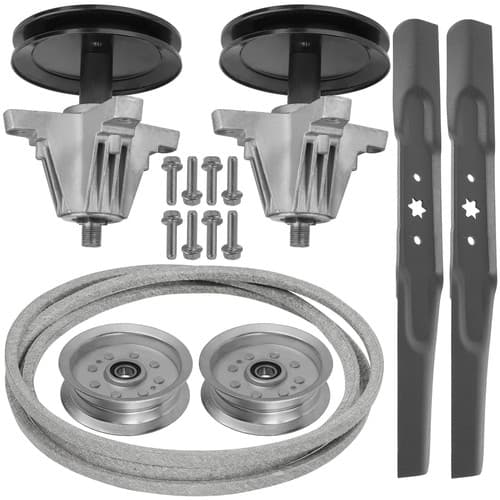

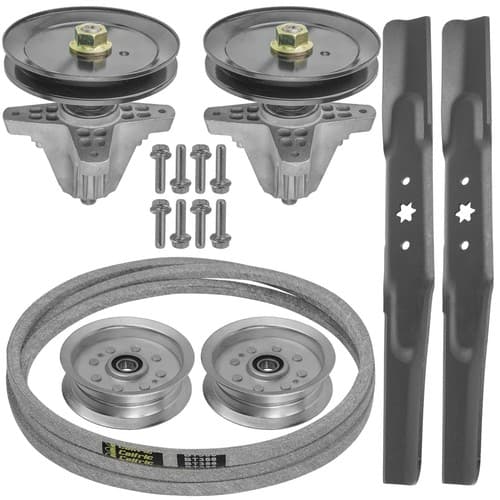

Order Includes:

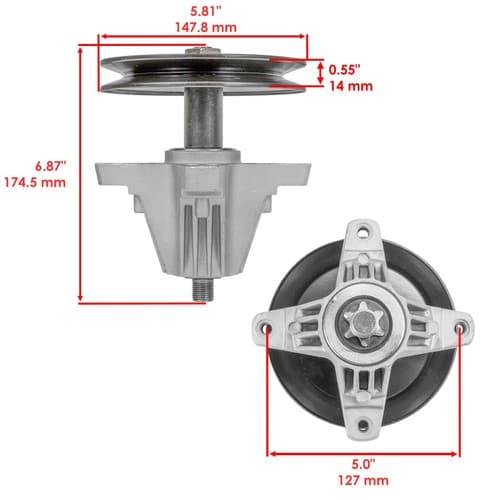

2x Spindle Assembly: 918-0699,1 618-06991, 285-216

Height: 173 mm -6․81"

Mounting Hole Distance: 126․7 mm - 4․98"

Outer Diameter: 142․3 mm - 5․6"

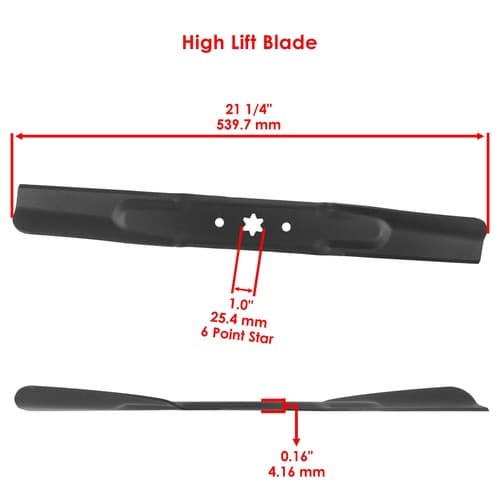

2x Deck Blade: 490-110-M108, 742-04308, 742-04308A, 742-04312, 742-04312A, 742-0656, 942-04308, 942-04308A, 942-04312, 942-04312A, 942-0656, OCC-742-04312, 330-872

Width: 63․5 mm - 2․5"

Length: 540 mm - 21 1/4"

Thickness: 4․16 mm - 0.164"

Mounting Hole Distance: 77 mm - 3"

Inner Diameter: 25․4 mm - 1"

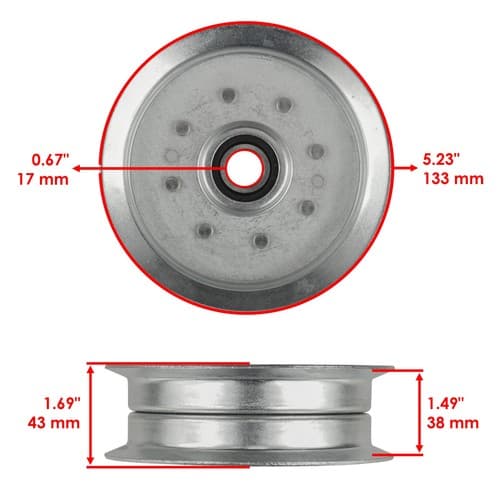

2x Idler Pulley: 56-05034, 756-05034A

Width: 43 mm - 1.69"

Inner Diameter: 17mm - 0.67"

Outer Diameter: 133mm - 5.23"

1x Deck V Belt: 754-04060, 754-04060A, 754-04060B, 754-04060C, 954-04060, 954-04060A, 954-04060B, 954-04060C, 954-05056, 265-201

Width : 1/2 in

Length : 2451 mm - 96 1/2 in
