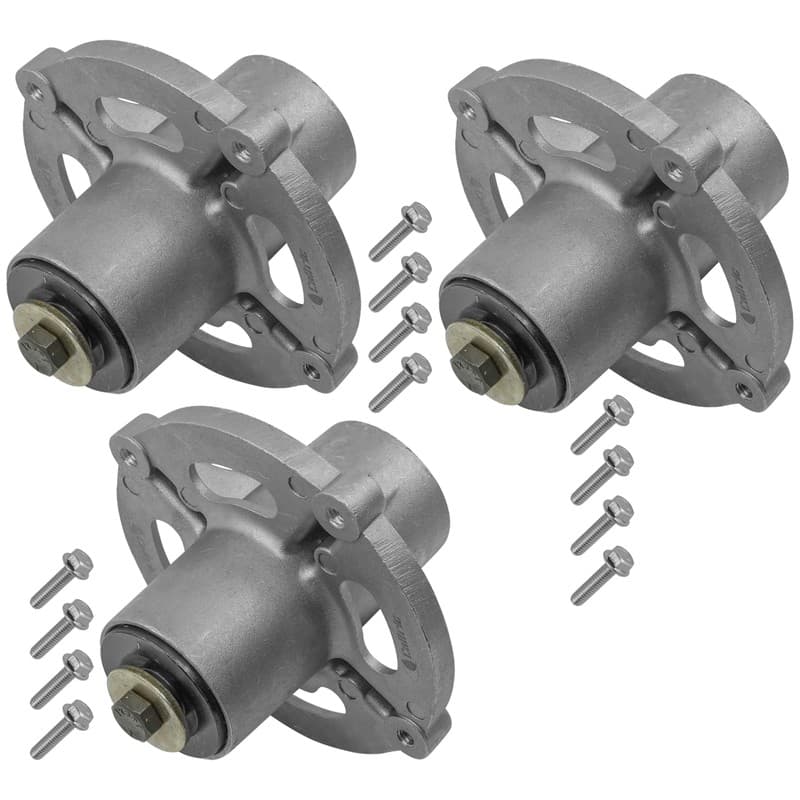

Spindle For Snapper 200Z 285Z 300Z 360Z ZTX110 42" 46" 52" Zero-Turn Mower

Compatible with Snapper Models:

1696580-00 - 46"/117cm Mower Deck

1696581-00 - 46"/117cm Mower Deck

1696680-00 - 46"/117cm Mower Deck

200z (Zt 1842) (2691136-00) - 42" Zero-Turn Mower, 18hp

200z (Zt 1842) (2691136-01) - 42" Zero-Turn Mower, 18hp

200z (Zt 2042) (2691135-00) - 42" Zero-Turn Mower, 20hp

200z (Zt 2142) (2691031-00) - 42" Zero-Turn Mower, 21hp

200z (Zt 21546) (2691137-00) - 46" Zero-Turn Mower, 21.5hp

200z (Zt 21546) (2691137-01) - 46" Zero-Turn Mower, 21.5hp

200z (Zt 2242) (2691164-00) - 42" Zero-Turn Mower, 22hp

200z (Zt 2246) (2691032-00) - 46" Zero-Turn Mower, 22hp

200z (Zt 2246) (2691032-01) - 46" Zero-Turn Mower, 22hp

200z (Zt 2346) (2691165-00) - 46"/117cm Zero-Turn Mower, 23hp

285z (Ezt 2042) (2691043-00) - 42" Zero-Turn Mower, 20hp

285z (Ezt 2042) (2691043-01) - 42" Zero-Turn Mower, 20hp

285z (Ezt 2042) (2691043-02) - 42" Zero-Turn Mower, 20hp

285z (Ezt 2042) (2691043-03) - 42" Zero-Turn Mower, 20hp

285z (Ezt 2042) (2691043-04) - 42" Zero-Turn Mower, 20hp

285z (Rzt 2552) (2691166-00) - 52" Zero-Turn Mower, 25hp

285z (Rzt 2552) (2691199-00) - 52" Zero-Turn Mower, 25hp

300z (Zt 2446) (2691034-00) - 46"/117cm Zero-Turn Mower, 24hp

360z (Zt 2246) (2691316-00) - 46"/117cm Zero-Turn Mower, 22hp

360z (Zt 2246) (2691316-01) - 46"/117cm Zero-Turn Mower, 22hp

360z (Zt 2246) (2691500-00) - 46"/117cm Zero-Turn Mower, 22hp B&S

360z (Zt 2246) (2691505-00) - 46"/117cm Zero-Turn Mower, 22hp B&S

42" Mower Deck - Housing & Arbor Group

42" Mower Deck - Housing & Arbor Group, Export

42" Mower Deck - Housing, Arbors & Blade Group

46" (117cm) Mower Deck - Housing, Arbor & Blades Group

46" Mower Deck - Housing & Arbor Group

46" Mower Deck - Housing, Arbor & Blade Group

46" Mower Deck - Housing, Arbor & Blade Group (2992707)

46" Mower Deck - Housing, Arbor & Blades Group

52" Mower Deck - Housing, Arbors & Blades Group

Ztx 110 (2691391-00) - 42"/107cm Zero-Turn Mower, 7200 Series B&S

Compatible with Murray Models:

107.280060 (7800753 Sn) - Craftsman Zts7000 Series 42" Zero-Turn Mower, 21hp B&S (2011)

107.280061 (7800753) - Craftsman Zts7000 Series 42" Zero-Turn Mower, 21hp B&S (2011)

107.280062 (7800753 Asn) - Craftsman Zts7000 Series 42" Zero-Turn Mower, 21hp B&S (2011)

107.280063 (7800753 A) - Craftsman Zts7000 Series 42" Zero-Turn Mower, 21hp B&S (2011)

107.280070 (7800690 Sn) - Craftsman Zts7000 Series 52" Zero-Turn Mower, 26hp B&S (2011)

107.280071 (7800690) - Craftsman Zts7000 Series 52" Zero-Turn Mower, 26hp B&S (2011)

107.280072 (7800690 Asn) - Craftsman Zts7000 Series 52" Zero-Turn Mower, 26hp B&S (2011)

107.280073 (7800690 A) - Craftsman Zts7000 Series 52" Zero-Turn Mower, 26hp B&S (2011)

107.289920 (7800514) - Craftsman Zts6000 Series 52" Zero-Turn Mower, 26hp B&S (2009)

107.289930 (7800515) - Craftsman Zts6000 Series 52" Zero-Turn Mower, 26hp B&S (2009)

1695809 - 46" Mower Deck (2010)

1695810 - 46" Mower Deck

1695968 - 52" Mower Deck (2011)

1695981 - 46" Mower Deck, Fr (2011)

1696084 - 42" Mower Deck (2012)

1696087 - 52" Mower Deck (2012)

1696441-00 - 42" Mower Deck (2015)

1696441-01 - 42" Mower Deck (2016)

1696588-00 - 46" Mower Deck (2015)

1696684-00 - 46" Mower Deck (2016)

1696797-00 - 42" Mower Deck (2017)

42" Mower Deck - Housing, Arbors & Blades Group

42" Mower Deck - Spindle & Idler Group (7502257)

46"

46" Mower Deck - Housing, Arbors & Blade

46" Mower Deck - Housing, Arbors & Blades Group

52" Mower Deck - Housing & Arbor Group (7501423)

52" Mower Deck - Housing, Arbors & Blades Group

52" Mower Deck - Spindle Group

950.601060 (7800820) - Craftsman Zts7000 Series 42" Zero-Turn Mower, 21hp B&S (2011)

950.601070 (7800819) - Craftsman Zts7000 Series 52" Zero-Turn Mower, 26hp B&S (2011)

950.609280 (7800538) - Craftsman Zts6000 Series 52" Zero-Turn Mower, 26hp B&S (2009)

C950-60106-0 (7800820) - Craftsman Zts7000 Series 42" Zero-Turn Mower, 21hp B&S, Canada (2011)

Compatible with Simplicity Models:

1696437-00 - 46" Mower Deck

1696438-00 - 52"/132cm Mower Deck

2691133-00 - Regent Ex 46" Lawn Tractor, 23hp

2691134-00 - Regent Ex 52" Lawn Tractor, 26hp

2691173-00 - Regent Ex 46" Lawn Tractor, 23hp B&S

42" Mower Deck - Housing, Arbor & Blade Group

46" & 52" (117cm & 132cm) Mower Deck - Housing, Arbors & Blades Group

46" & 52" Mower Deck - Housing, Arbors & Blades Group

46" Mower Deck - Housing, Arbor & Blade Group

Etz 20420 (2691048-00) - 42" Zero-Turn Mower, 20hp

Etz 20420 (2691048-01) - 42" Zero-Turn Mower, 20hp42" Mower Deck - Housing, Arbor & Blade Group

Etz 20420 (2691048-02) - 42" Zero-Turn Mower, 20hp

Etz 20420 (2691048-03) - 42" Zero-Turn Mower, 20hp

Etz 20420 (2691048-04) - 42" Zero-Turn Mower, 20hp

Kzt 2242 (2691300-00) - Kioti 42" Zero-Turn Mower, 22hp B&S

Kzt 2552 (2691299-00) - Kioti 52" Zero-Turn Mower, 25hp B&S

Mf 2000 (2691190-00) - MF 46" Lawn Tractor, 22hp B&S

Mf 2000 (2691190-01) - MF 46" Lawn Tractor, 22hp B&S

Mf 2000 (2691190-02) - MF 46" Lawn Tractor, 22hp B&S

Mf 2500 (2691191-00) - MF 52" Lawn Tractor, 23hp B&S

Szt 150 (2691357-00) - Courier 46"/117cm Zero-Turn Mower, 656cc B&S

Szt 150 (2691357-01) - Courier 46"/117cm Zero-Turn Mower, 656cc B&S

Szt 150 (2691693-00) - Courier 117cm Zero-Turn Mower, 7270 Series B&S

Zt 1842 (2691139-00) - 42" Zero-Turn Mower, 18hp Kaw.

Zt 2042 (2691138-00) - 42" Zero-Turn Mower, 20hp B&S

Zt 2142 (2691036-00) - 42" Zero-Turn Mower, 21hp B&S

Zt 21546 (2691140-00) - 46" Zero-Turn Mower, 21.5hp Kaw.

Zt 2242 (2691160-00) - 42" Zero-Turn Mower, 22hp B&S

Zt 2242 (2691306-00) - 42" Zero-Turn Mower, 22hp B&S

Zt 2300 (2691168-00) - MF 42" Zero-Turn Mower, 22hp B&S

Zt 2300 (2691169-00) - MF 52" Zero-Turn Mower, 25hp B&S

Zt 2300 (2691308-00) - MF 52" Zero-Turn Mower, 25hp B&S

Zt 2321 (2691097-00) - MF 42" Zero-Turn Mower, 21hp B&S

Zt 2552 (2691162-00) - 52" Zero-Turn Mower, 25hp B&S

Zt 2552 (2691307-00) - 52" Zero-Turn Mower, 25hp B&S

Order Includes:

3x Spindle: Murray: 84003654, 84003175, 1735573YP, 7600211YP

Simplicity: 84003654, 84003175, 1735573YP,

 7600211YP, 1735573YP, 1735573, 1737352YP

 Snapper: 84003654, 84003175, 1735573YP,

7600211YP, 1735573YP, 1735573, 1737352YP

Deck Size: 42" 52"

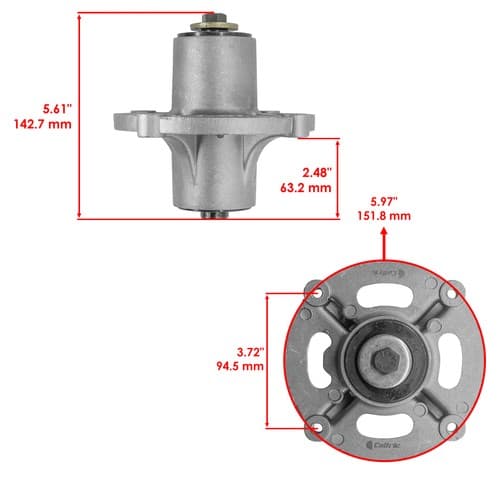

Length: 142.7 mm - 5.61 in

Width: 151.8 mm - 5.97 in

Height: 151.8 mm - 5.97 in
