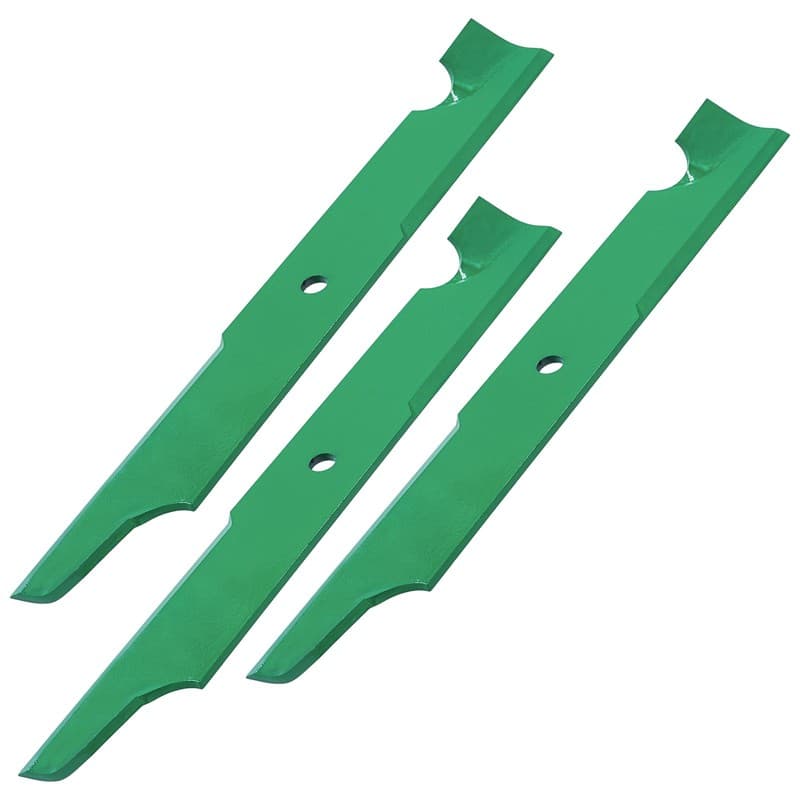

Spindle Blade for Bad Boy ZT Avenger 60" 2020-2024 038-6060-00 High Lift

 Premium Quality Replacement Part

High Lift Blade

Compatible with Gravely Models:

Pro-Master 60" Zero-Turn Mower:

991009 (Pm 144 Xdz) - 21hp Kaw. (Sn: 000101 & Above)

991010 (Pm 148 Xdz) - 21hp Kaw. (Sn: 000101 & Above)

991011 (Pm 152 Xdz) - 23hp Kaw. (Sn: 000101 & Above)

991013 (Pm 160 Xdz) - 25hp Kaw. (Sn: 000101 & Above)

991015 (Pm 144m) - 21hp Kaw.(Sn: 000101 & Above)

991016 (Pm 148m) - 21hp Kaw.(Sn: 000101 & Above)

991017 (Pm 152m) - 23hp Kaw.(Sn: 000101 & Above)

991018 (Pm 152m) - 25hp Koh. (Sn: 000101 & Above)

991019 (Pm 160m) - 23hp Kaw. (Sn: 000101 & Above)

991020 (Pm 160m) - 25hp Koh. (Sn: 000101 & Above)

991021 (Pm 148h) - 21hp Kaw. (Sn: 000101 & Above)

991026 (Pm 144m Xdz) - 21hp Kaw. (Sn: 000101 & Above)

992007 (Pm 200) - 25hp Koh. (Sn: 000101 & Above)

992008 (Pm 200) - 20hp Koh. (Sn: 000101 - 000200)

992010 (Pm 200) - 20hp Kaw. (Sn: 000101 - 000195)

992012 (Pm 200) - 22hp Koh. (Sn: 000101 - 000202)

992018 (Pm 250z) - 25hp Koh. (Sn: 000501 & Above)

992020 (Pm 260z) - 25hp Koh. (Sn: 031000 & Above)

992021 (Pm 250z) - 22hp Robin Subaru (Sn: 000101 - 009999)

992021 (Pm 250z) - 22hp Robin Subaru (Sn: 010000 - 011999)

992021 (Pm 250z) - 22hp Robin Subaru (Sn: 012000 & Above)

992022 (Pm 260z) - 25hp Koh. (Sn: 000101 - 009999)

992022 (Pm 260z) - 25hp Koh. (Sn: 010000 - 011999)

992022 (Pm 260z) - 25hp Koh. (Sn: 012000 & Above)

60" Deck for Pro-Master 310 Mower:

890012 - (Sn: 000101 & Above)

890013 - (Sn: 000101 & Above)

890014 - (Sn: 000101 - 000500)

890014 - (Sn: 000501 & Above)

60" Deck for Pro-Master 320 Mower:

890016 - (Sn: 000101 & Above)

890017 - (Sn: 000101 & Above)

60" Deck for Pro-Master 320XDZ Mower:

890018 - (Sn: 000101 & Above)

60" Deck for Rapid XZ Side Discharge Mower:

890100 - (Sn: 000101 & Above)

890101 - (Sn: 000101 & Above)

60" X-Factor Zero-Turn Mower Deck:

890110 -(Sn: 020000 & Above)

Pro-Walk 60" Walk-Behind Mower:

988174 - Kaw. Fs (Sn: 000101 & Above)

Pro-Turn 60 60"

991217 Kw. FS (SN: 000101 & Above)

991220 Koh. ZT (SN: 000101 - 009999)

Pro-Turn 160 60"

991130 Kw. FX (SN: 090000 - 204999)

991078 Kw. (SN: 000101 & Above)

991081 Kw. (SN: 000101 - 019999)(SN: 040000 - 040999)

991097 Koh. EFI (SN: 021000 - 039999)

991104 CARB (SN: 020000 - 020999)(SN: 040000 - 040999)

991117 (SN: 041000 & Above)

991121 (SN: 050000 & Above)

991124 (SN: 050000 & Above)

991133 Koh. ZT (SN: 000101 - 009999)(SN: 100000 & Above)

991136 Koh. EZT EFI (SN: 092000 & Above)

991139 Kw. FX CARB (SN: 000101 & Above)

991140 Yam. MX (SN: 017000 - 089999)(SN: 092000 - 093999)

991305 (SN: 030000 & Above)

Pro-Turn 260 60"

992269 Kw. FX (SN: 094000 & Above)

992281 Yam. EFI (SN: 092000 - 093999)

992201 Kw. (SN: 030000 - 030999)(SN: 031000 - 039999)

992252 (SN: 040000 - 040999)

992257 EFI (SN: 041000 & Above)

992267 Koh. ZT (SN: 050000 - 050999)

992269 Kw. FX (SN: 051000 - 059999)(SN: 070000 - 074999)(SN: 082000 - 091999)

992272 Koh. EFI (SN: 050000 - 050999)(SN: 060000 - 061999)

(SN: 075000 - 079999)(SN: 092000 - 093999)

992281 Yam. EFI (SN: 080000 - 081999)

992296 Yam. MX (SN: 092000 - 093999)

992298 Kw. FX (SN: 094000 & Above)

Pro-Turn 360 60"

992523 Kw. FT EFI (SN: 000101 - 000999)(SN: 010000 - 019999)

992526 Kw. FX (SN: 001000 - 019999)

992522 Kw. FX (SN: 000101 - 000999)

992524 Koh. ZT (SN: 000101 - 000999)

992526 Kw. FX (SN: 000101 - 000399)(SN: 020000 - 039999)

992529 Kw. FX EFI (SN: 010000 - 019999)

Pro-Turn 460 60"

992278 Koh. ECV EFI (SN: 050000 - 050999)

992232 Kw. (SN: 020000 & Above)

992233 Koh. EFI (SN: 000101 - 019999)

992234 Kw. (SN: 000101 - 019999)

992235 Kw. (SN: 030000 - 039999)

992236 Kub. Diesel (SN: 020000 - 049999)

992237 Propane (SN: 020000 & Above)

992244 Kw. FX (SN: 030000 - 039999)

992274 Kw. FX (SN: 050000 - 050999)

992275 Kw. FX (SN: 050000 - 059999)(SN: 075000 - 079999)(SN: 090000 - 091999)

992278 Koh. ECV EFI (SN: 082000 - 089999) (SN: 092000 & Above)

992280 Koh. EFI Propane (SN: 050000 & Above)

992283 Yam. EFI (SN: 060000 - 061999)(SN: 080000 - 081999)

992288 Yam. EFI, CARB (SN: 070000 & Above)

Pro-Turn 560 60"

992511 Kw. FX (SN: 000101 - 000399)(SN: 010000 - 019999)

992514 Koh. ZT (SN: 000101 & Above)

992516 Kw. FX (SN: 000101 - 000399)

992530 Kw. FX EFI (SN: 010000 - 039999)

Pro-Turn 660 60"

992501 Kw. FX (SN: 006000 - 009999)

992503 Kw. FX EFI (SN: 006000 - 009999)

992501 Kw. FX (SN: 003000 - 005999)

992503 Kw. FX EFI (SN: 000101 - 005999)

Pro-Walk 60 60"

988174 Kw. FS (SN: 000101 & Above)

988187 Kw. FS (SN: 000400 & Above)

988191 Kw. FS (SN: 000101 & Above)

Pro-Stance 60 60"

994164 Kw. FX (SN: 002000 - 204999)

994165 Kw. FT EFI (SN: 002000 - 204999)

994124 EFI (SN: 040000 - 040999)

994125 CARB (SN: 041000 & Above)

994137 Kw. FX (SN: 010000 - 019999)

994138 Kw. FX (SN: 000101 & Above)

994147 Kw. FX, CARB (SN: 020000 & Above)

994153 Kw. FX (SN: 000101 & Above)

994164 Kw. FX (SN: 000101 - 000499)

994165 Kw. FT EFI (SN: 000101 - 001999)

Pro-Stance Ultra 60 60"

994170 Kw. FX (SN: 000101 & Above)

Compatible with Ariens Models:

Zoom 60" Zero-Turn Mower:

992062 (2552 Xl) - 25hp Kohl. (Sn: 000101 & Above)

992063 (2560 Xl) - 25hp Kohl. (Sn: 000101 & Above)

Apex 60" Zero-Turn Mower, 23hp Kaw. Fr

Apex 60" Zero-Turn Mower, 23hp Koh.

Apex 60" Zero-Turn Mower, Kohl.

Zenith 60" Zero-Turn Mower, 23.5hp Kaw. Fx

Compatible with Bad Boy Models:

Aos - 60" 2007-2010

Aos Diesel - 60" 2010

Compact Diesel - 60" 2010

Czt - 60" 2010-2013

Czt Elite - 60" 2014-2015

Diesels - 60" 2007-2011

Lightning And Pup - 60" 2008-2011

Maverick - 60" 2016-2025

Maverick Hd - 60" 2022-2025

Pup - 60" 2007

Revolt Sd - 60" 2023-2025

Zt - 60" 2007-2012

Zt Avenger - 60" 2020-2024

Zt Elite - 60" 2013-2025

Compatible with Exmark Models:

60" Lazer Z Zero-Turn Mower:

Lz18kc523 - 18hp Kohl. (Sn: 130000 - 219999) (1997-1999)

Lz22kc523 - 22hp Kohl. (Sn: 130000 - 219999) (1997-1999)

Lz22kc604 - 22hp Kohl. (Sn: 190000 - 219999) (1999)

Lz22lka523 - 22hp Kaw. (Sn: 190000 - 259999) (1999-2000)

Lz22lka604 - 22hp Kaw. (Sn: 190000 - 259999) (1999-2000)

Lz23kc523 - 23hp Kohl. (Sn: 220000 - 259999) (2000)

Lz23kc604 - 23hp Kohl. (Sn: 220000 - 259999) (2000)

60" Turf Ranger Front Mount Mower:

Fmd523 - (Sn: 130000 - 259999) (1997-2000)

Fmd603 - (Sn: 130000 - 259999) (1997-2000)

60" Turf Tracer Hydro Walk-Behind Mower:

Fmd523 - (Sn: 130000 - 259999) (1997-2000)

Fmd603 - (Sn: 130000 - 259999) (1997-2000)

Compatible with Dixie Chopper Models:

3360 (2008)

3372 (2008)

Classic 2550 (2009-2011)

Classic 2750 (2008-2010)

Classic 2760 (2008-2011)

Classic 3060hp (2008-2011)

Classic 3360hp (2008-2011)

Classic 3372hp (2009-2011)

Flex-Deck (2001-2007)

Lp3000-60 (2006-2008)

Lp3000-72 (2006-2008)

Lt2000-50d S/N 6057252 & Up (2006)

Lt2300-50d (2007)

Lt2500-50d S/N 6057252 & Up (2006)

Lt2700-60d (2007)

Lt2700-60d S/N 6057252 & Up (2006)

Lt2700-60d S/N Se5043301 & Up (2005)

Lx2000-42 S/N 8916618 - 8919915 (1998)

Lx2001-42 S/N 8916618 - 8919915 (1998)

Lx2002-42 S/N 9920013 - 0030089 (1999-2000)

Lx2401-42 S/N 8916618 - 8919915 (1998)

Se2550 (2008-2012)

Se2750 (2008-2012)

Se2760hp (2008-2012)

Sp2800-60 S/N 6057560 & Up (2006)

Sp2800efi-60 S/N 4043076 & Up (2004)

Sp2800efi-60 S/N 5051029 & Up (2005)

X2000-50 S/N 8916618 - 8919915 (1998)

X2001-60 S/N 4043076 & Up (2004)

X2303-50 (2007)

X2400-50 S/N 8916618 - 8919915 (1998)

X2503-60 S/N 3039028 & Up (2003)

X2503-60 S/N 4043076 & Up (2004)

X2503-60 S/N 5051029 & Up (2005)

X2703-60 (2007)

X2703-60 S/N 6057191 & Up (2006)

Xcd66 (2008)

Xcd74 (2008), Xf2500-60 S/N 2034040 - 2038888 (2002)

Xf2500-60 S/N 9920013 - 0030089 (1999-2000), Xf2600efi-60 (2002)

Xf2600efi-60 S/N 3038889 & Up (2003), Xfg2700-50 (2007)

Xfg2700-50 S/N 6057206 & Up (2006), Xfg2700-60 (2007)

Xfg2700-60 S/N 3038889 & Up (2003), Xfg2700-60 S/N 6057206 & Up (2006)

Xg2503-50 (2007), Xg2503-50 S/N 6057191 & Up (2006)

Xg2703-60 (2007), Xg2703-60 S/N 5051029 & Up (2005)

Xg2703-60 S/N 6057191 & Up (2006), Xg2703-72 (2006)

Xk2503-60 S/N 3039028 & Up (2003), Xt2800efi-60 S/N 3038889 & Up (2003)

Xt3000-60 S/N 3038889 & Up (2003), Xt3000-60 S/N 4043076 & Up (2004)

Xt3200-60 S/N 5051029 & Up (2005), Xt3300-60 (2007)

Xt3300-60 S/N 6057560 & Up (2006), Xt3300-72 (2007)

Xt3300-72 S/N 6057560 & Up (2006), Xw2300-60 S/N 2034040 - 2038888 (2002)

Xw2400-60 S/N 1027270 - 1034039 (2001), Xw2400-60 S/N 2034040 - 2038888 (2002)

Xw2500-60 S/N 2034040 - 2038888 (2002), Xw2600-60 Efi S/N 2034040 - 2038888 (2002)

Xw2600efi-60 S/N 3038889 & Up (2003), Xwd2600-60 (2001)

Xwd3500-60 (2006-2007), Xwf2300-60 S/N 3038889 & Up (2003)

Xwf2400-60 S/N 3038889 & Up (2003), Xwf2700-60 S/N 3038889 & Up (2003)

Xwf2700-60 S/N 4043076 & Up (2004), Xwf2700-60 S/N 5051029 & Up (2005)

Xwf2700-60 S/N 6057206 & Up (2006), Xwf3000-60 (2007)

Xwk2501-60 S/N 1027270 - 1034039 (2001), Xwk2501-60 S/N 2034040 - 2038888 (2002)

Xwk2503-60 S/N 1027270 - 1034039 (2001), Xwk2503-60 S/N 2034040 - 2038888 (2002)

Xxg2703-72 (2007), Xxg2703-72 S/N 6057191 & Up (2006)

Compatible With Toro Models:

60" Z Master Zero-Turn Mower:

74060 (7500-D) - Side-Discharge Deck (Sn: 400000000 - 999999999), 74238 Cp (Z 500) - Side-Discharge Deck (Sn: 280000001 - 280999999) (2008)

74238 Cp (Z 528) - Side-Discharge Deck (Sn: 270000001 - 270999999) (2007), 74253 Cp (Z 580) - Side-Discharge Deck (Sn: 280000001 - 280999999) (2008)

74296 (Z 500) -Side-Discharge Deck (Sn: 310000001 - 311999999) (2010-2011)

Z500 Z Master Mower, Z597 Z Master Mower

60" Walk-Behind Mower

30280 - (Sn: 270000001 - 270999999) (2007)

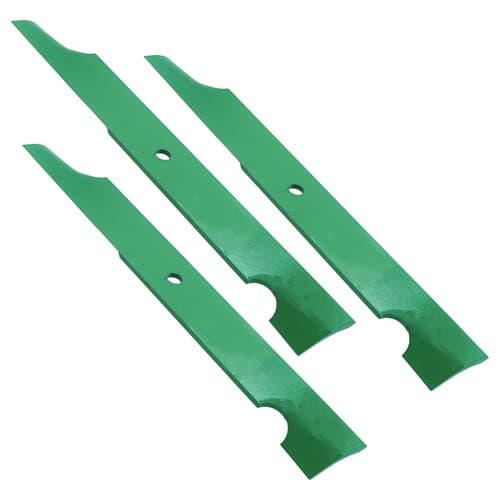

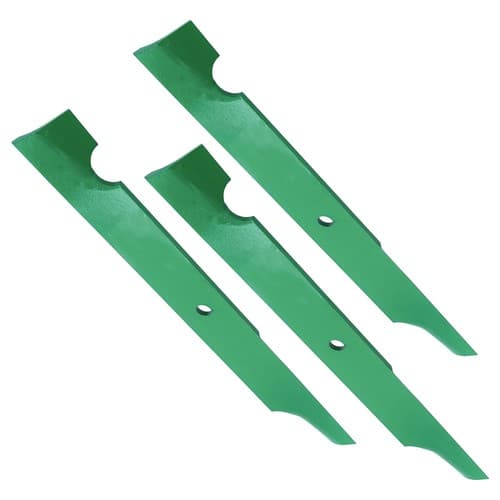

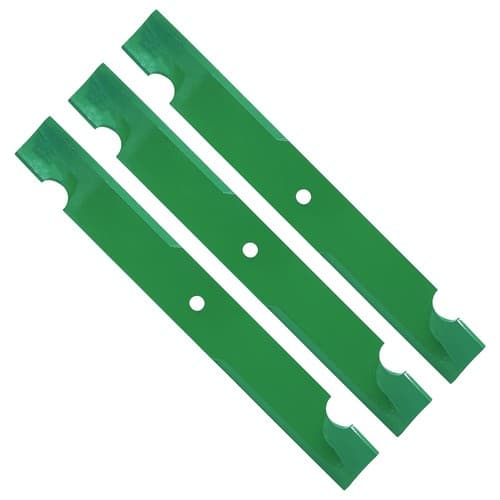

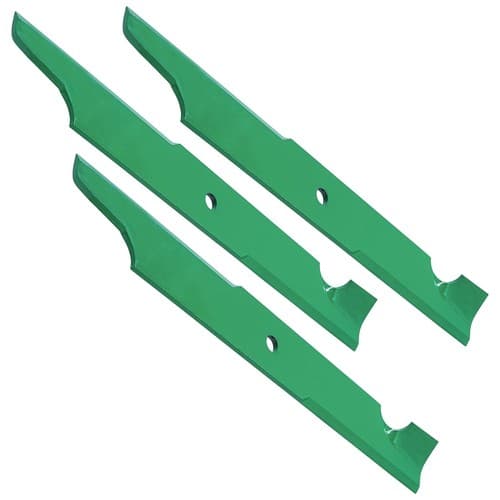

Order Includes:

3 x Blade Deck:  Compatible with Toro: 105-7718, 105-7718-03, 105-7777-03,

108-1114, 108-1123, 110-0405,

Compatible with Ariens: 08899100, 08979600, 09081200,

Compatible with Bad Boy: 038-2007-00, 038-6002-00, 038-6050-00,

Compatible with Dixie Chopper: 30227-60, 30227-60H, 30227-60V, A60227-60N,

Compatible with Exmark: 103-0301, 103-0301-S, 103-1580-S, 103-2530, 103-2530-B,

103-2530-M, 103-2530-S, 1-613112, 1-613250, 1-633483,

1-603661, 103-2510-S, 613112, 613250, 633483,

Compatible with Gravely: 025124, 046999, 08781800, 08781851, 08899100, 089046,

08904651, 08979600, 090812, 09081200, 46999, 48864, 89796, 8979651

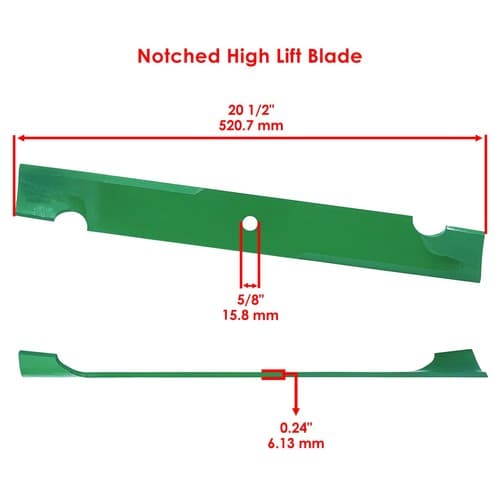

Length: 508 mm - 20 1/2 in

Width: 63.5 mm - 2.5 in

Thickness: 7 mm - 0.28 in
