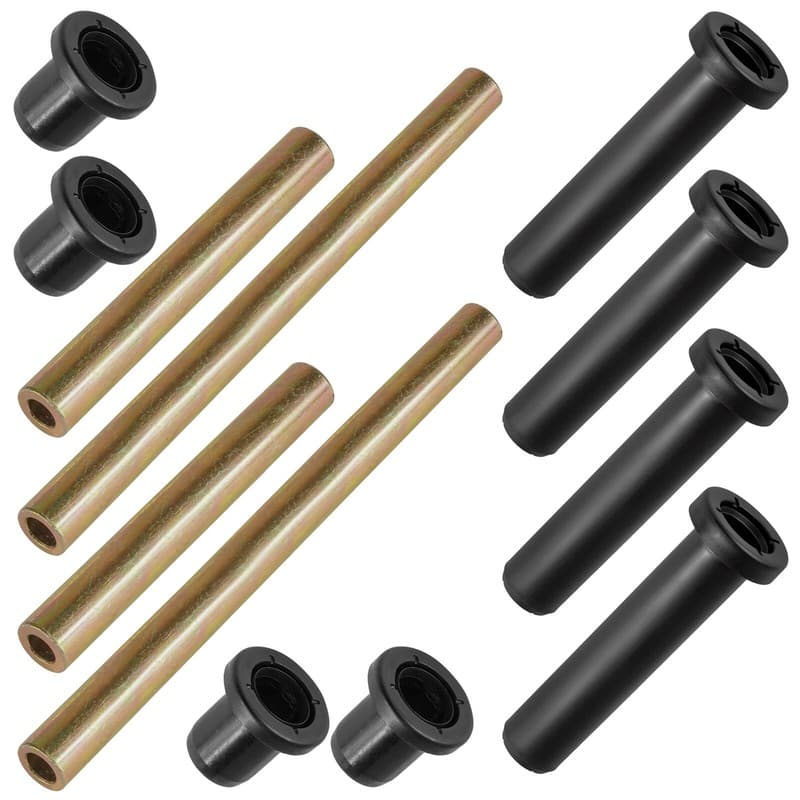

Rear Upper Control Arm Bushing Kit For Polaris Sportsman XP 850 2010-2015

Rear Upper Left & Right Control Arm Bushing Kit

For Polaris Models:
Sportsman XP 850 2010-2015

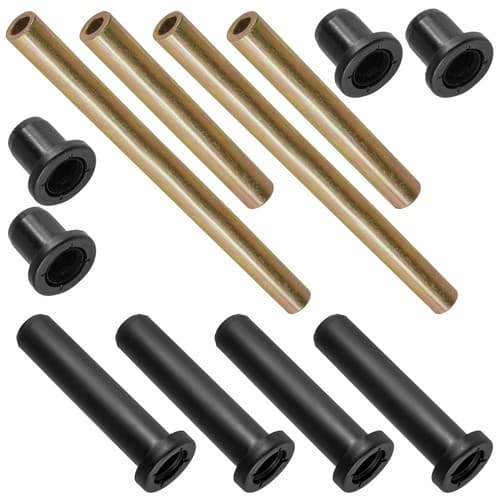

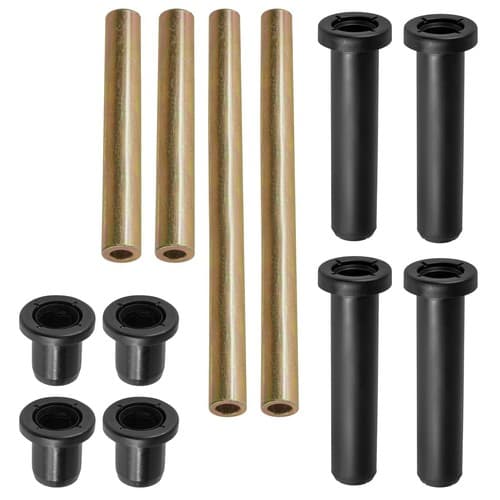

Order Includes:
2 x Long Pivot Shaft | 5137594 5136468
4 x Long Bushings | 5431596 5433066 5434551 5436220 5436973
4 x Short Pivot Shaft | 5137590 5135501
2 x Short  Bushing | 5439874 5436505 5436832

Dimensions & Measurements:

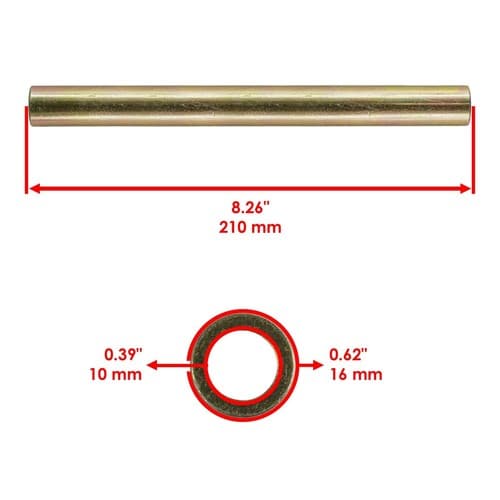

Long Pivot Shaft:
Length: | 210mm | 8.26"
Inner Diameter: | 10mm | 0.39"
Outer Diameter: | 16mm | 0.62"

Long Bushing:
Width: 21mm | 0.82"
Height:  102mm | 4.0"

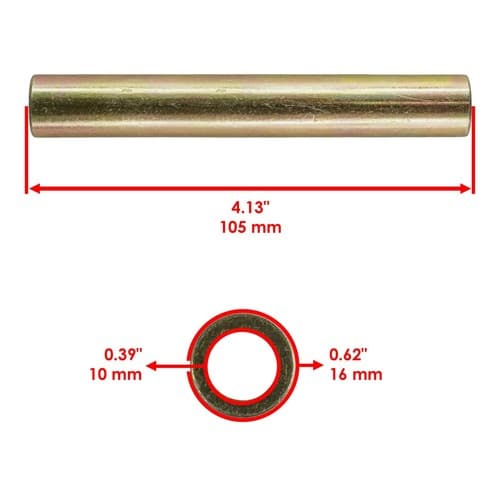

Short Pivot Shaft:
Length: 105mm | 4.13"
Inner Diameter: 10mm | 0.39"
Outer Diameter: 16mm | 0.62"

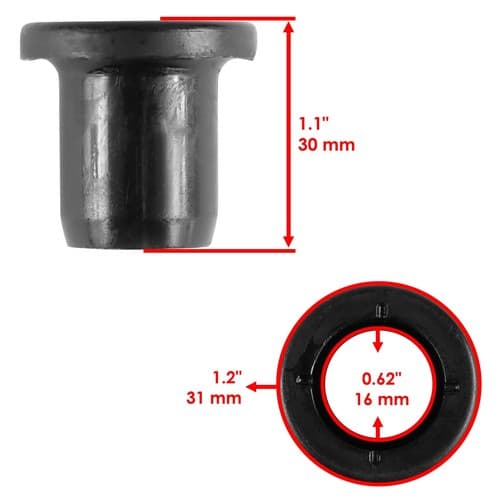

Short  Bushing:
Height: 30mm | 1.1"
 Inner Diameter: 16mm | 0.62"
Outer Diameter: 31mm | 1.2"

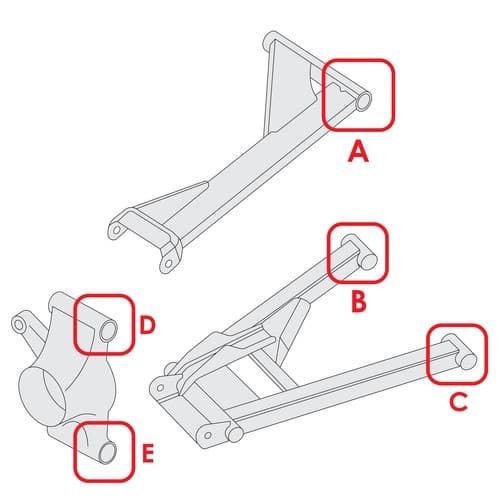

Note: Installs On Location (A) (D) In Second Picture
Control Arm Part Number:
Rear Upper Left 1025619-067 1017216-067 1025619-293
Rear Upper Right 1025620-067 1017217-067 1025620-293

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
