Name: Rear Swing Arm Kit For Yamaha Raptor 660R YFM660R 2001-2005 5LP-22110-00-00 ATV
Brand: Caltric
SKU: APH-285615532732
Price: 69.52 USD
Availability: InStock

Rear Swing Arm Kit For Yamaha Raptor 660R YFM660R 2001-2005 5LP-22110-00-00 ATV

No reviews yet

$69.52

NEWIn Stock

SKU: APH-285615532732

MPN: ZK118A1001AA

Delivery: 3-7 business days

Check Vehicle Fitment

View all compatible vehicles (7)

Yamaha Raptor 660R YFM660R — 2001-2005
Yamaha Raptor 660R YFM660R Limited Edition — 2004
Yamaha Raptor 660R YFM660RSE Special Edition — 2005

Specifications

Type

Rear Swing Arm Bushing Kit

Brand

Caltric

Condition

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab

More Info

Installs On Location (C) and (D) In Second Picture

Item Length

225.6mm

Item Weight

13 oz

Machine Type

ATV

Vintage Part

Inner Diameter

16mm

Number In Pack

Compatible Make

For Yamaha

Description

Premium Quality Replacement Part

Rear Swing Arm Kit

For Yamaha Models:
Raptor 660R YFM660R 2001-2005
Raptor 660R YFM660R Black Limited Edition 2003-2004
Raptor 660R YFM660R SE 2005

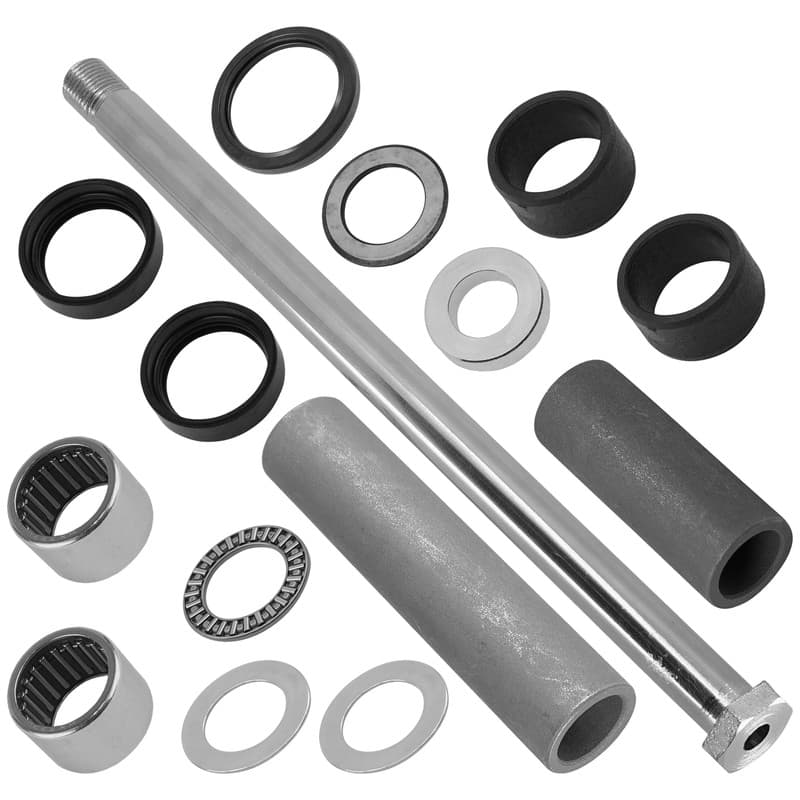

Order Includes:
1x Pivot Shaft Bolt : 5LP-22141-00-00
Height : 291.6mm | 11.4"
M11 x 1.5

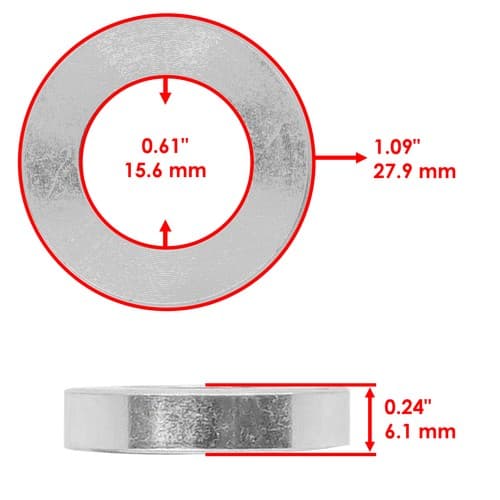

1x Swingarm Collar : 90387-16006-00
Inner Diameter : 15.6mm | 0.61"
Outer Diameter : 27.9mm | 1.09"
Width : 6.1mm | 0.24"

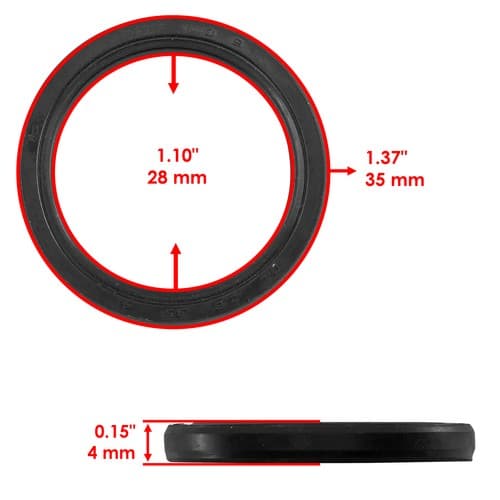

1x Seal : 93109-28043-00
Inner Diameter : 28mm | 1.10 "
Outer Diameter : 35mm | 1.37 "
Width : 4mm | 0.15 "

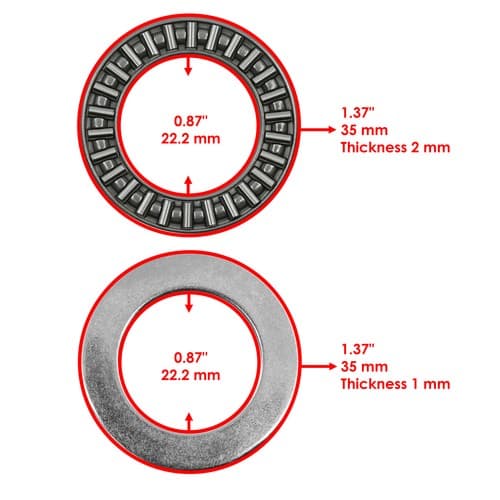

1x Bearing: 93342-22217-00
Inner Diameter: 22.2 mm | 0.87"
Outer Diameter: 35.0 mm | 1.37"
Bearing Thickness: 2 mm
Washer Thickness: 1 mm

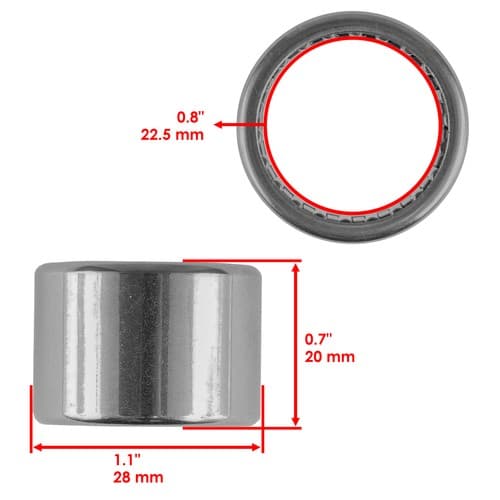

2x Needle Bearing : 93317-32231-00 93317-22237-00
Width : 20.0 mm | 0.7"
Length: 28.0 mm | 1.1"
Inner Diameter: 22.5 mm | 0.8"

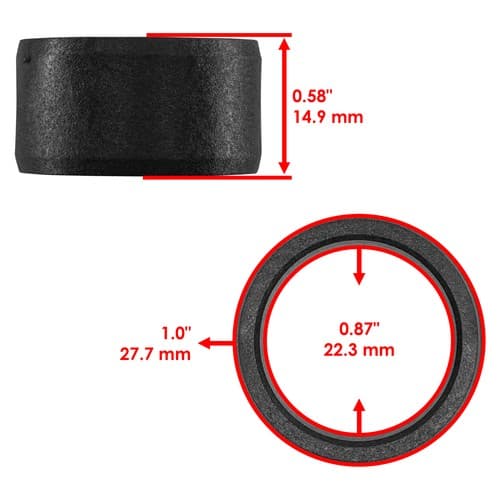

2x Solid Bushing: 90380-22111-00
Width: 14.9 mm | 0.58"
Inner Diameter: 22.3 mm | 0.87"
Outer Diameter: 27.7 mm | 1.0"

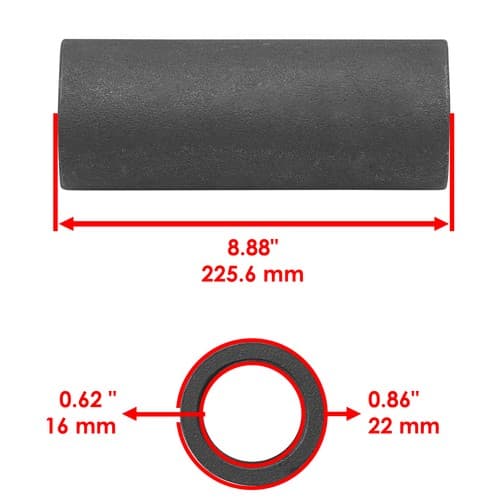

1x Swing Arm Bushing : 5LP-22123-00-00
Diameter : 16X22mm
Length : 225.6mm

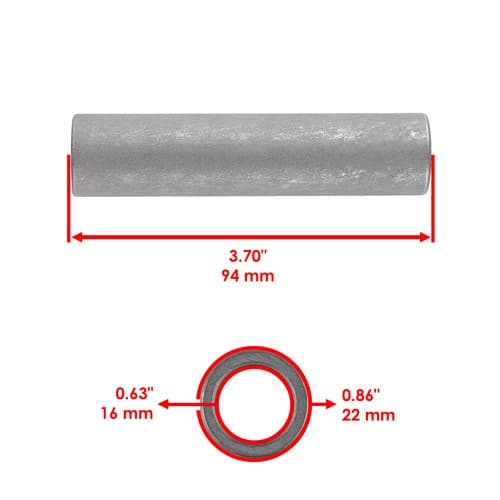

1x Long Pivot Shaft : 5LP-22184-00-00
Length: 94mm | 3.70 "
Inner Diameter: 16mm | 0.63 "
Outer Diameter: 22mm | 0.86 "

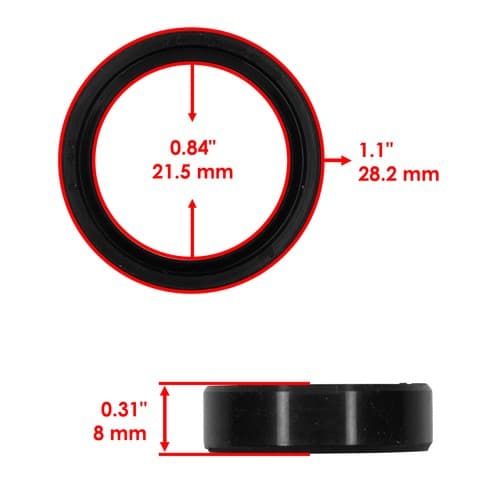

2x Oil Seal: 93106-22019-00 Dc 22-28-8
Width: 8.0 mm | 0.31"
Inner Diameter: 21.5 mm | 0.84"
Outer Diameter: 28.2 mm | 1.1"

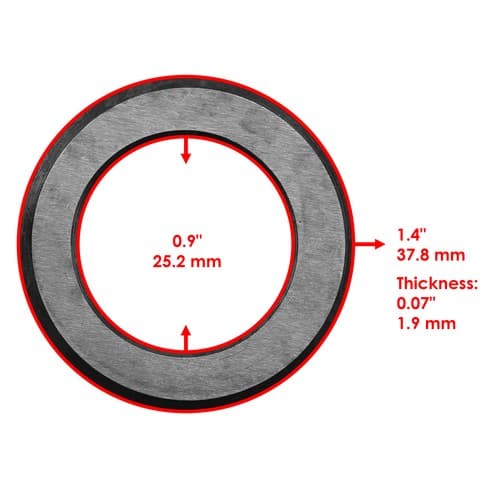

1x Washer : 3YF-22149-00-00, 90201-244A8-00
Inner Diameter: 25.2mm | 0.9"
Outer Diameter: 37.8mm | 1.4"

1x Plate Washer : 90201-160F6-00
Inner Diameter: 16.5mm | 0.64"
Outer Diameter: 26.7mm | 1.05"
Thickness: 3.5mm | 0.13"

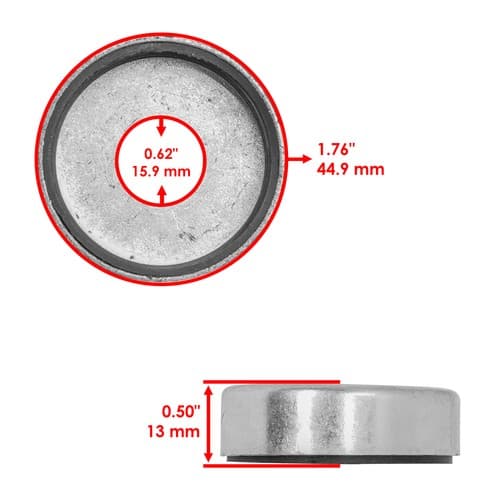

1 x Thrust Cover | 4X7-22129-00-00
Width: 13 mm | 0.5"
Inner Diameter: 15.9 mm | 0.62"
Outer Diameter: 44.9 mm | 1.76"

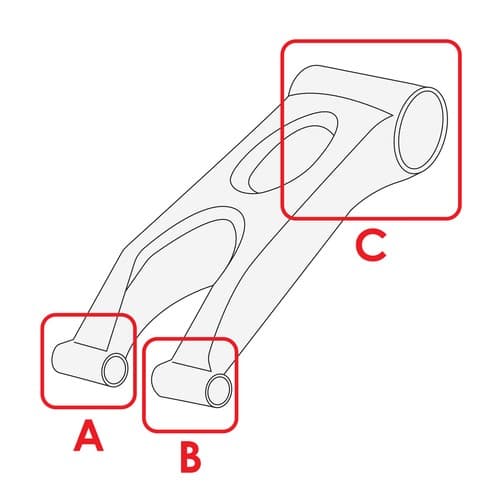

Note : Installs On Location (A) and (B) In Second Picture

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
