Rear Swing Arm Bushing Kit For Yamaha YFZ450R SE 2009-2025 / YFZ450X 2010-2011
No reviews yet
$59.18
NEWIn Stock
SKU: APH-286168541397
MPN: ZP115+ZP117+ZA141*2+ZG109*2+YW114*2+YW116+SL423*2+NB110*2
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Yamaha YFZ450R -- — 2009-2024
- Yamaha YFZ450R Special Edition — 2016-2017
- Yamaha YFZ450RSE -- — 2023-2024
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Plastic, Steel, Iron, Rubber, Metal
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (A) & (B) In Second Picture
- Vintage Part
- No
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 90387-16027-00, 2XJ-22124-00-00, 90387-160W1-00, 90380-22111-00, 4X7-22129-00-00, 3YF-22149-00-00, 3YF-22149-00-00, 90201-16018-00, 93106-22019-00, 93317-32231-00, 93317-32231-00, 18P-22141-00-00, 903871602700, 2XJ221240000, 90387160W100, 903802211100, 4X7221290000, 3YF221490000, 3YF221490000, 902011601800, 931062201900, 933173223100, 933173223100, 18P221410000
- Placement on Vehicle
Description
Premium Quality Replacement Part

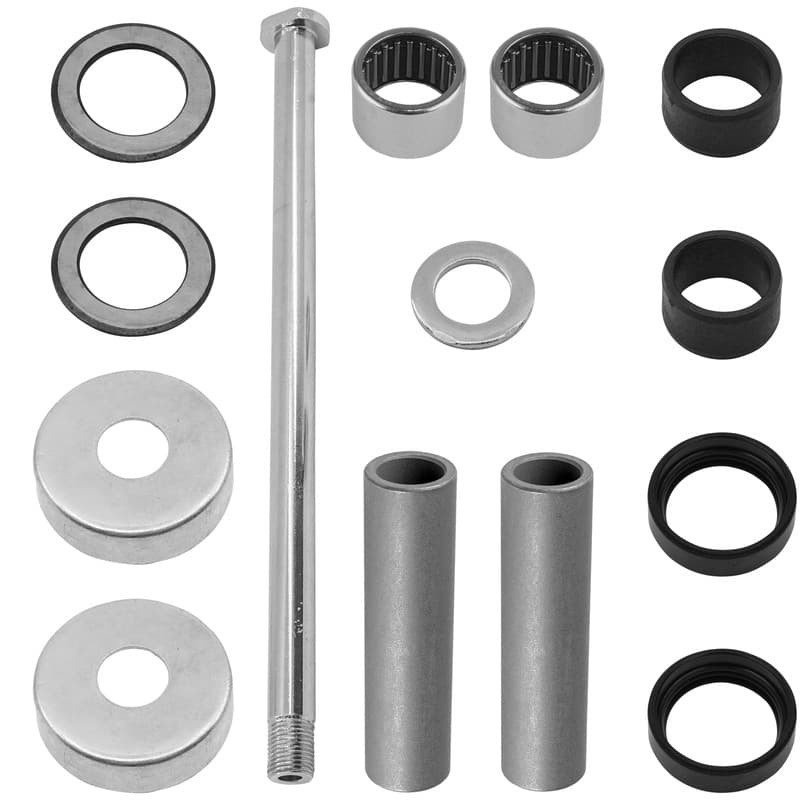

Rear Swing Arm Bushing Kit
Rear Swing Arm Bushing Kit
Compatible with Yamaha Models:
YFZ450 2017
YFZ450R 2009-2025
YFZ450R SE 2009-2025
YFZ450X 2010-2011
Order Includes:
1 x Pivot Shaft: 90387-16027-00
Length : 85.3mm - 3.35 in
Inner Diameter : 16mm - 0.63 in
Outer Diameter : 22mm - 0.86 in
Material: Steel
1 x Pivot Shaft: 2XJ-22124-00-00, 90387-160W1-00
Length : 91.5mm - 3.2 in
Inner Diameter : 16mm - 0.63 in
Outer Diameter : 22mm - 0.86 in
Material: Steel

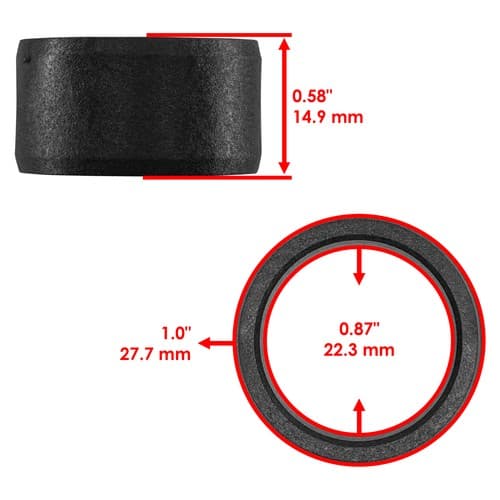

2 x Bushing: 90380-22111-00
Width: 14.9mm - 0.58 in
Inner Diameter: 22.3mm - 0.87 in
Outer Diameter: 27.7mm - 1 in
Material: Plastic

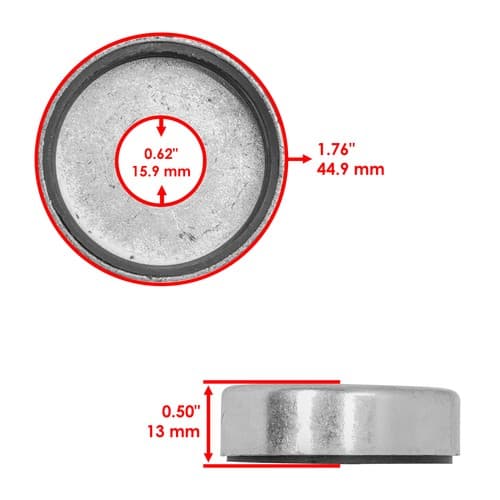

2 x Cap: 4X7-22129-00-00
Width: 13mm - 0.5 in
Inner Diameter: 15.9mm - 0.62 in
Outer Diameter: 44.9mm - 1.76 in
Material: Metal

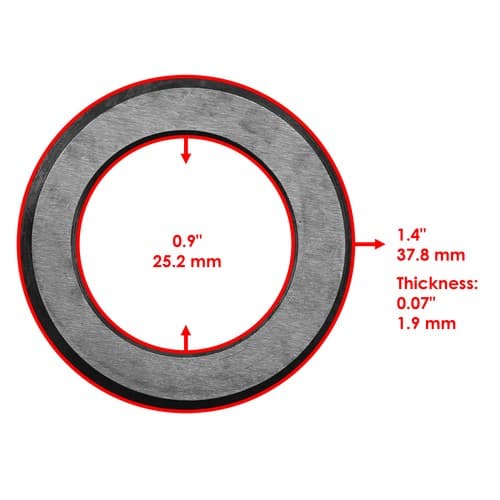

2 x Washer: 3YF-22149-00-00
Thickness: 1.9mm - 0.07 in
Inner Diameter: 25.2mm - 0.9 in
Outer Diameter: 37.8mm - 1.4 in
Material: Steel

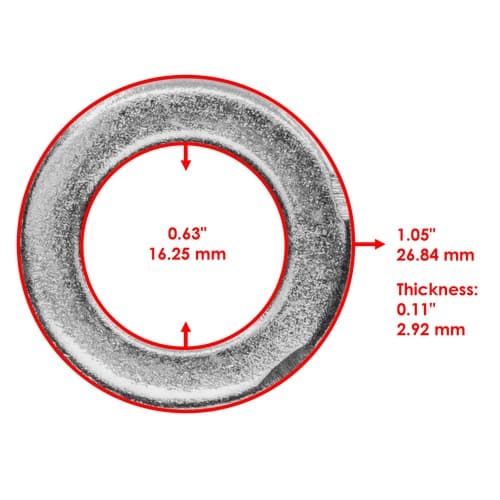

1 x Washer: 90201-16018-00
Thickness: 2.92mm - 0.11 in
Inner Diameter: 16.25mm - 0.63 in
Outer Diameter: 26.84mm - 1.50 in
Material: Steel

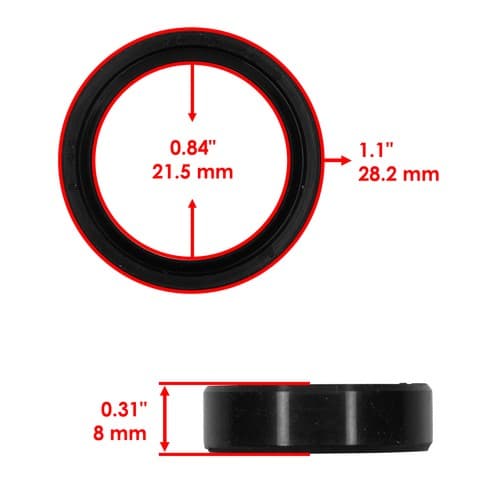

1 x Oil Seal: 93106-22019-00
Width: 8mm - 0.31 in
Inner Diameter: 21.5mm - 0.84 in
Outer Diameter: 28.2mm - 1.1 in
Material: Rubber

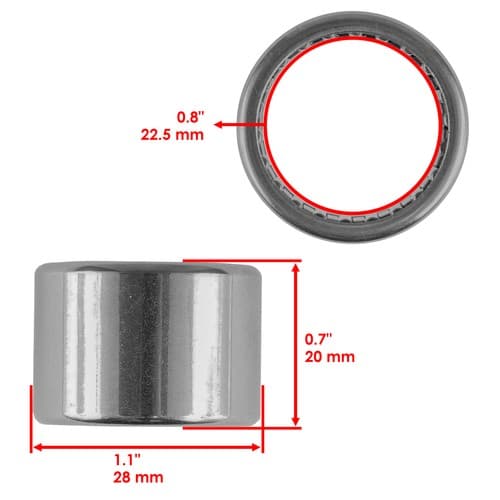

2 x Needle Bearing: 93317-32231-00
Width: 20mm - 0.7 in
Inner Diameter: 22.5mm - 0.8 in
Outer Diameter: 28mm - 1.1 in
Material: Steel
1 x Bolt: 18P-22141-00-00
Length : 304.8mm - 12 in
Stud Diameter: 16.2mm - 0.63 in
Material: Iron

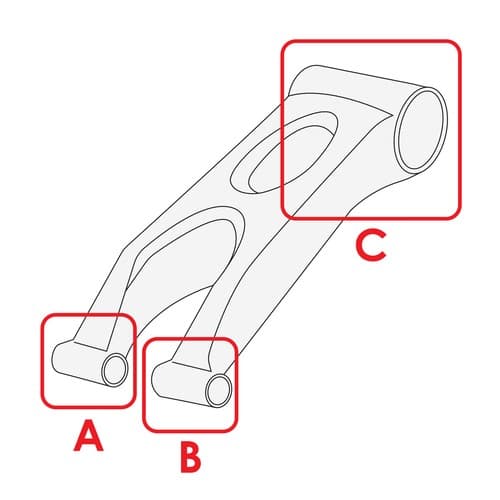

Note: Installs On Location (A) & (B) In Second Picture
Swing Arm Part Number: 18P-22110-00-00
