Rear Lower /Upper A-Arm Kit for Polaris Sportsman 850 Touring 2010 Left or Right

Rear Lower & Upper Left or Right A-Arm Kit

For Polaris Models:

Sportsman 850 Forest 2011

Sportsman 850 Touring 2011

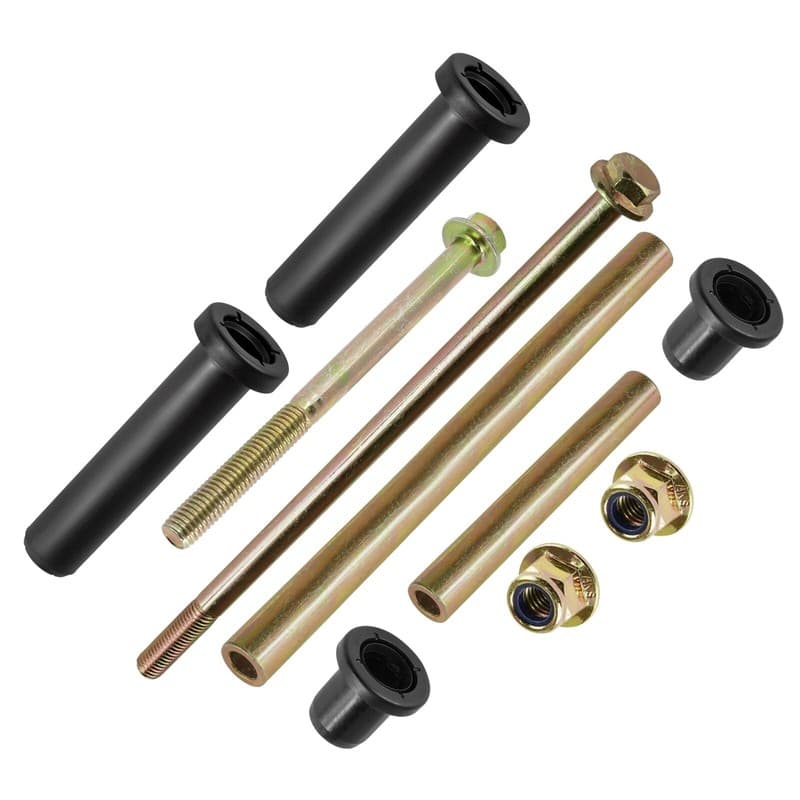

  Order Includes:

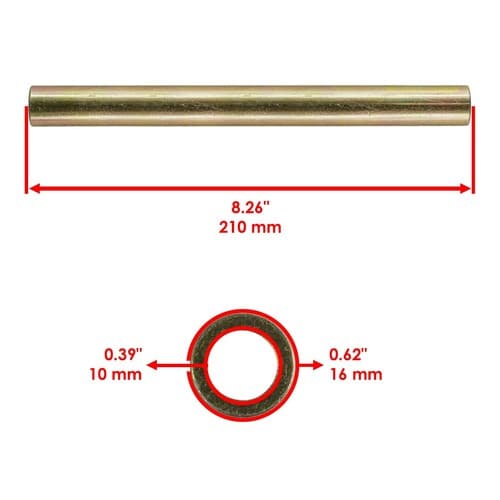

1 x Pivot Shaft  |  5137594 5136468

Length : 210mm  |  8.26"

Inner Diameter : 10mm  |  0.39"

Outer Diameter : 16mm  |  0.62"

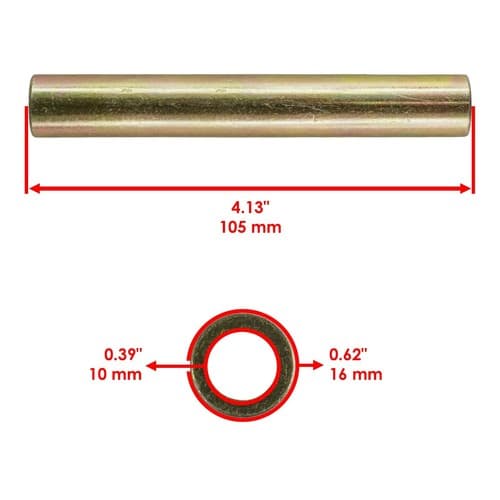

1 x Pivot Shaft  |  5137590 5135501

Length : 105mm  |  4.13"

Inner Diameter : 10mm  |  0.39"

Outer Diameter : 16mm  |  0.62"

1 x Bolt  |  7518472

Length : 15mm  |  0.59"

Height : 241mm  |  9.48"  | M10x1.25

1 x Bolt  |  7518675

Height : 140mm  |  5.51"  | M10x1.5

2 x Bushing  |  5436973 5431596 5433066 5434551 5436220

Length : 21mm  |  0.82"

Height : 102mm  |  4,0"

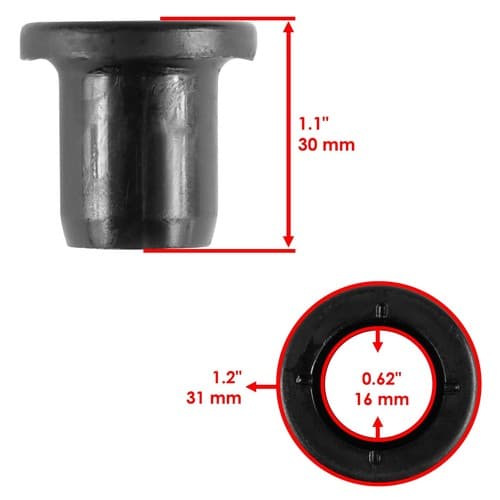

2 x Bushing  |  5439874 5436832 5436505

Length : 30mm  | 1.1"

Inner Diameter : 16mm  |  0.62"

Outer Diameter : 31mm  |  1.2"

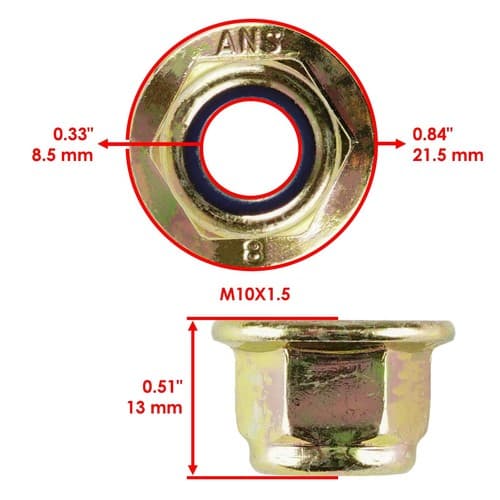

2 x Nut  |  7547313

Length : 13mm  |  0.51"

Inner Diameter : 8.5mm  |  0.33"

Outer Diameter : 21.5mm  |  0.84"

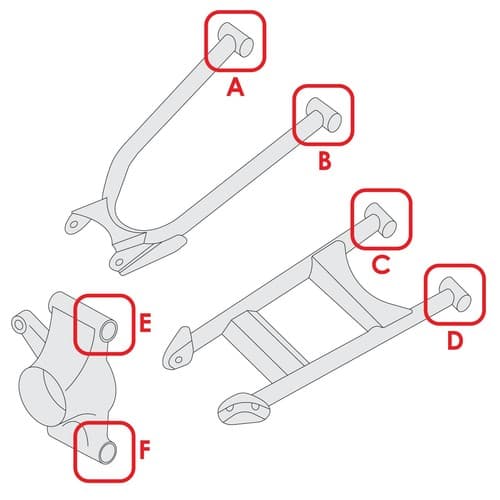

Note : Installs On Location (A) (B) (C) (D) (E) (F) In Second Picture

Rear Upper Left A-Arm : 1017216-067 1025619-067

Rear Upper Right A-Arm : 1017217-067 1025620-067

Rear Lower Left A-Arm : 1017154-067 1019410-067

Rear Lower Right A-Arm : 1017155-067 1019411-067

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
