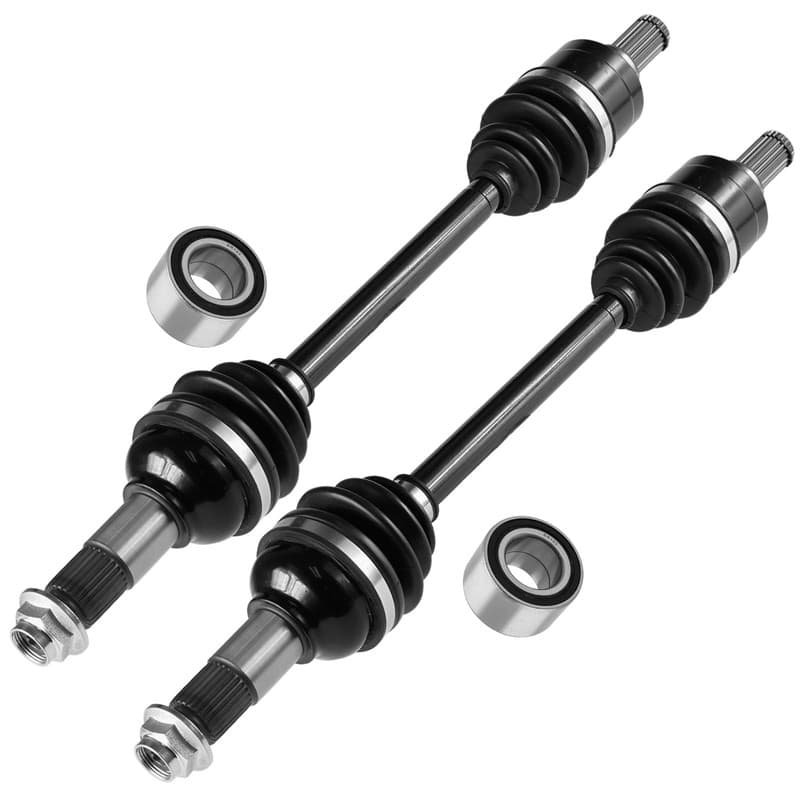

Rear Left & Right CV Joint Axle Bearing For Yamaha Grizzly 700 YFM700 2009-13
No reviews yet
$259.00
NEWIn Stock
SKU: APH-284854013149
MPN: AX128A2005
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Yamaha Grizzly 700 YFM700FG 4x4 FI — 2010-2013
- Yamaha Grizzly 700 YFM700FGH 4x4 Hunter Edition FI — 2010-2013
- Yamaha Grizzly 700 YFM700FGP 4x4 FI EPS — 2010-2013
- Yamaha Grizzly 700 YFM700FGPH 4x4 Hunter Edition FI EPS — 2010-2013
- Yamaha Grizzly 700 YFM700FGPSE 4x4 Special Edition FI EPS — 2010-2013
Specifications
- UPC
- Does not apply
- Type
- Rear Left & Right CV Joint Axle With Bearing
- Brand
- Caltric
- Gtin13
- Does not apply
- Features
- Easy Installation
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Length
- 549 mm
- Item Weight
- 18 Lb
- Vintage Part
- No
- Items Included
- Axle, Seal and Bearing
- Mounting Style
- Bolt-On
Description
Premium Quality Replacement Part

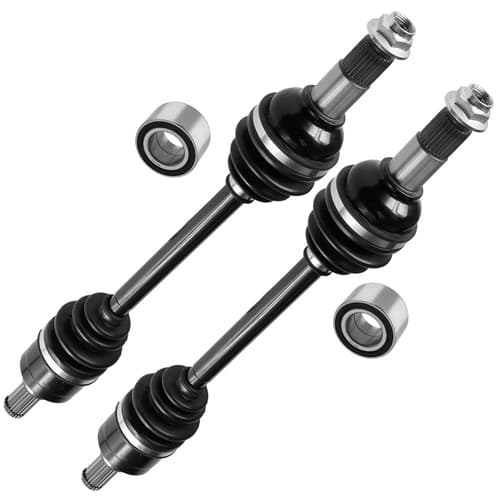

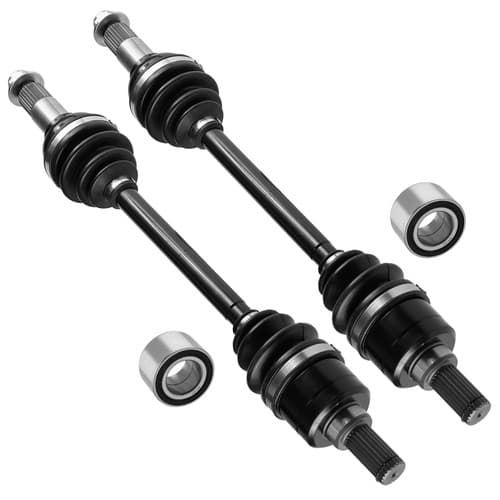

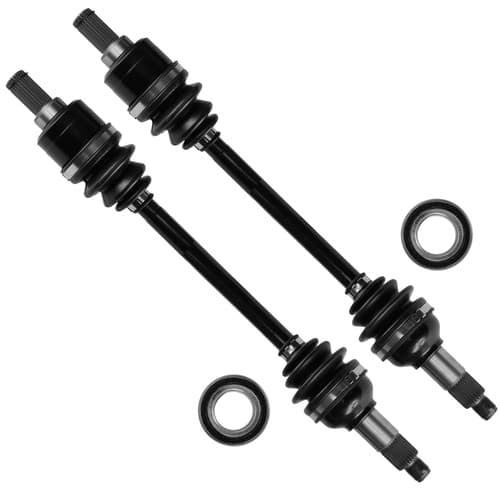

Rear Left and Right CV Joint Axle With Bearing
Compatible with Yamaha models:
Grizzly 550 Yfm550de 4wd Fi 2014
Grizzly 550 Yfm550dh 4wd Hunter Edition Fi 2014
Grizzly 550 Yfm550fg 4wd 2011-2013
Grizzly 550 Yfm550fg 4wd Eps 2011-2013
Grizzly 550 Yfm550fg 4wd Eps Fi 2009-2010
Grizzly 550 Yfm550fg 4wd Fi 2009-2010
Grizzly 550 Yfm550fg 4wd Hunter Edition 2011-2013
Grizzly 550 Yfm550fg 4wd Hunter Edition Eps 2011-2014
Grizzly 550 Yfm550fg 4wd Hunter Edition Fi 2009-2010
Grizzly 550 Yfm550fg 4wd Hunter Edition Fi Eps 2009-2010
Grizzly 550 Yfm550fg 4wd Special Edition Fi Eps 2009
Grizzly 550 Yfm550pe 4wd Eps Fi 2014
Grizzly 700 Yfm700fg 4wd Fi 2007-2013
Grizzly 700 Yfm700fg 4wd Fi Eps 2008-2013
Grizzly 700 Yfm700fg 4wd Hunter Edition Fi 2007-2013
Grizzly 700 Yfm700fg 4wd Hunter Edition Fi Eps 2008-2013
Grizzly 700 Yfm700fg 4wd Outdoorsman Edition Fi 2007
Grizzly 700 Yfm700fg 4wd Special Edition 2007-2008
Grizzly 700 Yfm700fg 4wd Special Edition Fi Eps 2009-2013
Order Includes:
2x Rear Left or Right Axle: 28P-2518E-10-00, 28P-2530V-10-00,
28P-2530V-00-00, 28P-2530V-01-00, 28P-2510F-05-00, 28P-2510F-00-00,
28P-2510F-01-00, 28P-2510F-04-00, 28P-2510F-10-00,
28P-2510F-02-00, 28P-2510F-03-00

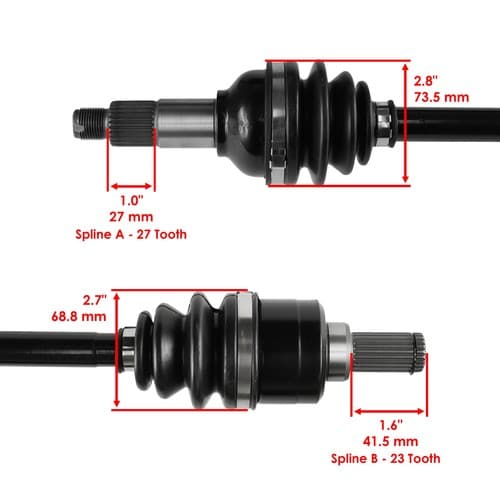

Length: 549 mm - 21.6 in
Spline A Length: 27 mm - 1 in - 27 Tooth,
Boot Width: 73.5 mm - 2.8 in
Spline B Length: 41.5 mm - 1.6 in - 23 Tooth,
Boot Width: 68.8 mm - 2.7 in

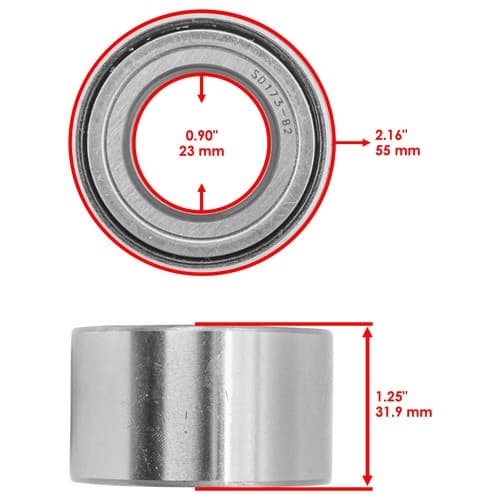

2x Ball Bearing: 93305-00601-00, 93305-00602-00
Inner Diameter: 23 mm - 0.90 in
Outer Diameter: 55 mm - 2.16 in
Width: 31.9 mm - 1.25 in
