Rear Knuckle Bushing Kit For Yamaha Kodiak 400 YFM400FA 4x4 2005-2006
No reviews yet
$38.18
NEWIn Stock
SKU: APH-286863622461
MPN: ZP149*2+ZA167*4+ZG151*4 - VS
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Yamaha Big Bear 400 YFM400FB 4x4 IRS — 2007-2012
- Yamaha Big Bear 400 YFM400FBE 4x4 Exploring Edition IRS — 2007
- Yamaha Big Bear 400 YFM400FBH 4x4 Hunter Edition — 2008-2012
- Yamaha Big Bear 400 YFM400FBH 4x4 Hunter Edition IRS — 2007-2010
- Yamaha Grizzly 350 YFM350FG 4x4 — 2011-2012
- Yamaha Grizzly 350 YFM350FG 4x4 IRS — 2012
- Yamaha Grizzly 350 YFM350FGH 4x4 Hunter Edition — 2011-2012
- Yamaha Grizzly 350 YFM350G — 2012
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Metal
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Length
- 74.5 mm
- Item Weight
- 12 oz
- Vintage Part
- No
- Items Included
- Bushing, Spacer, Cover Thrust
- Performance Part
- NO
- Country of Origin
- China
- Universal Fitment
- No
- OE/OEM Part Number
Description
Premium Quality Replacement Part
Rear Knuckle Left or Right Spacer Bushings & Cover Thrust
Rear Knuckle Left or Right Spacer Bushings & Cover Thrust
Compatible with Yamaha Models:
Grizzly 350 YFM350 4x4 2007-2012
Grizzly 400 YFM400 4x4 2007-2008
Grizzly 450 YFM450 4x4 2007-2014
Grizzly 550 YFM550 4x4 2009-2014
Grizzly 660 YFM660F 4x4 2002-2008
Grizzly 700 YFM700 4x4 2007-2023
Kodiak 400 YFM400FA 4x4 2005-2006
Kodiak 450 YFM450FA 4x4 2005-2006 2018-2024
Big Bear 400 YFM400 4x4 2007-2012
Kodiak 700K YFM700K 4x4 2016
Kodiak 700 YFM700K 4x4 FI 2017-2023
Rhino 660 YXR660 4x4 2005-2007
Rhino 450 YXR450 4x4 2006-2009
Rhino 700 YXR700 4x4 2008-2013

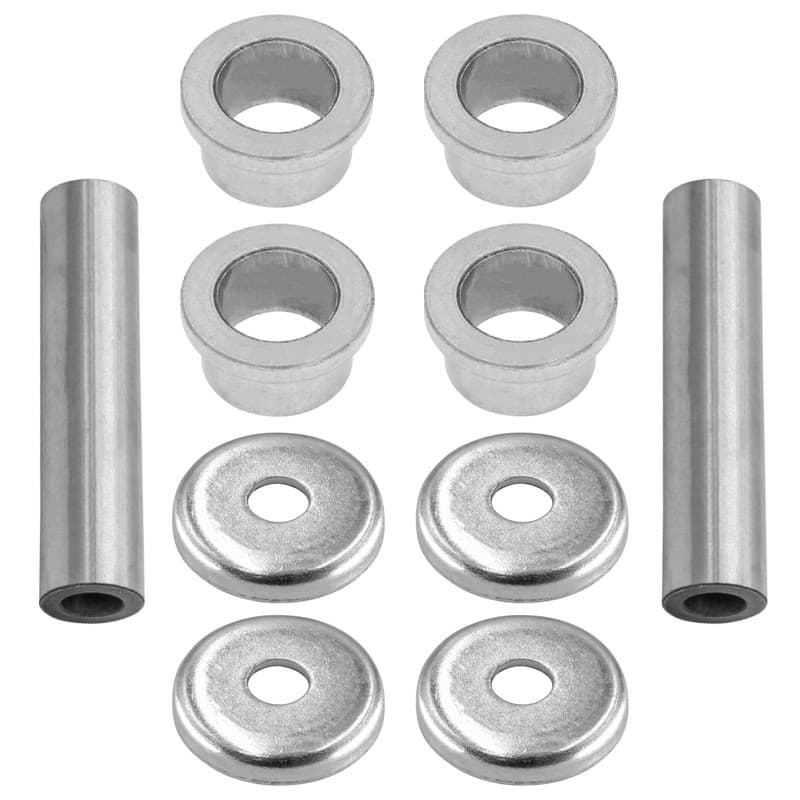

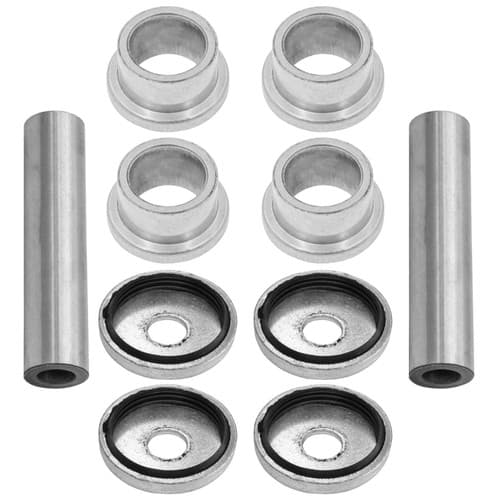

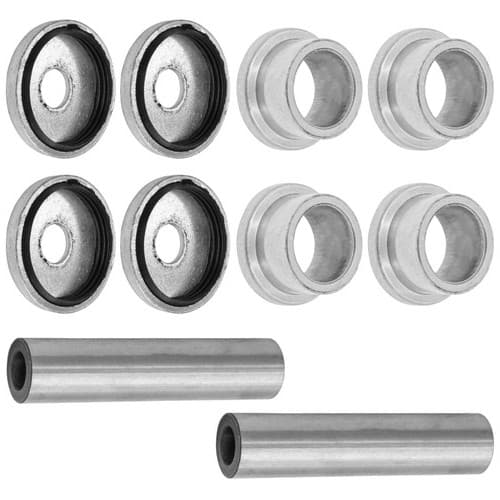

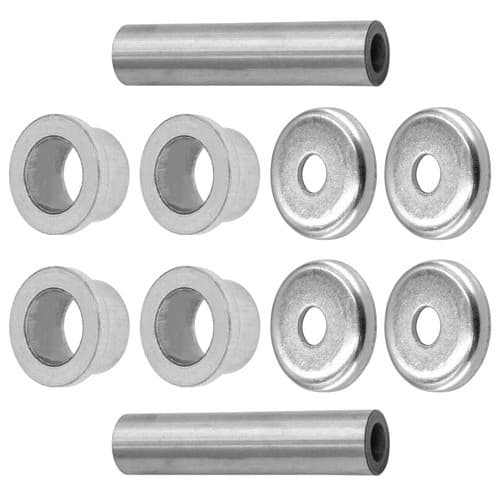

Order Includes:

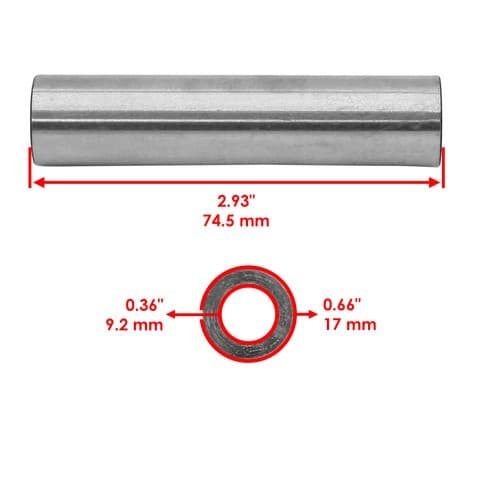

2 x Spacer: 5KM-23448-00-00
Length: 74.5 mm - 2.93 in
Inner DIameter: 9.2 mm - 0.36 in
Outer Diameter: 17 mm - 0.66 in

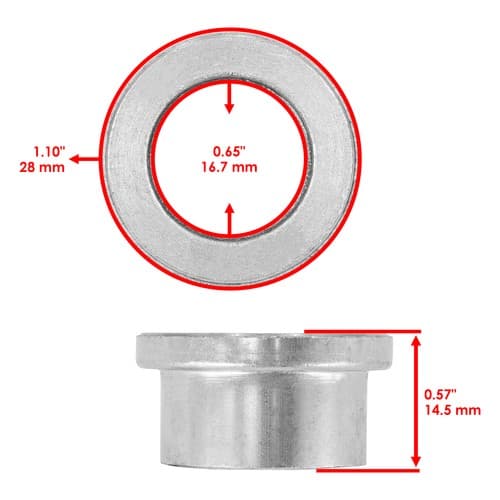

4 x Bushing: 90381-17067-00
Width: 14.5 mm - 0.57 in
Inner Diameter: 16.7 mm - 0.65 in
Outer Diameter: 28 mm - 1.1 in

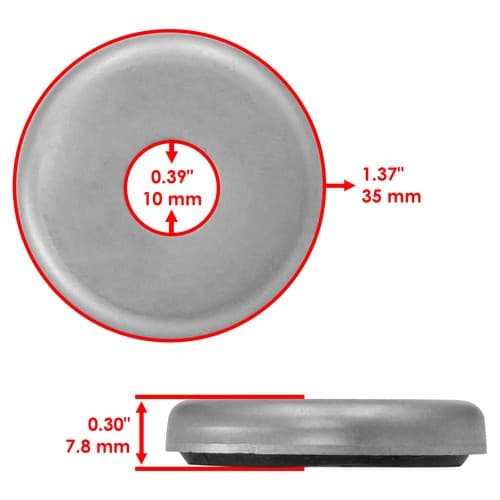

4 x Cover Thrust: 3JN-23517-00-00, 2NL-23517-00-00, 5UG-23517-00-00, 5UG-23517-10-00
Width: 7.8 mm - 0.3 in
Inner Diameter: 10 mm - 0.39 in
Outer Diameter: 35 mm - 1․37 in
Rear Knuckle Part Number:
Left: 1D9-F530F-00-00, 1D9-F530F-01-00, 3B4-2530F-00-00
28P-2530F-00-00, 1HP-F530F-00-00, 2BG-F530F-01-00, 2BG-F530F-00-00
5KM-2530F-00-00, 5KM-2530F-10-00, 5KM-2530F-11-00, 5UG-F530F-00-00
5UG-F530F-11-00, 1D9-F532F-01-00, BB5-F532F-00-00, 5B4-F530F-00-00, 5UG-F530F-10-00, 5UG-F530F-11-00
Right: 1D9-F532F-00-00, 1D9-F532F-01-00, 3B4-2532F-00-00
28P-2532F-00-00, 1HP-F532F-00-00, 2BG-F532F-01-00, 2BG-F532F-00-00
5KM-2530F-00-00, 5KM-2530F-10-00, 5KM-2530F-11-00, 5UG-F530F-00-00
5UG-F530F-11-00, 1D9-F532F-01-00, BB5-F532F-00-00, 5B4-F532F-00-00, 5UG-F530F-10-00, 5UG-F530F-11-00
