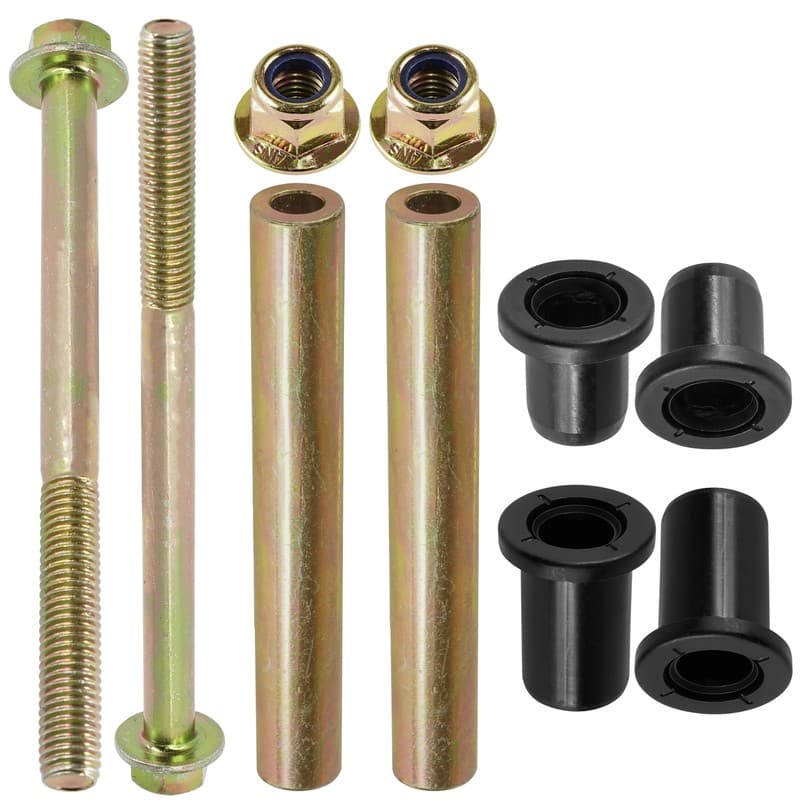

Rear Knuckle Bushing Kit For Polaris Sportsman XP 1000 18-2024 / 850 20-2024

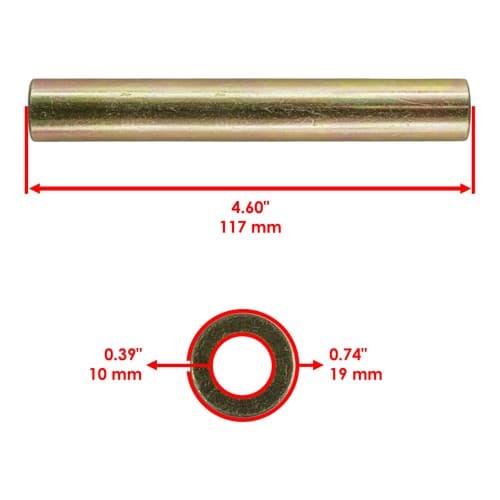

Length: 117mm - 4․60 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 19mm - 0․74 in
Material: Steel

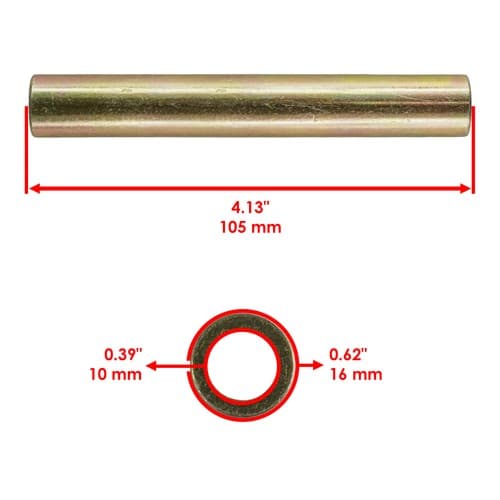

1 x Upper Pivot Shaft: 5137590, 5135501

Length: 105 mm - 4․13 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 16mm - 0․62 in
Material: Steel

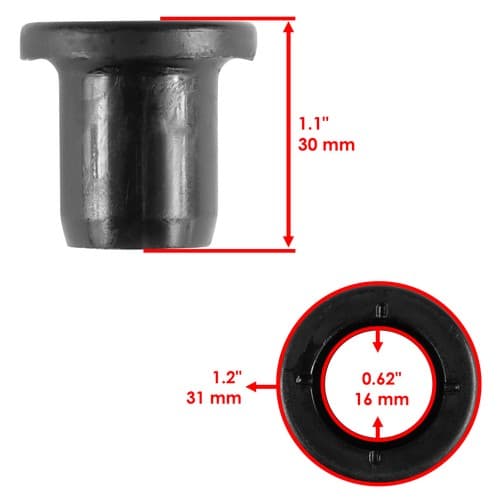

2 x Short Bushing:  5439874, 5436832, 5436505

Length: 30mm - 1․1 in
Inner Diameter: 16mm - 0․62 in
Outer Diameter: 31mm - 1․2 in
Material: Plastic

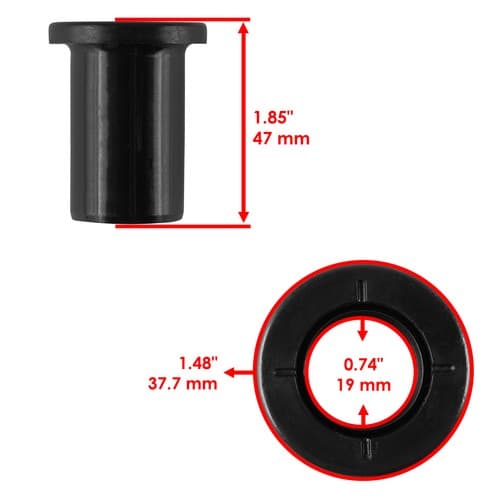

2 x Long Bushing:  5437651

Length: 47mm - 1․85"
Inner Diameter: 19mm - 0․74"
Outer Diameter: 37․7mm - 1․48
Material: Plastic

1 x Lower Bolt: 7518467

Length: 150mm - 5․9 in
Threads Size: M10-1․5
Material: Iron

1 x Upper Bolt: 7518675

Length: 140mm - 5․51 in
Threads Size: M10-1․5
Material: Iron

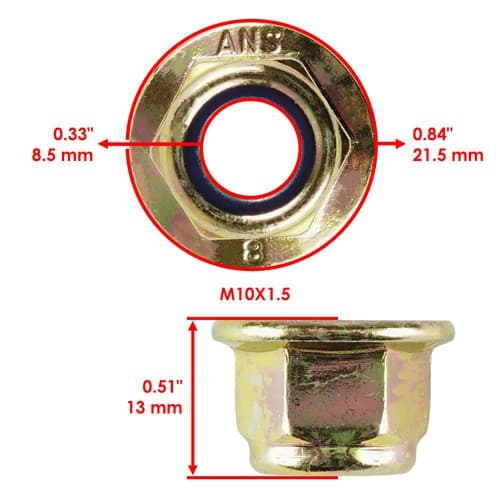

2 x Nut: 7547313

Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․5
Material: Iron

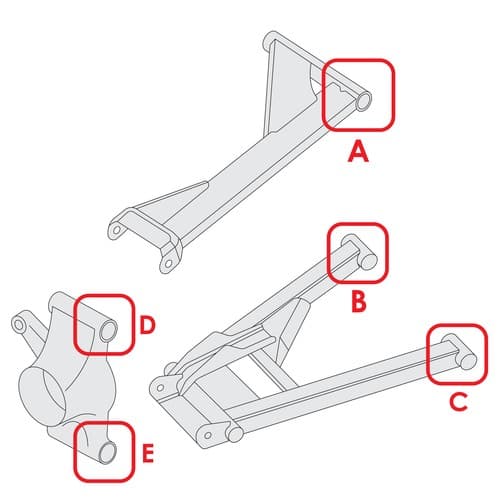

Note: Installs On Location (D) (E) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1025342-707, 1025342-689, 1025342-458,  1025342-067, 1023470-293, 1023470-067, 1023470-458, 1025342707, 1025342689, 1025342458,  1025342067, 1023470293, 1023470067, 1023470458
Right 1025343-707, 1025343-689, 1025343-458, 1025343-067, 1023471-293, 1023471-067, 1023471-458, 1025343707, 1025343689, 1025343458, 1025343067, 1023471293, 1023471067, 1023471458

Knuckle Part Number:
Left: 5143607, 5136689
Right: 5143608, 5136690
