Caltric
Rear Knuckle Bushing Kit For Polaris Sportsman 700 03-07 / 800 05-13 / MV7 2005
No reviews yet
$50.40
NEWIn Stock
SKU: APH-286050827646
MPN: ZP103+ZP121*2+ZA101*2+ZA103*4+NU222+BL171*2 - VS, ZP103+ZP121*2+ZA101*2+ZA103*4+NU222+BL171*2+BL256
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Polaris Sportsman 400 4X4 — 2003-2005
- Polaris Sportsman 400 4x4 HO — 2011-2012
- Polaris Sportsman 450 4X4 — 2006-2007
- Polaris Sportsman 450 HO — 2016-2020
- Polaris Sportsman 450 HO EPS — 2016-2020
- Polaris Sportsman 500 4x4 HO — 2011-2012
- Polaris Sportsman 500 Touring HO — 2012
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (E) & (F) In Second Picture
- Vintage Part
- No
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 5020826, 5632291, 5631142, 5439270, 5436972, 5438895, 5431846, 5432091, 5433063, 5434548, 5438902, 5432092, 5433065, 5434550, 7542439, 7542453, 7517873, 7552614, 7555740, 7515472, 5133663, 5134206, 5134206
- Placement on Vehicle
- Left, Lower, Rear, Right, Upper
Description
Premium Quality Replacement Part
Rear Upper & Lower Left or Right Knuckle Bushing Kit
Rear Upper & Lower Left or Right Knuckle Bushing Kit
Compatible with Polaris Models:
Sportsman 400 2003-2005
Sportsman 400 HO 4x4 2011-2012
Sportsman 450 2006-2007
Sportsman 450 HO 2x4 2016-2017
Sportsman 450 HO 4x4 2016-2020
Sportsman 500 EFI HO 2003-2012
Sportsman 570 Touring EPS 2016-2023
Sportsman 570 6x6 Big Boss 2017-2023
Sportsman X2 570 EPS 2016-2021
Sportsman SP 570 EPS 2016-2020
Sportsman 600 2003-2005
Sportsman 700 2003-2007
Sportsman 800 EFI 2005-2013
Sportsman MV7 2005

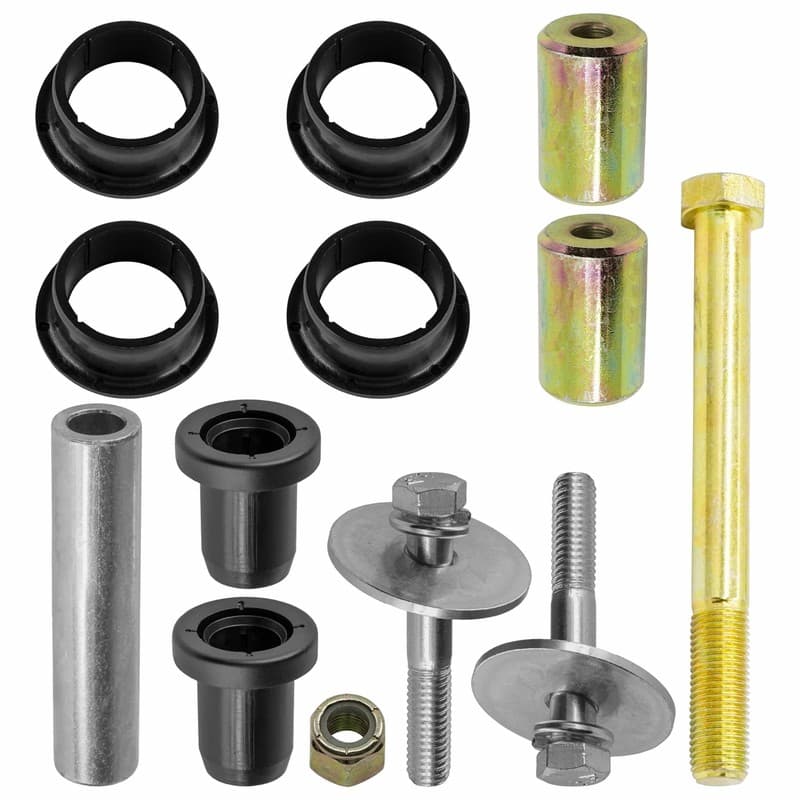

Order Includes:

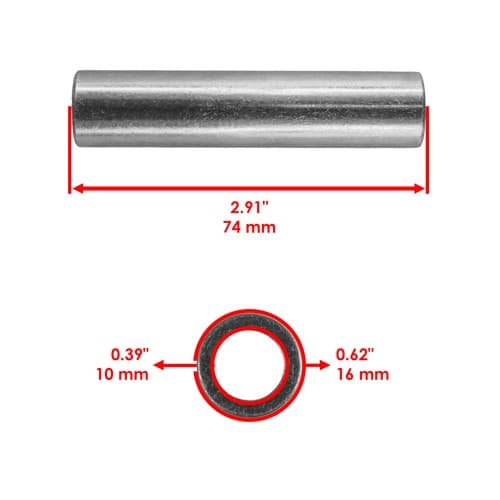

1 x Long Pivot Shaft: 5020826
Length : 74 mm - 2․91 in
Inner Diameter : 10 mm - 0.39 in
Outer Diameter : 16 mm - 0.62 in
Material: Steel

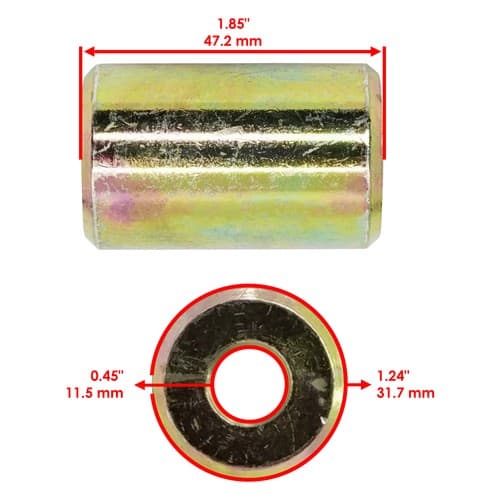

1 x Short Pivot Shaft: 5632291, 5631142
Length : 47․2 mm - 1․85 in
Inner Diameter : 11․5 mm - 0.45 in
Outer Diameter: 31․7 mm - 1.24 in
Material: Steel

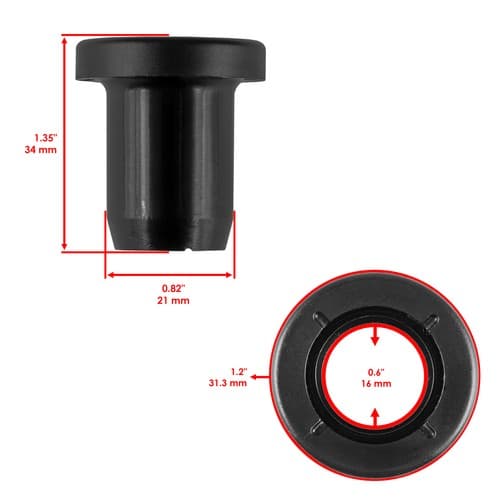

2 x Bushing: 5439270, 5436972, 5438895
5431846, 5432091, 5433063, 5434548
Length : 34mm - 1․35 in
Tube Diameter: 21mm - 0․82 in
Inner Diameter: 16mm - 0․6 in
Outer Diameter: 31․3 mm - 1․2 in
Material: Plastic

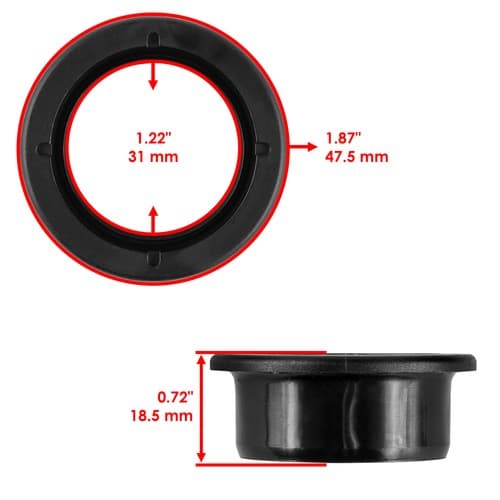

4 x Short Bushing: 5438902, 5432092, 5433065, 5434550
Length : 18․5mm - 0․72 in
Inner Diameter: 31mm - 1․22 in
Outer Diameter: 47․5 mm - 1․87 in
Material: Plastic

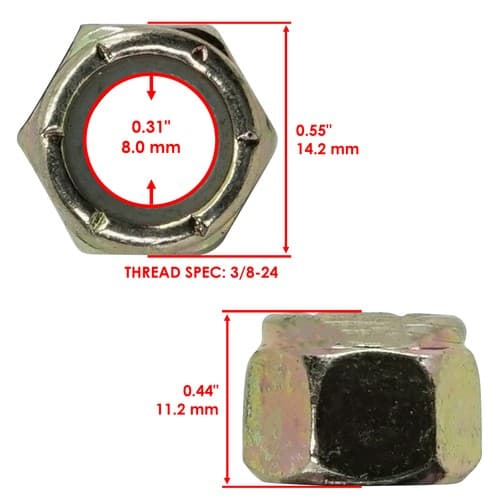

1 x Nut: 7542439, 7542453
Width: 11.2mm - 0․44 in
Inner Diameter: 8 mm - 0․31 in
Outer Diameter: 14.2 mm - 0․55 in
Thread Size: 3/8-24
Material: Iron
2 x Bolt & Washers: 7517873, 7552614, 7555740
Length: 77mm - 3․03 in
Head Diameter: 15․6mm - 0․61 in
Threads Size: 7/16-14
Material: Iron
1 x Bolt: 7515472
Length: 100.5 mm - 3.95 in
Stud Length: 28mm - 1.1 in
Head Diameter: 14 mm - 0.55 in
Thread Size: M10-1.0
Weight: 4.2oz

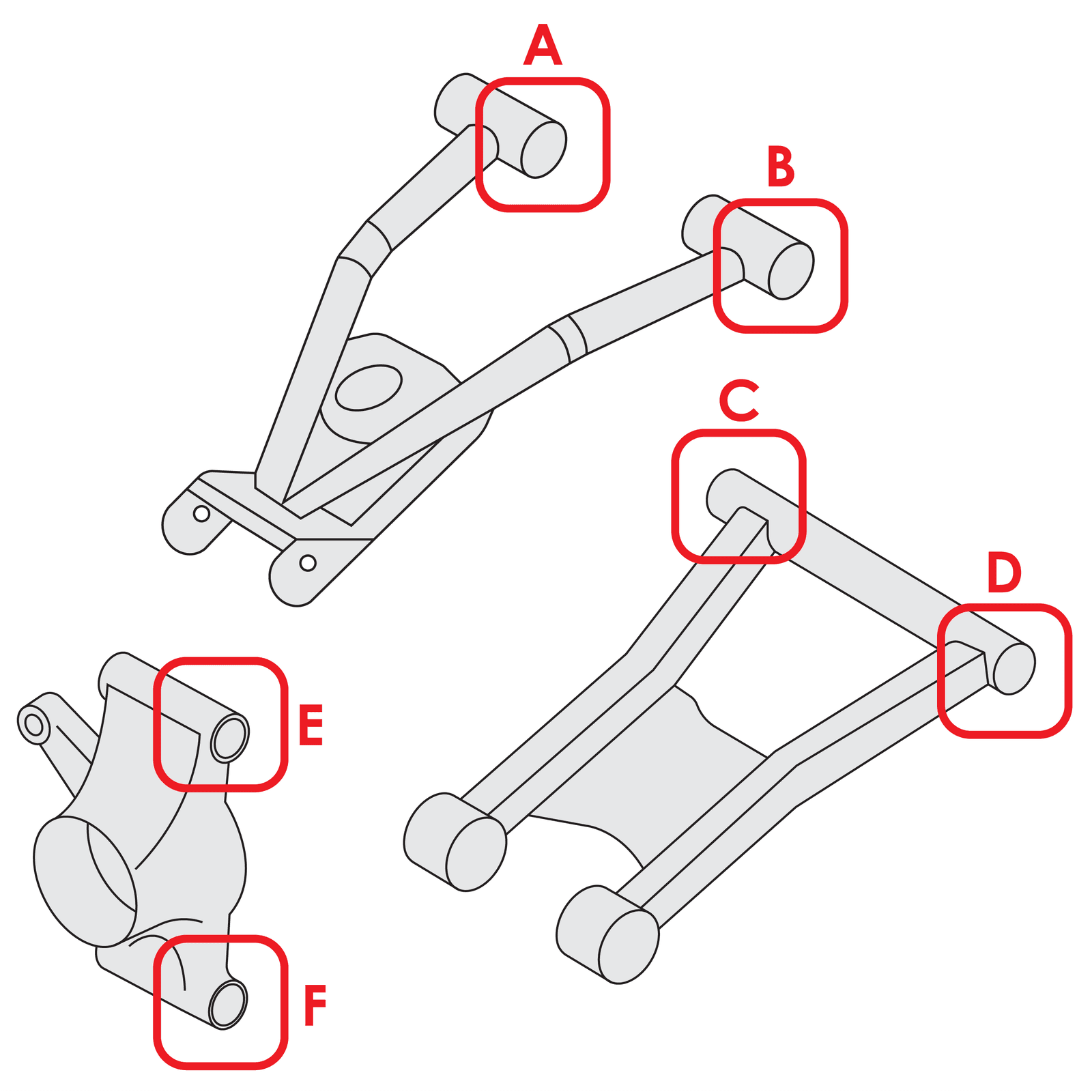

Note: Installs On Location (E) & (F) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1013766-067, 1014320-067, 1014320-293
1017747-458, 1017747-067
Right: 1013767-067, 1014321-067, 1014321-293
1017748-458, 1017748-067
Rear Lower Control Arm Part Number:
Left: 1013220-067, 1015888-067, 1014174-293
1015117-293, 1015888-293, 1015888-458
Right: 1013221-067, 1015889-067, 1014175-293
1015118-293, 1015889-293, 1015889-458
Knuckle Part Number:
Left: 5133663, 5134206
Right: 5133664, 5134206
