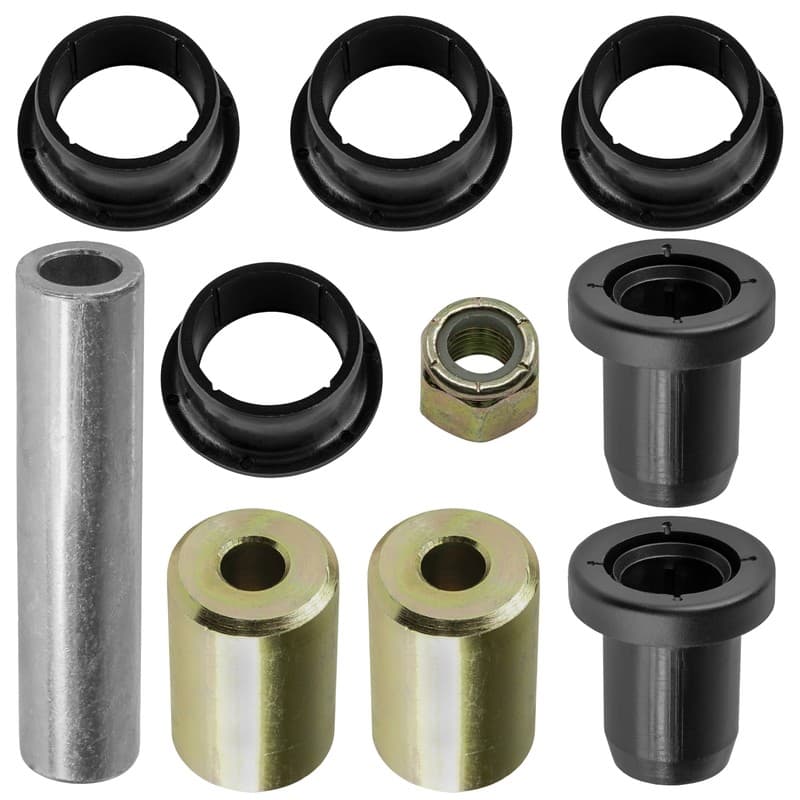

Rear Knuckle Bushing Kit For Polaris Sportsman 335 99-2000/ 400 01-02/ 500 96-02
No reviews yet
$48.10
NEWIn Stock
SKU: APH-296716362382
MPN: ZP103+ZP122*2+ZA101*2+ZA103*4+NU222 - VS
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Polaris Diesel 455 4X4 — 1999-2001
- Polaris Sportsman 335 -- — 1999
- Polaris Sportsman 335 4X4 — 1999-2000
- Polaris Sportsman 400 4X4 — 2001-2002
- Polaris Sportsman 500 4X4 — 1996-2002
- Polaris Sportsman 500 4x4 DUSE — 2002
- Polaris Sportsman 500 4x4 HO — 2001-2002
- Polaris Sportsman 500 4x4 Remington Special Edition — 1999
- Polaris Sportsman 500 4x4 RSE — 2000
- Polaris Sportsman 700 Twin — 2002
Specifications
- Type
- Bushing
- Brand
- Caltric
- Material
- Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (E) & (F) In Second Picture
- Vintage Part
- No
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 5020826, 5131883, 5020825, 5439270, 5436972, 5438895, 5431846, 5432091, 5433063, 5434548, 5438902, 5432092, 5433065, 5434550, 7542439, 7542453, 5131738, 5134206
- Placement on Vehicle
- Left, Lower, Rear, Right, Upper
- Manufacturer Warranty
Description
Premium Quality Replacement Part
Rear Knuckle Upper & Lower Left or Right Bushing Kit
Compatible with Polaris Models:
Sportsman 335 4x4 1999-2000
Sportsman 400 4x4 2001-2002
Sportsman 500 4x4 1996-2002
Sportsman 700 4x4 2002
Xplorer 500 4x4 1997
Worker 335 4x4 1999
Worker 500 4x4 1999 2001
Diesel 455 4x4 1999-2001

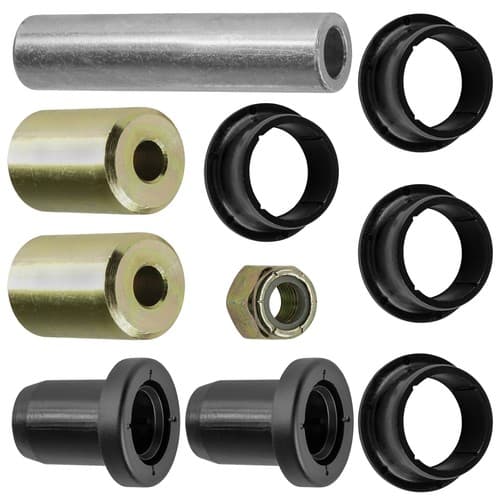

Order Includes:

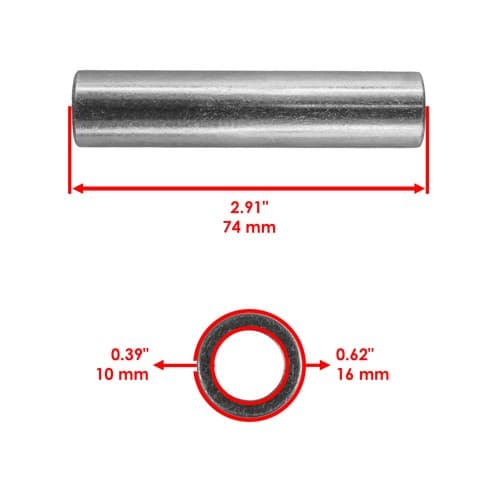

1 x Pivot Shaft: 5020826
Length : 74 mm - 2․91 in
Inner Diameter : 10 mm - 0.39 in
Outer Diameter : 16 mm - 0.62 in
Material: Steel

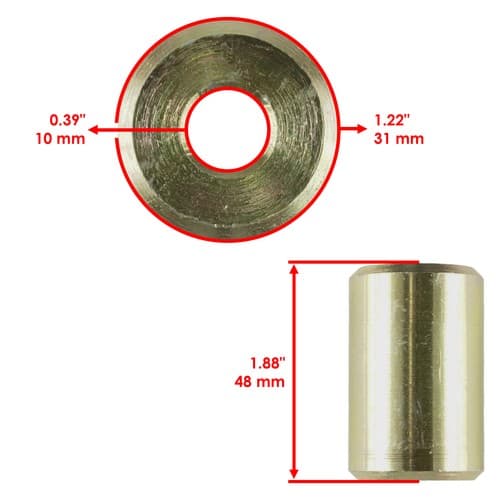

2 x Pivot Shaft: 5131883, 5020825
Length : 48 mm - 1․88 in
Inner Diameter : 10 mm - 0.39 in
Outer Diameter : 31 mm - 1.22 in
Material: Steel
2 x Bushing: 5439270, 5436972, 5438895, 5431846, 5432091, 5433063, 5434548
Length : 34mm - 1․35 in
Tube Diameter: 21mm - 0․82 in
Inner Diameter: 16mm - 0․6 in
Outer Diameter: 31․3 mm - 1․2 in
Material: Plastic

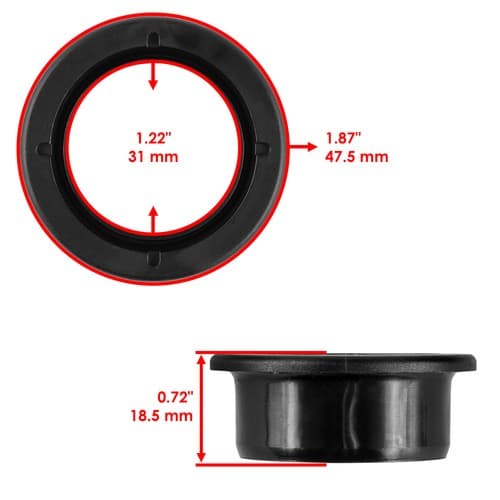

4 x Bushing: 5438902, 5432092, 5433065, 5434550
Length : 18․5mm - 0․72 in
Inner Diameter: 31mm - 1․22 in
Outer Diameter: 47․5 mm - 1․87 in
Material: Plastic

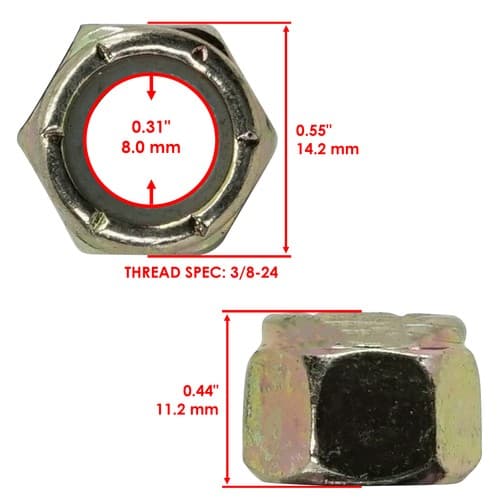

1 x Nut: 7542439, 7542453
Width: 11.2mm - 0․44 in
Inner Diameter: 8 mm - 0․31 in
Outer Diameter: 14.2 mm - 0․55 in
Thread Size: 3/8-24
Material: Iron

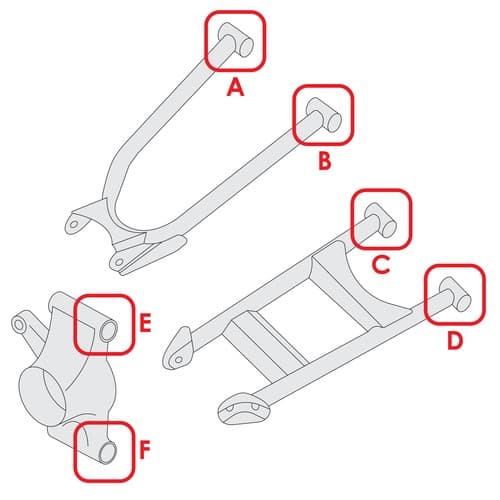

Note: Installs On Location (E) & (F) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1040586-067, 1040443-067, 1040730-067
Right: 1040587-067, 1040444-067, 1040731-067
Rear Lower Control Arm Part Number:
Left: 1040445-067, 1012717-067
Right: 1040446-067, 1012718-067
Rear Knuckle Part Number:
Left & Right: 5134206, 5131738
