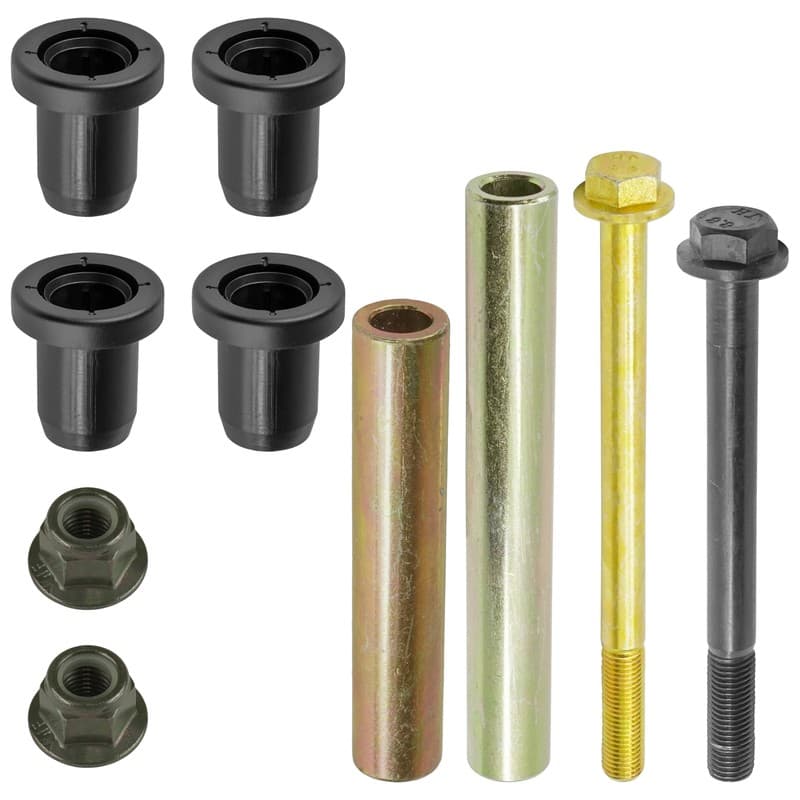

Rear Knuckle Bushing Kit For Polaris Ranger 400 2010-2014 / 500 Crew 2009-2013

Order Includes:

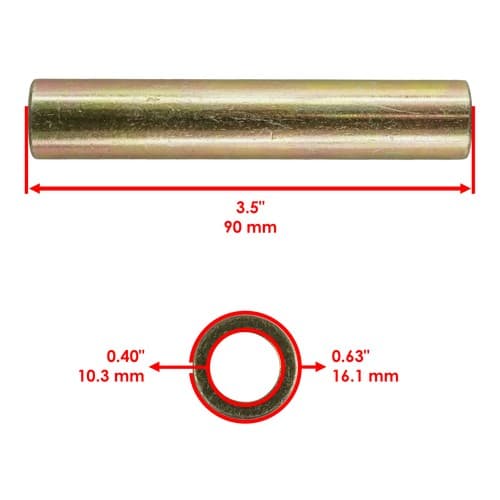

1 x Pivot Shaft: 5137592, 5136580

Length: 90 mm - 3.5 in
Inner Diameter: 10․3mm - 0.4 in
Outer Diameter: 16․1mm - 0.63 in
Material: Steel

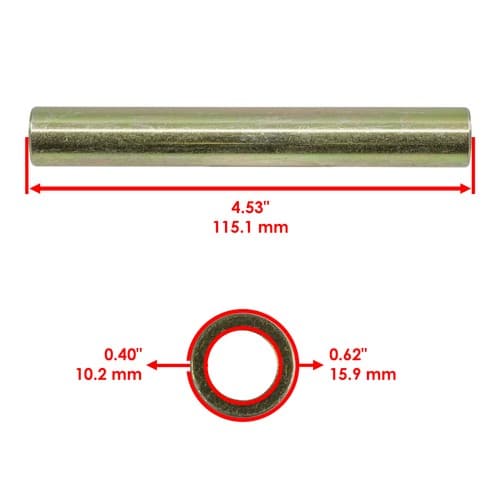

1 x Pivot Shaft: 5137593, 5136581

Length: 115․1mm - 4.53 in
Inner Diameter: 10․2mm - 0.4 in
Outer Diameter: 15․9mm - 0.62 in
Material: Steel

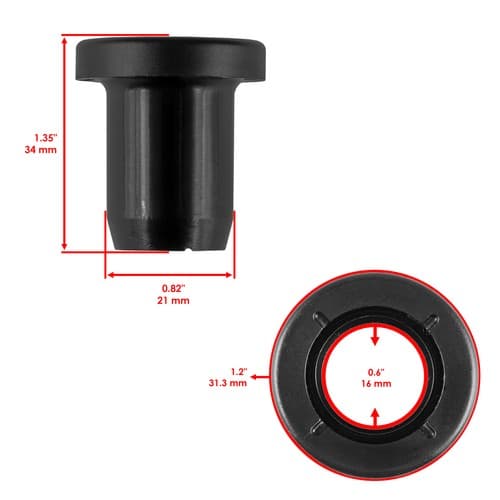

4 x Bushing : 5439270, 5436972, 5438895
5431846, 5432091, 5433063, 5434548

Length: 34mm - 1․35 in
Inner Diameter: 16mm - 0․6 in
Head Diameter: 31․3mm - 1․2 in
Tube Diameter: 21mm - 0․82 in
Material: Plastic

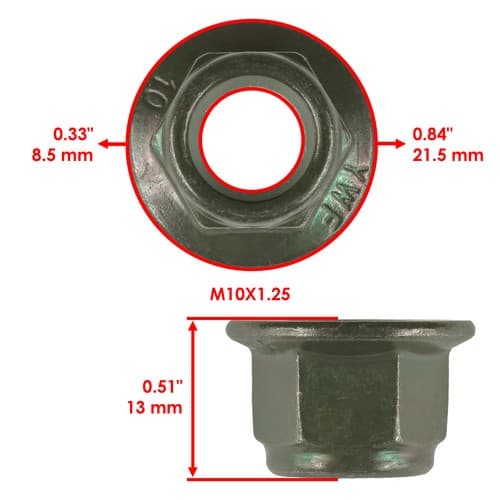

2 x Nut: 7547333

Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron

1 x Bolt: 7518566

Length: 122․3mm - 4․81 in
Head Diameter: 21mm - 0․82  in
Threads Size: M10-1․25
Material: Iron

1 x Bolt: 7518562

Length: 149.3 mm - 5.87 in
Stud Length: 35mm - 1.37 in
Head Diameter: 21 mm - 0.82 in
Thread Size: M10-1.25

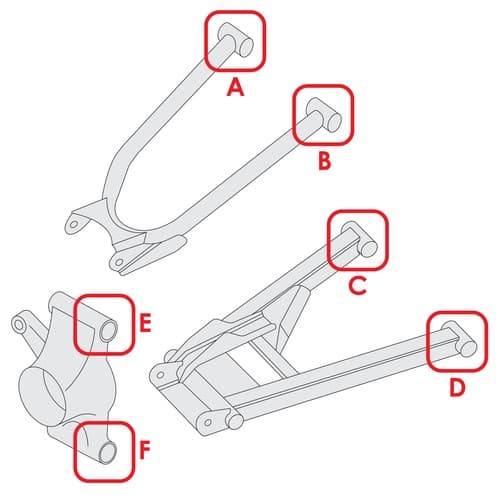

Note: Installs On Location (E) & (F) In Second Picture
Rear Upper Control Arm Part Number:
Left & Right 1016578-458, 1017727-458
1018189-458, 1016730-067, 1016730-385, 1017349-067
1018184-067, 1016816-067, 1018184-458

Rear Lower Control Arm Part Number:
Left: 1016552-458, 1017728-458, 1018190-458, 1016813-067
1016813-385, 1016350-067, 1017351-067, 1018185-067, 1016350-067
1016350-385, 1016817-067, 1018185-458, 1018190-458
Right: 1016552-458, 1018190-458, 1017728-458 1018190-458
1016814-067, 1016351-067, 1017351-067, 1018185-067, 1016351-385
1016351-067, 1016814-385, 1016817-067, 1018185-458

Knuckle Part Number:
Left: 5134741, 5138760, 5136544, 5136170, 5136914
Right: 5134531, 5138761, 5136543, 5136171, 5136915
