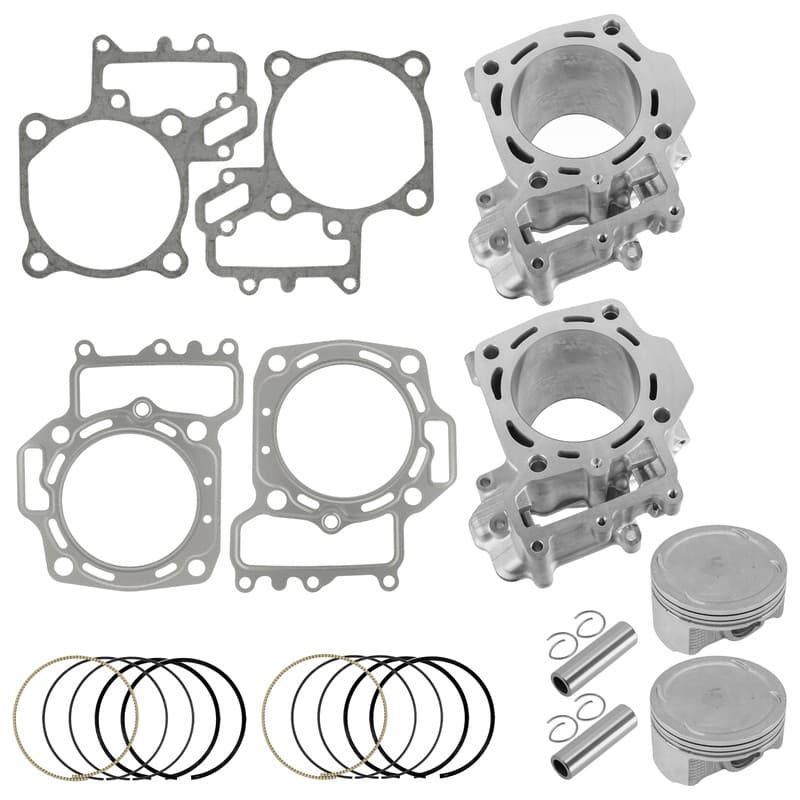

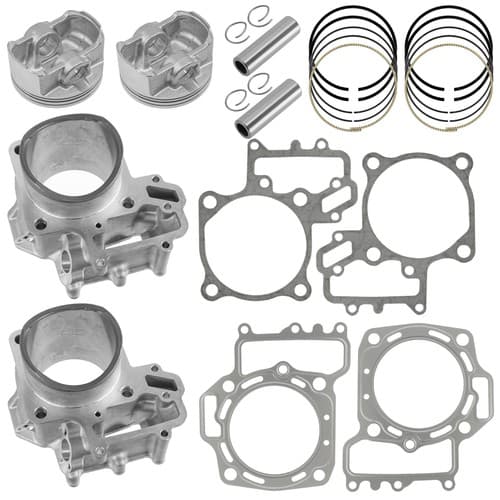

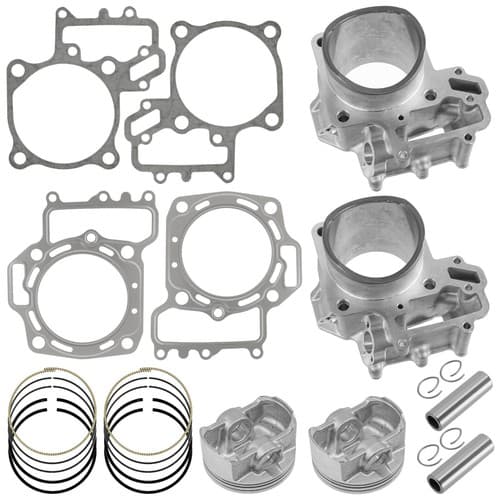

Rear & Front Cylinder Gasket Piston Kit For Kawasaki Teryx 800 14-23/4 800 14-24

Compatible with Kawasaki Models:
Teryx 800 KRF800 2014-2023
Teryx4 800 KRT800 4x4 FI 2014-2024

Order Includes:

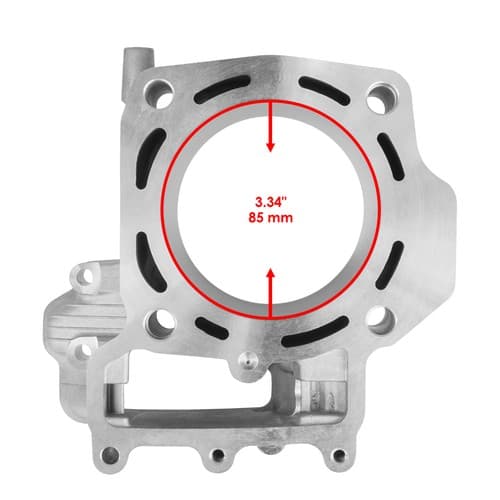

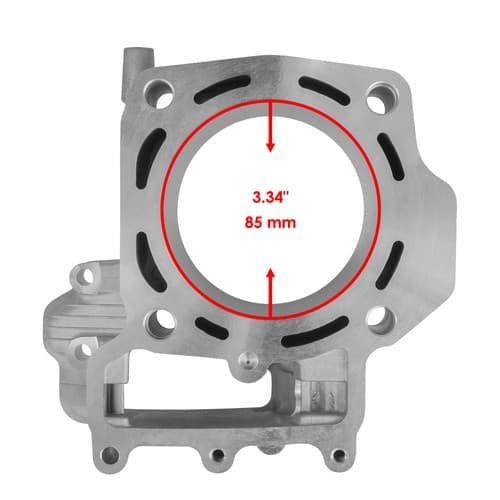

1 x Rear Cylinder: 11005-0629, 11005-0577

Bore Size: 85mm - 3.34 in
Height: 108.6mm - 4.27 in
Width: 171.45 - 6.75 in
Material: Aluminum

1 x Front Cylinder: 11005-0628, 11005-0576

Bore Size: 85mm - 3.34 in
Height: 108.6mm - 4.27 in
Width: 171.45mm - 6.75 in
Material: Aluminum

2 x Cylinder Head Gasket: 11004-0713
Material: Metal

2 x Cylinder Gasket: 11061-0730
Material: Metal

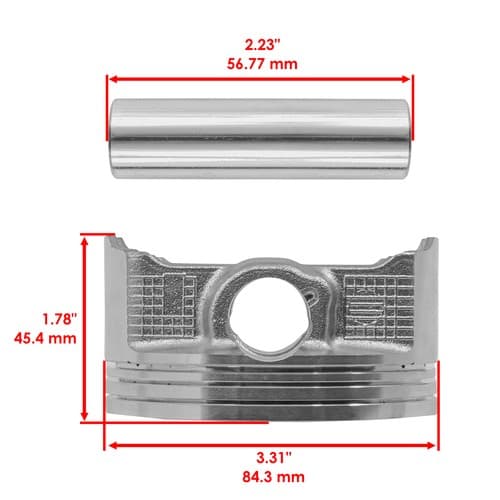

2 x Piston: 13001-0740

Width: 45.4mm - 1.78 in
Outer Diameter: 84.3mm - 3.31 in
Material: Aluminum

2 x Pin: 13002-0711

Length: 56.77mm - 2.23 in

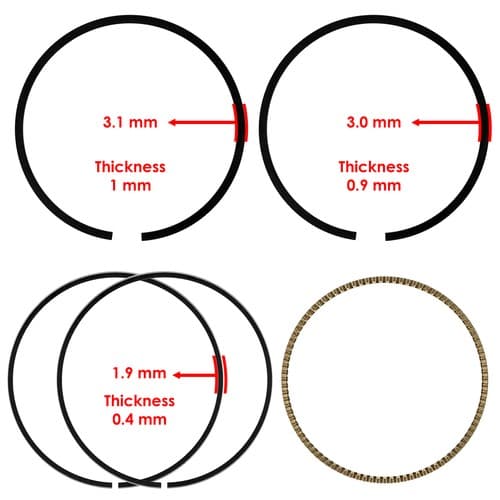

4 x Ring: 92033-1207

2 x Pistong Rings: 13008-0042

Width: 1.9x3x3.1 mm
Thickness: 0.4x0.9x1 mm
Material: Stainless Steel

Front Cylinder Head - 11008-0790, 11008-1491
Rear Cylinder Head - 11008-0791, 11008-1492
