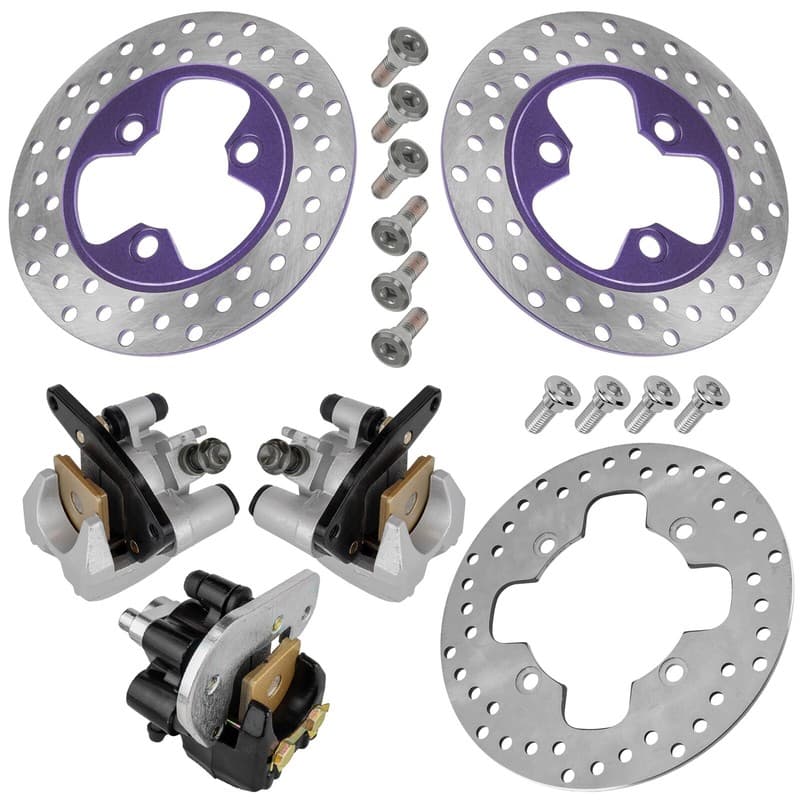

Rear & Front Brake Disc w/Bolt & Caliper for Honda Fourtrax 400 TRX400EX 2005-08

For Honda Models:
Fourtrax 400EX TRX400EX 2005-2008

Order Includes:
1 x Brake Disc ( Rear )  |  43251-HN1-003
4 x Bolt  ( Rear ) |  90105-MK5-000  90105-MK5-010
1 x Caliper ( Rear )  |  43250-HN1-A41
2 x Brake Disc ( Front Left & Right )  |  45251-HC0-000  45251-HN1-003
6 x Bolt ( Front Left & Right )  |  90105-KL8-741  90105-MV9-003  90105-MBB-000
1 x Caliper  ( Front Right )  |  45250-HM3-305  45250-HN6-006
1 x Caliper ( Front Left )   |  45150-HM3-305  45150-HN6-006

Dimensions & Measurements :

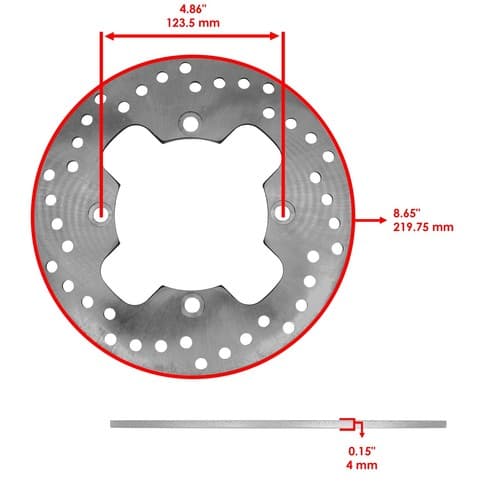

Rear Brake Disc
Outer Diameter : 219.75mm  |  8.65"
Mounting Hole Distance : 123.5mm  |  4.86"
Width : 4mm  |  0.15"

Bolt ( Rear )
Height : 24.6mm  |  0.97"
Length : 7.6mm  |  0.30"

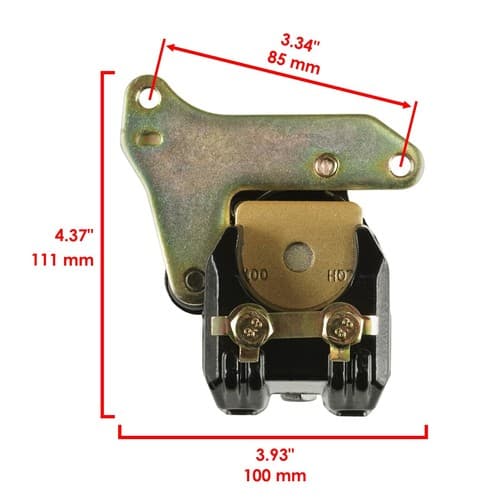

Caliper ( Rear )
Mounting Hole Distance : 77mm  |  3.03"
Height : 102.7mm  |  4.04"

Mounting Hole Distance : 85mm  |  3.34
Height : 111mm  |  4.37"
Length : 100mm  |  3.93"

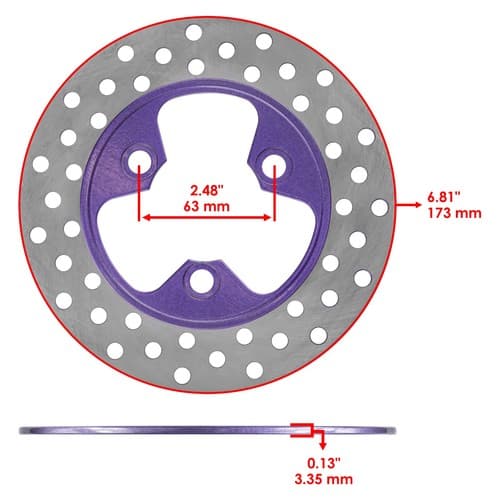

Front Brake Disc
Outer Diameter : 173mm  |  6.81"
Mounting Hole Distance : 63mm  |  2.48"
Width : 3.35mm  |  0.13"

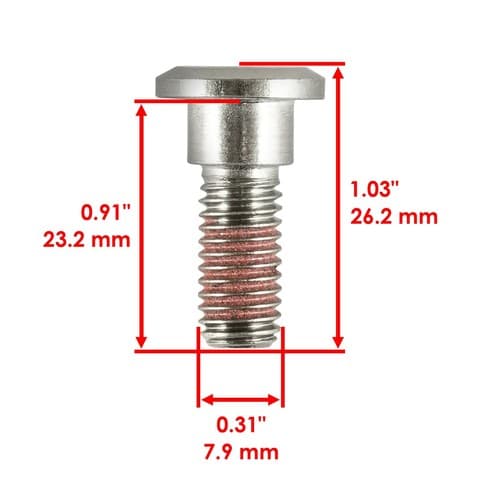

Bolt  ( Front )
Height : 26.2mm  |  1.03"
Length : 7.9mm  |  0.31"

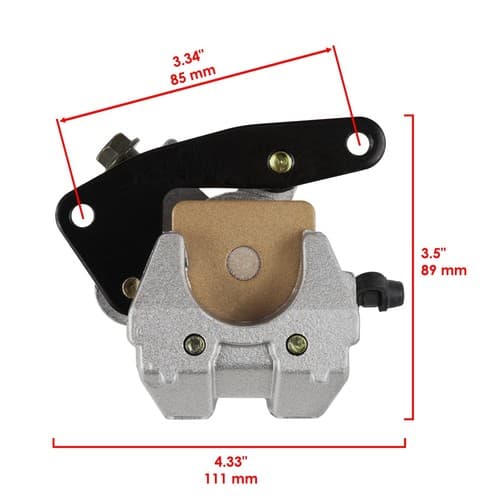

Caliper  ( Front Right )
Mounting Hole Distance : 85mm  |  3.34"
Length : 111mm  |  4.33"
Height : 89mm  |  3.5"

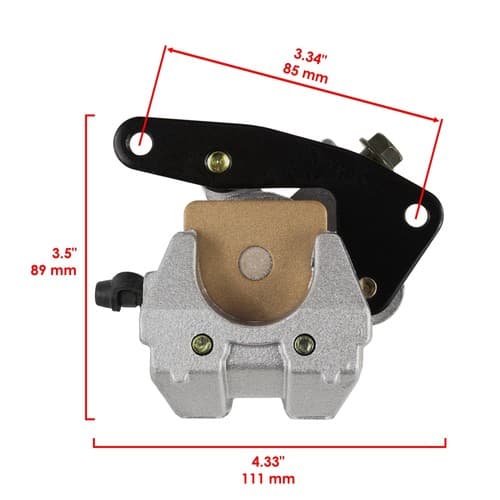

Caliper ( Front Left )
Mounting Hole Distance : 85mm  |  3.34"
Length : 111mm  |  4.33"
Height : 89mm  |  3.5"

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**

**SHIPS FROM USA**
