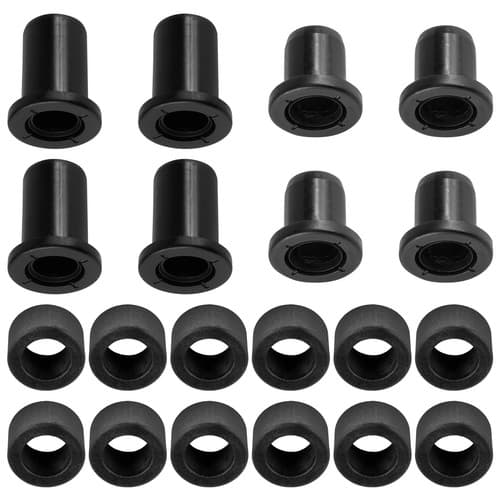

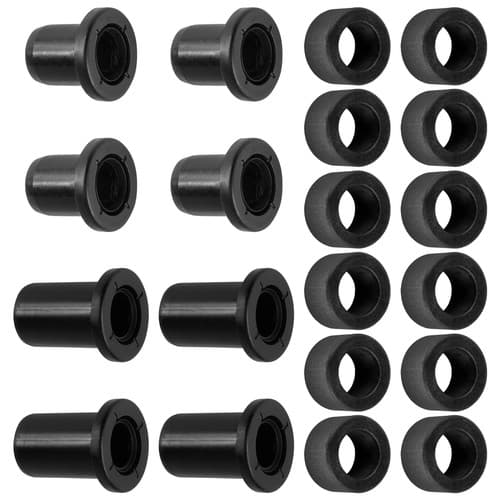

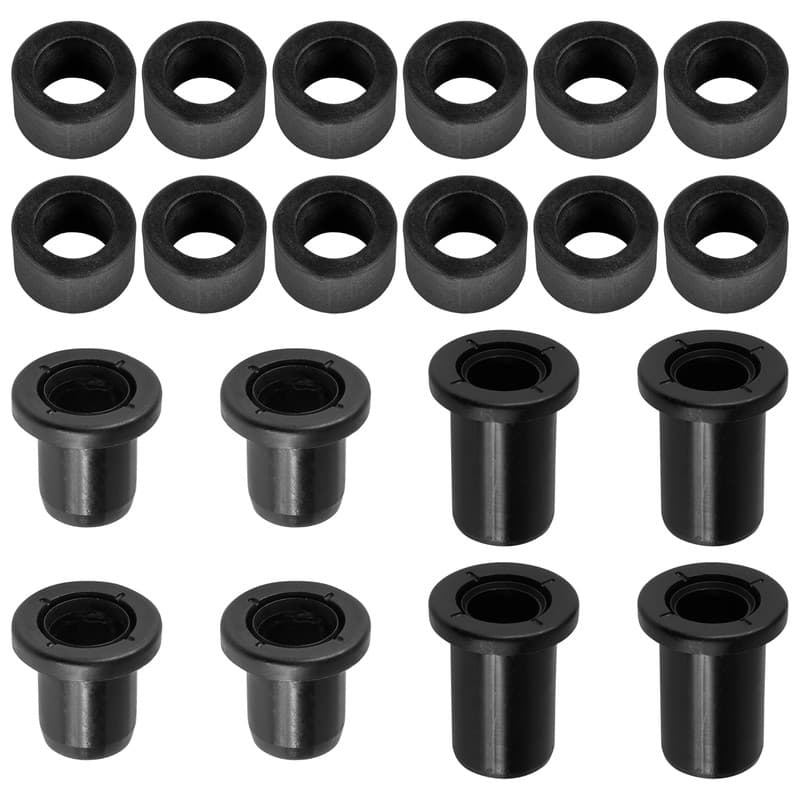

Rear ControlArm Knuckle Bushings For Polaris Sportsman XP 1000 18-2024/850 20-24

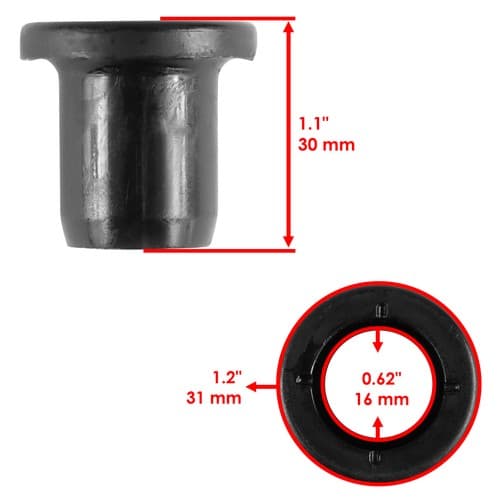

Length: 30mm - 1․1 in
Inner Diameter: 16mm - 0․62 in
Outer Diameter: 31mm - 1․2 in
Material: Plastic

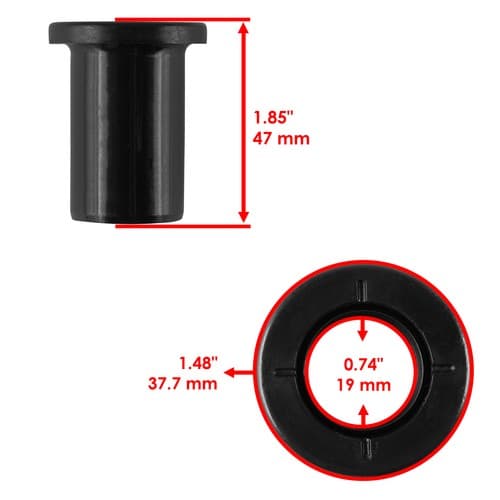

4 x Knuckle Lower Bushing:  5437651

Length: 47mm - 1․85"
Inner Diameter: 19mm - 0․74"
Outer Diameter: 37․7mm - 1․48
Material: Plastic

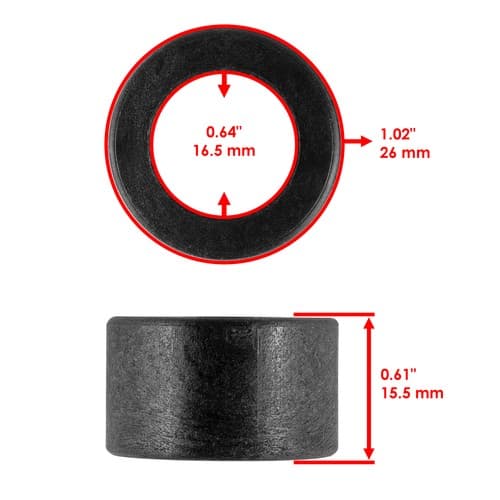

12 x Control Arm Upper Lower  Bushing: 5452233

Width: 15․5mm - 0․61 in
Inner Diameter: 16․5mm - 0․64 in
Outer Diameter: 26mm - 1․02 in
Material: Plastic


Note: Installs On Location (A) (B) (C) (D) (E)  In Second Picture
Rear Upper Control Arm Part Number:
Left: 1025342-707, 1025342-689, 1025342-458,  1025342-067, 1023470-293, 1023470-067, 1023470-458, 1025342707, 1025342689, 1025342458,  1025342067, 1023470293, 1023470067, 1023470458
Right 1025343-707, 1025343-689, 1025343-458, 1025343-067, 1023471-293, 1023471-067, 1023471-458, 1025343707, 1025343689, 1025343458, 1025343067, 1023471293, 1023471067, 1023471458

Knuckle Part Number:
Left: 5143607, 5136689
Right: 5143608, 5136690
