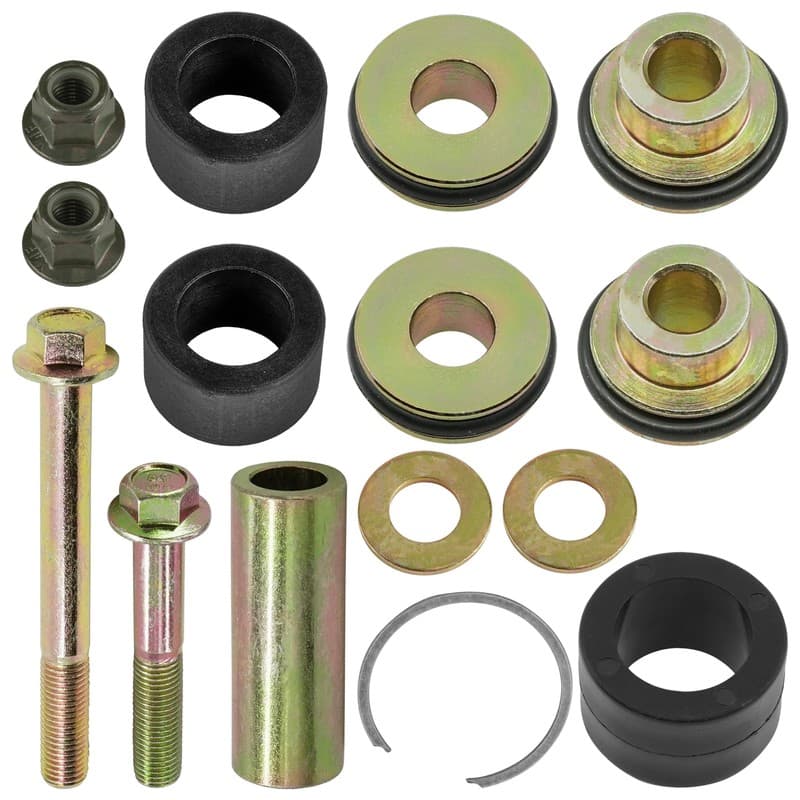

Rear Control Arm Bushing Kit For Polaris Sportsman Scrambler XP 1000 S 2020-2024

Compatible with Polaris Models:
Scrambler XP 1000 55" 2020-2024
Scrambler 1000 55" 2022-2024
Sportsman XP 1000 55" 2020-2024
Sportsman 1000 55" 2023-2024

Order Includes:
1 x Pivot Shaft: 5141292

Length: 43.3 mm - 1.7 in
Inner Diameter: 10mm - 0.39 in
Outer Diameter: 16mm - 0.62 in

2 x Bushing: 5452233

Width: 15․5mm - 0․61 in
Inner Diameter: 16․5mm - 0․64 in
Outer Diameter: 26mm - 1․02 in
Material: Plastic

1 x Long Bushing: 5452271

Width: 17․82mm - 0․7 in
Inner Diameter: 19․63mm - 0․77 in
Outer Diameter: 29․44mm - 1․15 in
Material: Plastic

2 x Sealed Pivot Cap:  1543611, 5139968

Width : 10.1mm - 0.39 in
Inner Diameter : 10.4mm - 0.41 in
Outer Diameter : 26.4mm - 1.04 in

2 x Pivot Cap: 1543922

Width: 18 mm - 0.7 in
Inner Diameter: 10.2 mm - 0.4 in
Outer Diameter: 30.3 mm - 1.19 in
Material: Steel

2 x Flange Washer: 7556153

Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal

1 x Spiral Ring: 7710869

Outer Diameter: 32 mm - 1.25 in
Thickness: 0.79mm
Material: Steel

2 x Nut: 7547333

Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron

1 x Bolt: 7521024

Length: 99․8 mm - 3․92 in
Stud Diameter: 9․7 mm - 0․38 in
Threads Size: M10-1․25
Material: Iron

Rear Upper Control Arm Part Number:
Left: 1023393-589, 1023393-630, 1023393-293
Right: 1023393-589, 1023393-458, 1023393-293

Rear Lower Control Arm Part Number:
Left: 1023395-589, 1023395-458, 1023395-630, 1023395-293
Right: 1023396-589, 1023396-458, 1023396-630, 1023396-293

Knuckle Part Number:
Left: 5142695
Right: 5142696
