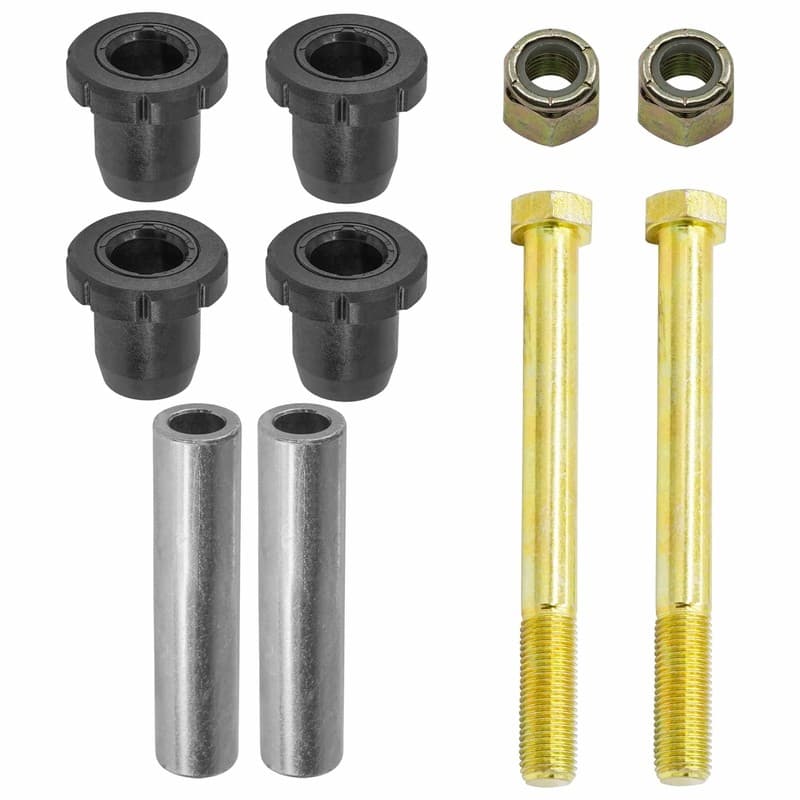

Rear Control Arm Bushing Kit For Polaris Sportsman 450 16-17 / 570 X2 SP 16-23

Compatible with Polaris Models:

Sportsman 450 HO 2x4 2016-2017
Sportsman 570 EPS 2016-2017
Sportsman 570 Touring 2016-2017
Sportsman 570 6x6 Big Boss 2017-2023
Sportsman X2 570 EPS 2017
Sportsman SP 570 EPS 2016

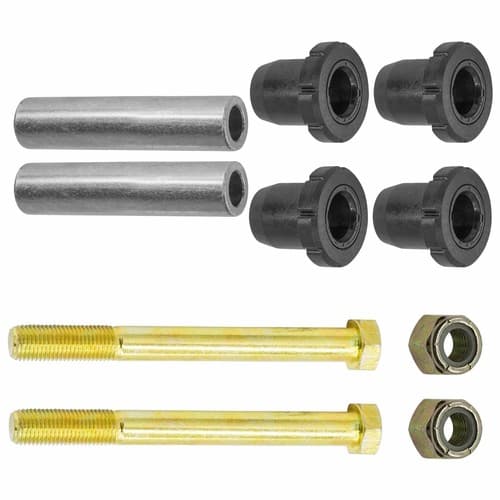

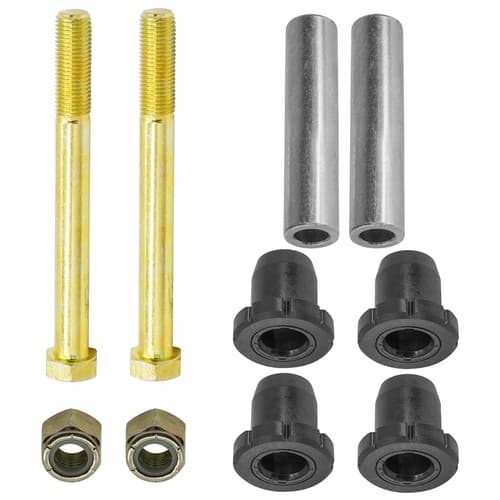

Order Includes:

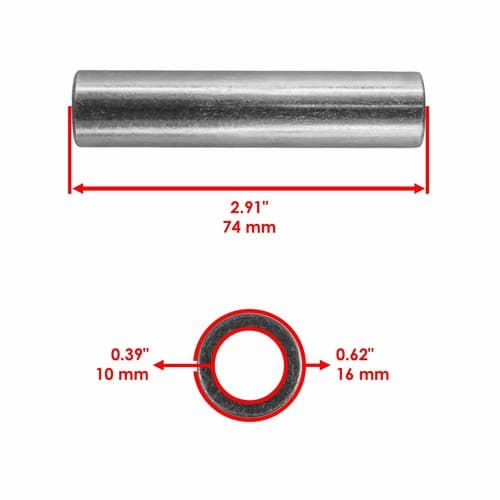

2 x Long Pivot Shaft: 5020826

Length : 74 mm - 2․91 in
Inner Diameter : 10 mm - 0.39 in
Outer Diameter : 16 mm - 0.62 in
Material: Steel

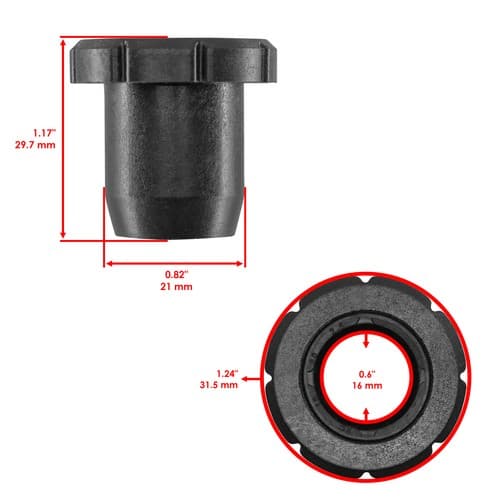

4 x Bushing: 1543326

Length: 29․7mm - 1․17 in
Inner Diameter: 16mm - 0․6 in
Head Diameter: 31․5mm - 1․24 in
Tube Diameter: 21mm - 0․82 in
Material: Plastic

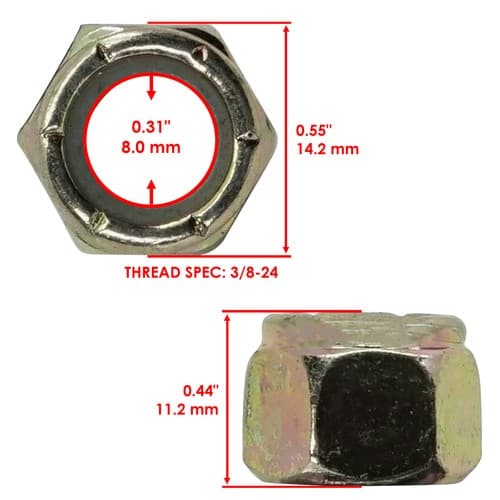

2 x Nut: 7542439, 7542453

Width: 11.2mm - 0․44 in
Inner Diameter: 8 mm - 0․31 in
Outer Diameter: 14.2 mm - 0․55 in
Thread Size: 3/8-24
Material: Iron

2 x Bolt: 7515472

Length: 100.5 mm - 3.95 in
Stud Length: 28mm - 1.1 in
Head Diameter: 14 mm - 0.55 in
Thread Size: M10-1.0

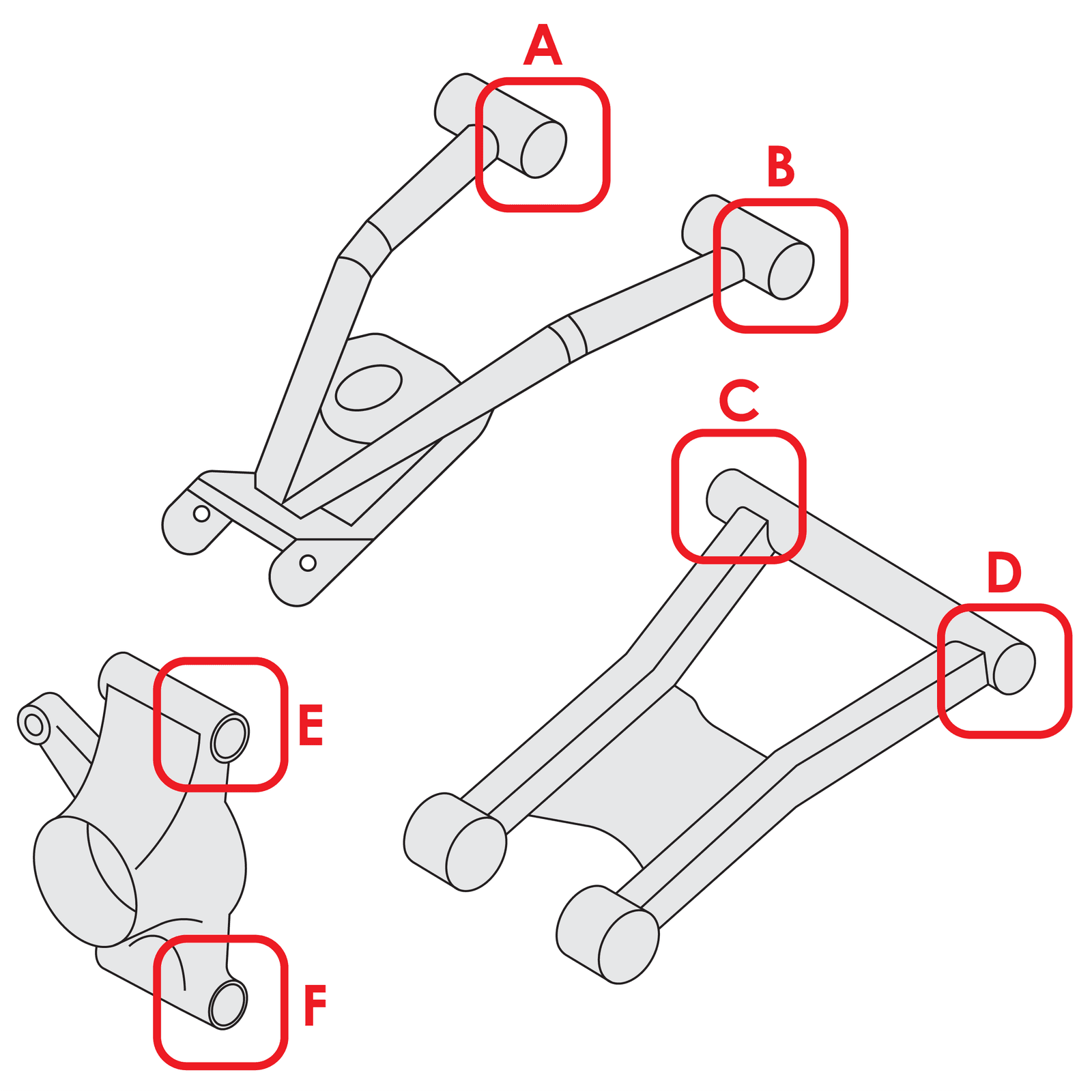

Note: Installs On Location (A) & (B) In Second Picture
Rear Upper Control Arm Part Number:
Left: 1017747-458, 1017747-067
Right: 1017748-458 1017748-067

Rear Lower Control Arm Part Number:
Left: 1015888-458,  1015888-067
Right: 1015889-458, 1015889-067

Knuckle Part Number:
Left & Right: 5135563
