Rear Complete Control Arm Bushing Kit for Polaris Sportsman XP 1000 2015-2021
No reviews yet
$88.76
NEWIn Stock
SKU: APH-295483137751
MPN: ZP108*2+ZA102*4+ZP109*2+ZP112*4+ZA109*16 - VSR
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Polaris Scrambler 850 -- — 2015-2022
- Polaris Scrambler XP 1000 EPS — 2014-2019
- Polaris Scrambler XP 850 -- — 2015
- Polaris Scrambler XP 850 HO — 2013-2014
- Polaris Sportsman 550 EFI — 2014
- Polaris Sportsman 550 EPS — 2014
- Polaris Sportsman 550 Forest — 2014
Specifications
- Type
- Control Arm
- Brand
- Caltric
- Material
- Plastic, Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Installs On Location (A) (B) (C) (E) (D) In Second Picture
- Item Width
- 102 mm
- Item Height
- 210 mm
- Item Length
- 105 mm
- Machine Type
- ATV
- Vintage Part
- No
- Items Included
- Bushing
Description
Premium Quality Replacement Part
Rear Complete Control Arm Pivot & Bushing Kit
Rear Complete Control Arm Pivot & Bushing Kit
For Polaris Models:
Sportsman XP 1000 2015-2021
Sportsman XP 1000 Touring 2015-2021
Sportsman XP 1000 High Lifter Edition 2016-2021
Sportsman XP 1000 Hunter Edition 2020-2021

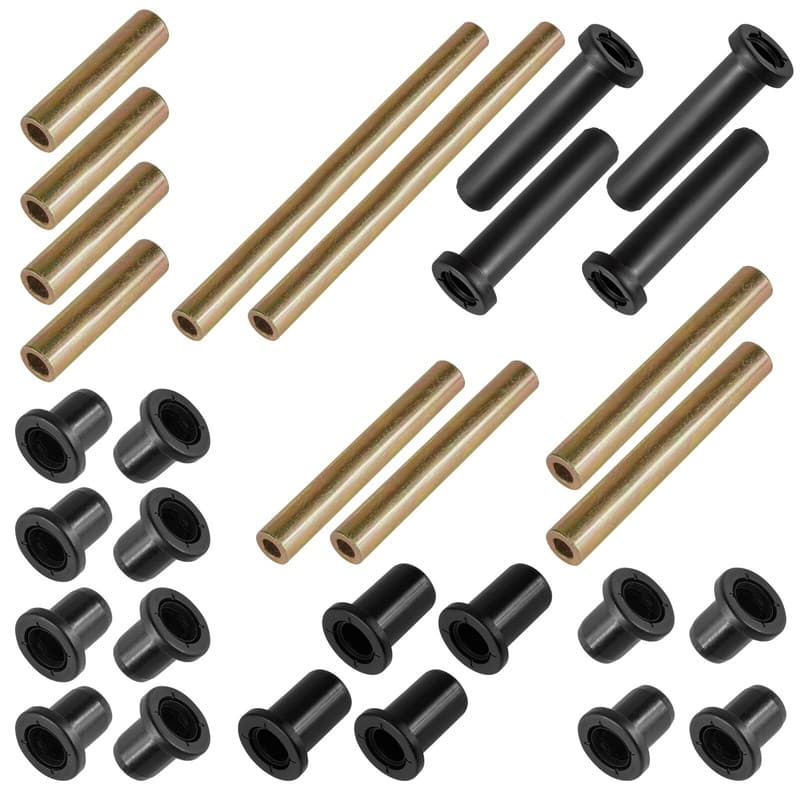

Order Includes :
4 x Lower Inner Pivot Shaft | 5137346
12 x Lower Inner Bushing | 5439874 5436832 5436505
2 x Lower Outer Pivot Shaft | 5136473
4 x Lower Outer Bushing | 5437651
2 x Upper Inner Pivot Shaft | 5137594 5136468
2 x Upper Outer Pivot Shaft | 5137590 5135501
4 x Upper Inner Bushing | 5436973 5431596 5433066 5434551 5436220
Dimensions & Measurements :

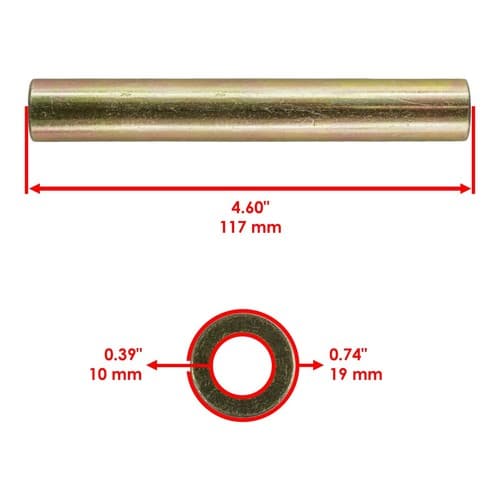

Lower Outer Pivot Shaft
Length : 117mm | 4.60"
Inner Diameter : 10mm | 0.39"
Outer Diameter : 19mm | 0.74"

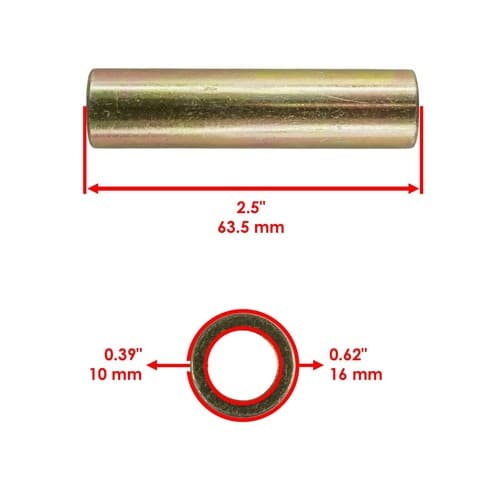

Lower Inner Pivot Shaft
Length : 63.5mm | 2.5"
Inner Diameter : 10mm | 0.39"
Outer Diameter : 16mm | 0.62"
Lower Inner Bushing

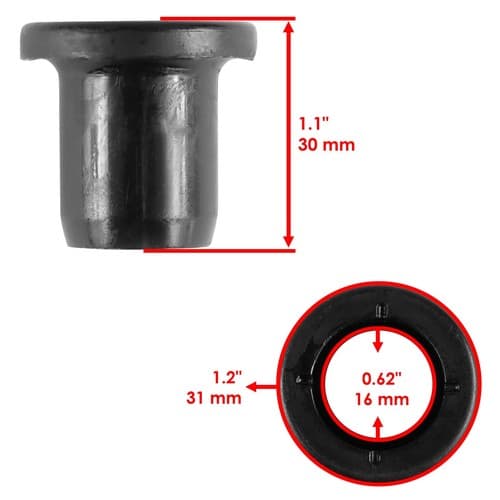

Height : 30mm | 1.1"
Inner Diameter : 16mm | 0.62"
Outer Diameter : 31mm | 1.2"

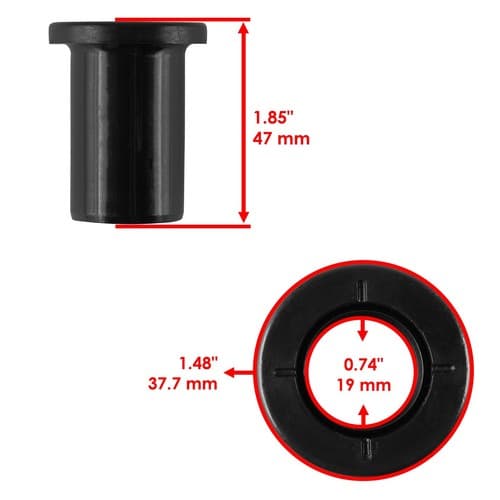

Lower Outer Bushing
Height : 47mm | 1.85"
Inner Diameter : 19mm | 0.74"
Outer Diameter : 37.7mm | 1.48"

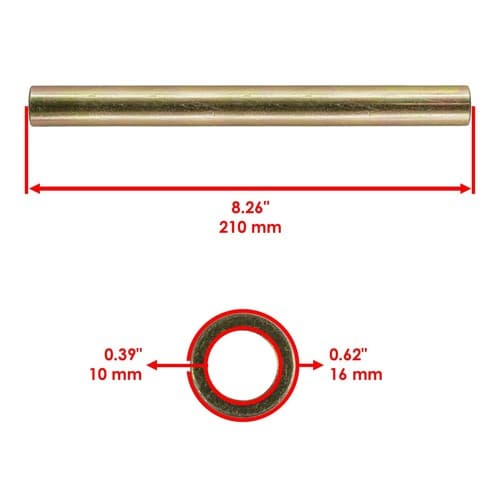

Upper Inner Pivot Shaft
Inner Diameter : 10mm | 0.39"
Outer Diameter : 16mm | 0.62"
Length : 210mm | 8.26"

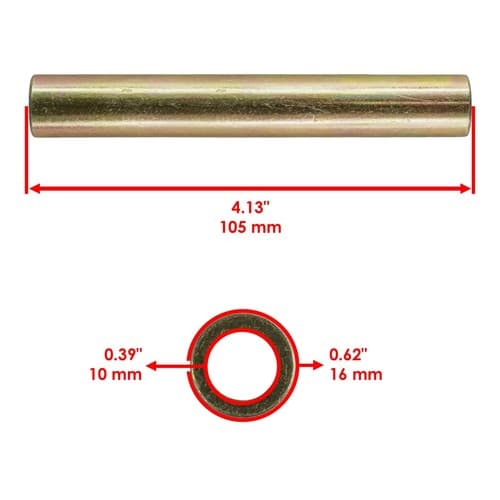

Upper Outer Pivot Shaft
Inner Diameter : 10mm | 0.39"
Outer Diameter : 16mm | 0.62"
Length : 105mm | 4.13"
Upper Inner Bushing
Height : 102mm | 4.0"
Length : 21mm | 0.82"

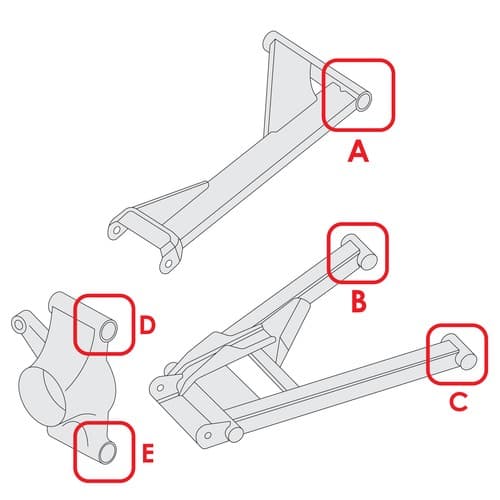

Note: Installs On Location (A) (B) (C) (E) (D) In Second Picture
Control Arm Part Number:
Rear Upper Left 1017216-067 1025619-067 1017216-632 1017216-619 1025619-689 1017216-293 1025619-293 1017216-385 1025619-385 1017216-750
Rear Upper Right 1017217-067 1025620-067 1017217-632 1017217-619 1025620-689 1017217-293 1025620-293 1017217-385 1025620-385 1017217-750
Rear Lower Left 1019410-067 1019410-632 1019410-619 1022011-067 1022011-293 1022011-385 1022011-750
Rear Lower Right 1019411-067 1019411-632 1019411-619 1022012-067 1022012-293 1022012-385 1022012-750
**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
