Primary Drive Clutch Rebuild Kit for Polaris Sportsman X2 500 EFI / Quad 2006-09
No reviews yet
$114.03
NEWIn Stock
SKU: APH-276369767456
MPN: AK418A2002MD
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Polaris Sportsman 500 4x4 HO — 2008-2013
- Polaris Sportsman 500 4x4 HO EFI — 2008-2009
- Polaris Sportsman 500 Forest — 2011-2013
- Polaris Sportsman 500 Forest Tractor — 2011-2013
- Polaris Sportsman 500 Touring EFI — 2009-2010
- Polaris Sportsman 500 Touring HO — 2010-2013
Specifications
- Type
- Primary Drive Clutch Rebuild Kit
- Brand
- Caltric
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Weight Code: 27-98
- Number in Pack
- 36
- Compatible Make
- Polaris
- Performance Part
- No
- Country of Origin
- China
- Universal Fitment
- No
- OE/OEM Part Number
- 5431936 5439254, 5430945 5438247, 1321622, 5020422, 7541906, 7512266, 7556335, 1520836, 3514492, 5631903, 3576510, 5430261, 7512566, 5632283, 7041157, 1322673
- Manufacturer Warranty
Description
Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Sportsman 500 EFI 2006-2010
Sportsman X2 500 EFI / Quad 2006-2009
Sportsman 500 HO EFI 2008-2013
Sportsman Touring 500 EFI HO 2008-2013
Sportsman Forest 500 EFI 2011-2014

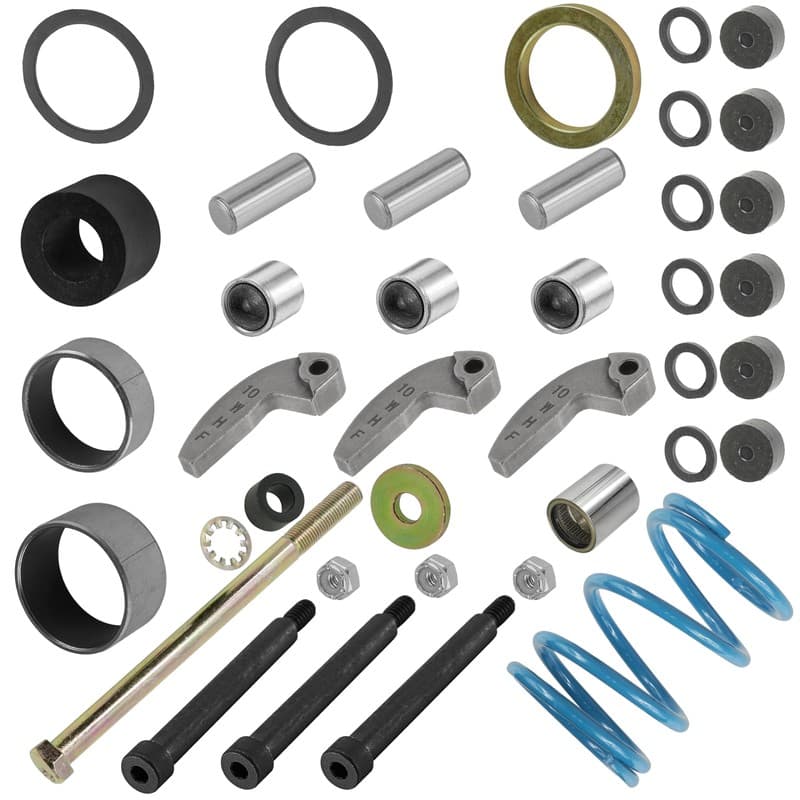

Order Includes:
3 x Clutch Weight : 5632283
Length : 62 mm - 2.44"
Width : 8.3 mm - 0.31"
Weight Code: 10WHF
Weight : 47 Gram

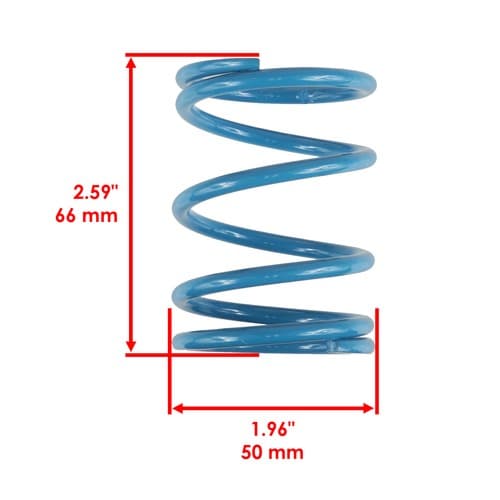

1 x Clutch Spring : 7041157
Length : 66 mm - 2.59"
Width : 50 mm - 1.96"

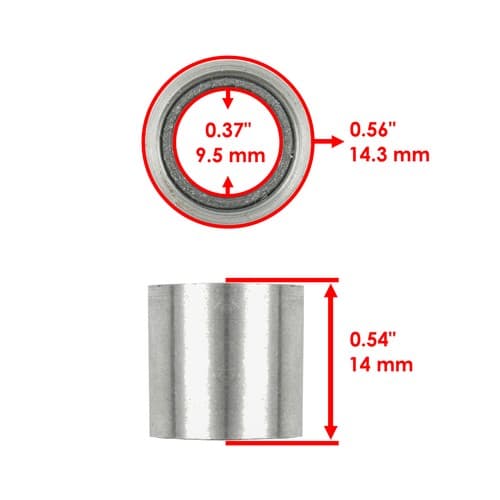

3 x Roller : 1321622
Outer Diameter : 14.3 mm - 0.56"
Inner Diameter : 9.5 mm - 0.37"
Width : 14 mm - 0.54"
3 x Roller Pin : 5020422
Length : 25 mm - 0.98"
Outer Diameter : 9.5 mm - 0.37"

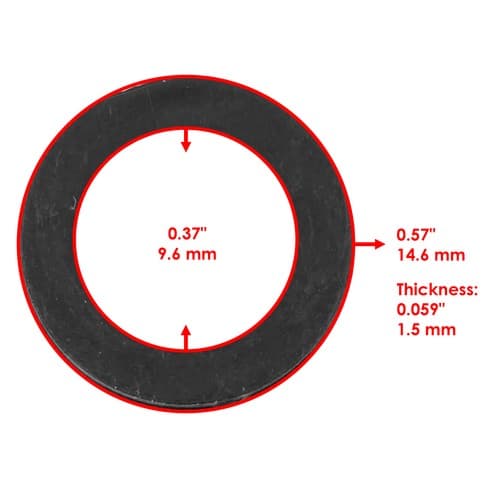

6 x Roller Washer : 5430945 5438247
Outer Diameter : 14.6 mm - 0.57"
Inner Diameter : 9.6 mm - 0.37"
Thickness : 1.5 mm - 0.059"
6 x Button : 5431936 5439254
Outer Diameter : 14 mm - 0.55"
Width : 6.5 mm - 0.25"
3 x Shoulder Bolt : 7512266
Length : 63.8 mm - 2.51"
M5x1.0

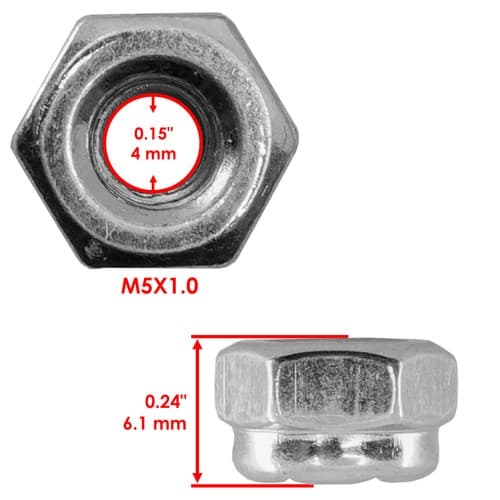

3 x Nut : 7541906 3235320
Inner Diameter : 4 mm - 0.15"
Height : 6.1 mm - 0.24"
M5x1.0

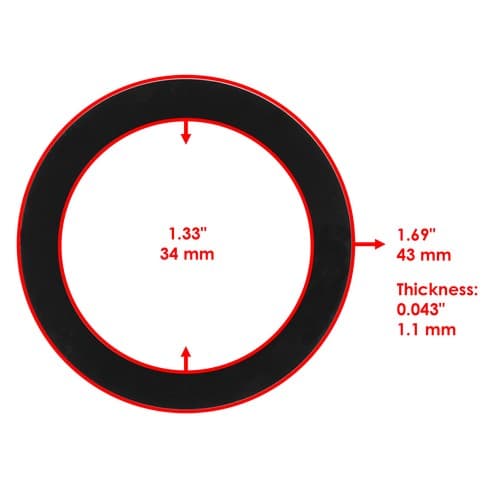

2 x Washer : 7556335
Outer Diameter : 43 mm - 1.69"
Inner Diameter : 34 mm - 1.33"
Thickness : 1.1 mm - 0.043"

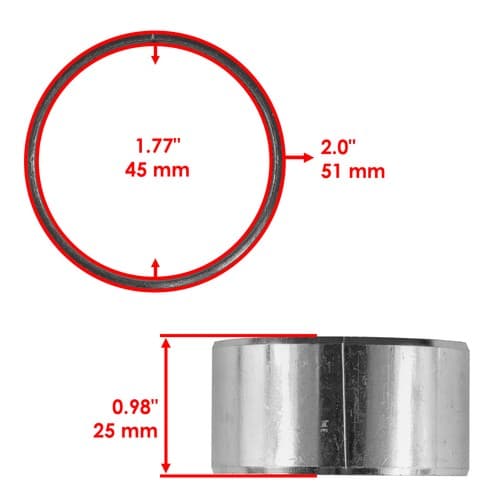

1 x DU Bushing : 3514492
Outer Diameter : 51 mm - 2.0"
Inner Diameter : 45 mm - 1.77"
Width : 25 mm - 0.98"

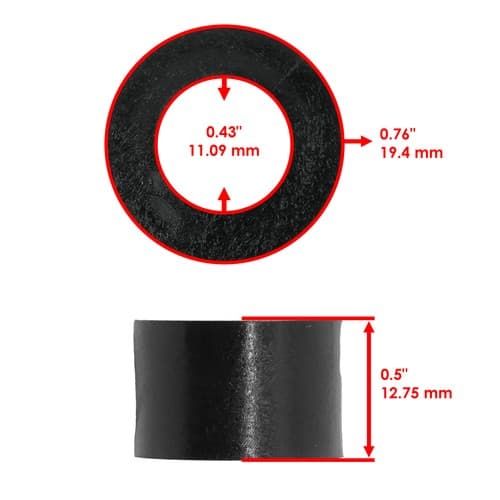

1 x Bushing : 5430261
Outer Diameter : 19.4 mm - 0.76"
Inner Diameter : 11.09 mm - 0.43"
Width : 12.75 mm - 0.5"

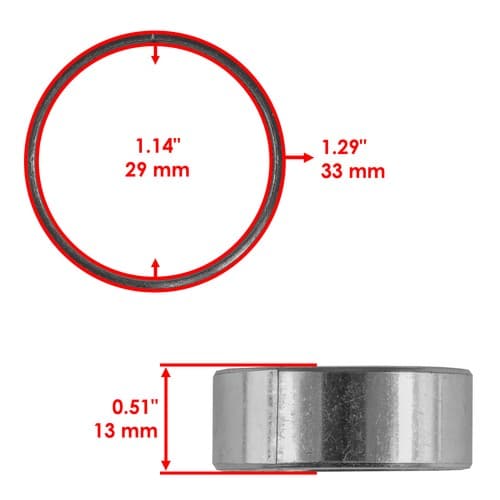

1 x Bearing Cover : 3576510
Outer Diameter : 33 mm - 1.29"
Inner Diameter : 29 mm - 1.14"
Width : 13 mm - 0.51"

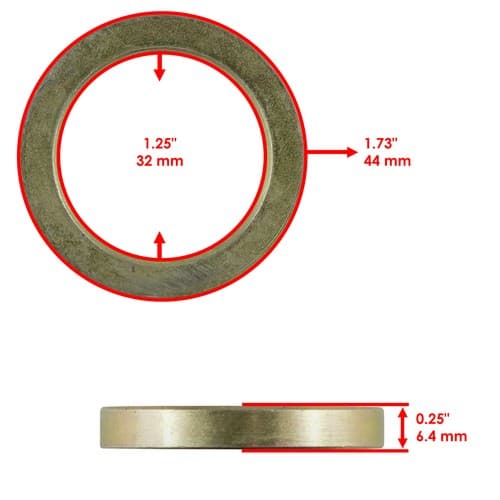

1 x Clutch Spacer : 5631903
Outer Diameter : 44 mm - 1.73"
Inner Diameter : 32 mm - 1.25"
Width : 6.4 mm | 0.25"
1 x Bolt : 7512566
Length : 170 mm - 6.69"
Thread Spec : 7/16-20

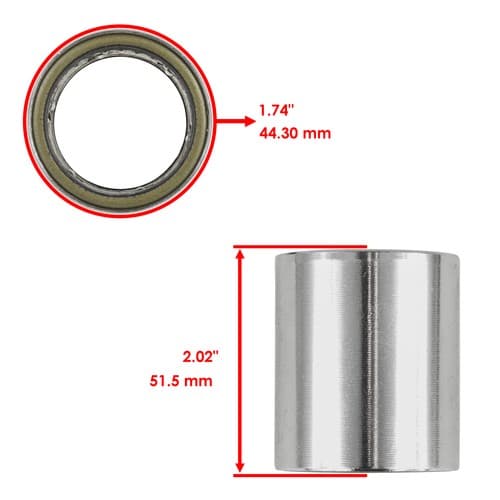

1 x EBC One Way Bearing : 1520836
Outer Diameter : 44.30 mm - 1.74"
Width : 51.5 mm - 2.02"
