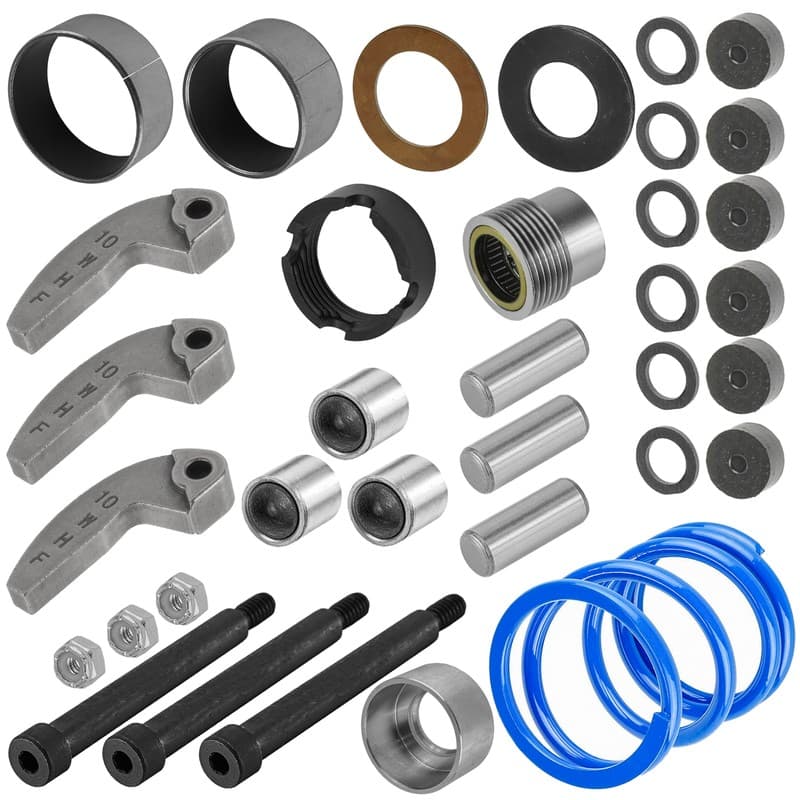

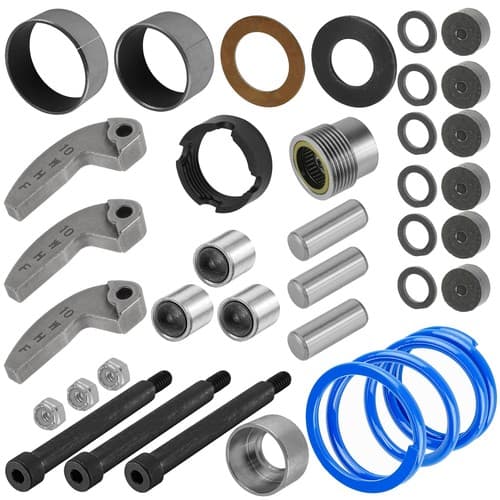

Primary Drive Clutch Rebuild Kit for Polaris Sportsman 500 2002 - 2005 / 1321706

For Polaris Models:

Worker 500 2001

Sportsman 500 2002-2005

Note:

Not Fits Sportsman 500 (A00CH50EB)

Order Includes:

3 x Clutch Weight : 5632283

Length :  62 mm  -  2.44"

Width :  8.0 mm  -  0.31"

Weight Code: 10WHF

47 Gram

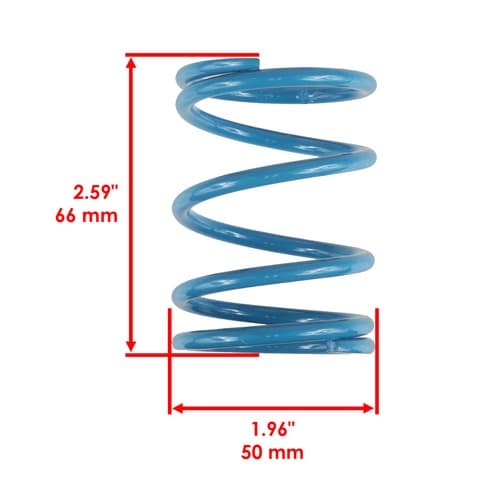

1 x Clutch Spring : 7041157

Length :  66 mm  -  2.59"

Width :  50 mm  -  1.96"

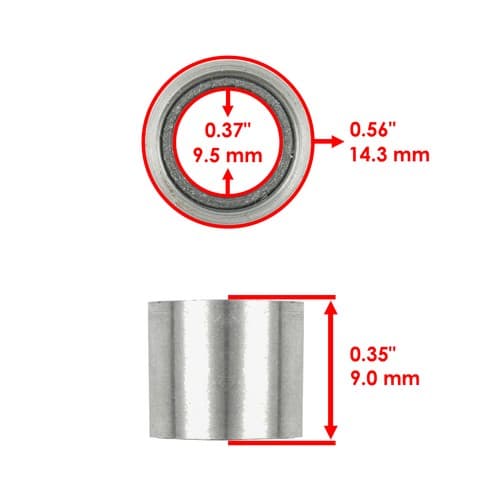

3 x Roller Bushing : 1321457 5020433

Outer Diameter : 14.3 mm - 0.56"

Inner Diameter : 9.5 mm - 0.37"

Height : 9.0 mm - 0.35"

1 x EBC One Way Bearing : 1520231

Outer Diameter : 57 mm - 2.24"

Inner Diameter : 33 mm - 1.29"

Height : 52 mm - 2.04"

3 x Roller Pin : 5020422

Length : 25 mm - 0.98"

Outer Diameter : 9.5 mm - 0.37"

6 x Roller Washer : 5430945 5430702 5438247

Outer Diameter : 14.6 mm - 0.57"

Inner Diameter : 9.6 mm - 0.37"

Thickness : 1.5 mm - 0.059"

6 x Button : 5431936 5439254

Outer Diameter : 14 mm - 0.55"

Width : 6.5 mm - 0.25"

3 x Shoulder Bolt : 7512266

Length : 63.8 mm - 2.51"

M5x1.0

3 x Nut : 7541906 3235320

Inner Diameter : 4 mm - 0.15"

Height : 6.1 mm - 0.24"

M5x1.0

1 x Washer : 7556204

Outer Diameter : 56.6 mm - 2.22"

Inner Diameter : 35.5 mm - 1.39"

Thickness : 0.8 mm - 0.031"

1 x Washer : 7556202 7556009

Outer Diameter : 68 mm - 2.67"

Inner Diameter : 43 mm - 1.69"

Thickness : 0.80 mm - 0.03"

1 x Spacer : 5131646 5631119

Outer Diameter : 57 mm - 2.25"

Inner Diameter : 32 mm - 1.25"

Height : 33 mm - 1.30"

1 x Bearing Cover : 3576510

Outer Diameter : 33 mm - 1.29"

Inner Diameter : 29 mm - 1.14"

Height : 13 mm - 0.51"

1 x Nut : 2201615 7547130

Outer Diameter : 37.5 mm - 1.47"

Inner Diameter : 30.1 mm - 1.18"

Height : 12.8 mm - 0.50"

1 x Bearing Bushing : 3585712

Outer Diameter : 33 mm - 1.29"

Inner Diameter : 29 mm - 1.14"

Height : 20 mm - 0.78"
