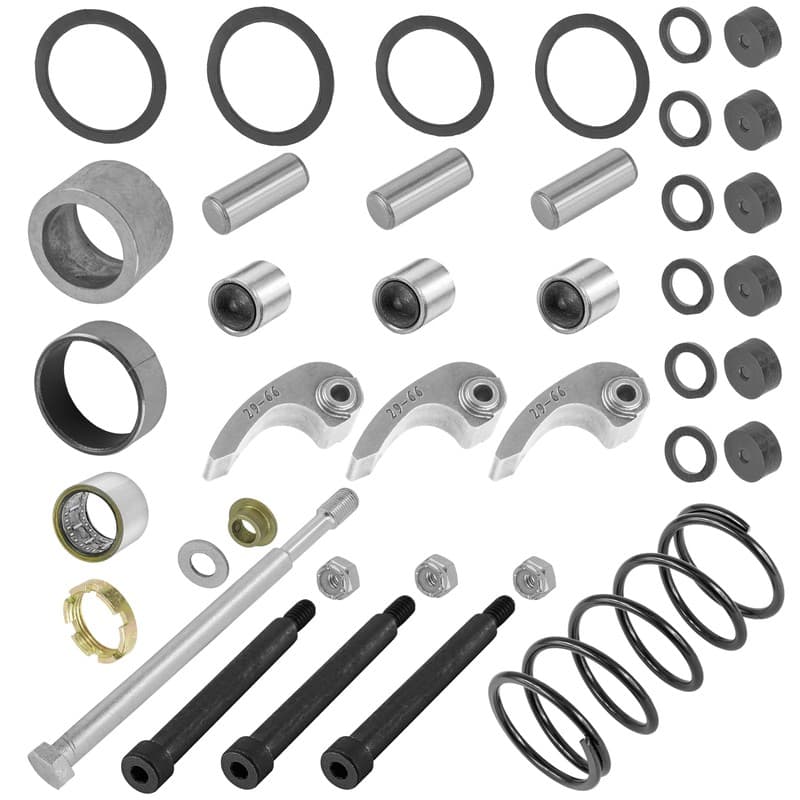

Primary Drive Clutch Rebuild Kit for Polaris General 1000 4P 2017-2019 / 1323320

For Polaris Models:

General 1000 4P EPS MD 2017-2019

General 1000 4P PS RC 2017-2019

Order Includes:

3 x ORV Clutch Weight | 5633496

Length :  55 mm  |  2.16"

Width :  13.30 mm  |  0.52"

Weight Code: 29-66

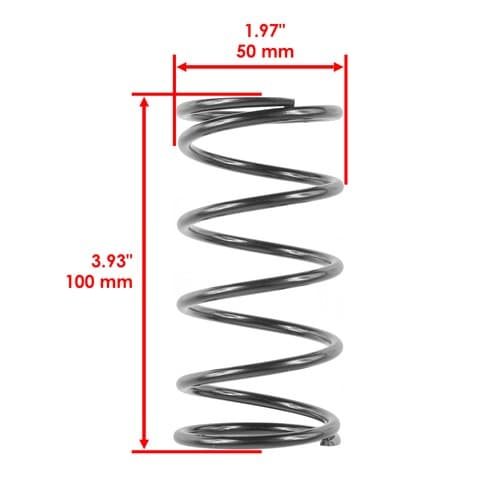

1 x Clutch Spring | 7044465

Length :  100 mm  |  3.93"

Width :  50 mm  |  1.97"

58-105

3 x Roller | 1321622

Outer Diameter : 14.3 mm | 0.56"

Inner Diameter : 9.5 mm | 0.37"

Width : 14 mm | 0.54"

3 x Roller Pin | 5020422

Length : 25 mm | 0.98"

Outer Diameter : 9.5 mm | 0.37"

6 x Roller Washer | 5438247

Outer Diameter : 14.6 mm | 0.57"

Inner Diameter : 9.6 mm | 0.37"

Thickness : 1.5 mm | 0.059"

6 x Button | 5450940

3 x Shoulder Bolt | 7512266

Length : 63.8 mm | 2.51"

M5x1.0

3 x Nut | 7541906 3235320

Inner Diameter : 4 mm | 0.15"

Height : 6.1 mm | 0.24"

M5x1.0

2 x Washer | 7556335

Outer Diameter : 43 mm | 1.69"

Inner Diameter : 34 mm | 1.33"

Thickness : 1.1 mm | 0.043"

1 x DU Bushing | 3514492

Outer Diameter : 51 mm | 2.0"

Inner Diameter : 45 mm | 1.77"

Width : 25 mm | 0.98"

1 x Bearing Cover | 3576510

Outer Diameter : 33 mm | 1.29"

Inner Diameter : 29 mm | 1.14"

Width : 13 mm | 0.51"

1 x Clutch Spacer | 5632894

Outer Diameter : 44 mm | 1.73"

Inner Diameter : 35 mm | 1.37"

Width : 27 mm | 1.06"

1 x Clutch Spacer | 5632060

Outer Diameter : 44.8 mm | 1.76"

Inner Diameter : 32 mm | 1.26"

Width : 28.1 mm | 1.10"

2 x Clutch Spacer | 5438963

Outer Diameter : 38 mm | 1.49"

Inner Diameter : 28.7 mm | 1.12"

Width : 1.1 mm | 0.043"

1 x Bolt | 7518412 5132441 7556003

Length : 224 mm | 8.81"

Thread Spec : M14-1.5

1 x EBC One Way Bearing | 1521172

Outer Diameter : 44.5 mm | 1.75"

Inner Diameter : 35 mm | 1.33"

Width : 31.6 mm | 1.24"

1 x Jam Nut | 7547498

Inner Diameter : 29.7 mm | 1.17"

Width : 9.0 mm | 0.35"
