Caltric
Primary Drive Clutch Rebuild kit for Can-Am Outlander / Max L 450 EFI 2015-2017
No reviews yet
$184.60
NEWOut of Stock
SKU: APH-276594907877
MPN: AZ505*6+AZ506*6+ZE512+ZE513+MS504*12+OW202+CW205*4+CS525 - MD
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (20)
- Can-Am Outlander 400 4x4 EFI — 2011-2014
- Can-Am Outlander 400 4x4 HO — 2007-2008
- Can-Am Outlander 400 4x4 HO EFI — 2008-2010
- Can-Am Outlander 400 4x4 XT EFI — 2011-2014
- Can-Am Outlander 400 4x4 XT HO — 2007-2008
- Can-Am Outlander 400 4x4 XT HO EFI — 2008-2010
- Can-Am Outlander 400 4x4 XTP — 2014
- Can-Am Outlander 450 4X4 — 2023
Specifications
- Type
- Primary Drive Clutch Rebuild kit
- Brand
- Caltric
- Color
- Black
- Material
- Iron, Steel
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Vintage Part
- No
- Items Included
- Shoe Slider, Roller Sleeve, Clutch Weights Centrifugal Lever Set, Spring, Spring Seat, Retaining Ring, Clutch With Ball Bearing
- Number in Pack
- 32
- Performance Part
- No
- Country of Origin
- China
- OE/OEM Part Number
- 420257439, 420280467, 420280313, 420280391, 420280460, 420280465, 420280374, 420257195, 420257439, 420257430, 420257437, 420632371 420632377, 420229576 420229577, 420239135, 420281290 420281296, 420233890 417223257, 420229585 417223767, 420627574 420627578, 420245950 420245951, 420238161 420238166, 420248424
Description
Premium Quality Replacement Part
Primary Drive Clutch Rebuild kit
Primary Drive Clutch Rebuild kit
Compatible with Can-Am Models:
Outlander 400 STD XT EFI 2007-2014
Outlander Max 400 STD XT EFI 2007-2014
Outlander L 450 EFI 2015-2017
Outlander L Max 450 EFI 2015
Outlander 450 EFI 2017-2023
Outlander 450 6X6 2019-2023
Outlander Max 450 6X6 2019-2022
Outlander T 450 EFI 2020-2023
Outlander T 450 6X6 2020-2023
Outlander T Max 450 6X6 2020-2023

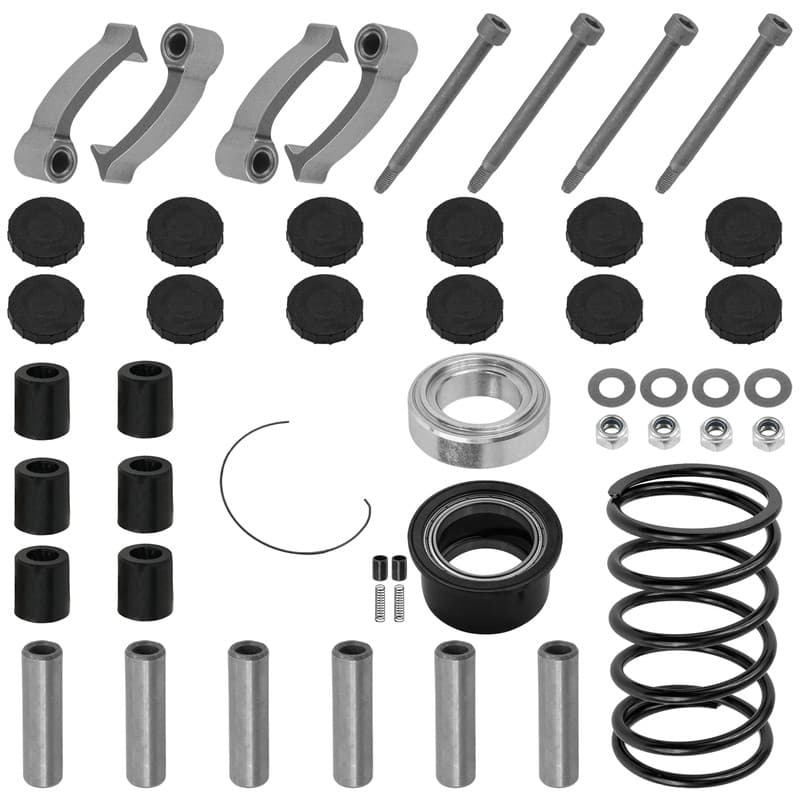

Order Includes:
4 x Clutch Weights Centrifugal Lever Set : 420248424
Length : 55 mm - 2.16"
Width : 15 mm 0.59"
Weight Code : 30 Gram

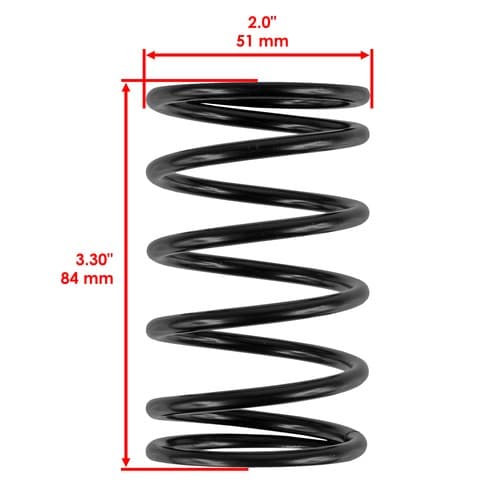

1 x Spring : 420238161 420238166
Length : 84 mm - 3.30"
Width : 51 mm 2.0"
Coil - 6
1 x Clutch : 420257439
Inner Diameter : 39.8 mm - 1.56"
Outer Diameter : 64 mm - 2.51"
Width : 32.3 mm 1.27"
6 x Roller : 420229585 417223767
Inner Diameter : 8.1 mm - 0.31"
Outer Diameter : 13.8 mm - 0.55"
Width : 15.8 mm 0.62"
6 x Roller Sleeve : 420233890 417223257
Inner Diameter : 5.1 mm - 0.20"
Outer Diameter : 8 mm - 0.31"
Width : 29.3 mm 1.15"

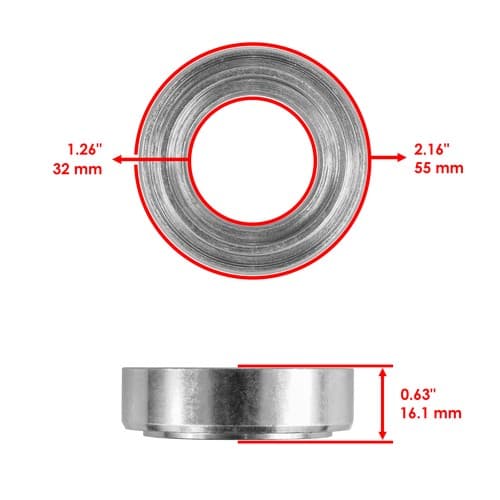

1 x Spring Seat : 420627574 420627578
Inner Diameter : 32 mm - 1.26"
Outer Diameter : 55 mm - 2.16"
Width : 16.1 mm 0.63"
1 x Retaining Ring : 4420245950 420245951
Outer Diameter : 65.2 mm - 2.56"
Thickness: 0.97 mm - 0.038"
12 x Shoe Slider : 420281290 420281296
Outer Diameter : 16.9 mm - 0.66"
Thickness: 4.1 mm - 0.16"
