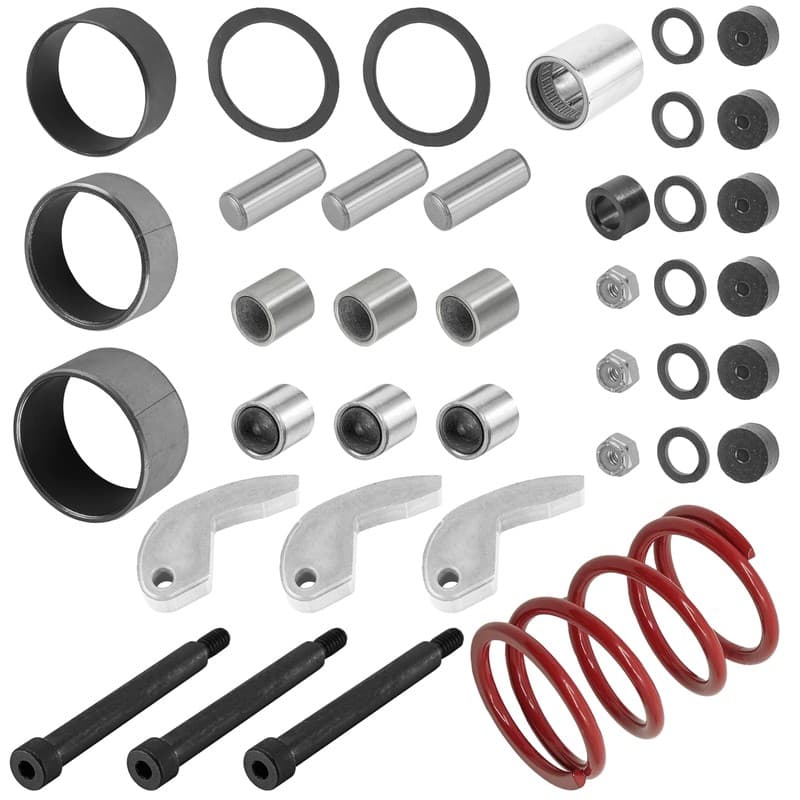

Primary Drive Clutch Kit for Polaris Sportsman XP 550 EPS 2010 / 1322814

For Polaris Models:

Sportsman XP 550 EPS 2010

Order Includes:

3 x Clutch Weight | 5632219 1322914

Length : 57 mm | 2.24"

Width : 11.75 mm | 0.46"

Weight Code: 23-54G

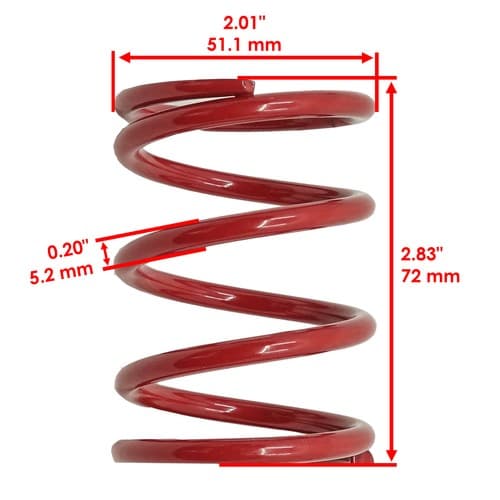

1 x Spring | 7043500 (63-226)

Length : 72 mm | 2.83"

Outer Diameter : 51.1 mm | 2.01"

Item Thickness : 5.2 mm | 0.20"

1 x One Way Bearing | 1322809

Outer Diameter : 44.30 mm | 1.74"

Width : 51.5 mm | 2.02"

3 x Roller | 1321622

Outer Diameter : 14.3 mm | 0.56"

Inner Diameter : 9.5 mm | 0.37"

Width : 14 mm | 0.54"

3 x Roller Pin | 5020422

Length : 25 mm | 0.98"

Outer Diameter : 9.5 mm | 0.37"

6 x Roller Washer | 5438247 5430702 5430945

Outer Diameter : 14.6 mm | 0.57"

Inner Diameter : 9.6 mm | 0.37"

Thickness : 1.5 mm | 0.059"

6 x Button | 5439254 5431936

Outer Diameter : 14 mm | 0.54"

Height : 6.5 mm | 0.25"

3 x Shoulder Bolt | 7512266

Length : 63.8 mm | 2.51"

M5x1.0

3 x Nut | 7541906 3235320

Inner Diameter : 4 mm | 0.15"

Height : 6.1 mm | 0.24"

M5x1.0

2 x Washer | 7556335

Outer Diameter : 43 mm | 1.69"

Inner Diameter : 34 mm | 1.33"

Thickness : 1.1 mm | 0.043"

1 x DU Bushing | 3514492

Outer Diameter : 51 mm | 2.0"

Inner Diameter : 45 mm | 1.77"

Width : 25 mm | 0.98"

1 x Bushing | 5437682

Outer Diameter : 19.2 mm | 0.75"

Inner Diameter : 12 mm | 0.47"

Width : 12.4 mm | 0.48"

1 x Spacer | 5437747

Outer Diameter : 34.7 mm | 1.36"

Inner Diameter : 29.35 mm | 1.15"

Width : 12.17 mm | 0.47"
