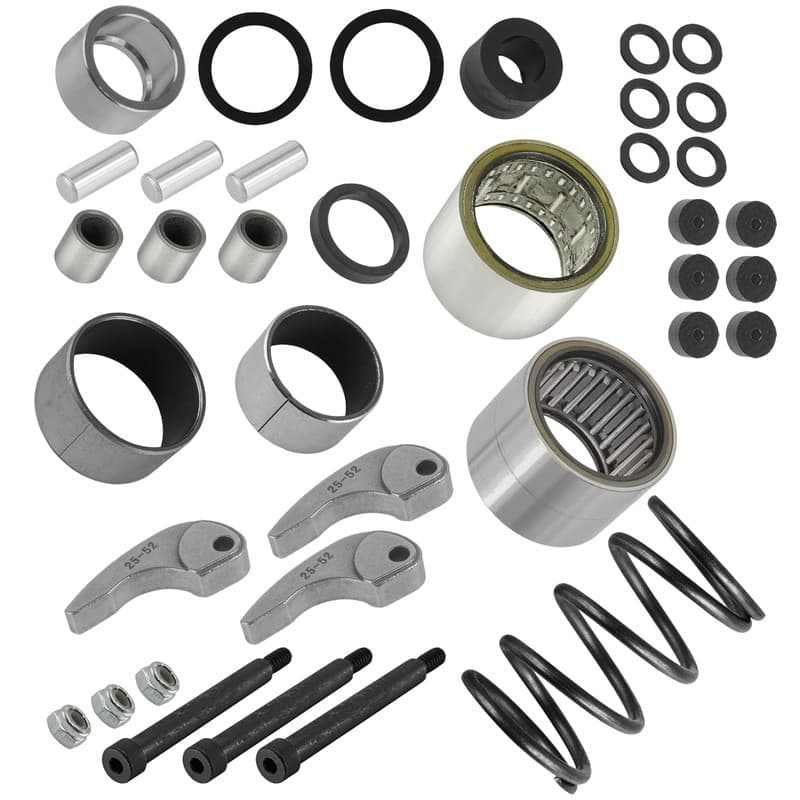

Primary Drive Clutch Kit for Polaris Sportsman 570 EFI EPS 2014-2020 Rebuild Kit

For Polaris Models:

Sportsman 570 EFI EPS 2014-2020

Sportsman Touring 570 EFI EPS 2015-2022

Sportsman X2 570 2015-2021

Sportsman 570 6x6 2017-2022

Sportsman 570 SP 2015-2020

Order Includes:

1x Clutch Spacer: | 5633037

1x DU Bushing 1.75: | 3514492

1x Bearing Cover: | 3514684

3x Roller and Bushing: | 1321457 5020433

1x Bushing: | 5430261

2x Washer: | 7556335

1x Washer: | 5450770

1x Clutch Spring: (35-240) | 7043594

3x Clutch Weight: (25-52G) | 5632409

1x Needle Bearing: (Non-Breaking Bearing) | 3514609

1x One Way Bearing |1521172

6x Primary Clutch Button: | 5431936 5439254

6x Roller Whasher: | 5438247 5430702 5430945

3x Roller Pin: | 5020422

3x Flexloc Nut: | 7541906 3235320

3x Shoulder Bolt: | 7512266

Dimensions & Measurements:

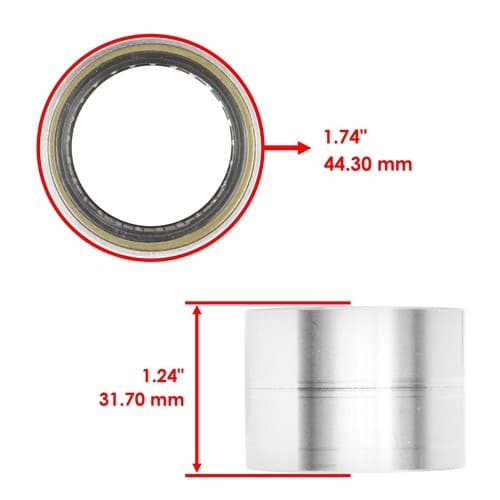

Needle Bearing

Item Height: 44.30 mm | 1.74"

Item Outer Diameter: 31.70 mm | 1.24

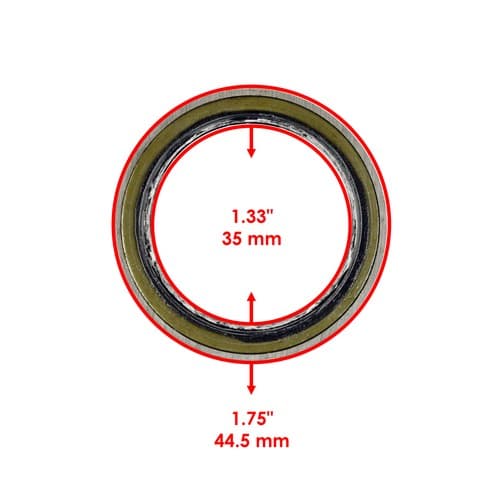

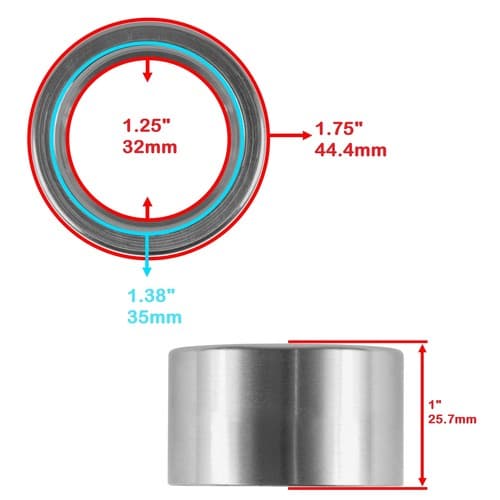

One Way Bearing

Item Height: 44.5 mm | 1.75"

Item Outer Diameter: 35 mm | 1.33"

Item Inner Diameter: 31.6 mm | 1.24"

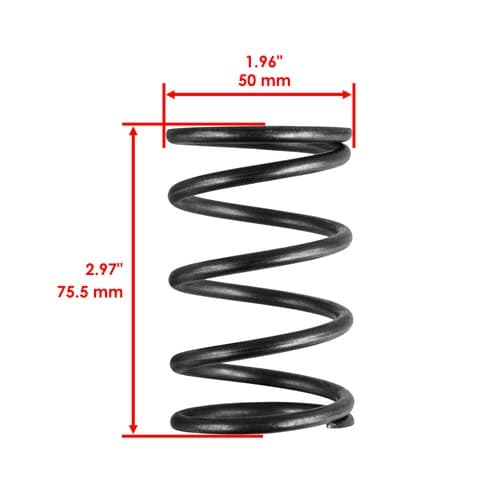

Clutch Spring (35-240)

Item Length: 75.5 mm | 2.97"

Item Width: 50 mm | 1.96"

Clutch Weight (25-52G)

Item Length: 57 mm | 2.24

Item Thickness: 9.7 mm | 0.38"

Hote:

The kit includes EBC and Non EBC Bearings.

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
