Specifications
- Type
- Primary Drive Clutch Rebuild Kit
- Brand
- Caltric
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- More Info
- Weight Code: 24-70
- Number in Pack
- 36
- Compatible Make
- Polaris
- Performance Part
- No
- Country of Origin
- China
- Universal Fitment
- No
- OE/OEM Part Number
- 1323378, 1323123, 1321622, 5020422, 5438247 5430702 5430945, 5439254 5431936, 7512266, 7541906 3235320, 3514684, 7556335, 3514492, 5633000 5632328, 5438737, 5437682, 3514609, 5633136, 7044279
Description
Premium Quality Replacement Part
Primary Drive Clutch Rebuild Kit
Primary Drive Clutch Rebuild Kit
For Polaris Models:
Scrambler 1000 MD 2015-2017
Scrambler XP 1000 2015-2016
Scrambler 1000 Tractor 2016-2017

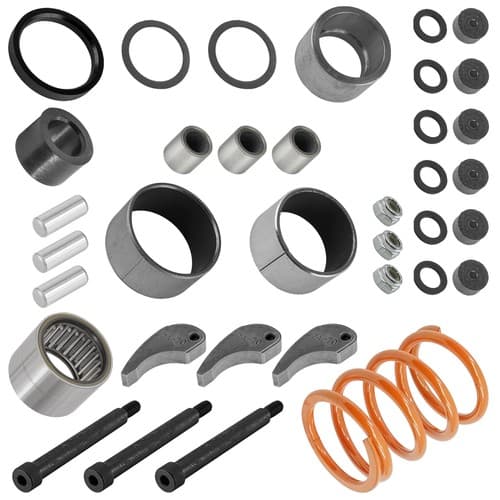

Order Includes:
3 x Weight | 5633136
Length : 58 mm | 2.38"
Width : 12 mm | 0.47"
Code : 24-70

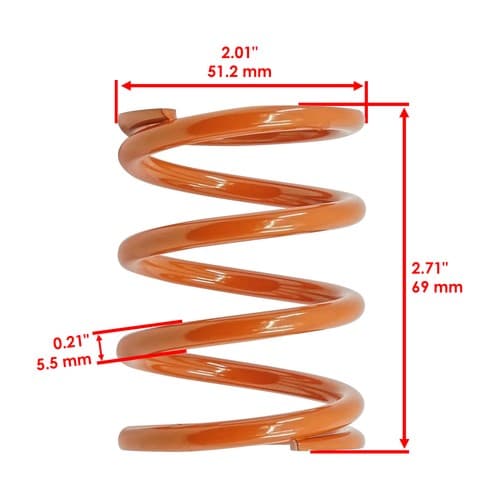

1 x Spring | 7044279
Height : 69 mm | 2.71"
Width : 51.2 mm | 2.01"
Item Thickness : 5.5 mm | 0.21"

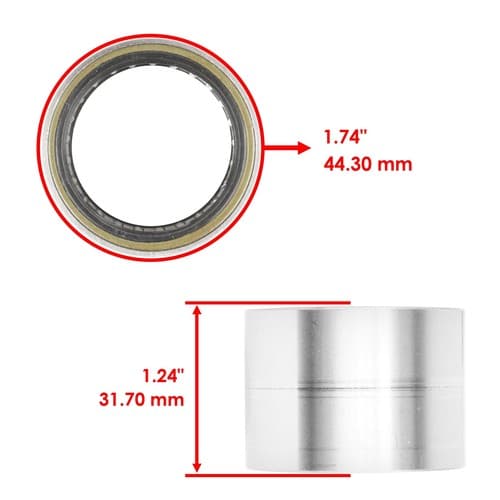

1 x Needle Bearing | 3514609 (Non EBC)
Outer Diameter : 44.30 mm | 1.74"
Width : 31.70 mm | 1.24"

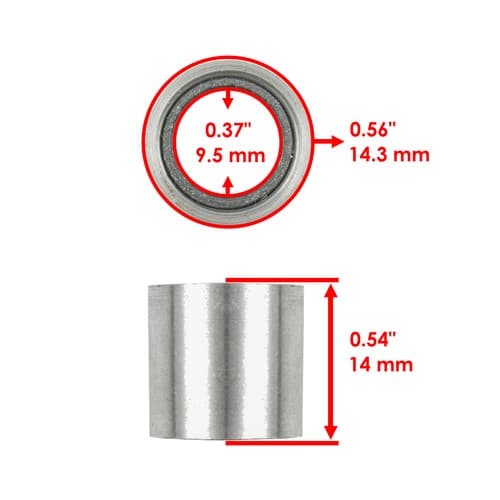

3 x Roller | 1321622
Outer Diameter : 14.3 mm | 0.56"
Inner Diameter : 9.5 mm | 0.37"
Width : 14 mm | 0.54"
3 x Roller Pin | 5020422
Length : 25 mm | 0.98"
Outer Diameter : 9.5 mm | 0.37"

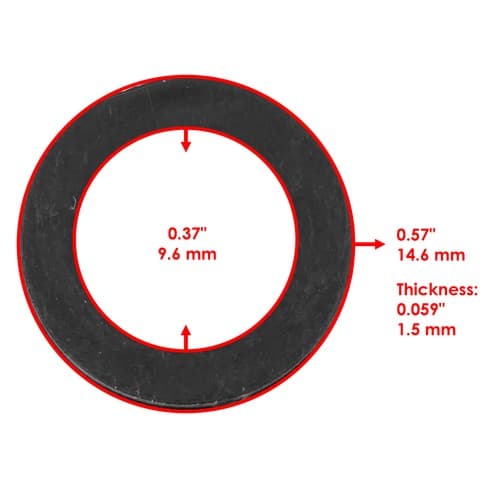

6 x Roller Washer | 5438247 5430702 5430945
Outer Diameter : 14.6 mm | 0.57"
Inner Diameter : 9.6 mm | 0.37"
Thickness : 1.5 mm | 0.059"
6 x Button | 5439254 5431936
Outer Diameter : 14 mm | 0.54"
Height : 6.5 mm | 0.25"
3 x Shoulder Bolt | 7512266
Length : 63.8 mm | 2.51"
M5x1.0

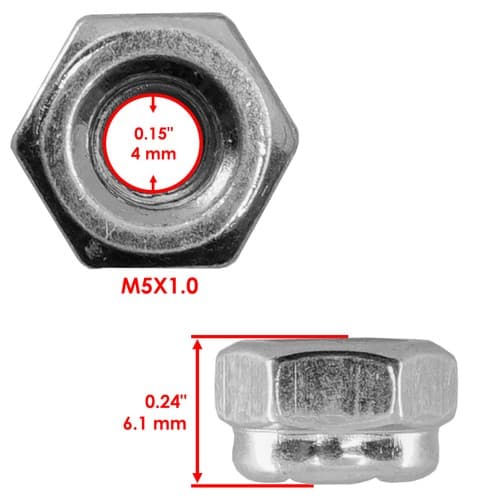

3 x Nut | 7541906 3235320
Inner Diameter : 4 mm | 0.15"
Height : 6.1 mm | 0.24"
M5x1.0

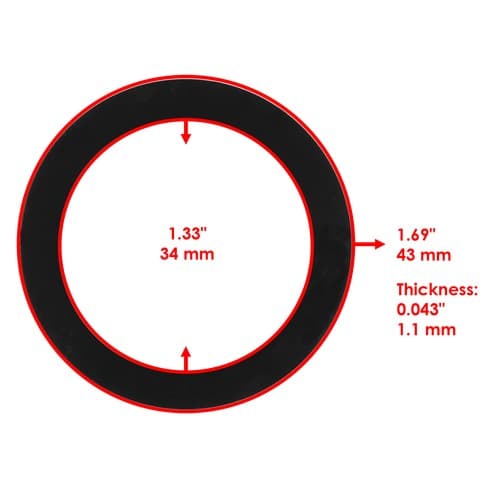

2 x Washer | 7556335
Outer Diameter : 43 mm | 1.69"
Inner Diameter : 34 mm | 1.33"
Thickness : 1.1 mm | 0.043"

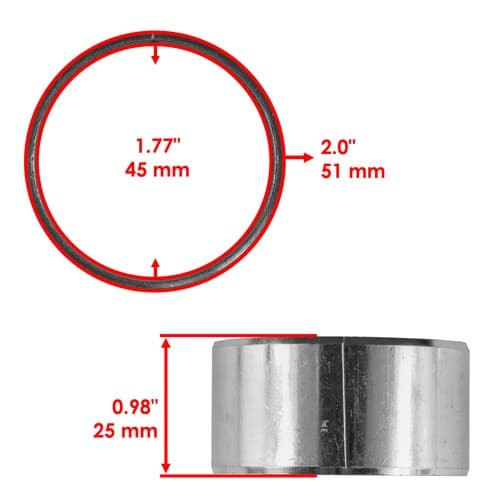

1 x DU Bushing | 3514492
Outer Diameter : 51 mm | 2.0"
Inner Diameter : 45 mm | 1.77"
Width : 25 mm | 0.98"

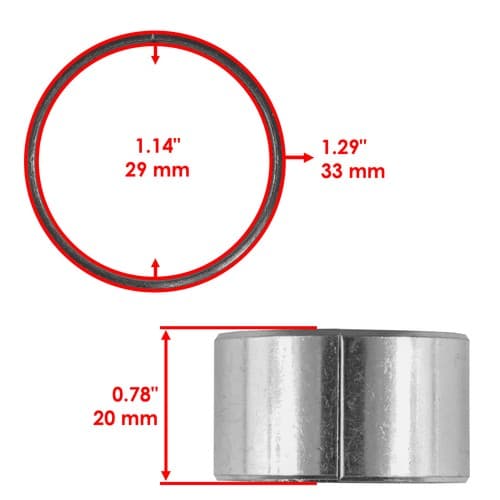

1 x Bushing Cover | 3514684
Outer Diameter : 33 mm | 1.29"
Inner Diameter : 29 mm | 1.14"
Width : 20 mm | 0.78"

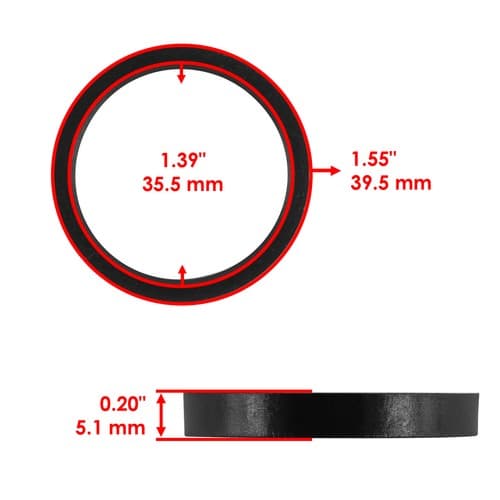

1 x Spacer | 5438737
Outer Diameter : 39.5 mm | 1.55"
Inner Diameter : 35.5 mm | 1.39"
Width : 5.1 mm | 0.20"

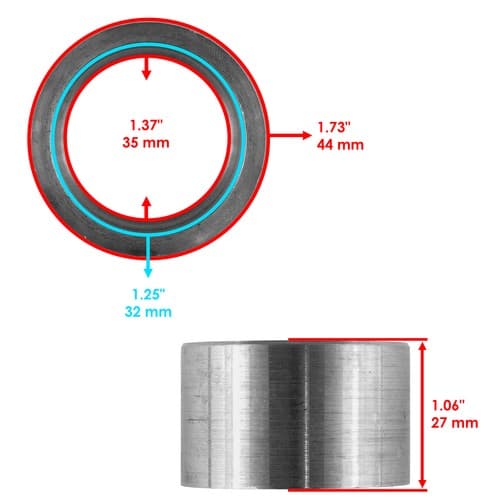

1 x Spacer | 5633000 5632328
Outer Diameter : 44 mm | 1.73"
Inner Diameter : 35 mm | 1.37"
Width : 27 mm | 1.06"

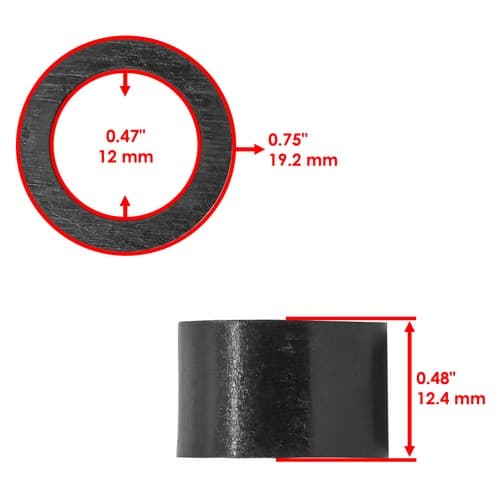

1 x Bushing 5437682
Outer Diameter : 19.2 mm | 0.75"
Inner Diameter : 12 mm | 0.47"
Width : 12.4 mm | 0.48"
