Left Right Hand Lever Kit For Bobcat 630 632 641 642 643 645 653 730 731 732 741

 Premium Quality Replacement Part

Left & Right Hand Lever Kit

Compatible with Bobcat Models:

All-Wheel Steer Loaders: A220, A300

Compact Track Loaders: T140, 864, T200, T250, T300, T320

Skid-Steer Loaders: 630, 632, 641, 642, 643, 645, 653
730, 731, 732, 741, 742, 743, 751, 753, 763, 773, 7753, 853
863, 873, 883, S130, S220, S250, S300, S330

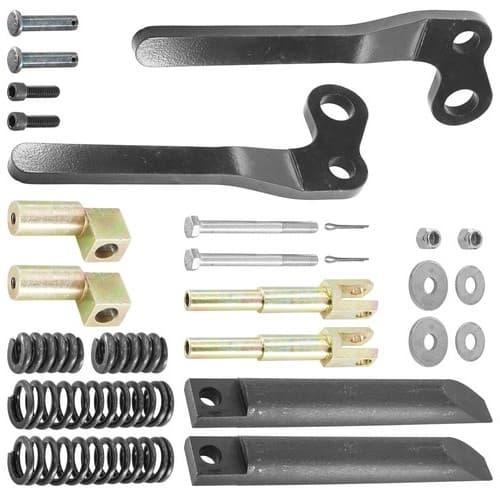

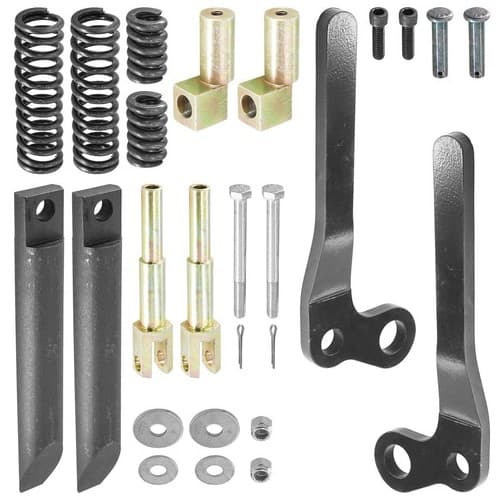

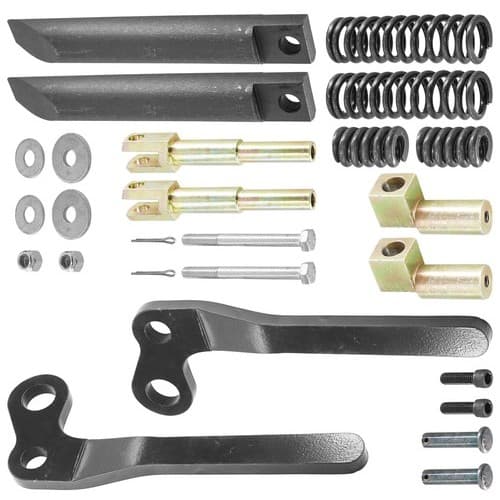

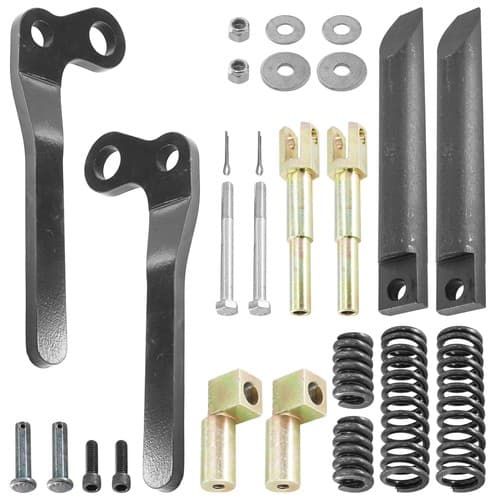

Order Includes:
1 x Left Hand Lever Kit: 6724776

1 x Right Hand Lever Kit: 6724775

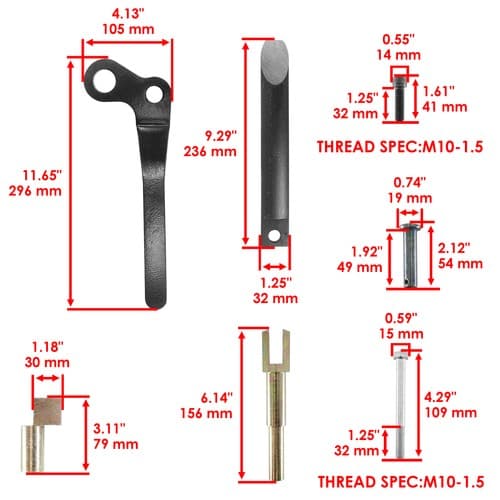

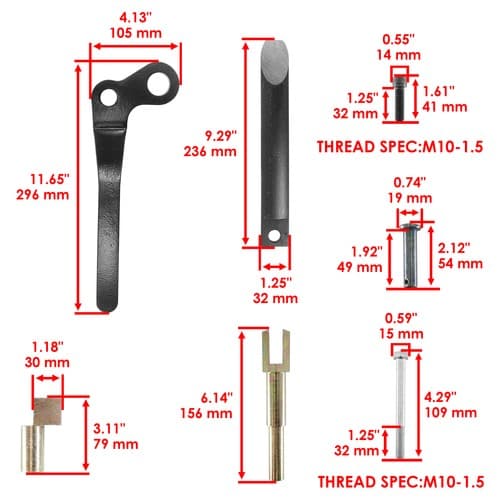

 1 x Left Lever: 6702903

Length: 296 mm - 11.65 in
Width: 105 mm - 4.13 in


1 x Right Lever: 6702904

Length: 296 mm - 11.65 in
Width: 105 mm - 4.13 in

2 x Pivto Wedge: 7252989

Length: 156 mm - 6.14 in

2 x Pivto Wedge: 6731119

Length: 79 mm - 2.11 in

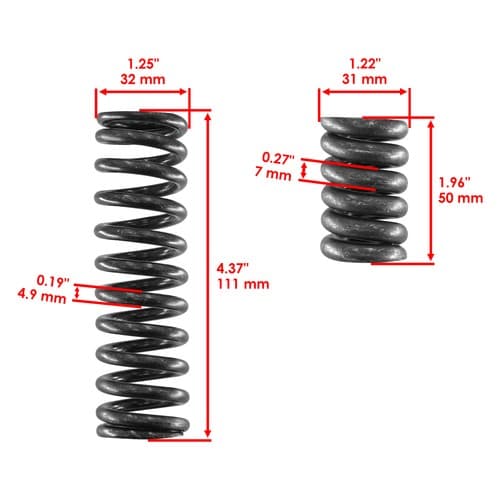

2 x Spring Compression: 6578253

Length: 111 mm - 4.37 in
Outer Diamater: 32 mm - 1.25 in
Thickness: 4.9 mm - 0.19 in

2 x Spring Compression: 6713040

Length: 50 mm - 1.96 in
Outer Diamater: 31 mm - 1.22 in
Thickness: 7 mm - 0.27 in

2 x Wedge: 6737191

Length: 236 mm - 9.29 in
Width: 32 mm - 1.25 in

2 x Bolt: 17C660

Length: 109 mm - 4.29 in
Head Diameter: 15 mm - 0.59 in
Stud Length: 32 mm - 1.25 in
Thread Size: M10-1.5

2 x Screw Socket Head: 7255136

Length: 41 mm - 1.61 in
Head Diameter: 14 mm - 0.55 in
Stud Length: 32 mm - 1.25 in
Thread Size: M10-1.5

2 x Pin: 7277777

2 x Nut: 85D6
