Intake Valve Kit for Suzuki Quadsport Z400 LTZ400 LTZ400Z 2x4 2003-2009

Premium Quality Replacement Part

Intake Valve Kit for Suzuki Quadsport Z400 LTZ400 LTZ400Z 2x4 2003-2009

For Suzuki Models:
Quadsport Z400 LTZ400 LTZ400Z 2x4 2003-2009

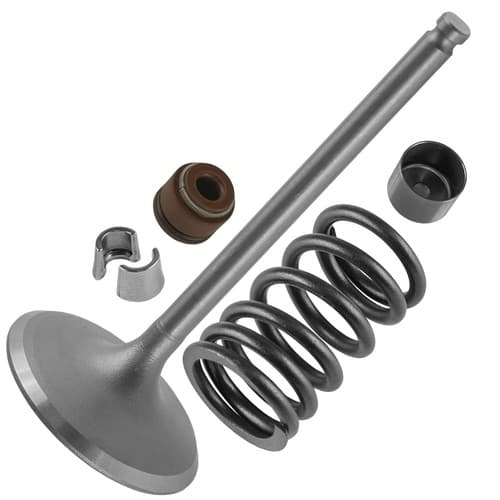

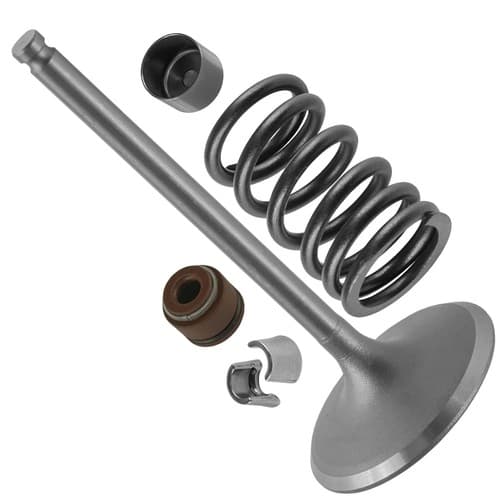

Order Includes:
1 x Intake Valve: 12911-29F00
Length: 1.41" | 36.0 mm
Diameter: 3.22" | 82.0 mm

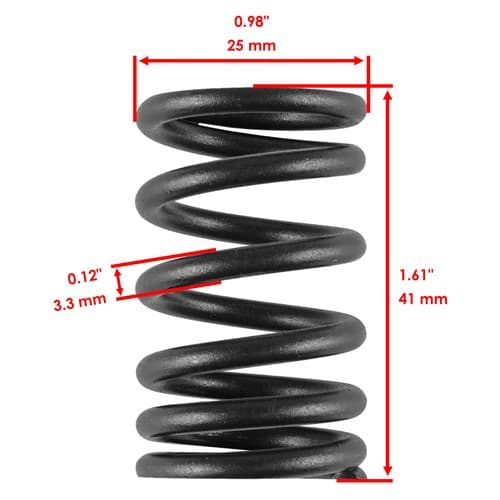

1 x Valve Spring: 12921-03G00
Width: 0.98" | 25.0 mm
Height: 1.61" | 41.0 mm
Thickness: 0.12" | 3.3 mm

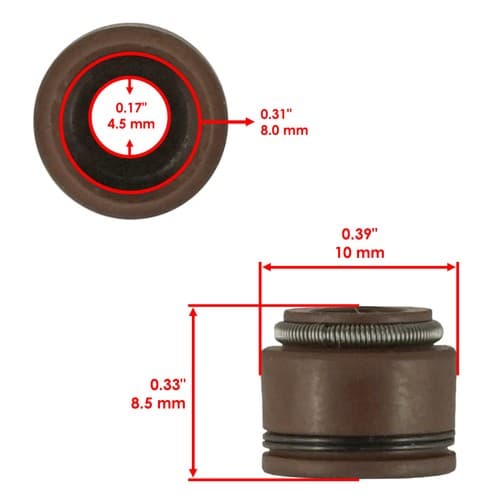

1 x Valve Stem Seal: 09289-05011
Length: 0.39" | 10.0 mm
Width: 0.33" | 8.5 mm
Inner Diameter: 0.17" | 4.5 mm
Outer Diameter: 0.31" | 8.0 mm

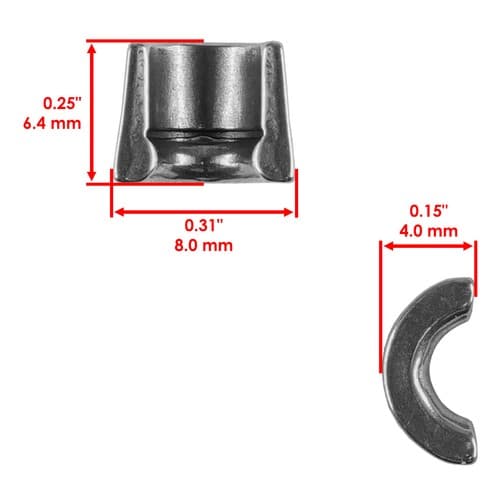

2 x Valve Cotter: 12932-24F00
Width: 0.15 " | 4.0 mm
Length: 0.31 " | 8.0 mm
Height: 0.25 " | 6.4 mm

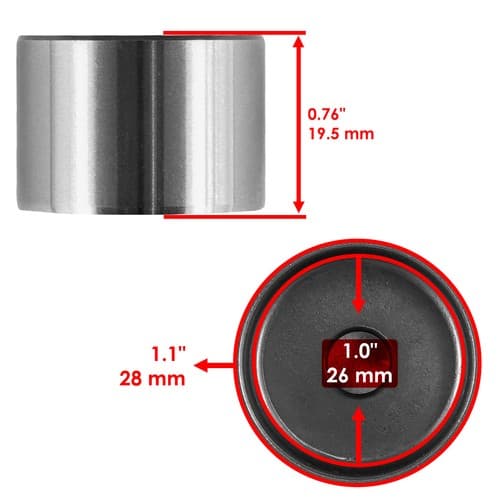

1 x Valve Tappet: 12891-02F00 12891-02F10
Height: 0.76" | 19.5 mm
Inner Diameter: 1.0" | 26.0 mm
Outer Diameter: 1.1" | 28.0 mm

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
**SHIPS FROM USA**
