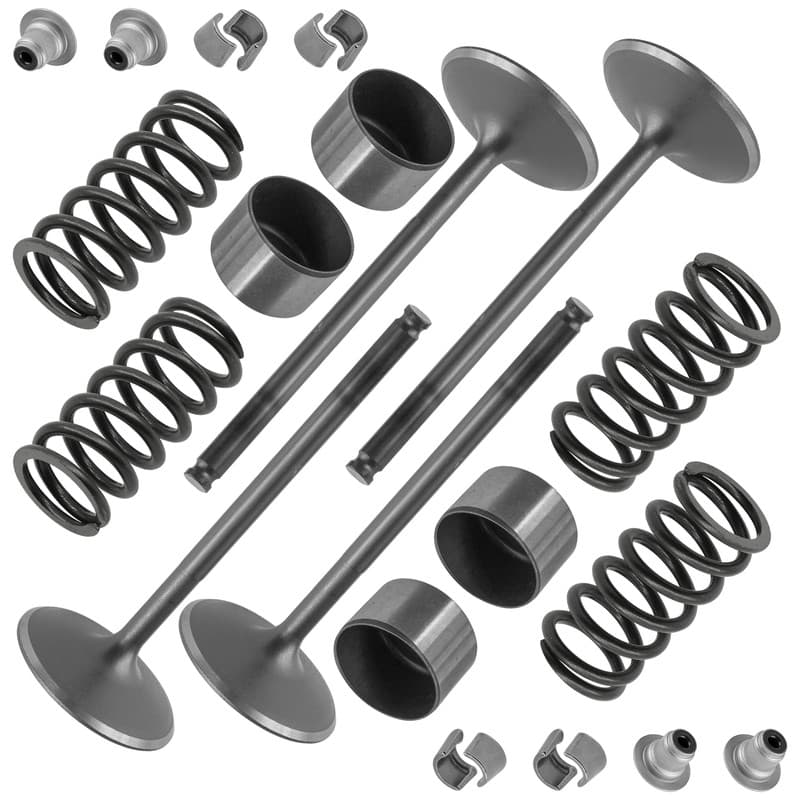

Intake Valve Kit For Polaris RZR XP 4 1000 14-23 RZR S 1000 16-21 S4 1000 19-21

 Premium QualityReplacement Part

Engine Intake Valve Kit

For Polaris Models:

RZR XP 900 Jagged X Edition HO 2013
RZR 900 2014
RZR 4 900 LE EPS 2014
RZR XP 1000 2014-2023
RZR XP 4 1000 2014-2023
RZR S 1000 2016-2021
RZR S4 1000 2019-2021
RZR RS1 2018-2022
RZR Trail S 1000 2022-2024
General 1000 2016-2023
General 4 1000 2019-2022
General XP 1000 2020-2023
General XP 4 1000 2020-2023

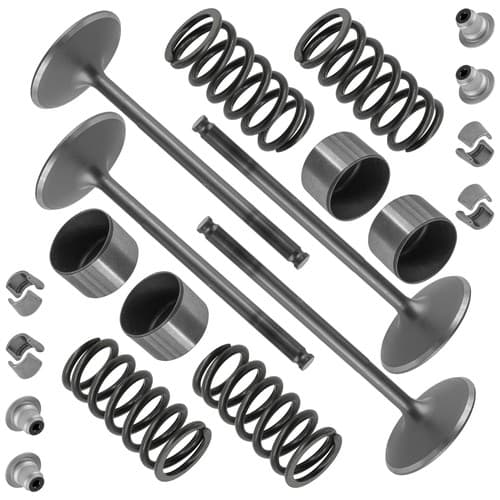

Order Includes:
4 x Intake Valve : 3022134

Length: 96 mm | 3.77"
Diameter: 38 mm | 1.49"

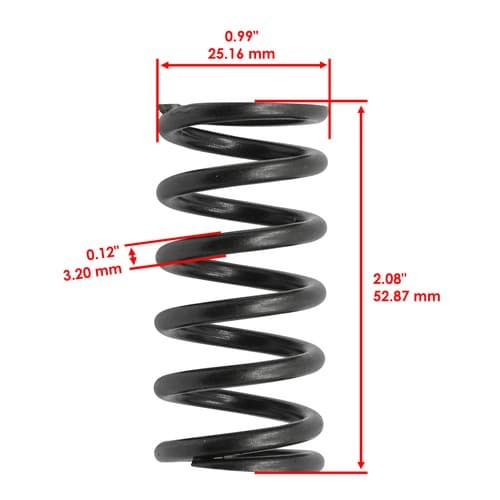

4 x Valve Spring : 7044024 7045876 7044322

Width: 25.16 mm | 0.99"
Height: 52.87 mm | 2.08"
Thickness: 3.2 mm | 0.12"

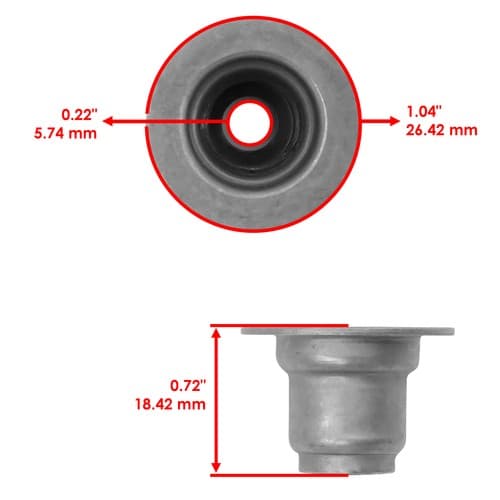

4 x Valve Stem Seal : 3610212 3610199

Length: 18.42 mm | 0.72"
Inner Diameter: 5.74 mm | 0.22"
Outer Diameter: 26.42 mm | 1.04"

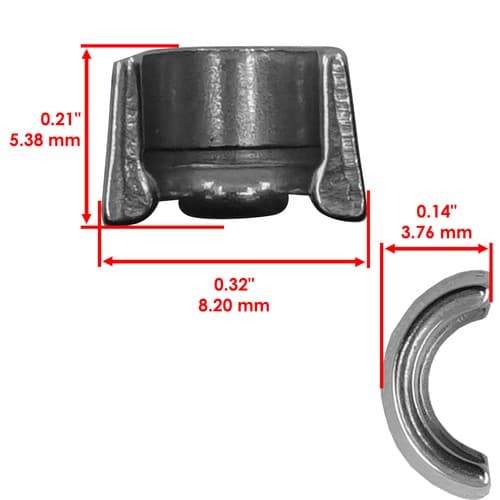

8 x Valve Cotter : 7081470

Width: 3.76 mm | 0.14"
Length: 8.2 mm | 0.32"
Height: 5.38 mm | 0.21"

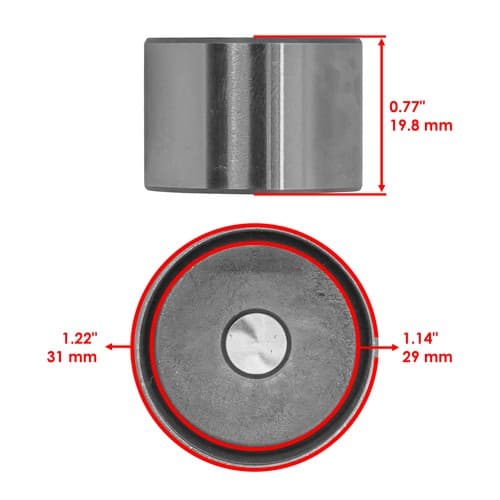

4 x Valve Tappet : 3022443 5138477

Width: 19.8 mm | 0.77"
Inner Diameter: 29 mm | 1.14"
Outer Diameter: 31 mm | 1.22"
