Specifications
- UPC
- Does Not Apply
- Type
- Front & Rear CV Axles
- Brand
- Caltric
- Gtin13
- Does Not Apply
- Features
- Easy Installation
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Length
- 704 mm
- Item Weight
- 48 Lb
- Vintage Part
- No
- Items Included
- Axles
- Mounting Style
- Bolt-On
- Performance Part
Description
Premium Quality Replacement Part

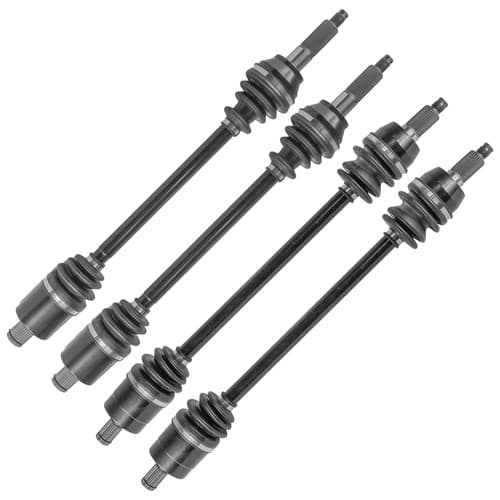

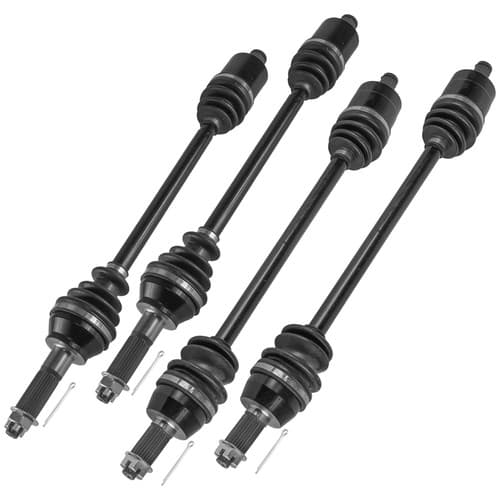

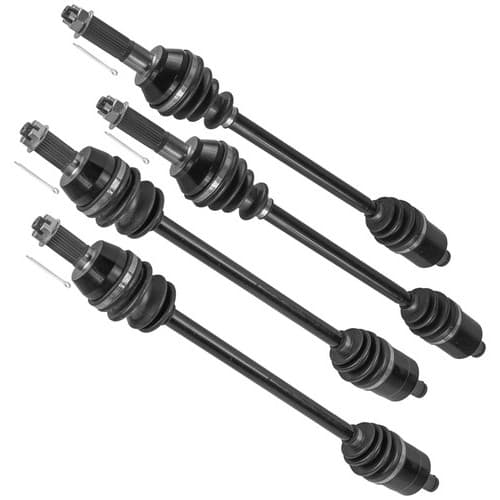

Front and Rear Left and Right CV Joint Axle
Compatible with Polaris Models:
Ranger 500 4x4 Efi 2010
Ranger 800 4x4 2014
Ranger 800 4x4 Efi 2010-2013
Ranger 800 4x4 Efi All Options 2010-2011
Ranger 800 4x4 Eps 2014
Ranger Crew 800 4x4 2012-2014
Ranger Crew 800 4x4 Efi 2010-2011
Ranger Crew 800 4x4 Eps 2012-2013
Order Includes:

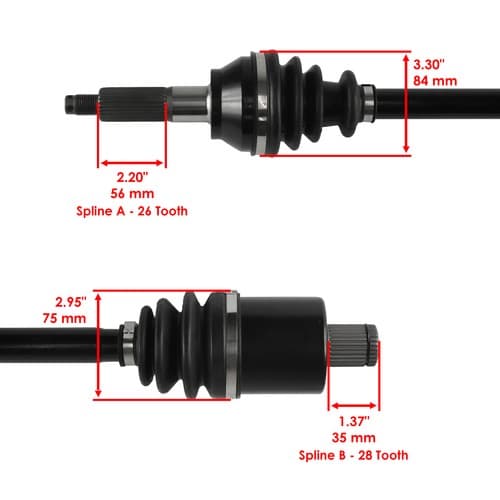

2x Rear Left and Right Complete CV Joint Axle: 1332814, 1332878, 1333008, 1333233, 1590476
Length: 704 mm - 27.7 in
Spline A Dimensions: 56 mm - 2.2 in, 26 Tooth
Spline A Boot Width: 84 mm - 3.3 in
Spline B Dimensions: 35 mm - 1.37 in, 28 Tooth
Spline B Boot Width: 75 mm - 2.95 in

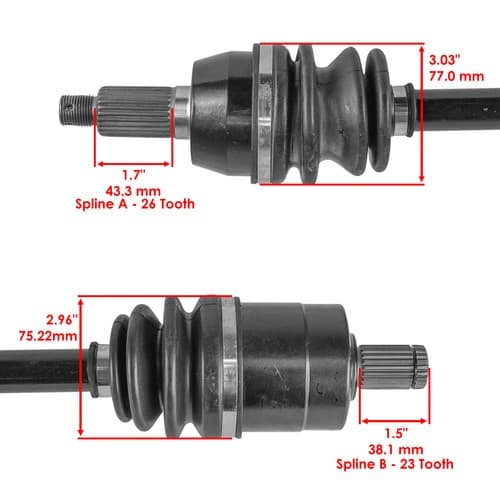

2x Front Left and Right Complete CV Joint Axle: 1332856, 1332606
Length: 723.9 mm - 28.5 in
Spline A Dimensions: 43.3 mm - 1.7 in - 26 Tooth
Boot Width: 77 mm - 3 in
Spline B Dimensions: 38.1 mm - 1.5 in - 23 Tooth
Boot Width: 75.2 mm - 2.95 i
