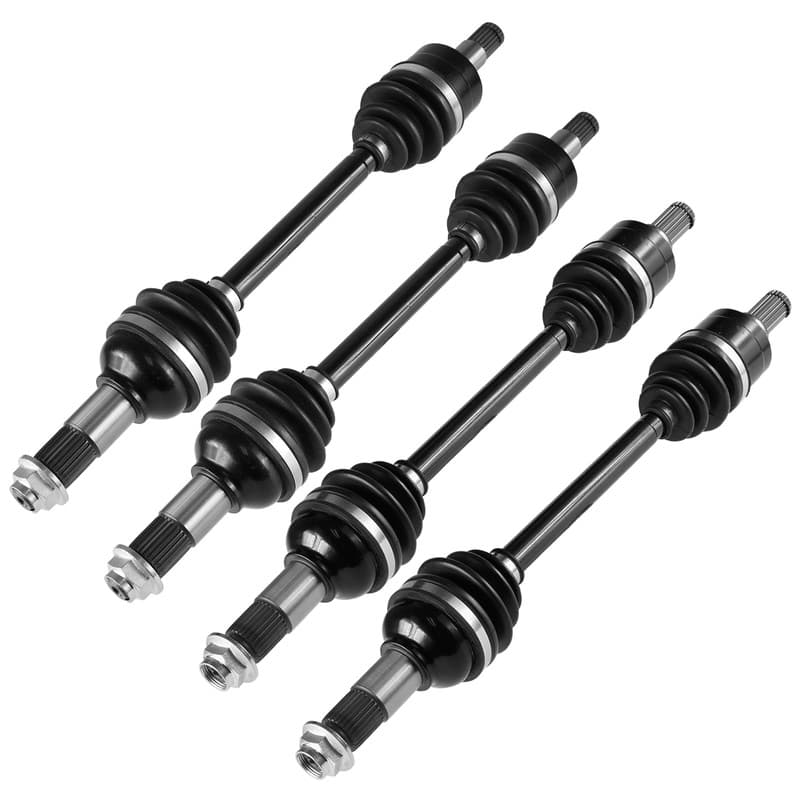

Front & Rear Complete CV Axle For Yamaha Kodiak 700 YFM700 16-20 Left & Right
No reviews yet
$387.96
NEWIn Stock
SKU: APH-293578065986
MPN: AX127A1017
Delivery: 3-7 business days
Check Vehicle Fitment
View all compatible vehicles (15)
- Yamaha Kodiak 700 YFM700K 4x4 FI — 2017-2020
- Yamaha Kodiak 700 YFM700KP 4x4 FI EPS — 2017-2020
- Yamaha Kodiak 700 YFM700KPSE 4x4 Special Edition FI EPS — 2017-2020
- Yamaha Kodiak 700K YFM700K 4x4 FI — 2016
- Yamaha Kodiak 700K YFM700KP 4x4 FI EPS — 2016
- Yamaha Kodiak 700K YFM700KPSE 4x4 Special Edition FI EPS — 2016
Specifications
- UPC
- Does not apply
- Type
- Front & Rear Complete CV Joint Axle
- Brand
- Caltric
- Gtin13
- Does not apply
- Features
- Easy Installation
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Length
- 20 in
- Item Weight
- 32 Lb
- Vintage Part
- No
- Items Included
- Axles
- Mounting Style
- Bolt-On
- Performance Part
Description
Premium Quality Replacement Part

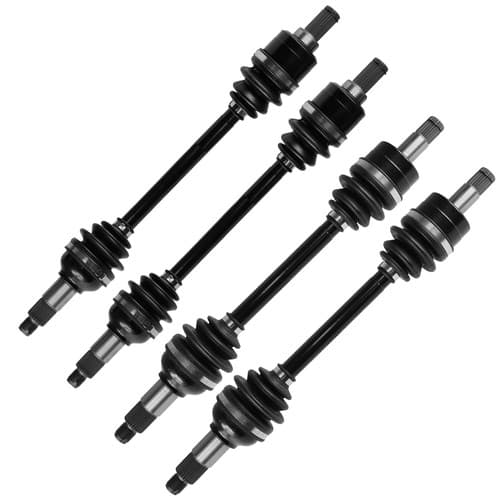

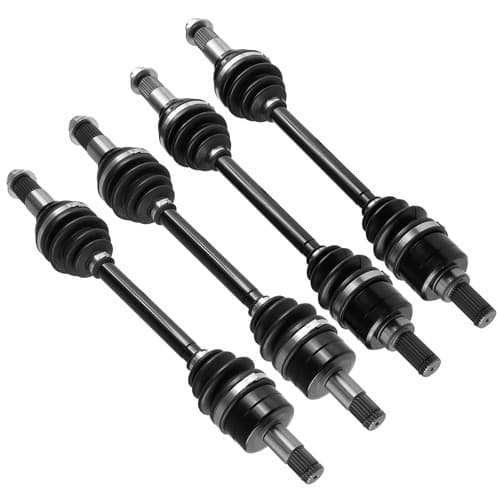

Front and Rear Left and Right Complete CV Joint Axle
Compatible with Yamaha Models:
Grizzly 550 Yfm550de 4wd Fi 2014
Grizzly 550 Yfm550dh 4wd Hunter Edition Fi 2014
Grizzly 550 Yfm550fg 4wd 2011-2013
Grizzly 550 Yfm550fg 4wd Eps 2011-2013
Grizzly 550 Yfm550fg 4wd Eps Fi 2009-2010
Grizzly 550 Yfm550fg 4wd Fi 2009-2010
Grizzly 550 Yfm550fg 4wd Hunter Edition 2011-2013
Grizzly 550 Yfm550fg 4wd Hunter Edition Eps 2011-2014
Grizzly 550 Yfm550fg 4wd Hunter Edition Fi 2009-2010
Grizzly 550 Yfm550fg 4wd Hunter Edition Fi Eps 2009-2010
Grizzly 550 Yfm550fg 4wd Special Edition Fi Eps 2009
Grizzly 550 Yfm550pe 4wd Eps Fi 2014
Grizzly 700 Yfm700fg 4wd Fi 2009-2013
Grizzly 700 Yfm700fg 4wd Fi Eps 2008-2013
Grizzly 700 Yfm700fg 4wd Hunter Edition Fi 2007-2013
Grizzly 700 Yfm700fg 4wd Hunter Edition Fi Eps 2008-2013
Grizzly 700 Yfm700fg 4wd Outdoorsman Edition Fi 2007
Grizzly 700 Yfm700fg 4wd Special Edition 2007-2008
Grizzly 700 Yfm700fg 4wd Special Edition Fi Eps 2009-2013
Kodiak 700 4wd Hunte 2016-2020
Kodiak 700 Eps 4wd H 2019
Kodiak 700 Eps 4wd S 2016-2020
Kodiak 700 Yfm700k 4wd 2016-2020
Order Includes:
2x Front Left or Right Axle: 28P-2518E-00-00, 28P-2510J-02-00,
28P-2510J-00-00, 28P-2510J-01-00, 28P-2510F-05-00,
28P-2510F-00-00, 28P-2510F-01-00, 28P-2510F-04-00

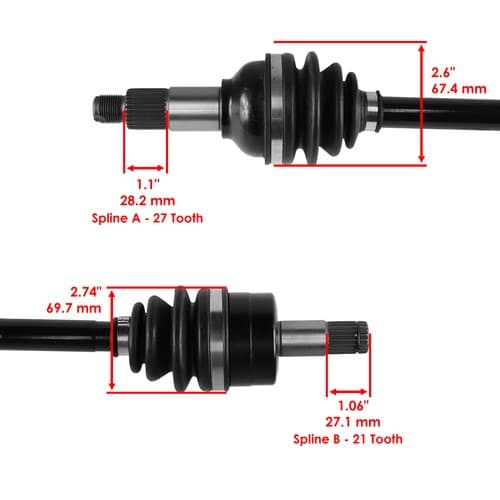

Length: 508 mm - 20 in
Spline A Length: 28.2 mm - 1.1 in - 27 Tooth,
Boot Width: 67.4 mm - 2.6 in
Spline B Length: 27.1 mm - 1.06 in - 21 Tooth,
Boot Width: 69.7 mm - 2.74 in
2x Rear Left or Right Axle: 28P-2518E-10-00, 28P-2530V-10-00,
28P-2530V-00-00, 28P-2530V-01-00, 28P-2510F-05-00, 28P-2510F-00-00,
28P-2510F-01-00, 28P-2510F-04-00, 28P-2510F-10-00, 28P-2510F-02-00,
28P-2510F-03-00

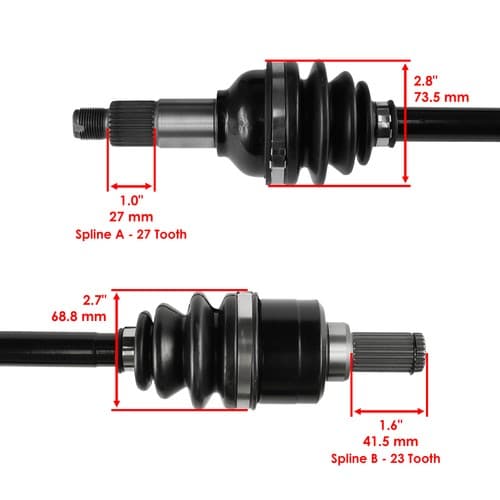

Length: 549 mm - 21.6 in
Spline A Length: 27 mm - 1 in - 27 Tooth,
Boot Width: 73.5 mm - 2.8 in
Spline B Length: 41.5 mm - 1.6 in - 23 Tooth,
Boot Width: 68.8 mm - 2.7 in
