Front & Rear Brake Shoes for Yamaha Badger 80 YFM80 1997 1998 1999 2000 2001

 Premium Quality Replacement Part

Rear Brake Shoes

Compatible With Yamaha Models:

Badger 80 Yfm80 1992-2001
Grizzly 125 Yfm125 2004
Grizzly 125 Yfm125g 2005-2013
Grizzly 125 Yfm125gh Hunter 2005-2008
Grizzly 80 Yfm80g 2005-2008
Grizzly 80 Yfm80gh 2006-2008
Raptor 50 Yfm50r 2004-2008
Raptor 80 Yfm80r 2005-2008
Raptor 80 Yfm80w 2002-2004
Yfa1 Breeze 1992-2004

Order Includes:

2x Front Brake Shoes:

19D-W253E-00-00, 1CC-W2534-00-00,

 3FA-W2536-00-00,3FA-W253A-00-00,

3FA-W253E-00-00, 3KG-W2534-00-00,

3KG-W2536-00-00, 3KG-W2536-10-00,

3KG-W253E-00-00, 3KG-W253E-20-00,

3KX-W2534-00-00, 3KX-W2536-00-00,

3LS-W2534-00-00, 3LS-W2536-00-00,

3LS-W2536-10-00,3LS-W253E-00-00,

3LS-W253G-00-00, 3UH-X2533-00-00,

4AV-W2534-00-00, 4AV-W2536-00-00,

4GL-W2534-00-00, 4GL-W2534-02-00,

4GL-W2536-00-00, 4KN-W2535-00-00,

4KN-W253A-00-00, 4KN-W253F-00-00,

4WX-X2533-00-00, 5CP-X2533-00-00,

5HH-F5330-00-00

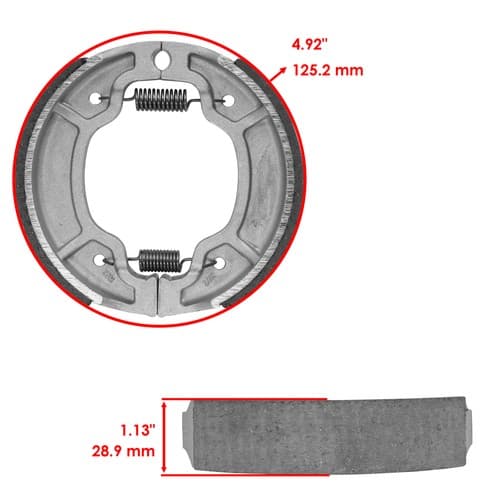

Outer Diameter: 125.2 mm - 4.92 in
Height: 3.1 mm - 0.12 in
Width: 28.9 mm - 1.13 in

4x Rear Brake Shoes:
14A-25130-00, 18A-25330-00, 18A-W2534-00,
1KH-25330-00, 1KH-W2536-00, 22F-25330-00,
22F-W2534-00, 296-W2536-00, 2JL-W2536-00,
2JL-W2536-10, 2JL-W253E-20, 2JN-W2536-00,
36R-25330-00, 36R-W2536-00, 3AC-W2534-00,
3AC-W2536-00, 4BE-W2536-00, 4BE-W253E-00,
4BX-25330-10, 4BX-W2536-00, 4BX-W2536-10
4BX-W253E-00, 4BX-W253G-00, 4KN-W2534-11,
4KN-W2536-00, 4KN-W2536-11, 4KN-W253E-11,
4KN-W253G-00, 5G3-25130-02, 5G3-25330-00,
5G3-25330-01, 5G3-W2534-00, 5G3-W2535-00,
5H0-25330-00, 5H0-W2536-00, 4BE-W253E-00-00,
4KN-W253E-11-00, 4KN-W2536-00-00, 5GF-W0045-00-00,
5RM-F5805-20-00, 4KN-W253E-11-00

Length: 208 mm | 8.1"
Outer Diameter: 102 mm | 4.0"
