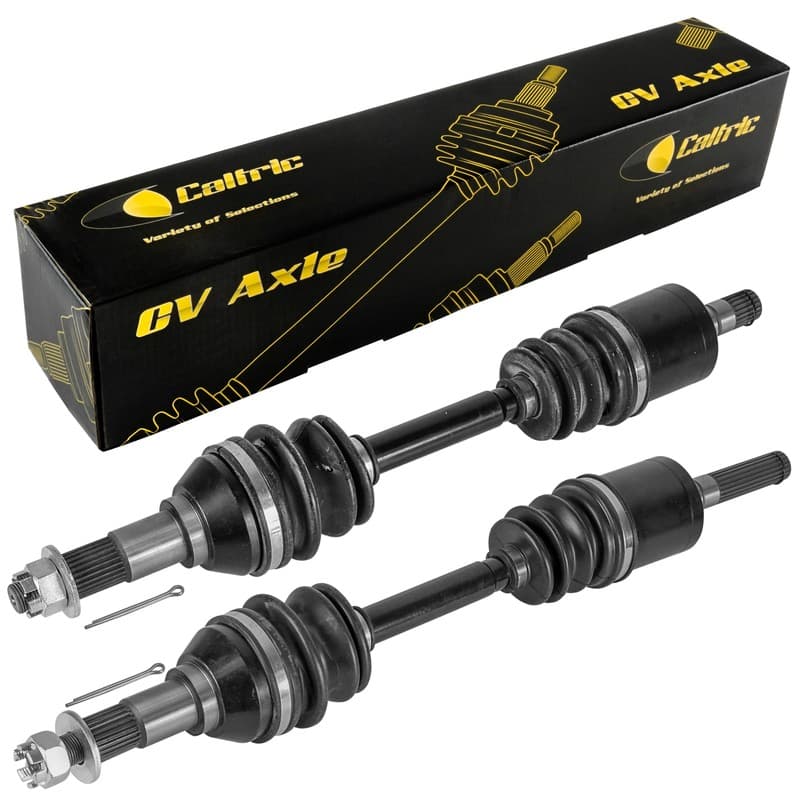

Front Left And Right Complete Axles for Canam Outlander L 570 4X4 Xmr EFI 2016

 Premium Quality Replacement Part

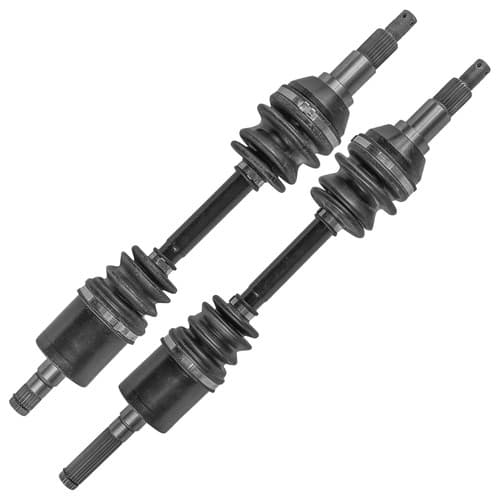

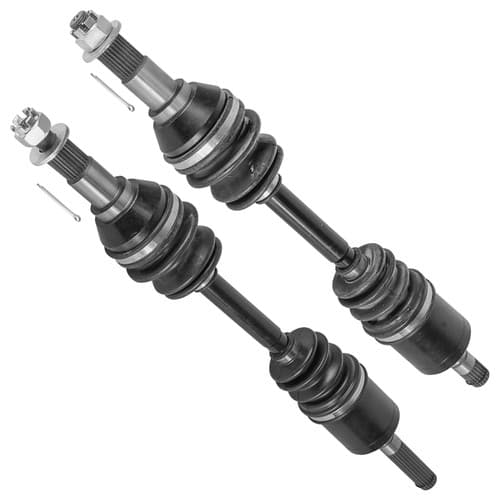

Front Right and Left Complete CV Joint Axles

Compatible with Can-Am Models:

Outlander 1000 4X4 DPS EFI 2013-2015

Outlander 1000 4X4 PRO EFI 2017

Outlander 1000 4X4 XT EFI 2013-2015

Outlander 1000 4X4 XTP EFI 2013-2015

Outlander 1000 6X6 XT EFI 2015-2017

Outlander 1000 6X6 XT EFI 2016 INTL

Outlander 1000 6X6 XT EFI Farmer 2016-2017

Outlander 1000 6X6 XT EFI Flat Bed 2016 INTL

Outlander 1000 6X6 XT EFI Flat Bed 2016-2017

Outlander 1000 6X6 XT EFI Forestry 2016-2017

Outlander 1000 6X6 XT EFI Side Wall 2016 N/America

Outlander 1000 6X6 XT EFI Side Wall 2016-2017

Outlander 1000 6X6 XT EFI Winter 2016-2017

Outlander 1000R 4X4 DPS EFI 2016 N/America

Outlander 1000R 4X4 DPS EFI 2017

Outlander 1000R 4X4 MOS EFI 2017

Outlander 1000R 4X4 XT EFI 2016 INTL

Outlander 1000R 4X4 XT EFI 2016 N/America

Outlander 1000R 4X4 XT EFI 2017

Outlander 1000R 4X4 XTP EFI 2016 Europe

Outlander 1000R 4X4 XTP EFI 2016 INTL

Outlander 1000R 4X4 XTP EFI 2016 N/America

Outlander 1000R 4X4 XTP EFI 2017

Outlander 500 4X4 DPS EFI 2013-2014

Outlander 500 4X4 EFI 2013-2014

Outlander 500 4X4 XT EFI 2013-2014

Outlander 570 4X4 PRO EFI 2017

Outlander 570 4X4 XMR Rotax 2017

Outlander 650 4X4 2015

Outlander 650 4X4 DPS 2015

Outlander 650 4X4 DPS EFI 2014

Outlander 650 4X4 DPS EFI 2016 Europe

Outlander 650 4X4 DPS EFI 2016 N/America

Outlander 650 4X4 DPS EFI 2017

Outlander 650 4X4 EFI 2013-2014

Outlander 650 4X4 EFI 2016 N/America

Outlander 650 4X4 EFI 2017

Outlander 650 4X4 PRO EFI 2016 INTL

Outlander 650 4X4 PRO EFI 2017

Outlander 650 4X4 PRO EFI T3 2017

Outlander 650 4X4 XT 2015

Outlander 650 4X4 XT EFI 2013-2014

Outlander 650 4X4 XT EFI 2016 Europe

Outlander 650 4X4 XT EFI 2016 INTL

Outlander 650 4X4 XT EFI 2016 N/c

Outlander 650 4X4 XT EFI 2017

Outlander 650 4X4 XTP 2015

Outlander 650 4X4 XTP EFI 2016 Europe

Outlander 650 6X6 DPS EFI 2013

Outlander 650 6X6 DPS EFI Flat Bed 2015

Outlander 650 6X6 DPS EFI Flat Bed 2016 INTL

Outlander 650 6X6 DPS EFI Flat Bed 2017

Outlander 650 6X6 DPS EFI Flat Bed T3 2015-2017

Outlander 650 6X6 DPS EFI Side Wall T3 2016

Outlander 650 6X6 XT EFI Flat Bed 2015-2016

Outlander 650 6X6 XT EFI Side Wall 2015-2016

Outlander 800R 4X4 2015

Outlander 800R 4X4 DPS 2015

Outlander 800R 4X4 DPS EFI 2013-2014

Outlander 800R 4X4 EFI 2013-2014

Outlander 800R 4X4 XT 2015

Outlander 800R 4X4 XT EFI 2013-2014

Outlander 800R 4X4 XTP 2015

Outlander 800R 4X4 XTP EFI 2013-2014

Outlander 850 4X4 DPS EFI 2016 N/America

Outlander 850 4X4 DPS EFI 2017

Outlander 850 4X4 MOS EFI 2017

Outlander 850 4X4 XT EFI 2016 N/America

Outlander 850 4X4 XT EFI 2017

Outlander 850 4X4 XTP EFI 2016 Europe

Outlander 850 4X4 XTP EFI 2016 INTL

Outlander 850 4X4 XTP EFI 2016 N/America

Outlander 850 4X4 XTP EFI 2017

Outlander Max 1000 4X4 DPS EFI 2013-2015

Outlander Max 1000 4X4 DPS EFI 2017

Outlander Max 1000 4X4 LTD EFI 2013-2015

Outlander Max 1000 4X4 PRO EFI 2016 INTL

Outlander Max 1000 4X4 PRO EFI 2016-2017

Outlander Max 1000 4X4 XT EFI 2013-2015

Outlander Max 1000 4X4 XTP EFI 2013-2016

Outlander Max 1000R DPS EFI 2017

Outlander Max 1000R LTD EFI 2016 Europe / INTL / N/America

Outlander Max 1000R LTD EFI 2017

Outlander Max 1000R XT EFI 2016 INTL / N/America

Outlander Max 1000R XT EFI 2017

Outlander Max 1000R XTP EFI 2016 Europe

Outlander Max 1000R XTP EFI 2016 INTL

Outlander Max 1000R XTP EFI 2016 N/America

Outlander Max 1000R XTP EFI 2017

Outlander Max 500 4X4 DPS EFI 2013-2014

Outlander Max 500 4X4 EFI 2013-2014

Outlander Max 500 4X4 XT EFI 2013-2014

Outlander Max 570 4X4 PRO EFI 2017

Outlander Max 650 4X4 2015

Outlander Max 650 4X4 DPS 2015

Outlander Max 650 4X4 DPS EFI 2013-2014

Outlander Max 650 4X4 DPS EFI 2016 Europe

Outlander Max 650 4X4 DPS EFI 2016 INTL

Outlander Max 650 4X4 DPS EFI 2016 N/America

Outlander Max 650 4X4 DPS EFI 2017

Outlander Max 650 4X4 EFI 2013

Outlander Max 650 4X4 PRO EFI 2016-2017

Outlander Max 650 4X4 XT 2015

Outlander Max 650 4X4 XT EFI 2013-2014

Outlander Max 650 4X4 XT EFI 2016 Europe /INTL / N/America

Outlander Max 650 4X4 XT EFI 2017

Outlander Max 650 4X4 XT EFI LAW Enforcement 2017

Outlander Max 650 4X4 XTP 2015

Outlander Max 650 4X4 XTP EFI 2016 Europe

Outlander Max 650 4X4 XTP EFI 2016 INTL

Outlander Max 650 4X4 XTP EFI 2017

Outlander Max 650 6X6 XT EFI Side Wall 2016-2017

Outlander Max 800R 4X4 DPS 2015

Outlander Max 800R 4X4 DPS EFI 2013-2014

Outlander Max 800R 4X4 XT 2015

Outlander Max 800R 4X4 XT EFI 2013-2014

Outlander Max 800R 4X4 XTP 2015

Outlander Max 800R 4X4 XTP EFI 2013-2014

Outlander Max 850 4X4 XT EFI 2016 Europe

Outlander Max 850 4X4 XT EFI 2016 INTL

Outlander Max 850 4X4 XT EFI 2016 N/America

Outlander Max 850 4X4 XT EFI 2017

Outlander Max 850 4X4 XTP EFI 2016 Europe

Outlander Max 850 4X4 XTP EFI 2016 INTL

Outlander Max 850 4X4 XTP EFI 2016 N/America

Outlander Max 850 4X4 XTP EFI 2017

Renegade 1000 4X4 EFI 2013-2015

Renegade 1000 4X4 XXC EFI 2013-2015

Renegade 1000R 4X4 EFI 2016 N/America

Renegade 1000R 4X4 EFI 2017

Renegade 1000R 4X4 XXC EFI 2017

Renegade 500 4X4 EFI 2013-2014

Renegade 570 4X4 EFI 2016 Europe

Renegade 570 4X4 EFI 2016 INTL

Renegade 570 4X4 EFI 2016 N/America

Renegade 570 4X4 XMR EFI 2017

Renegade 800R 4X4 2015

Renegade 800R 4X4 EFI 2013-2014

Renegade 800R 4X4 XXC 2015

Renegade 800R 4X4 XXC EFI 2013-2014

Renegade 850 4X4 EFI 2016 N/America

Renegade 850 4X4 EFI 2017

Renegade 850 4X4 XXC EFI 2017

Order Includes:

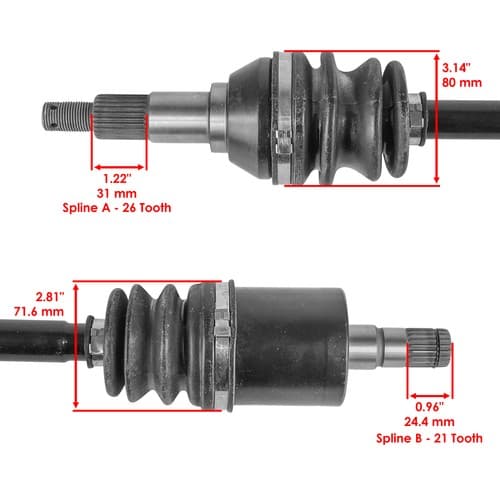

1x Front Left Axle: 705401115, 705401943, 703500823, 705400756

Length: 533.4 mm - 21 in

Spline A Length: 31 mm - 1.22 in, 26 Tooth

Spline A Boot Width: 80 mm - 3.14 in

Spline B Length: 24.4 mm - 0.96 in, 21 Tooth

Spline B Boot Width: 71.6 mm - 2.81 in

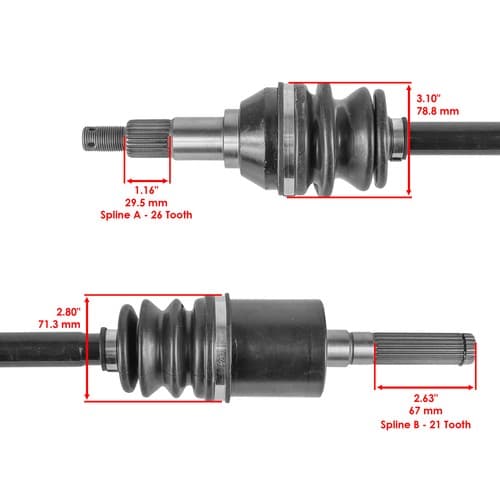

1x Front Right Axle: 705401116, 705401944, 703500824, 705400757

Length: 597 mm - 23.5 in

Spline A Length: 29.5 mm - 1.16 in, 26 Tooth

Spline A Boot Width: 78.8 mm - 3.10 in

Spline B Length: 67 mm - 2.63 in, 21 Tooth

Spline B Boot Width: 71.3 mm - 2.80 in
