Name: Front Control Arm Bushing Kit For Polaris RZR XP 4 1000 17-23 / XP 4 Turbo 17-21
Brand: Caltric
SKU: APH-296629500784
Price: 36.86 USD
Availability: InStock

Front Control Arm Bushing Kit For Polaris RZR XP 4 1000 17-23 / XP 4 Turbo 17-21

No reviews yet

$36.86

NEWIn Stock

SKU: APH-296629500784

MPN: ZP105*2+ZA136*4+ZE146*2+ZG104*4+BL172*2+NU113*2 - VS

Delivery: 3-7 business days

Check Vehicle Fitment

View all compatible vehicles (20)

Polaris General 1000 Deluxe EPS — 2021-2022
Polaris General 1000 Deluxe Ride Command Edition — 2021-2022
Polaris General 1000 EPS — 2021
Polaris General 1000 Premium EPS — 2021-2022
Polaris General 1000 Sport — 2021-2023
Polaris General 4 1000 Deluxe EPS — 2021
Polaris General 4 1000 Deluxe Ride Command Edition — 2021-2022
Polaris General 4 1000 EPS — 2017-2021
Polaris General 4 1000 Premium EPS — 2021-2022

Specifications

Type

Bushing

Brand

Caltric

Material

Steel

Condition

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab

Vintage Part

Performance Part

Country of Origin

China

OE/OEM Part Number

1021417-458, 1021417-133, 1021417458, 1021417133, 1021416-458, 1021416-133, 1021416458, 1021416133, 5139966, 5452233, 7556153, 1543611, 5139968, 7519043, 7518560, 7547333

Placement on Vehicle

Front, Left, Lower, Right

Manufacturer Warranty

3 Months

Superseded Part Number

Description

Premium Quality Replacement Part

Front Lower Right or Left Control Arm Bushing Kit

Compatible with Polaris Models:
General 1000 2016-2023
General 4 1000 2017-2023
RZR XP 1000 2017-2023
RZR XP 4 1000 2017-2023
RZR XP Turbo 2017-2021
RZR XP 4 Turbo 2017-2018 2021
RZR Turbo 4 2019-2020
RZR S 1000 60inch 2017-2021
RZR S4 1000 2019-2021
RZR Trail S 1000 2022-2024
RZR 900 50inch 2017-2021
RZR 4 900 2017-2018
RZR S 900 60inch 2017-2020
RZR Trail 900 2022-2024
RZR Trail S 900 2022-2024

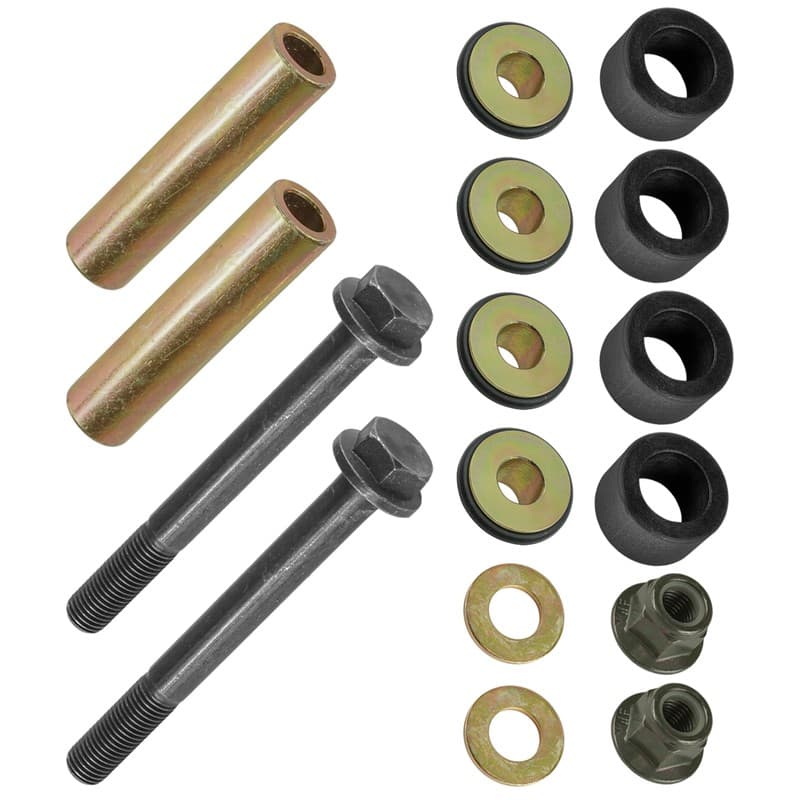

Order Includes:

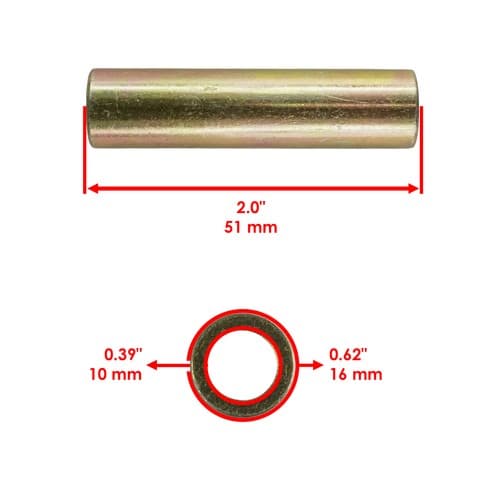

2 x Pivot Shaft: 5139966

Length: 51mm - 2 in
Inner Diameter: 10mm - 0․39 in
Outer Diameter: 16mm - 0․62 in
Material: Steel

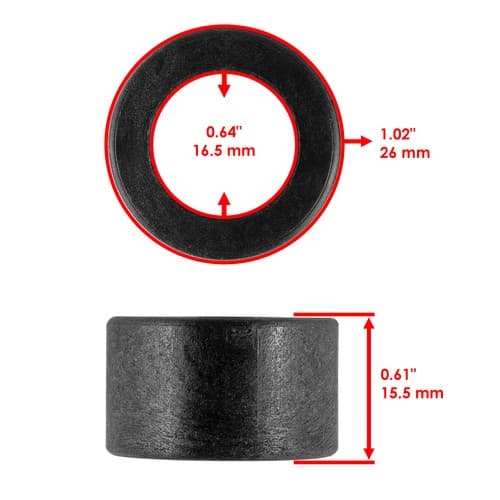

4 x Bushing: 5452233

Width: 15․5mm - 0․61 in
Inner Diameter: 16․5mm - 0․64 in
Outer Diameter: 26mm - 1․02 in
Material: Plastic

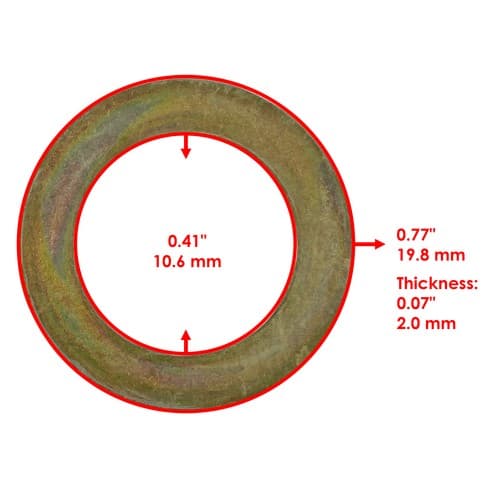

2 x Flange Washer: 7556153

Thickness: 2mm - 0․07 in
Inner Diameter: 10․6mm - 0․41 in
Outer Diameter: 19․8mm - 0․77 in
Material: Metal

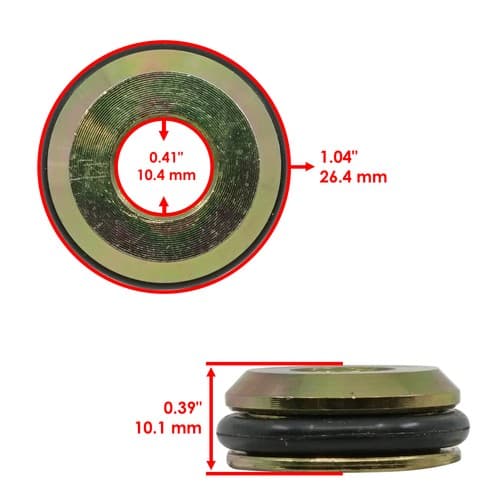

4 x Sealed Pivot Cap: 1543611, 5139968

Width : 10.1mm - 0.39 in
Inner Diameter : 10.4mm - 0.41 in
Outer Diameter : 26.4mm - 1.04 in
Material: Metal

2 x Bolt: 7519043, 7518560

Length: 104mm - 4․09 in
Head Diameter: 15mm - 0․59 in
Threads Size: M10-1․25
Material: Iron

2 x Nut: 7547333

Width: 13mm - 0․51 in
Inner Diameter: 8․5mm - 0․33 in
Outer Diameter: 21․5mm - 0․84 in
Threads Size: M10-1․25
Material: Iron

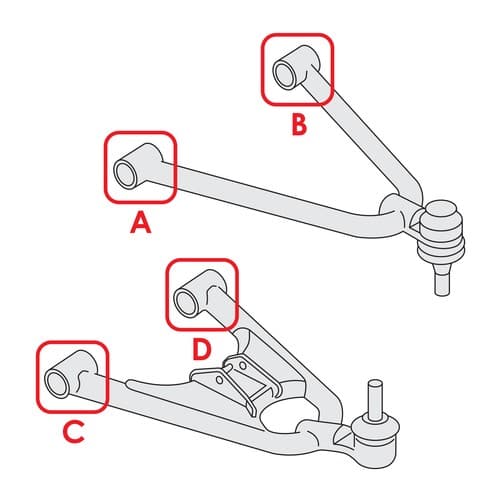

Note: Installs On Location (C) & (D) In Second Picture
Front Upper Control Arm Part Number:
Left:1021727-293, 1021727-458, 1021727-630, 1021727-689
1021727-385, 1023526-458, 1023530-293, 1023530-385, 1023530-458
1023530-630, 1021478-293, 1021478-385, 1021478-689, 1023526-293
1023526-737, 1023526-750, 1023526-751, 1025143-293, 1025143-458
1025143-727, 1025143-804, 1023061-458, 1023223-458, 1023223-133
1022425-458, 1021406-458
Right: 1021728-293, 1021728-458, 1021728-630, 1021728-689
1021728-385, 1023527-458, 1023531-293, 1023531-385, 1023531-458
1023531-630, 1021479-293, 1021479-385, 1021479-689, 1023527-293
1023527-737, 1023527-750, 1023527-751, 1025144-293, 1025144-458
1025144-727, 1025144-804, 1023062-458, 1023224-458, 1023224-133
1022426-458, 1021407-458

Front Lower Control Arm Part Number:
Left: 1021480-293, 1021480-630, 1021480-689, 1021482-458
1021482-689, 1021480-385, 1021480-458, 1021482-385
1021480-737, 1021480-750, 1021480-751, 1025139-293
1025139-458, 1025139-727, 1025139-804, 1021416-458
1021416-133, 1021404-458
Right: 1021481-293, 1021481-630, 1021481-689, 1021483-458
1021483-689, 1021481-385, 1021481-458, 1021483-385
1021481-737, 1021481-750, 1021481-751, 1025140-293
1025140-458, 1025140-727, 1025140-804, 1021417-458
1021417-133, 1021405-458
