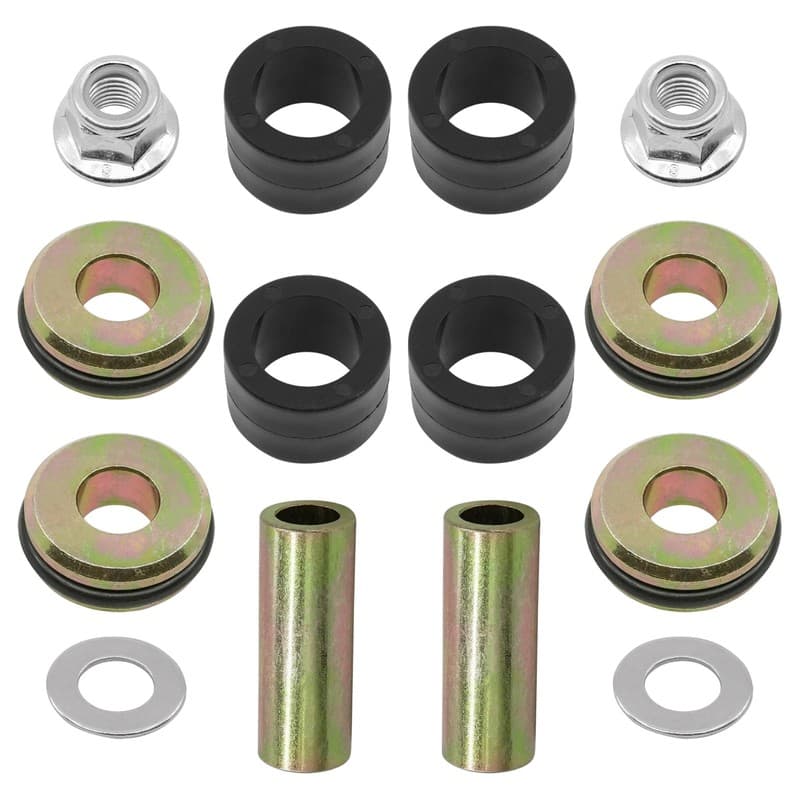

Front Control Arm Bushing Kit For Polaris Ranger XP 1000 Crew XP 1000 2021-2025

Front Upper or Lower Left or Right Control Arm Bushing Kit

Compatible with Polaris Models:

Ranger EV 2023-2024
Ranger 1000 2021-2025
Ranger Crew 1000 2021-2025
Ranger Crew XP 1000 2021-2025
Ranger XP 1000 2021-2025

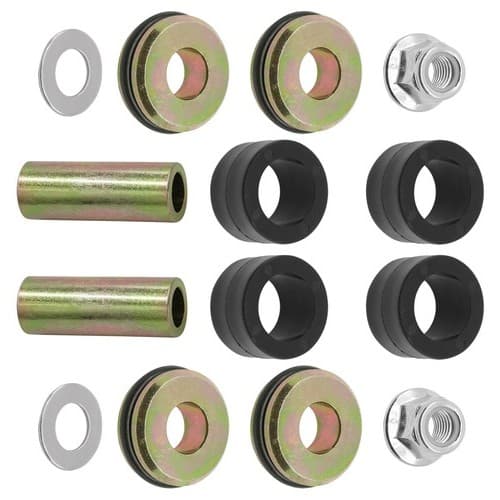

Order Includes:

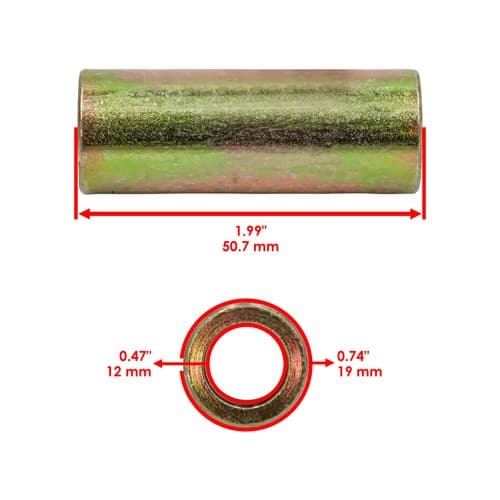

2 x Short Pivot Shaft: 5140555

Length: 50.7 mm - 1.99 in
Inner Diameter: 12 mm - 0.47 in
Outer Diameter: 19 mm - 0.74 in

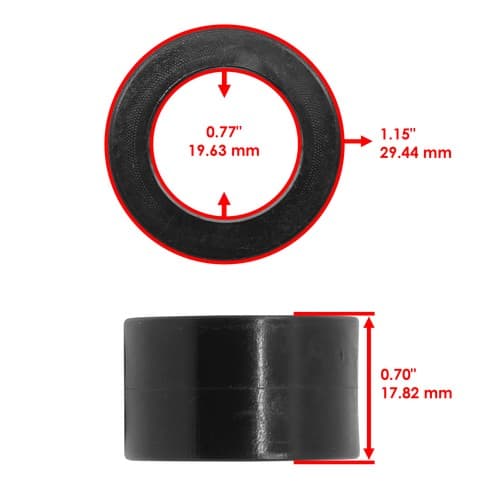

4 x Long Bushing: 5452271

Width: 17․82mm - 0․7 in
Inner Diameter: 19․63mm - 0․77 in
Outer Diameter: 29․44mm - 1․15 in
Material: Plastic

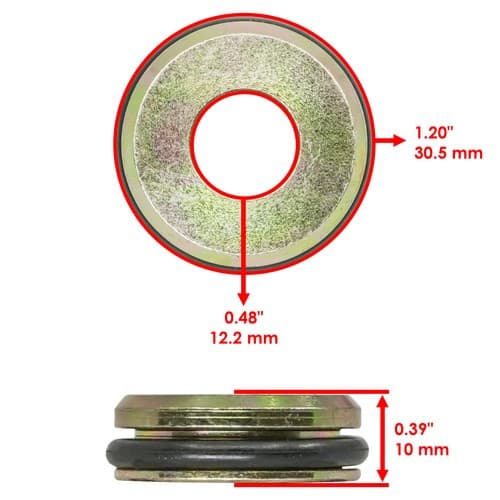

4 x Sealed Pivot Cap:  1543612, 5139992

Width : 10mm - 0.39 in
Inner Diameter : 12․2mm - 0.48 in
Outer Diameter : 30․5mm - 1.2 in
Material: Steel

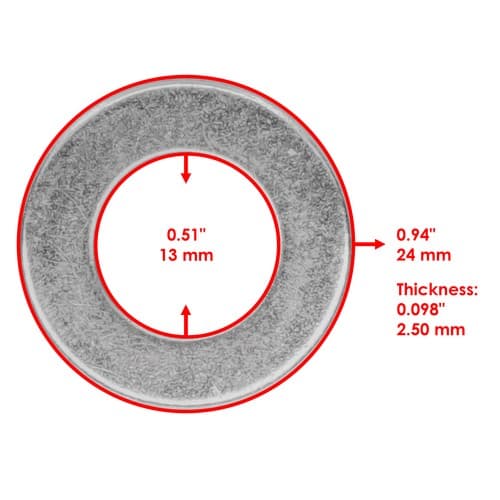

2 x Washer: 7556287, 7556995

Thickness: 2,5 mm - 0,098 in
Inner Diameter: 13 mm - 0,51 in
Outer Diameter: 24 mm - 0,94 in
Material: Iron

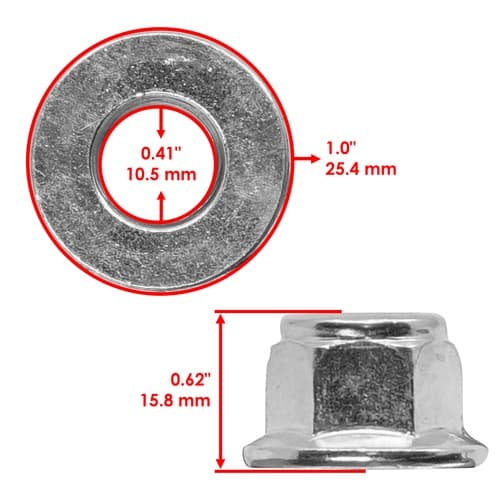

2 x Flange Nut: 7547334

Width: 15.8 mm - 0․62 in
Inner Diameter: 10.5 mm - 0․41 in
Outer Diameter: 25.4 mm - 1 in
Thread Size: M12x1.5
Material: Iron

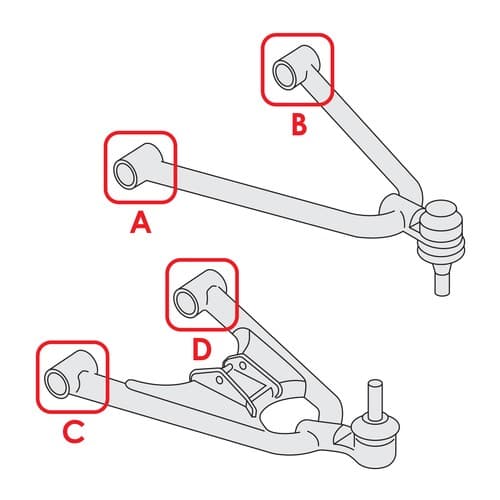

Note: Installs On Location (A) & (B) or (C) & (D) In Second Picture

Front Upper Control Arm Part Number:
Left: 1025698-458, 1025698-293
Right: 1025699-458, 1025699-293

Front Lower Control Arm Part Number:
Left: 1025854-458, 1025701-458, 1025701-293
Right: 1025855-458, 1025702-458, 1025702-293
