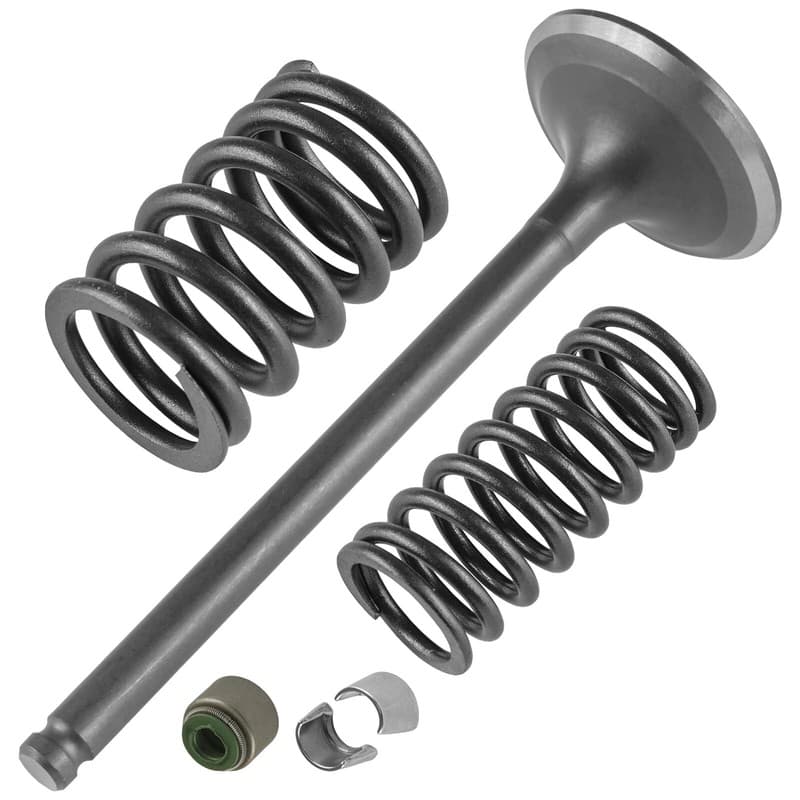

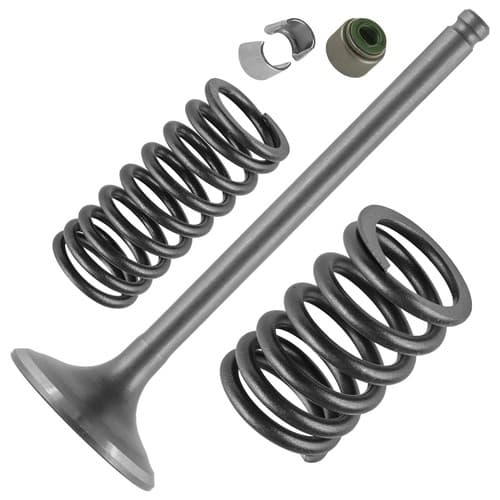

Exhaust Valve Kit For Honda Pioneer 520 SXS520 2021/ 14721-HR3-A40 14781-MBB-003


Premium Quality Replacement Part

Engine Exhaust Valve Kit

Comptible with Honda Models:
Foreman Rubicon 500 TRX500 TRX520 4x4 2015-2022
Foreman 500 TRX500 TRX520 4x4 2005-2009 2011-2023
Rancher 420 TRX420 2x4 4x4 2009-2023
Pioneer 500 SXS500 2015-2021
Pioneer 520 SXS520 2021

Order Includes:
1 x xhaust Valve: 14721-HP0-A00, 14721-HR6-MF0, 14721-HR3-A40

Length: 95 mm - 3.74 in
Diameter: 33 mm - 1.29 in
Material: Steel

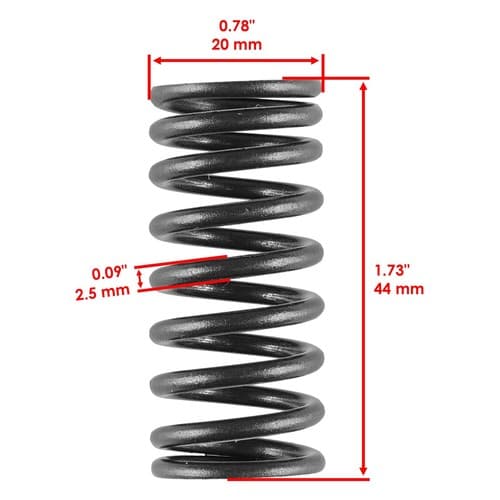

1 x Inner Valve Spring: 14761-HP0-A00

Length: 44 mm - 1.73 in
Outer Diameter: 20 mm - 0.78 in
Thickness: 2.5mm - 0.09 in
Material: Steel

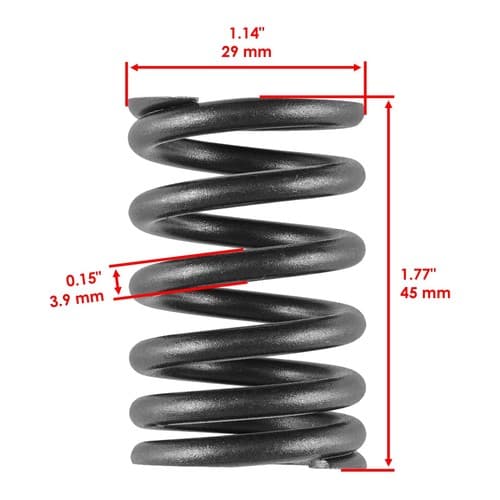

1 x Outer Valve Spring: 14751-HP0-A00

Length: 45 mm - 1.77 in
Outer Diameter: 29 mm - 1.14 in
Thickness: 3.9mm - 0.15 in
Material: Steel

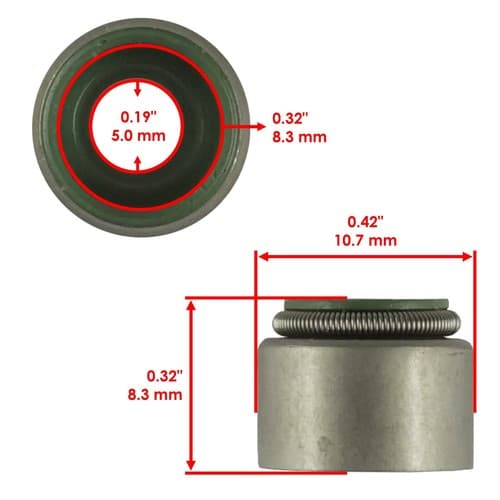

1 x Valve Stem Seal: 12208-MBB-003

Length: 10.7 mm - 0.42 in
Width: 8.3 mm - 0.32 in
Inner Diameter: 5 mm - 0.19 in
Outer Diameter: 8.3 mm - 0.32 in
Material: Plastic

2 x Valve Cotter: 14781-MBB-003

Width: 4 mm - 0.15 in
Length: 8.4 mm - 0.33 in
Height: 6 mm - 0.23 in
Material: Steel
