Exhaust & Intake Valve Kit For Suzuki RMZ250 RM-Z250 L 2007-2015 / 12912-10H00

RM-Z250 2007-2015
RM-Z250L 2010-2015

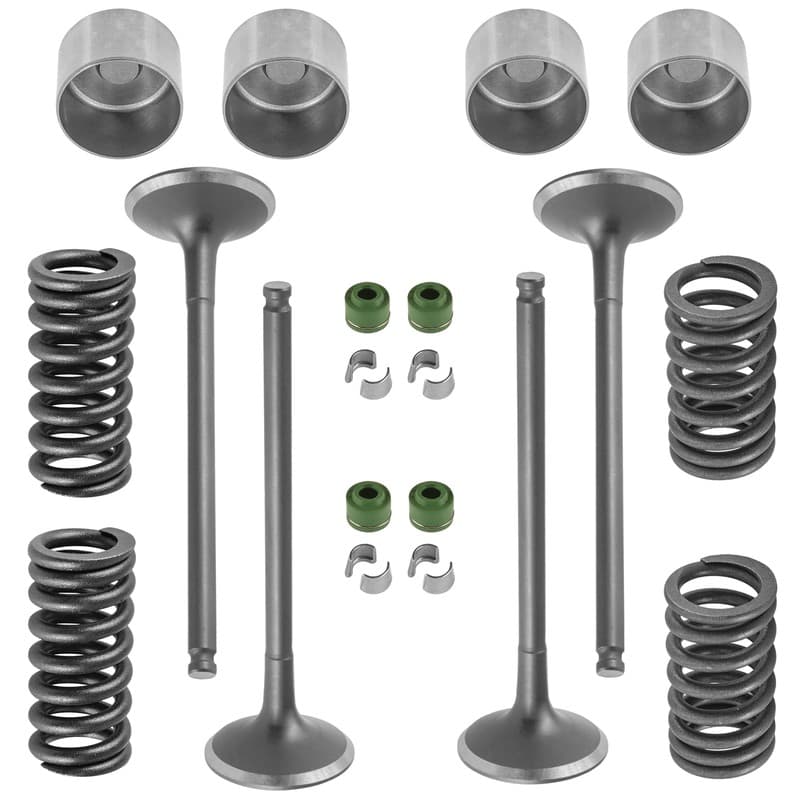

Order Includes:
2 x Exhaust Valve: 12912-10H00

Length: 81 mm - 3,18 in
Diameter: 25 mm - 0,98 in
Material: Steel

2 x Intake Valve: 12911-49H00, 12911-10H00, 1291149H00, 1291110H00

Length: 80 mm - 3.14 in
Diameter: 31 mm - 1.22 in

4 x Valve Stem Seal: 09289-04002

Width: 7.5 mm - 0.29 in
Length: 9.9 mm - 0.38 in
Inner Diameter: 5.0 mm - 0.19 in
Outer Diameter : 7.7 mm - 0.30 in
Material: Plastic

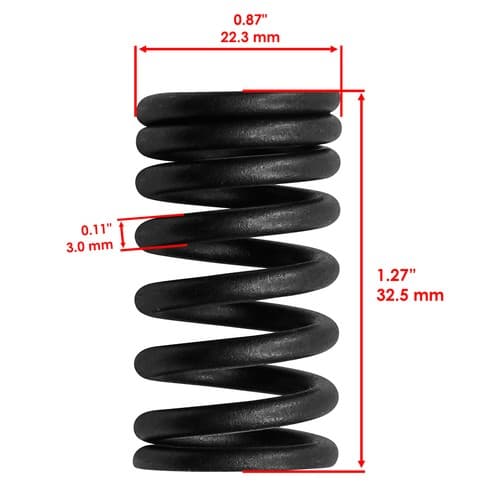

2 x Intake Valve Spring: 12921-02H01, 12921-02H00, 1292102H01, 1292102H00

Length: 32.5 mm - 1.27 in
Outer Diameter: 22.3 mm - 0.87 in
Thickness: 3 mm - 0.11 in

2 x Exhaust Valve Spring: 12921-41G00

Length: 40,68 mm - 1,6 in
Outer Diameter: 21,21 mm - 0,83 in
Thickness: 3,2 mm - 0,12 in
Material: Steel

8 x Valve Cotter: 12932-32C00

Length: 6,28 mm - 0,24 in
Width: 2,7 mm - 0,1 in
Height: 5,32 mm - 0,2 in
Material: Steel

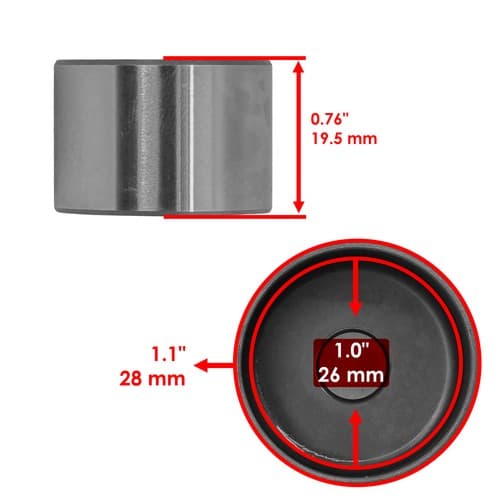

2 x Intake Valve Tappet: 12891-17E00, 12891-47H00, 1289117E00, 1289147H00

Width: 19.5 mm - 0.76 in
Inner Diameter: 26 mm - 1 in
Outer Diameter: 28 mm - 1.1 in

2 x Exhaust Valve Tappet: 12891-35F00

Width: 17 mm - 0.6 in
Outer Diameter: 24 mm - 0.94 in
Material: Metal
