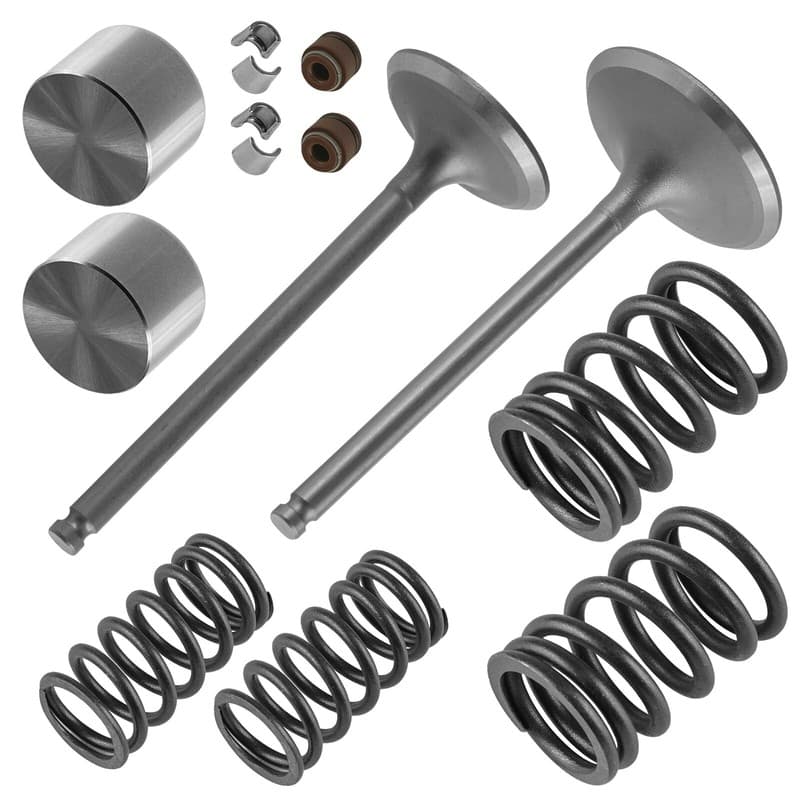

Exhaust & Intake Valve Kit for Suzuki DRZ400E 2000 2001 2002 2003 2004-2007

For Suzuki Models:
DRZ400E 2000-2007

Order Includes:
1 x Exhaust Valve: 12912-29F00
Exhaust Valve Length: 1.14" | 29.0 mm
Exhaust Valve Diameter: 3.18" | 81.0 mm

1 x Intake Valve: 12911-29F00
Intake Valve Length: 1.41" | 36.0 mm
Intake Valve Diameter: 3.22" | 82.0 mm

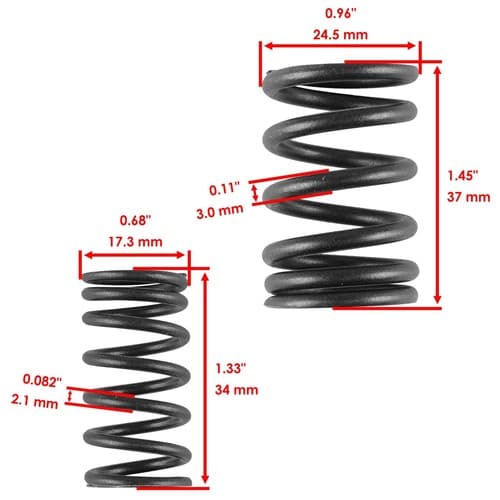

2 x Valve Spring Set:
Outer Valve Spring Width: 0.96" | 24.5 mm
Outer Valve Spring Height: 1.45" | 37.0 mm
Outer Valve Spring Thickness: 0.11" | 3.0 mm

Inner Valve Spring Width: 0.68" | 17.3 mm
Inner Valve Spring Height: 1.33" | 34.0 mm
Inner Valve Spring Thickness: 0.082" | 2.1 mm

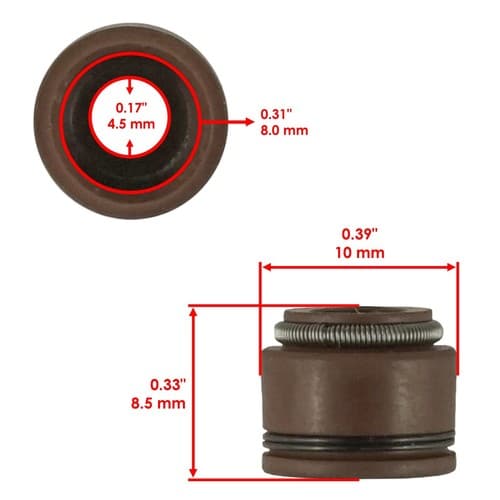

2 x Valve Stem Seal: 09289-05011
Length: 0.39" | 10.0 mm
Width: 0.33" | 8.5 mm
Inner Diameter: 0.17" | 4.5 mm
Outer Diameter: 0.31" | 8.0 mm

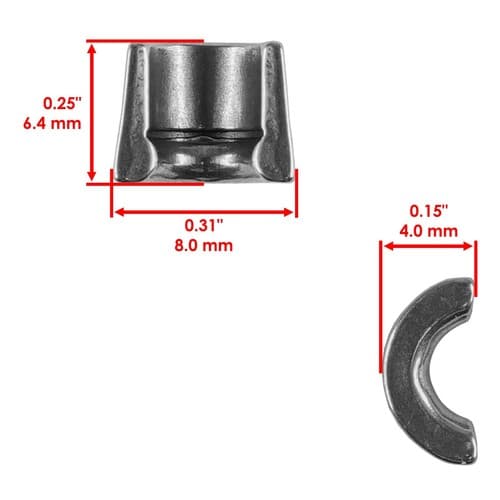

4 x Valve Cotter: 12932-24F00
Width: 0.15 " | 4.0 mm
Length: 0.31 " | 8.0 mm
Height: 0.25 " | 6.4 mm

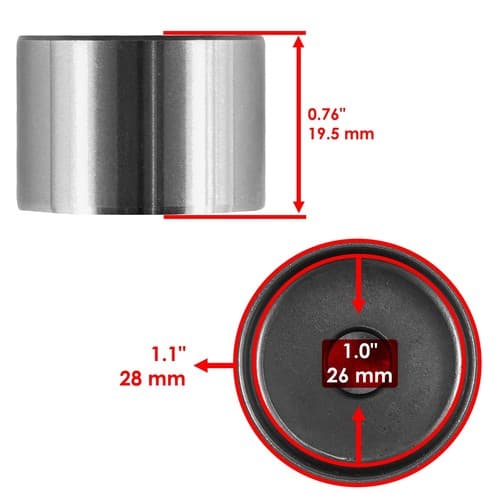

2 x Valve Tappet:
Height:
Inner Diameter:
Outer Diameter:

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
**SHIPS FROM USA**
