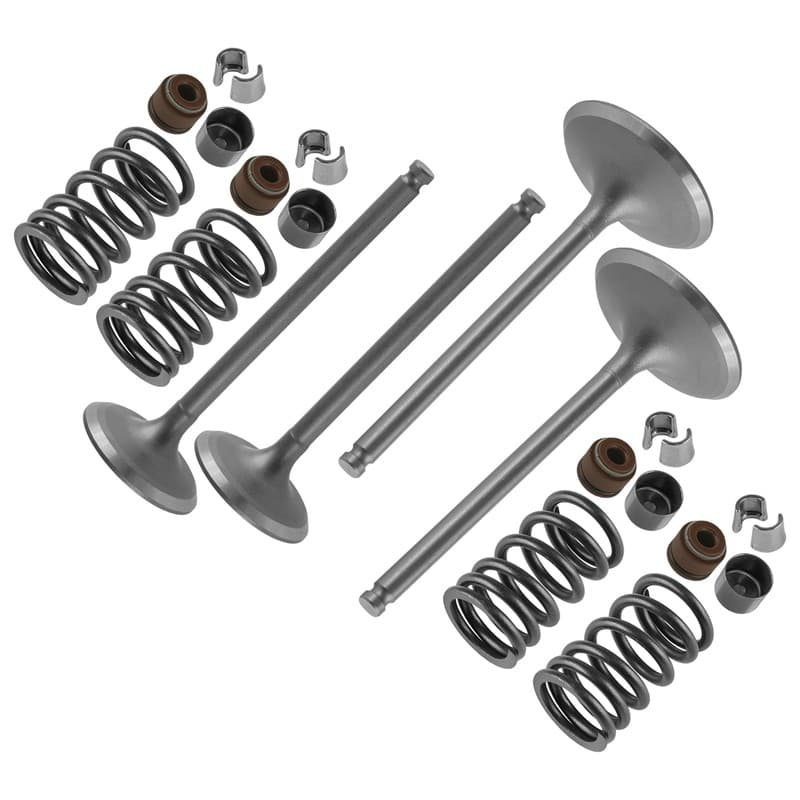

Exhaust and Intake Valve Kit for Suzuki Quadsport 400 LT-Z400 LTZ400 Z 2003-2013

For SUZUKI Models:

Quadsport 400 LT-Z400 2x4 2003-2009 / 2012-2013

Quadsport 400 LT-Z400Z 2x4 2003-2009 / 2012

Part Number:

Exhaust Valve: 12912-29F00

Intake Valve: 12911-29F00

Valve Spring: 12921-03G00

Valve Cotter: 12932-24F00

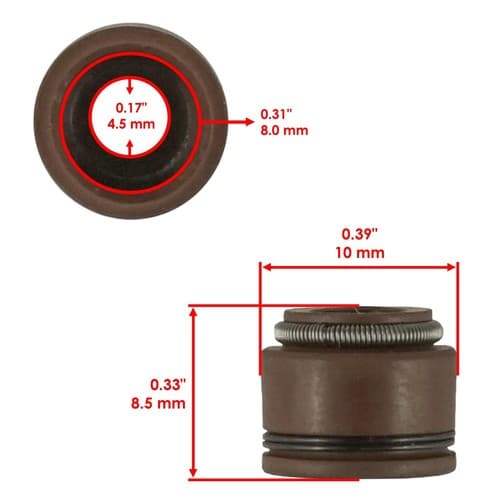

Valve Oil Stem Seal: 09289-05010 09289-05011

Valve Tappet: 12891-02F00 12891-02F10

Dimensions:

Intake Valve Length: 1.41" | 36.0 mm

Intake Valve Diameter: 3.22" | 82.0 mm

Exhaust Valve Length: 1.14" | 29.0 mm

Exhaust Valve Diameter: 3.18" | 81.0 mm

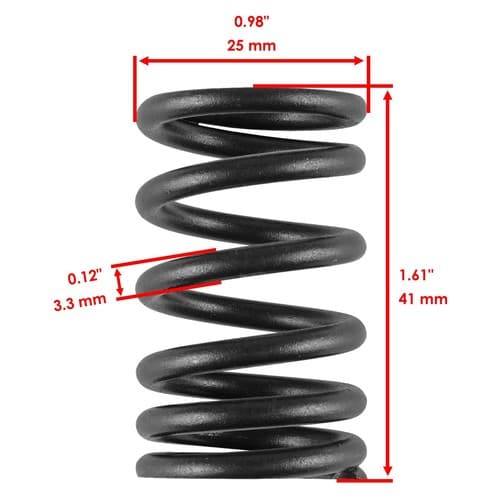

Valve Spring Width: 0.98" | 25.0 mm

Valve Spring Height: 1.61" | 41.0 mm

Valve Spring Thickness: 0.12" | 3.3 mm

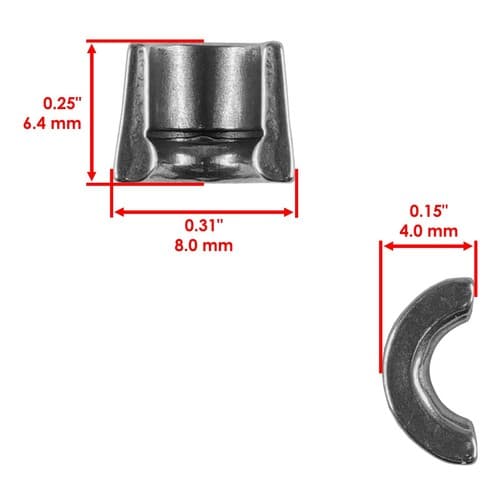

Valve Cotter Width: 0.15 " | 4.0 mm

Valve Cotter Length: 0.31 " | 8.0 mm

Valve Cotter Height: 0.25 " | 6.4 mm

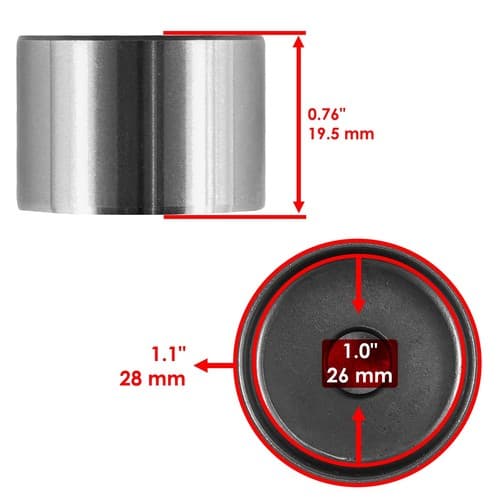

Valve Tappet Height: 0.76" | 19.5 mm

Valve Tappet Inner Diameter: 1.0" | 26.0 mm

Valve Tappet Outer Diameter: 1.1" | 28.0 mm

Order Includes:

2 x Exhaust Valve

2 x Intake Valve

4 x Valve Spring

4 x Valve Stem Seal

8 x Valve Cotter

4 x Valve Tappetm

**MANUFACTURED TO MEET OR EXCEED OEM PERFORMANCE**
