Specifications
- MPN
- 810-CPT2303O
- Mpn
- 810-CPT2303O
- UPC
- 0803467109251
- Type
- Clutch
- Brand
- 8Ten
- Color
- N/A
- Model
- 810-CPT2303O
- Gtin13
- 0803467109251
- Voltage
- N/A
- Material
- N/A
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Width
- 8.1
Description

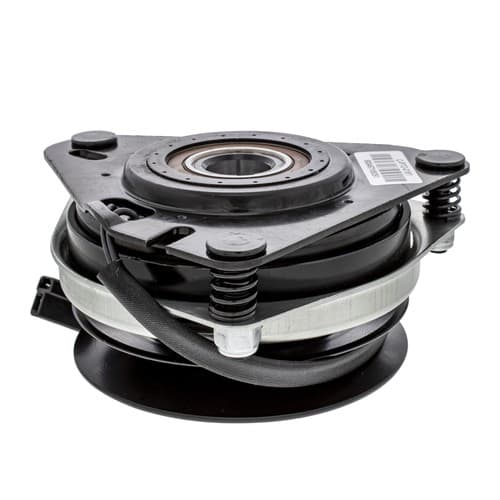

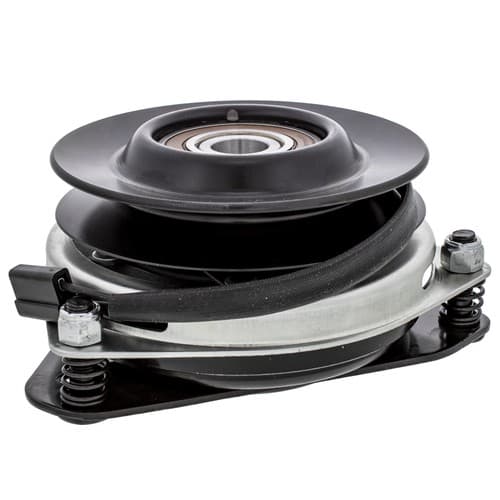

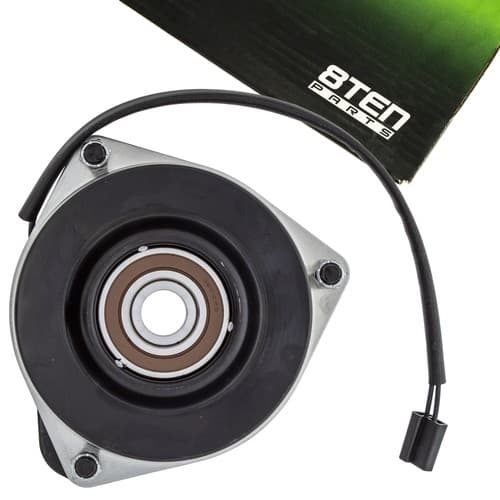

A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of
your machines performance and engages/disengages your mower deck blades.
By purchasing a PTO clutch, you can keep your equipment running smoothly
and the blades rotating without any major machine repairs. Quality and performance
guaranteed!
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 450F
Unique Specs:
Torque: 110ft-lb
Pulley OD: 5.35 Inch
Clutch
your machines performance and engages/disengages your mower deck blades.
By purchasing a PTO clutch, you can keep your equipment running smoothly
and the blades rotating without any major machine repairs. Quality and performance
guaranteed!
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 450F
Unique Specs:
Torque: 110ft-lb
Pulley OD: 5.35 Inch
Clutch

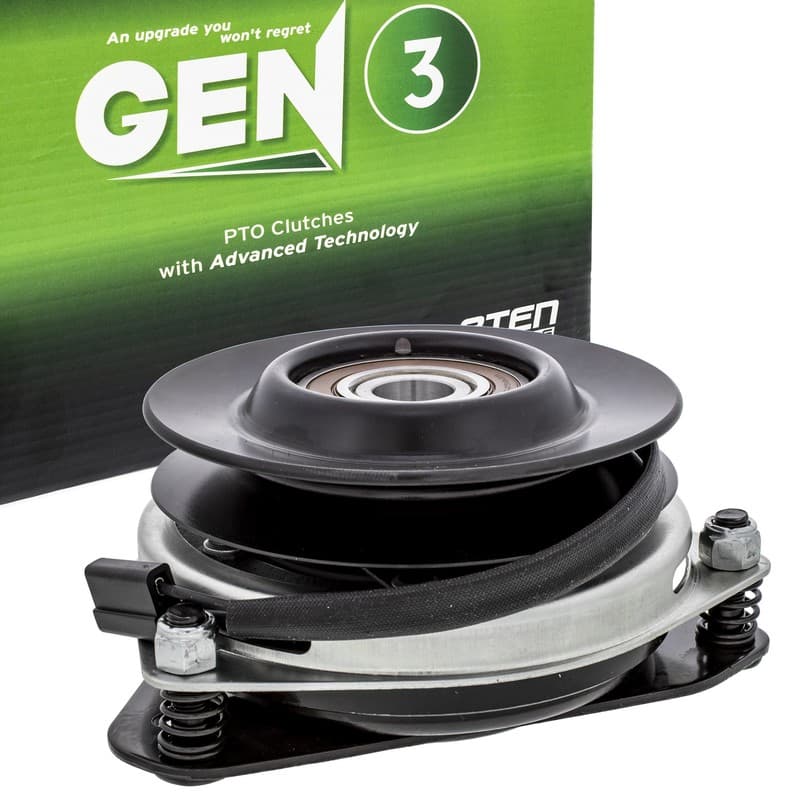

Electric PTO Clutch for Simplicity 2050 2750 ZT2300 ZT18533 CZT18533 2752CE
Description
Direct Replacement for the Following OEM Part Numbers:
01008434P, 759-05064, 1757359YP, 01008434, 1757359, 539124833, 51110100, 5023100, 35016, 33386, 29232, 1720532, 1717664, 124833
Fits The Following OEM Models:
Wheel Horse RJ-59, Wheel Horse RJ-58, Wheel Horse 12-32, Toro Rear Discharge 52 inch, Toro ProLine 120, Toro ProLine 118, Toro Pro 12-44, Toro Pro 11-44, Toro Pro 11-38, Toro Mid-Size ProLine 8hp, Toro Mid-Size ProLine 11hp, Toro GroundsMaster 120, Toro GroundsMaster 117, Toro Electric Start 12hp 38 inch, Toro Electric Start 12hp 32 inch, Toro 8-32 Front Engine, Toro 11-44, Toro 11-42 Front Engine, Toro 11-32 Front Engine, Snapper ZT2548, Snapper ZT2346, Snapper ZT2242, Snapper ZT21546, Snapper ZT20501BV, Snapper ZT20500BV, Snapper ZT2042, Snapper ZT19441KWV, Snapper ZT18441KHC, Snapper ZT18440KH, Snapper ZT1842, Snapper YZ18386BVE, Snapper YZ18336BVE, Snapper YZ16385BVE, Snapper YZ16335BVE, Snapper YZ15384BVE, Snapper YZ15334BVE, Snapper YZ145383BVE, Snapper YZ145382BVE, Snapper YZ145333BVE, Snapper YZ145332BVE, Snapper YZ13381BE, Snapper YZ13331BE, Snapper WLT200H48IBV2, Snapper WLT180H48HBV2, Snapper WLT180H42IBV2, Snapper SZT18386BVE, Snapper SZT18336BVE, Snapper SC2650, Snapper SC21420, Snapper SC18533, Snapper SC18330, Snapper RZT2552, Snapper NHZ14380BVE, Snapper LT200H48IBV2, Snapper LT200H42IBV2, Snapper LT180H48HBV2, Snapper LT180H42IBV2, Snapper LT180H42IBV, Snapper LT160H42IBV, Snapper HZS18482BVE, Snapper HZS16481BVE, Snapper HZS15422KVE, Snapper HZS15421KVE, Snapper HZS15420KVE, Snapper HZS14381BVE, Snapper HZS14380BVE, Snapper HZS14331BVE, Snapper HZS14330BVE, Snapper HZ16480BVE, Snapper HZ15420KVE, Snapper HZ14380BVE, Snapper HZ14330BVE, Snapper EZT20501BV, Snapper EZT20500BV, Snapper EZT2050, Snapper EZT2042, Snapper EYZ15334BVE, Snapper ESZT18336BVE, Snapper CSC18533, Snapper 400ZB2450, Snapper 360ZB2450CE, Snapper 355ZB2450CE, Snapper 355ZB2450, Snapper 355ZB2446, Snapper 355ZB2444, Snapper Pro SW10KAV1332RDECE, Snapper Pro SW10KAV1332ECE, Simplicity ZT3000 50 inch, Simplicity ZT3000 46 inch, Simplicity ZT3000 44 inch, Simplicity ZT27460, Simplicity ZT2552, Simplicity ZT2548, Simplicity ZT2346, Simplicity ZT2242, Simplicity ZT21546, Simplicity ZT21420, Simplicity ZT2042, Simplicity ZT1842, Simplicity KZT2552, Simplicity KZT2242, Simplicity ETZ20420, Simplicity Consumer ZT2450, Simplicity Consumer ZT2050, Simplicity Consumer ZT1844, Simplicity Consumer 50 inch, Simplicity Consumer 44 inch, Simplicity Champion 2752CE, Simplicity Champion 2752, Simplicity Champion 2750, Simplicity Champion 2652, Simplicity Champion 2650, Simplicity Champion 2552CE, Simplicity Champion 2550, Simplicity Champion 2050CE, Simplicity Champion 2050, Simplicity Champion 2044CE, Simplicity Champion 2044, Simplicity Broadmoor 8260 SLT300 127cm, Simplicity Broadmoor 50 inch, Simplicity Broadmoor 48 inch, Simplicity Broadmoor 44 inch, Simplicity Axion ZT18533, Simplicity Axion CZT18533, Simplicity Axion 33 inch, Massey Ferguson ZT2300 52 inch, Massey Ferguson ZT2300 48 inch, Massey Ferguson ZT2300 42 inch, Massey Ferguson MF2600 50 inch, Massey Ferguson Champion ZT 2050, Massey Ferguson Champion ZT 1844, Massey Ferguson Champion 50 inch, Massey Ferguson Champion 44 inch, Massey Ferguson 2623 50 inch, Massey Ferguson 2622 44 inch, Massey Ferguson 2620 50 inch, Ferris HydroCut 36 inch, Ferris HydroCut 32 inch, Cub Cadet Z-Force Pro 54, Cub Cadet Z-Force Pro 48, Cub Cadet Z-Force 54, Cub Cadet Z-Force 50, Cub Cadet Z-Force 48, Cub Cadet Z-Force 44, Cub Cadet Z-Force 18, Cub Cadet Z-Force 15, Cub Cadet Wide-Area HFF1748, Cub Cadet Tank M50, Cub Cadet Enforcer 54, Cub Cadet Enforcer 48, Cub Cadet Enforcer 44, Craftsman ZTL7500
WARNING: This product can expose you to chemicals including lead and phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Warranty
8TEN Parts have a 810-Day Limited Warranty. This 8TEN Parts 810-Day Limited Warranty is your sole remedy with respect to any 8TEN Part.
Please contact us for full warranty details, certain exclusions and restrictions may apply.
Shipping
All items are carefully packed and properly protected for shipment. We use several different carriers and choose the most economical for the item and destination based on the estimated handling and transit time.
This item is subject to a handling time of 1 Business Day(s) from the time of order until the item is expected to ship from our facility!!!
Please make every attempt possible to verify that part/product being purchased is correct for your application
In the event of shipping damage, improper fitment, or a desire to return the product, or any other questions related to a past or future order please feel to contact us.
About 8TEN
Forged directly from the belief that better products for Lawn Mowers, Chainsaws, and all other Outdoor Power Equipment is possible, 8TEN Parts combines attention to detail and a "Get The Job Done Right" attitude. Our high-quality control standards and premium OEM Specification manufacturing materials has created a new standard in the OPE Replacement Parts Industry.
