Specifications
- MPN
- 810-CPT2350O
- Mpn
- 810-CPT2350O
- UPC
- 803467019017
- Type
- Clutch
- Brand
- 8TEN
- Color
- N/A
- Model
- 8TEN 810-CPT2350O
- Gtin13
- 803467019017
- Voltage
- N/A
- Material
- N/A
- Condition
- New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...Read moreabout the conditionNew: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.See all condition definitionsopens in a new window or tab
- Item Width
- 9.0
Description

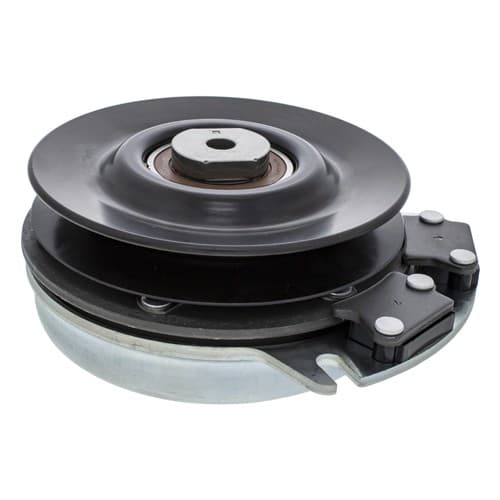

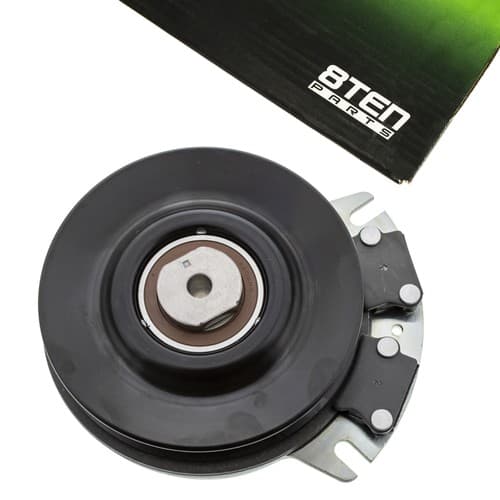

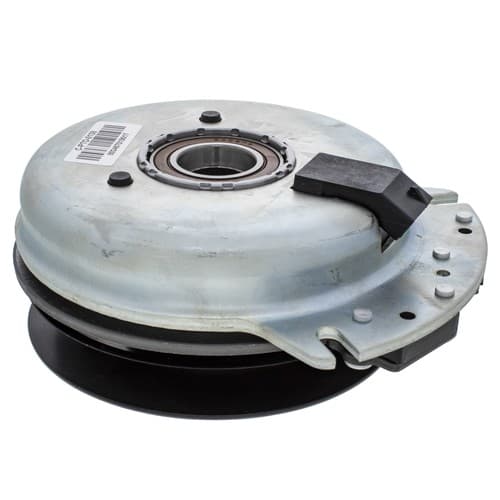

A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of your machines performance and engages/disengages your mower deck blades. By purchasing a PTO clutch, you can keep your equipment running smoothly and the blades rotating without any major machine repairs. Quality and performance guaranteed!
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F
Unique Specs:
Torque: 280Nm (205ft-lb)
Resistance at 70F: 2.0+-0.1
PTO Specifications
Life: B10 life of 25,000 cycles at 2000 hours
Environment: Ambient -40F to +200F
Bearing Operating Temperatures: -40F to +350F
Coil Operating temperatures: -40F to +350F
Operating Speed: Input speeds up to 3600 rpm
Stop Time: 4 seconds
Working Noise: Low
Voltage Insulation: 1000V
Performance Enhancement: Friction Ring
Temperature Fuse Melting Point of Coil: 365F
Unique Specs:
Torque: 280Nm (205ft-lb)
Resistance at 70F: 2.0+-0.1

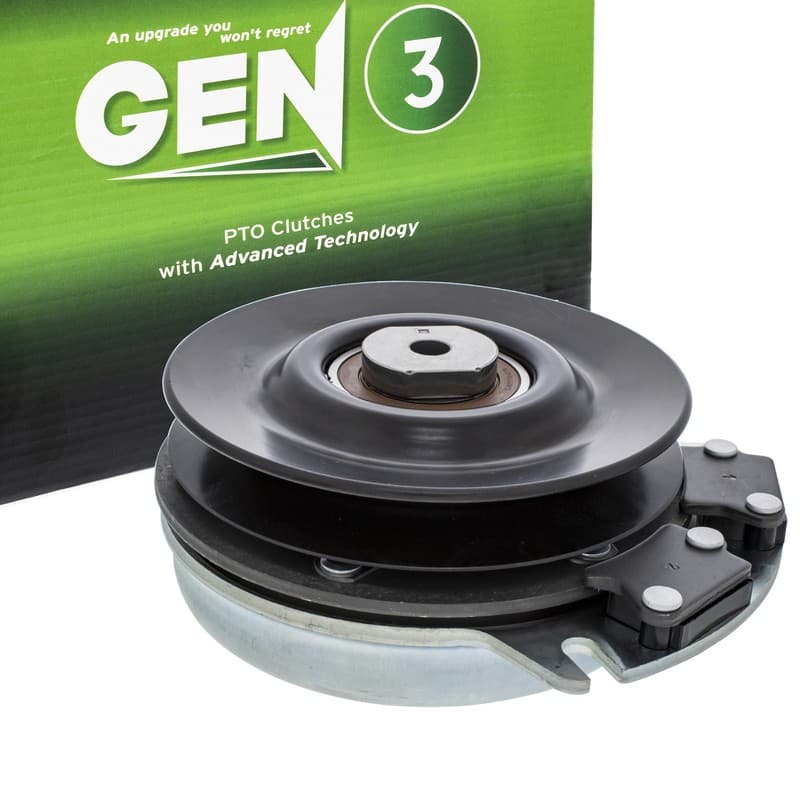

Electric PTO Clutch for Exmark Z Turf Hydro Lazer Ranger 1800 Tracer 103-0662
Description
Direct Replacement for the Following OEM Part Numbers:
103-0662, 103-0660, 103-0661, 1-631731, 103-0500, 1-631644, E631644, 633098, 631644, 1-641213, 1-634541, 1-634311, 1-633098, 1-631801, 1-611248
Fits The Following OEM Models:
Toro Z-Master Z253 62 inch SFS, Toro Z-Master Z253 52 inch SFS, Toro Z-Master Z252, Toro Z-Master Z200 52 inch SFS, Toro Whirlwind II 21 inch Deluxe, Toro Whirlwind 21 inch, Exmark Turf Tracer X-Series Propane Hydro ECS, Exmark Turf Tracer X-Series Hydro ECS, Exmark Turf Tracer X-Series 60 inch Propane Hydro ECS, Exmark Turf Tracer X-Series 60 inch Hydro ECS Stand-On, Exmark Turf Tracer X-Series 60 inch Hydro ECS, Exmark Turf Tracer X-Series 52 inch Propane Hydro ECS, Exmark Turf Tracer X-Series 52 inch Hydro ECS, Exmark Turf Tracer X-Series 24hp Propane Hydro ECS, Exmark Turf Tracer X-Series 24hp Hydro ECS, Exmark Turf Tracer X-Series 21hp Hydro ECS, Exmark Turf Tracer X-Series 20hp Hydro ECS, Exmark Turf Tracer Hydro 23hp Pistol Grip, Exmark Turf Tracer Hydro 23hp ECS, Exmark Turf Tracer Hydro 23hp 60 inch, Exmark Turf Tracer Hydro 23hp 52 inch, Exmark Turf Tracer Hydro 22hp 60 inch, Exmark Turf Tracer Hydro 22hp 52 inch, Exmark Turf Tracer Hydro 20hp ECS, Exmark Turf Tracer Hydro 20hp 60 inch, Exmark Turf Tracer Hydro 20hp 52 inch, Exmark Turf Tracer Hydro 19hp 60 inch, Exmark Turf Tracer Hydro 19hp 52 inch, Exmark Turf Tracer Hydro 18hp 60 inch, Exmark Turf Tracer Hydro 18hp 52 inch, Exmark Lazer Z 72 inch, Exmark Lazer Z 60 inch, Exmark Lazer Z 52 inch
